HIKVISION 4K 8MP DS-2CD2343G2-IU IP Camera System NVR 8CH DS-7608NI-K1/8P Lot D1

Data sheet PDF

Product Description

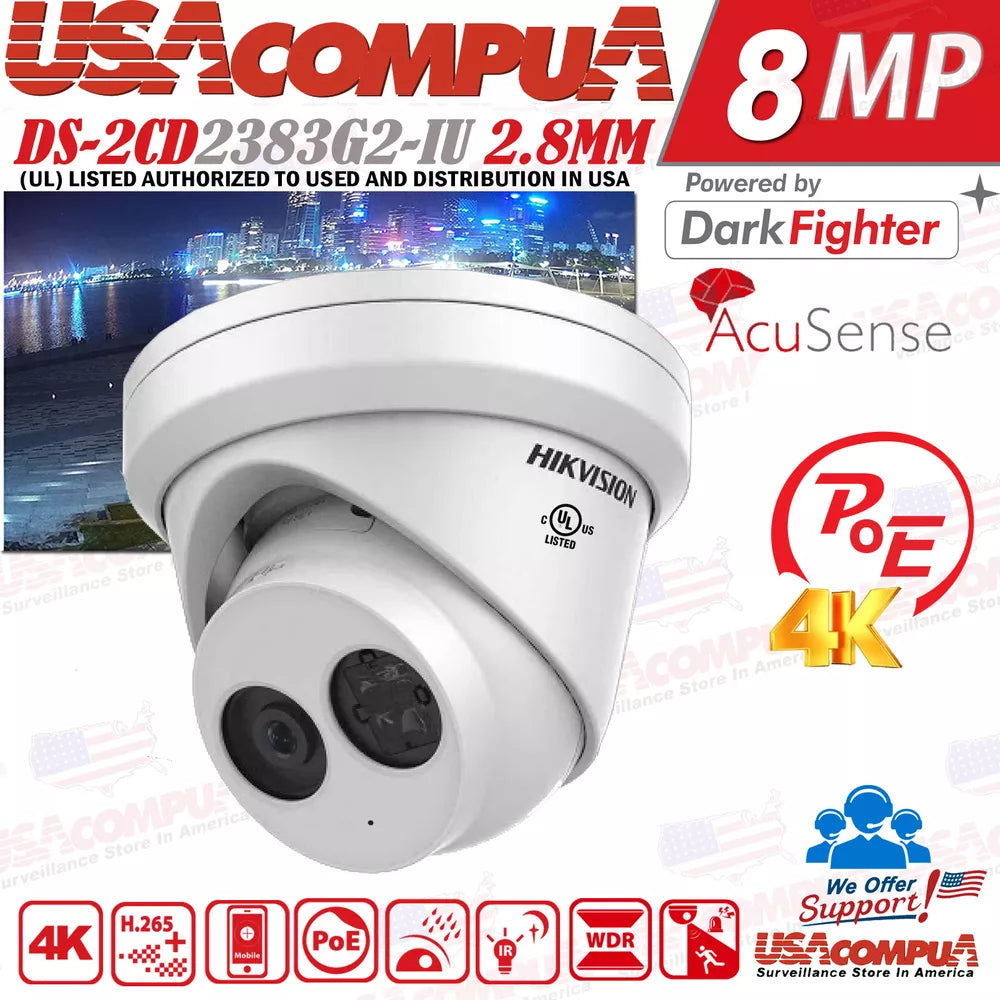

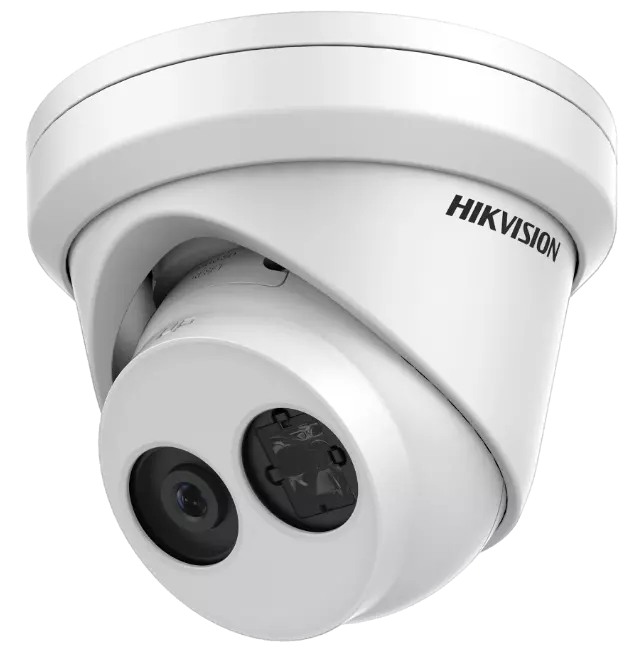

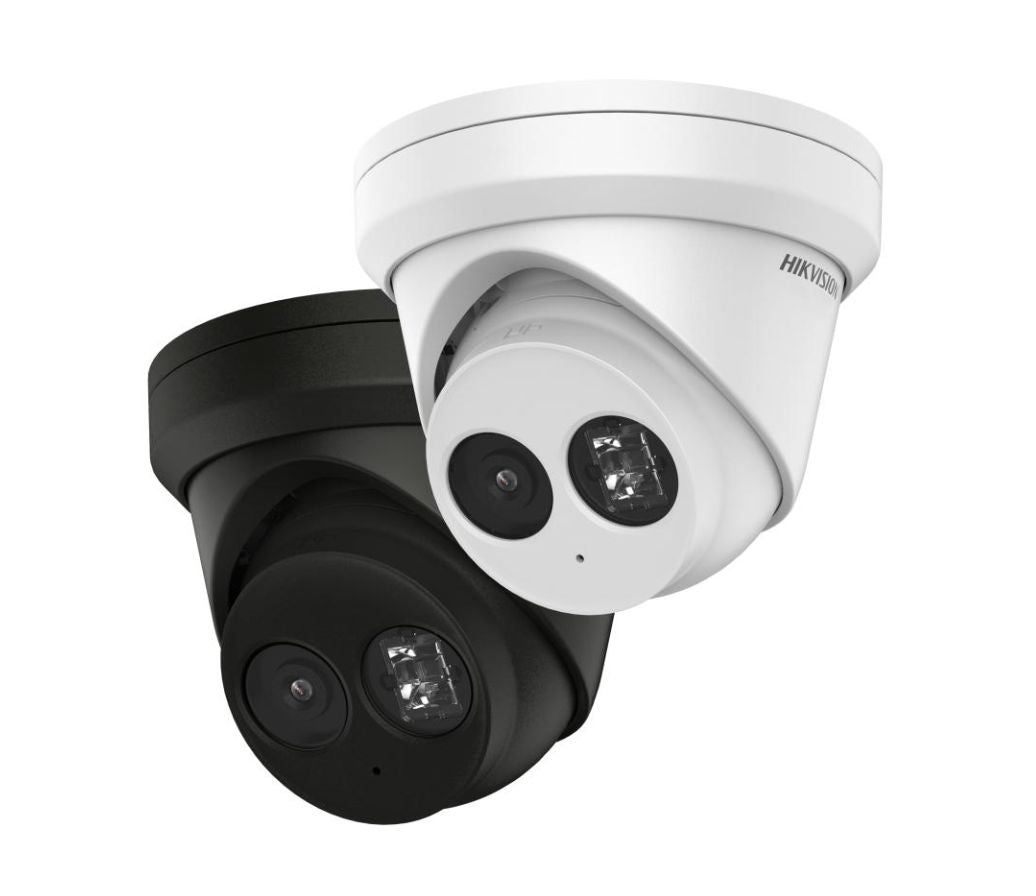

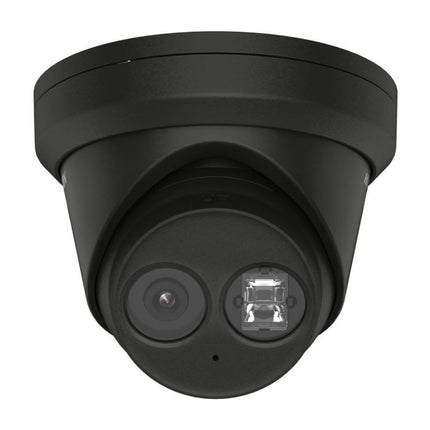

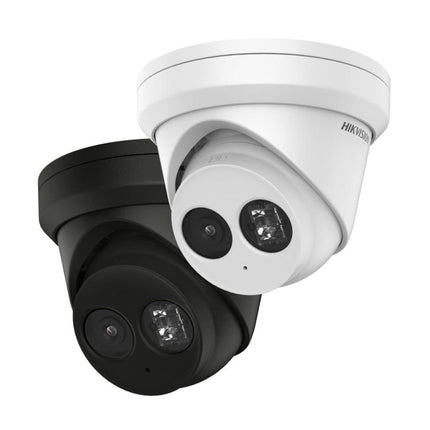

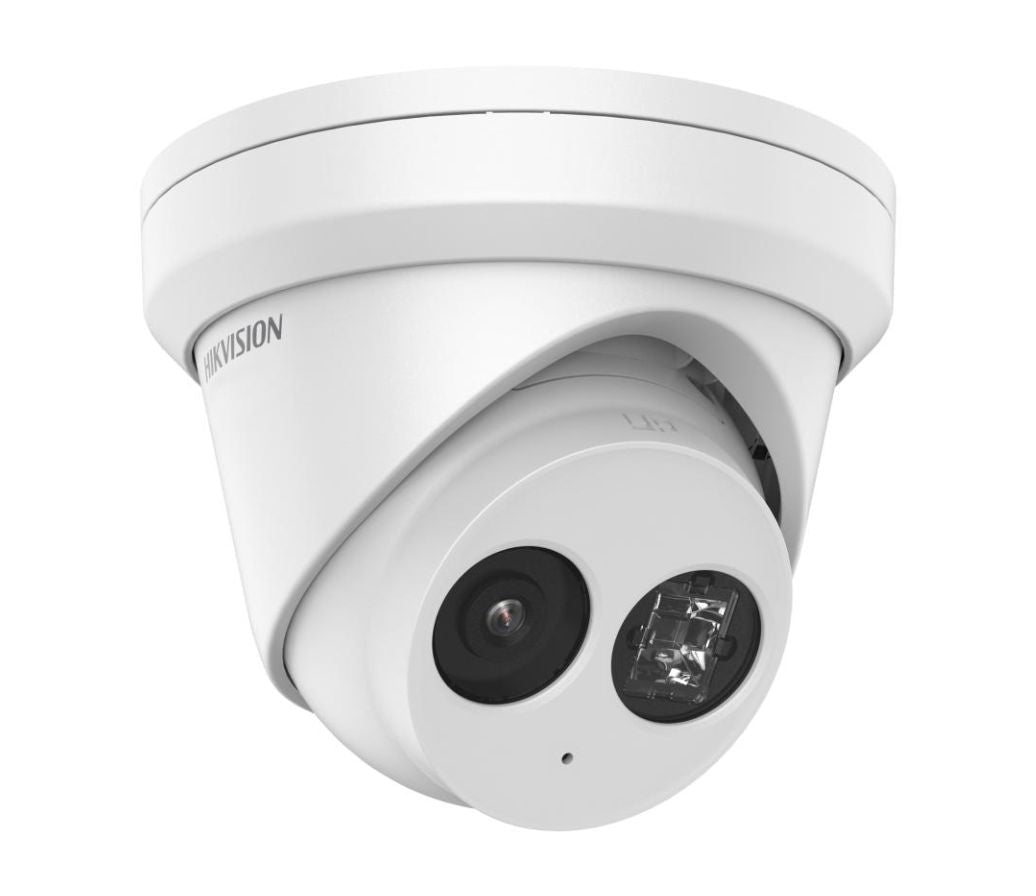

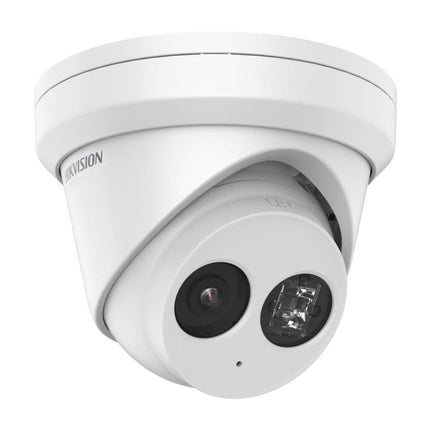

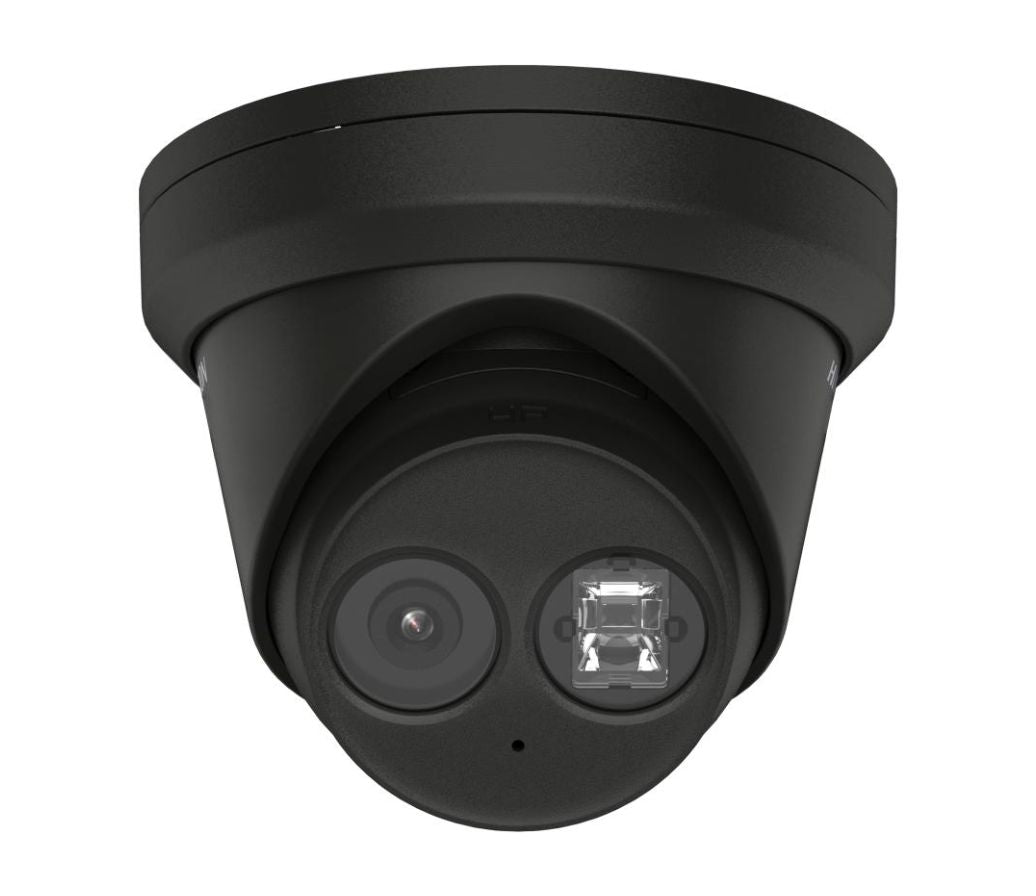

8 MP AcuSense Fixed Turret Network Camera

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 120 dB WDR technology
• Focusing on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

• Camera
• Image Sensor1/2.8" Progressive Scan CMOS
• Max. Resolution3840 ? 2160
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 360?,tilt: 0? to 75?,rotate: 0? to 360?
• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 107?, vertical FOV 57?, diagonal FOV 128?

  4 mm, horizontal FOV 87?, vertical FOV 46?, diagonal FOV 105?

• Lens MountM12
• Iris TypeFixed
• ApertureF1.6
• DORI
• DORI

  2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m

  4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm
• Video
• Main Stream

  50 Hz: 20 fps (3840 ? 2160) 25 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720); 60 Hz: 20 fps (3840 ? 2160) 30 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Third Stream

  50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360),

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264 (*Third stream is supported under certain settings.)

• Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream
• Audio
• Audio Type-U: Mono sound
• Audio Compression-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering-U: Yes
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR? 52 dB
• Image EnhancementBLC, HLC, 3D DNR
• Privacy Mask4 programmable polygon privacy masks
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Built-In Microphone-U: Yes
• Reset KeyYes
• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart EventLine crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), face detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
• General
• Power

  12 VDC ? 25%, 0.5 A, max. 6 W,?5.5 mm coaxial power plug,reverse polarity protection,

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W

• Dimension

  ?127.3 mm ? 95.9 mm (?5.0 ? 3.8\")"

• Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
• WeightApprox. 600 g (1.3 lb.)
• With Package WeightApprox. 891 g (2.0 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Language

  33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionHeartbeat,anti-flicker,password reset via email,pixel counter
• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013

Data sheet PDF

Product Description

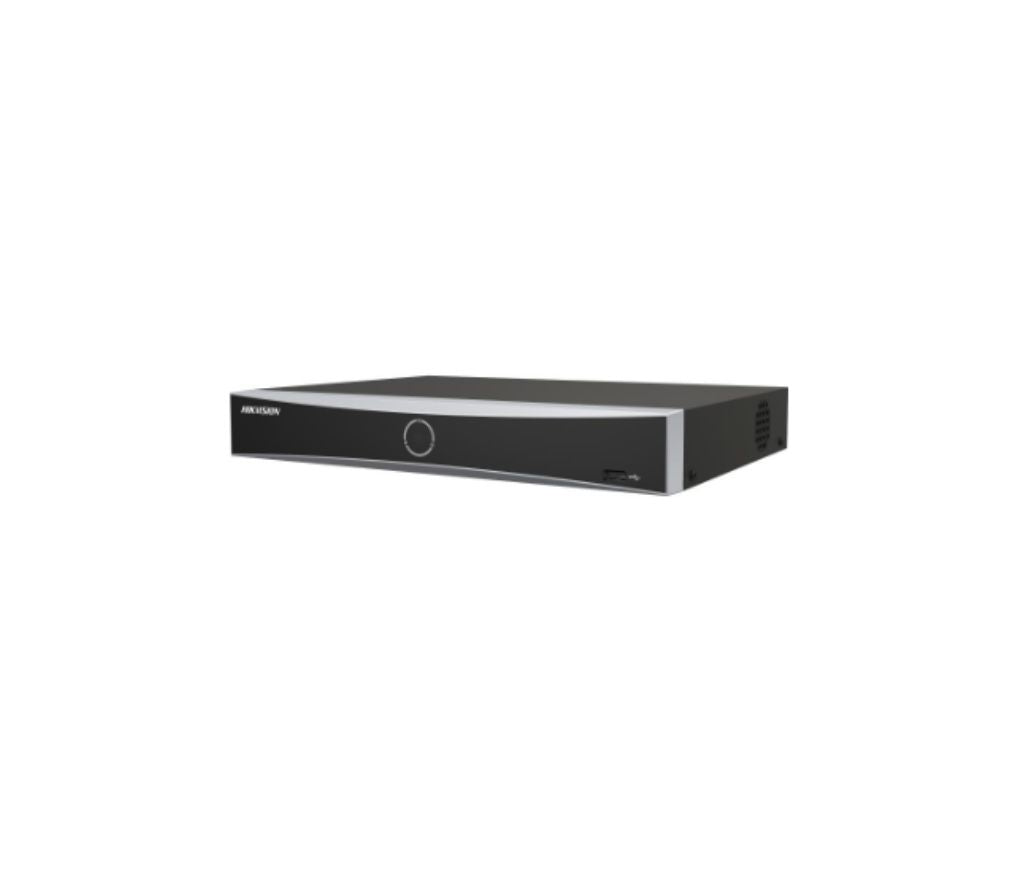

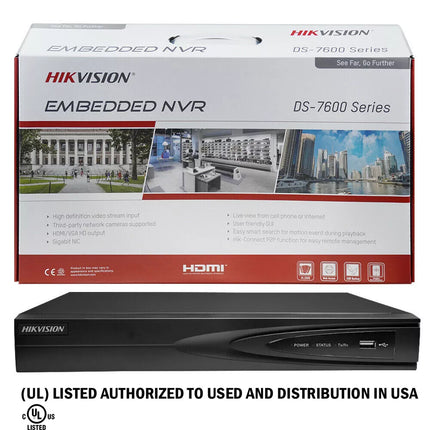

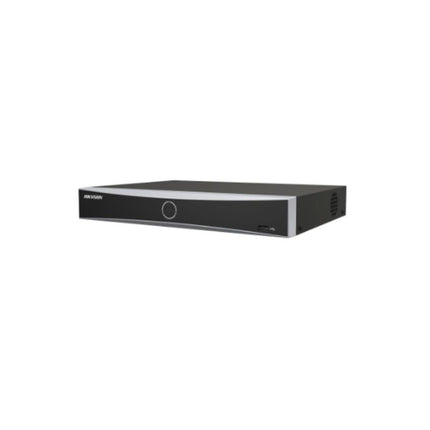

8-ch PoE 1U K Series AcuSense 4K NVR

• Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity
• Up to 80 Mbps incoming bandwidth
• Adopt Hikvision Acusense technology to minimize manual effort and security costs

Specification

• Intelligent Analytics

• Facial Recognition

• Motion Detection 2.0

• Perimeter Protection

• Throwing Objects From Building

• Video And Audio

• Decoding

• Network

• PoE

• Auxiliary Interface

• General

• Certification

• Intelligent Analytics
• AI By DeviceFacial recognition, perimeter protection, motion detection 2.0
• AI By CameraFacial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

• Facial Recognition
• Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
• Face Picture LibraryUp to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ? 4 MB, total capacity ? 1 GB)
• Facial Detection And Analytics Performance1-ch, 8 MP
• Face Picture Comparison4-ch

• Motion Detection 2.0
• By Device1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;4-ch, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm;All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
• By CameraAll channels

• Perimeter Protection
• By Device1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
• By CameraAll channels

• Throwing Objects From Building
• By CameraAll channels

• Video And Audio
• IP Video Input8-ch
• Incoming Bandwidth80 Mbps
• Outgoing Bandwidth80 Mbps
• HDMI Output1-ch, 4K (3840 ? 2160)/30 Hz, 2K (2560 ? 1440)/60 Hz, 1920 ? 1080/60 Hz, 1600 ? 1200/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
• VGA Output1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output;HDMI/VGA independent output
• CVBS OutputN/A
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)

• Decoding
• Decoding FormatH.265/H.265+/H.264+/H.264
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback8-ch
• Decoding Capability

  AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

  AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC

• Network
• Remote Connection128
• APIONVIF (profile S/G); SDK; ISAPI
• Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS

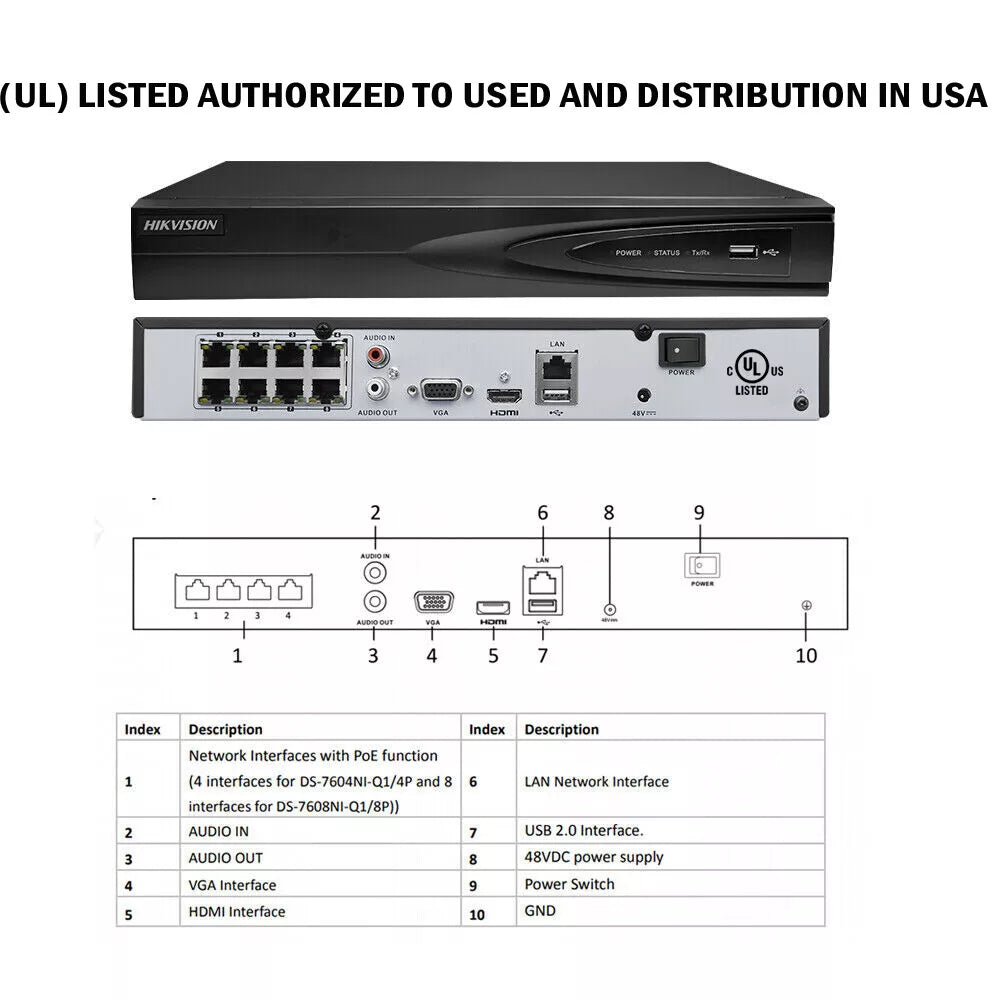

• Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface;1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

• PoE
• Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power? 75 W
• StandardIEEE 802.3af/at

• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 10 TB capacity for each HDD
• USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 2.0
• Alarm In/Out4/1;N/A;N/A ;N/A (4/1 is optional)

• General
• GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
• Power Supply48 VDC, 1.875 A
• Consumption? 10 W (without HDD, and PoE off)
• Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
• Working Humidity10% to 90%
• Dimension (W ? D ? H)320 mm ? 240 mm ? 48 mm (12.6"? 9.4" ? 1.9")
• Weight? 1 kg (without HDD, 2.2 lb.)

• Certification
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
• Obtained CertificationCE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
