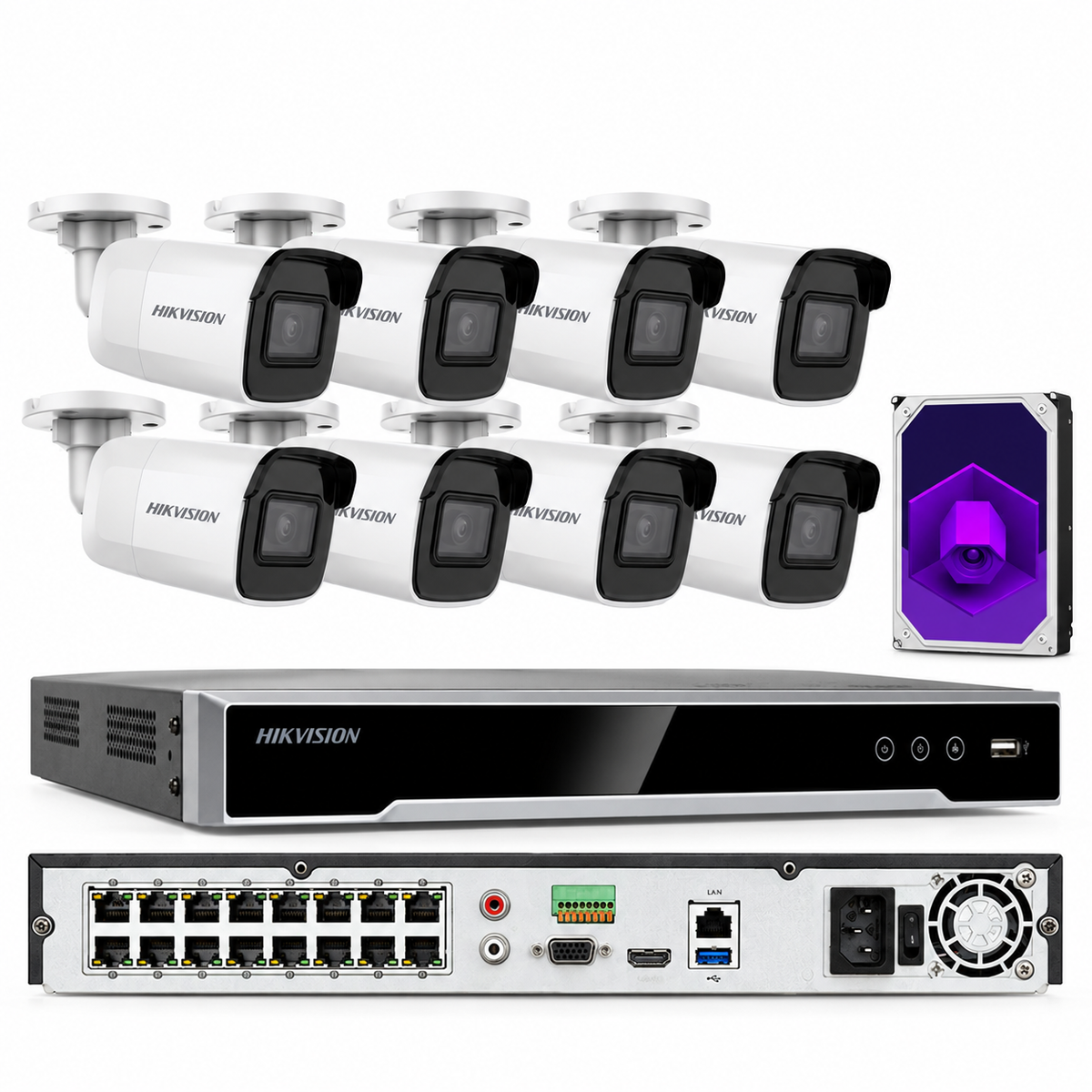

Hikvision 4K Security camera System 2MP 16 channel IP H.265 WDR 2TB PURPLE

Data sheet PDF

Product Description

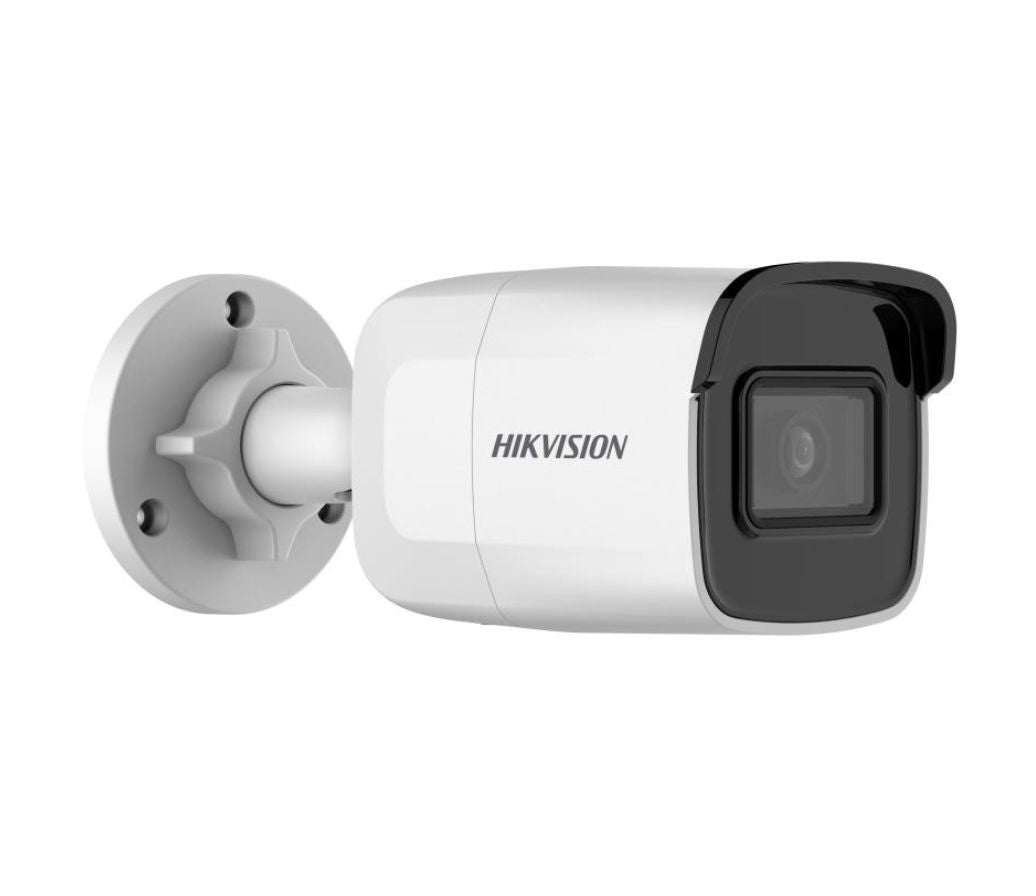

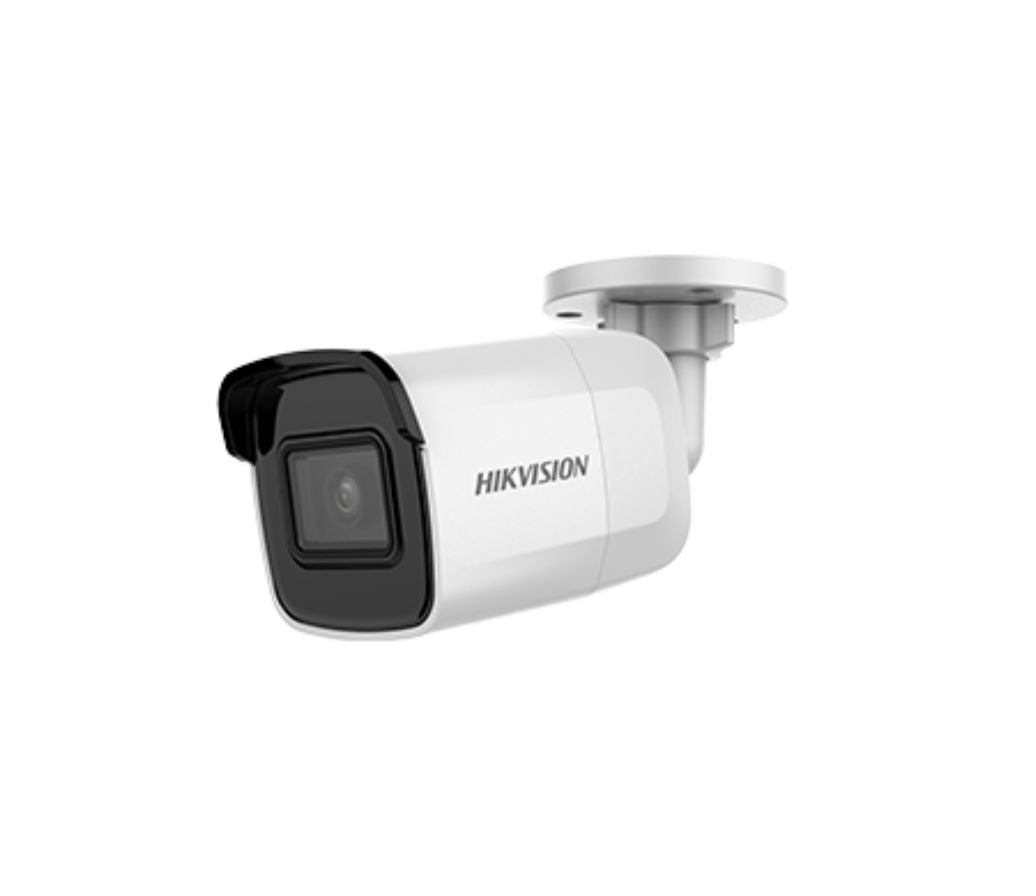

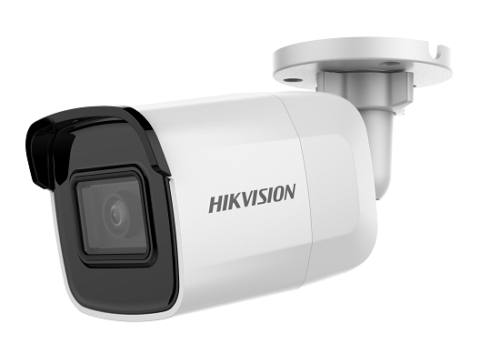

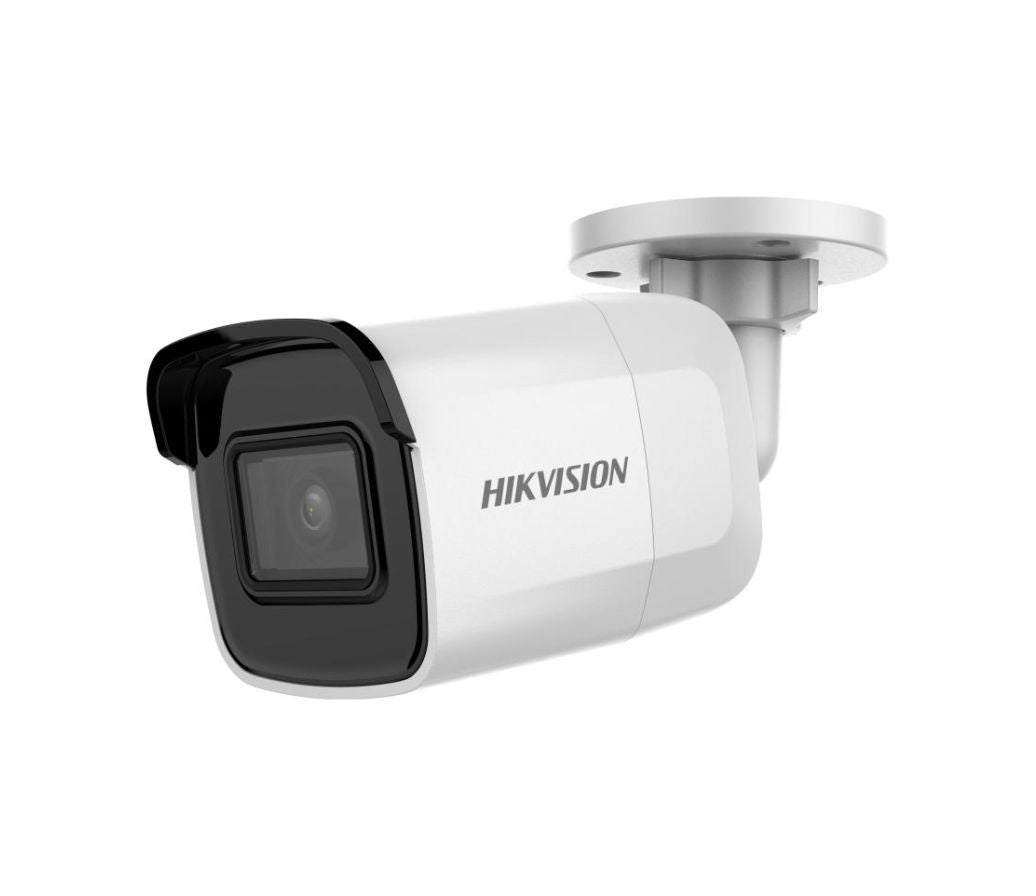

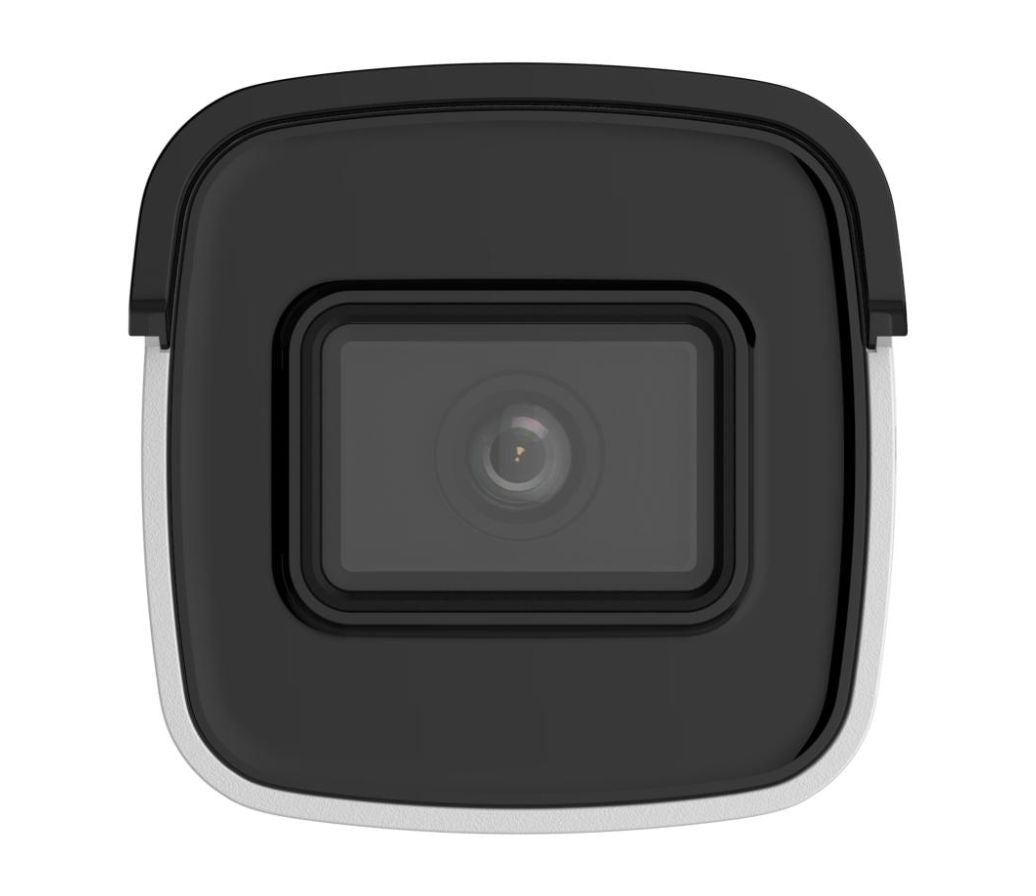

2 MP WDR Fixed Mini Bullet Network Camera

• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67)
• Support up to 256 GB SD card storage

Specification

• Camera
• Image Sensor1/2.7" Progressive Scan CMOS
• Max. Resolution1920 ? 1080
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0? to 360?, tilt: 0? to 90?, rotate: 0? to 360?
• Lens
• FocusFixed
• Focal Length & FOV

  2.8 mm: horizontal FOV 111.6?, vertical FOV 59.1?, diagonal FOV 133.9?

  4 mm: horizontal FOV 91.5?, vertical FOV 46.1?, diagonal FOV 109.8?

  6 mm: horizontal FOV 56?, vertical FOV 29.8?, diagonal FOV 65.3?

• Lens MountM12
• ApertureF1.6
• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• IR Wavelength850 nm
• Video
• Main Stream

  50 Hz: 25 fps (1920 ? 1080, 1280 ? 720)

  60 Hz: 30 fps (1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50Hz: 25 fps (640 ? 480, 640 ? 360)

  60Hz: 30 fps (640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Region Of Interest (ROI)Support 1 fixed region for main stream
• Network
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• Network StorageSupport Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Image EnhancementBLC, 3D DNR
• Wide Dynamic Range (WDR)120 dB
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in Micro SD slot, up to 256 GB
• Reset Key

  Yes

• Event
• Smart EventLine crossing detection, intrusion detection
• LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
• General
• Power

  12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 to 57 V, 0.2 A to 0.15 A, max. 6.5 W

• MaterialMetal, Plastic
• Dimension69.7 mm ? 67.9 mm ? 171.4 mm (2.7" ? 2.7" ? 6.7")
• Package Dimension216 mm ? 121 mm ? 118 mm (8.5" ? 4.8" ? 4.7)
• WeightApprox. 350 g (0.8 lb.)
• With Package WeightApprox. 450 g (1.0 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
• Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,

  French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,

  Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,

  Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
• Approval
• EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
• EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• ProtectionIP67 (IEC 60529-2013)

Data sheet PDF

Product Description

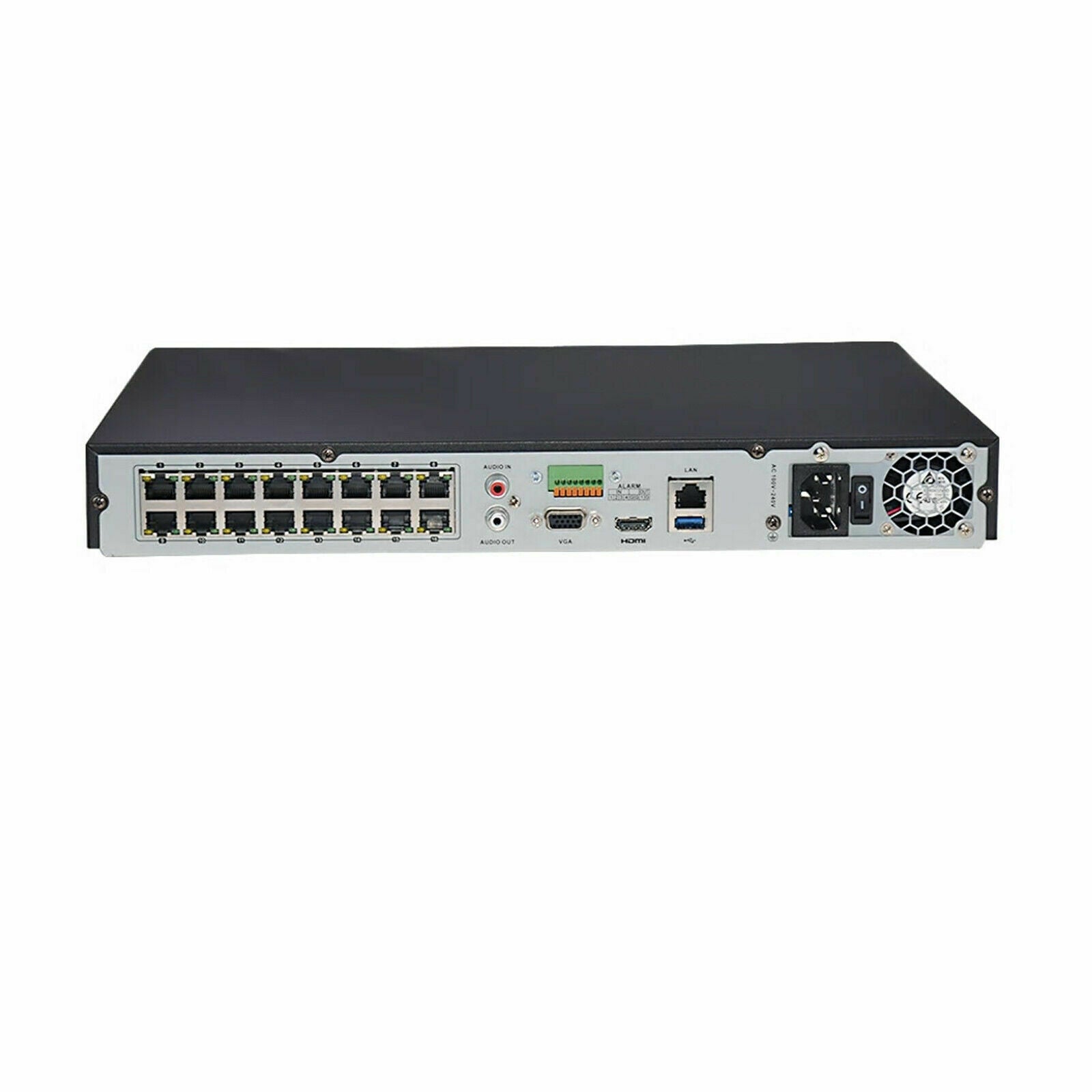

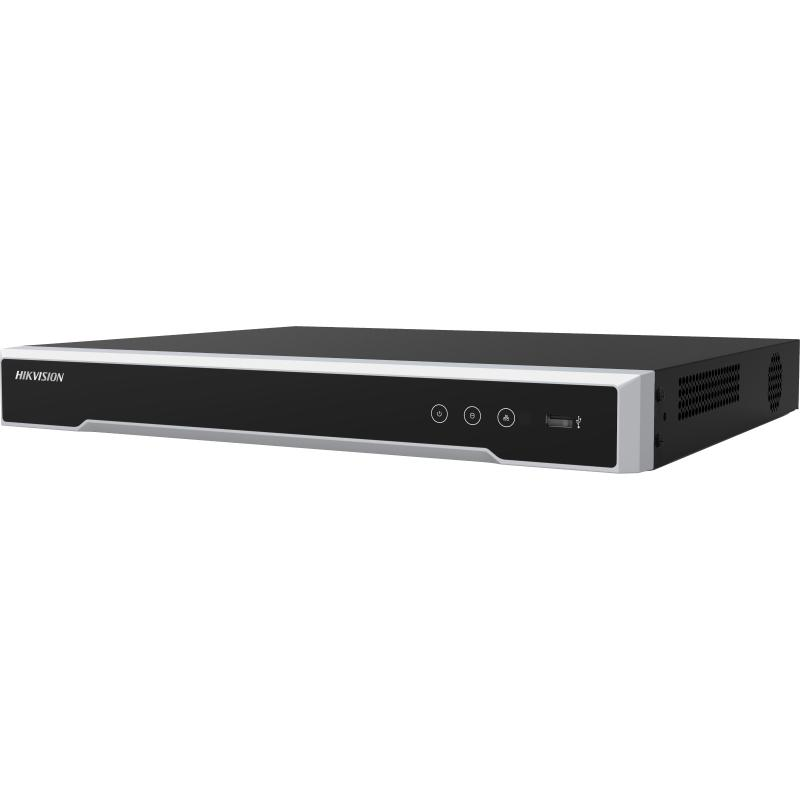

16ch 1U 16 PoE 4K NVR

• Up to 16ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
• Up to 160 Mbps incoming bandwidth

Specification

• Motion Detection 2.0
• Human/Vehicle Analysis4
• Video And Audio
• IP Video Input16ch
• HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA Output1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Incoming Bandwidth160 Mbps
• Outgoing Bandwidth80 Mbps
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)
• Decoding
• Decoding FormatH.265+,H.265,H.264+,H.264
• Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
• Synchronous Playback16ch
• Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Network
• Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• PoE
• Interface16ch;16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power? 150W
• StandardIEEE 802.3 af/at
• RAID
• RAID TypeNo
• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 8TB capacity for each disk
• USB Interface2 ? USB 2.0
• General
• Power Supply100-240V?, 50/60Hz, 3.2A MAX
• Consumption? 15W
• Working Temperature-10 to +55? C (+14 to +131? F)
• Working Humidity10 to 90 %
• Chassis1U chassis
• Dimension (W ? D ? H)385 ? 315 ? 52 mm (15.2"? 12.4" ? 2.0")
• Weight? 2.6 kg (5.7 lb)
