HIKVISION 4K security System CCTV Dome 8MP IP Camera IK10 DS-2CD2183G0-I lot
HIKVISION 4K security System CCTV Dome 8MP IP Camera IK10 DS-2CD2183G0-I lot
Hurry up, only 2 items left in stock.
Description
Description

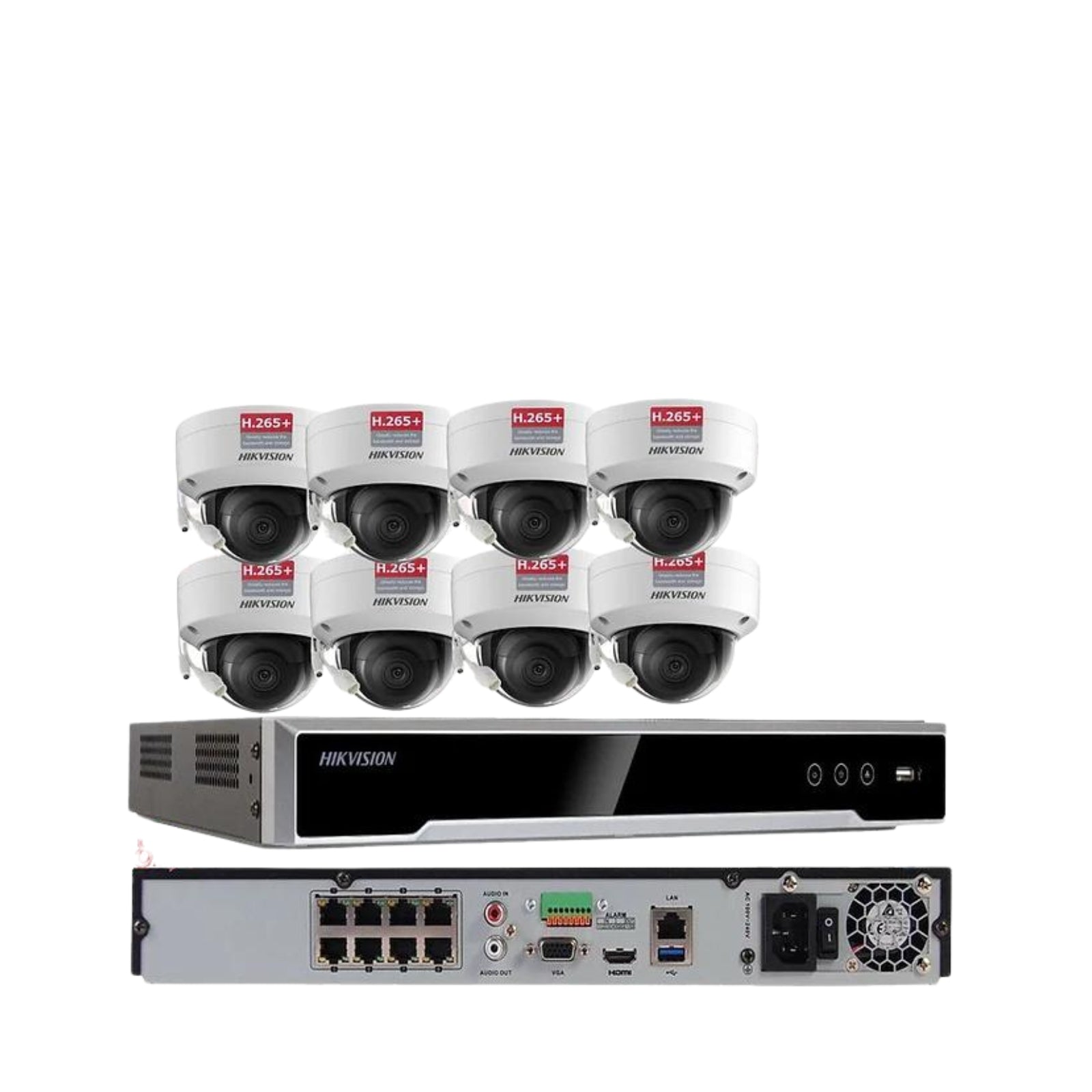

HIKVISION 4K security System CCTV Dome 8MP IP Camera IK10 DS-2CD2183G0-I lot
This listing includes:
- CAMERA QUANTITY (DS-2CD2183G0-I): 2;3;4;5;6;7;8
- HARD DRIVE OPTION FOR RECORDER DS-7608NI-K2/8P: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB
DS-2CD2183G0-I view data sheet
4K Outdoor WDR Fixed Dome Network Camera
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- -S: audio and alarm interface available
- Water and dust resistant (IP67) and vandal proof (IK10)
- Robust structure design with full metal materials
DS-7608NI-K2/8P view data sheet
8ch 1U 8 PoE 4K NVR
- Up to 8ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@8 MP or 4ch@4 MP or 8ch@1080p decoding capacity
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
- Up to 80 Mbps incoming bandwidth
- Plug-and-play with 8 power over Ethernet (PoE) interfaces
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description

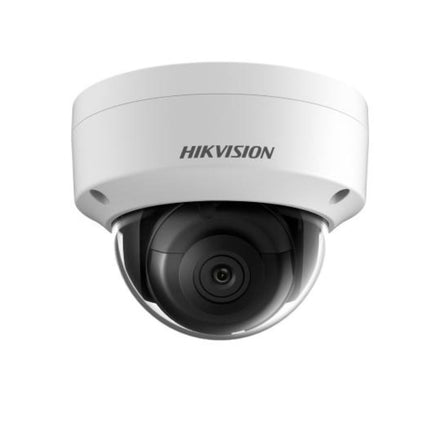

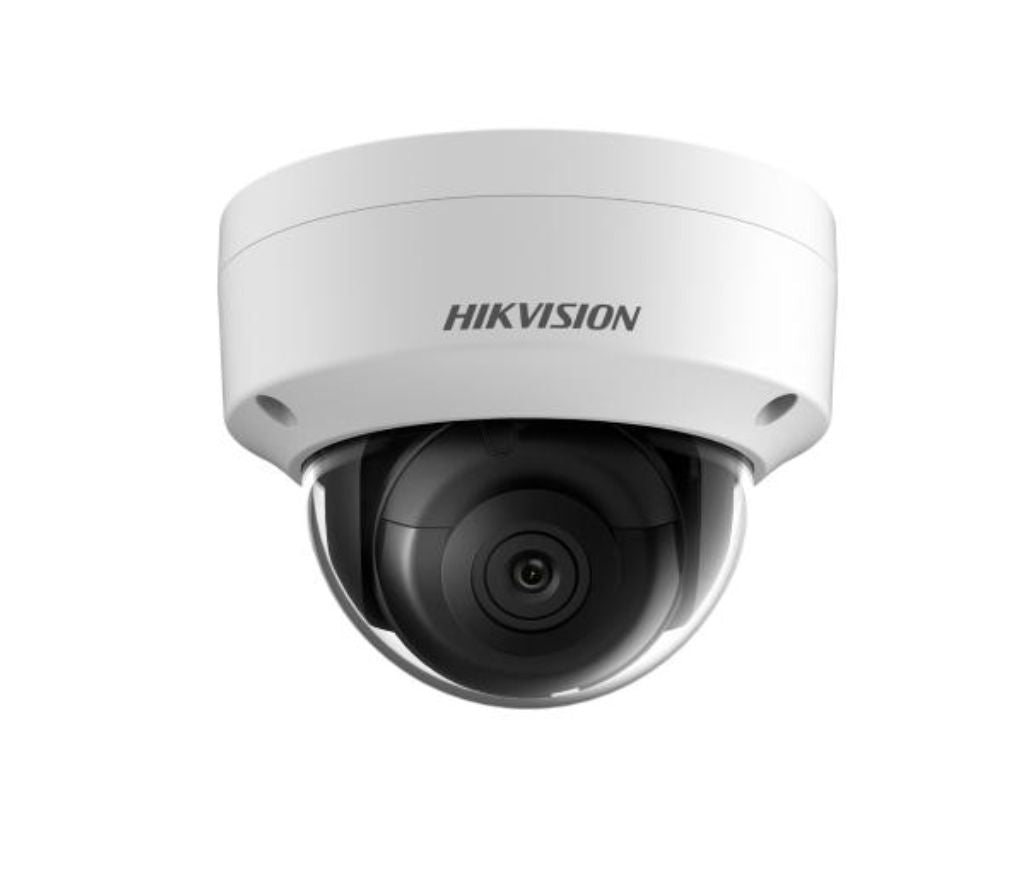

4K Outdoor WDR Fixed Dome Network Camera
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- -S: audio and alarm interface available
- Water and dust resistant (IP67) and vandal proof (IK10)
- Robust structure design with full metal materials
- Camera
- Image Sensor1/2.5" Progressive Scan CMOS
- Min. IlluminationColor: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
- Shutter Speed1/3 s to 1/100,000 s
- Slow ShutterYes
- Wide Dynamic Range120dB
- Day & NightIR Cut Filter
- Angle AdjustmentPan: 0? to 355?, tilt: 0? to 75?, rotate: 0? to 355?
- Lens
- FocusFixed
- Lens Type2.8/4/6/8 mm
- FOV2.8 mm, horizontal FOV: 102?, vertical FOV: 53?, diagonal FOV: 124?,4 mm, horizontal FOV: 79?, vertical FOV: 42?, diagonal FOV: 95?,6 mm, horizontal FOV: 50?, vertical FOV: 28?, diagonal FOV: 59?,8 mm, horizontal FOV: 40?, vertical FOV: 25?, diagonal FOV: 53?
- ApertureF2.0
- Lens MountM12
- Aperture TypeFixed
- Illuminator
- IR RangeUp to 30 m
- Wavelength850nm
- Video
- Max. Resolution3840 ? 2160
- Main Stream50Hz: 12.5 fps (3840 ? 2160), 20fps (3072 ? 1728), 25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720),60Hz: 15 fps (3840 ? 2160), 20fps (3072 ? 1728), 30 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)
- Sub Stream50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240),60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240)
- Third Stream50Hz: 25fps (1280 ? 720, 640 ? 360, 352 ? 288),60Hz: 30fps (1280 ? 720, 640 ? 360, 352 ? 240)
- Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 16 Mbps
- H.264 TypeMain Profile/High Profile
- H.265 TypeMain Profile
- H.264+Main stream supports
- H.265+Main stream supports
- Scalable Video Coding (SVC)H.264 and H.265 encoding support
- Audio
- Environment Noise FilteringYes
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
- Network
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, WebSocket, WebSockets
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
- ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
- Web BrowserPlug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+
- Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
- Image
- Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
- Target CroppingNo
- DNR3D DNR
- Image EnhancementBLC/3D DNR /HLC
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
- Interface
- Audio1 input (line in/mic in), 1 output (line out), terminal block, mono sound
- Alarm1 input;1 output (max. 12 VDC, 30 mA), terminal block
- Video OutputNo
- On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
- Hardware ResetYes
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Face DetectionYes
- General
- General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Startup And Operating Conditions-30 ?C to +60 ?C (-22 ?F to +140 ?F), humidity 95% or less (non-condensing)
- Power Supply12 VDC ? 25%, ? 5.5 mm ,PoE(802.3af, class 3)
- Power Consumption And CurrentDC: 12 V, 0.6 A, max. 7.5 W,PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 9 W
- Camera DimensionCamera: ? 111 mm ? 82.4 mm (? 4.4" ? 3.2"),Package: 134 ? 134 ? 108 mm (5.3" ? 5.3" ? 4.3")
- Camera WeightCamera: approx. 500 g (1.1 lb.)
- Approval
- ProtectionIK10, IP67
Data sheet PDF
Product Description

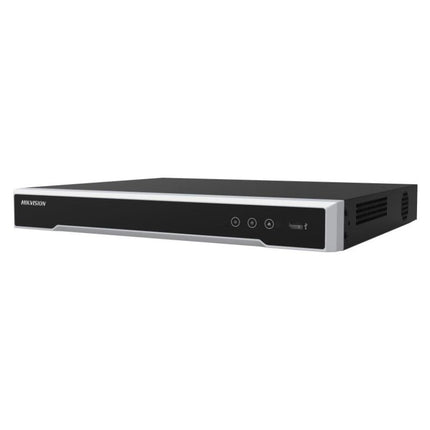

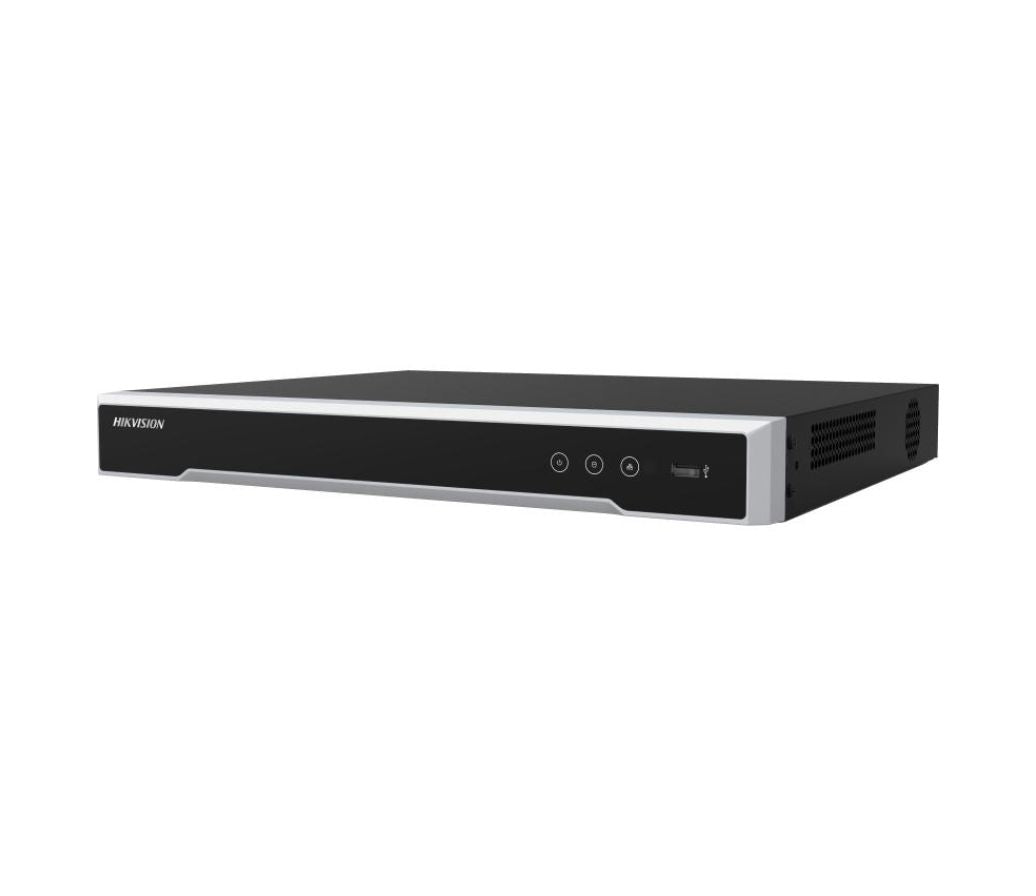

8ch 1U 8 PoE 4K NVR
- Up to 8ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@8 MP or 4ch@4 MP or 8ch@1080p decoding capacity
- 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
- 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
- Up to 80 Mbps incoming bandwidth
- Plug-and-play with 8 power over Ethernet (PoE) interfaces
Specification
- Video And Audio
- IP Video Input8ch
- Incoming Bandwidth80 Mbps
- Outgoing Bandwidth160 Mbps
- HDMI Output4K (3840 ? 2160)/30 Hz, 2K (2560 ? 1440)/60 Hz, 1920 ? 1080/60 Hz, 1600 ? 1200/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
- VGA Output1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
- Video Output ModeHDMI/VGA independent output
- Audio Input1-ch, RCA (2.0 Vp-p, 1 K?)
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1k?, using the audio input)
- Decoding
- Decoding FormatH.265/H.265+/H.264/H.264+
- Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Synchronous Playback8ch
- Decoding Capability1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4ch@4 MP (30 fps)/8ch@1080p (30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
- Network
- Remote Connection128ch
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
- Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power? 120 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 10 TB capacity for each HDD
- USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 2.0
- Alarm In/Out4/1
- General
- Power Supply48VDC?2.5A
- Consumption? 15 W (without HDD and PoE off)
- Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
- Working Humidity10 to 90 %
- Dimension (W ? D ? H)380 ? 317 ? 51.5 mm (15.0" ? 12.5" ? 2.0")
- Weight? 3 kg (without HDD, 6.6 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
