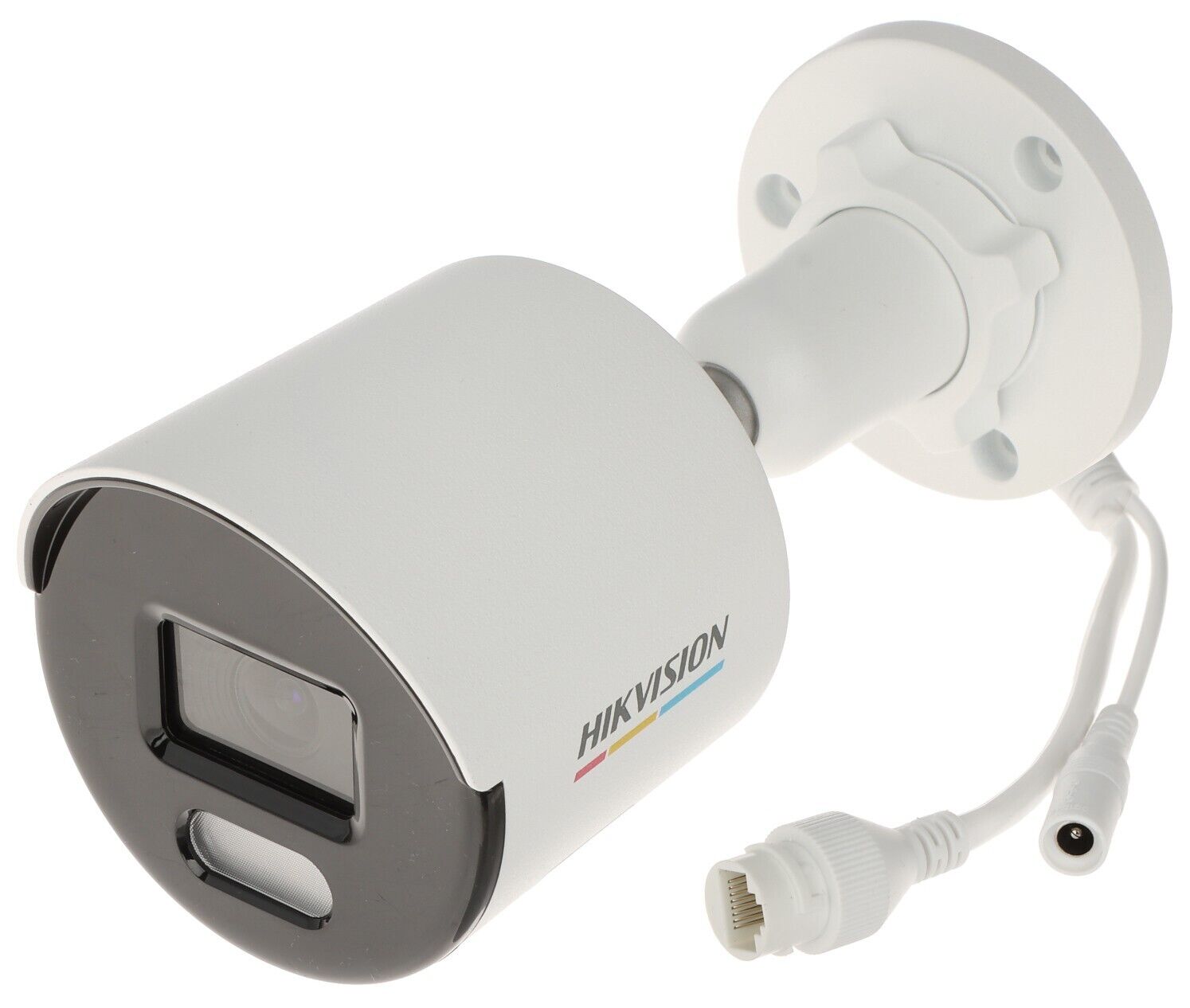

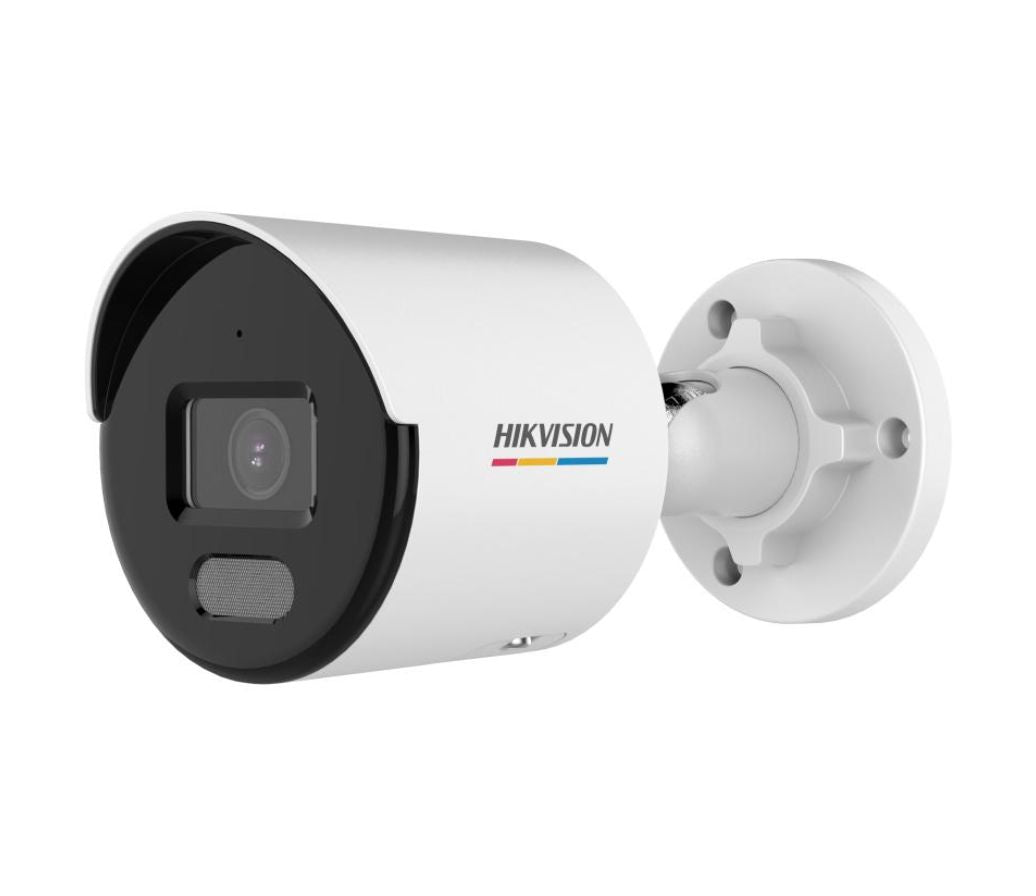

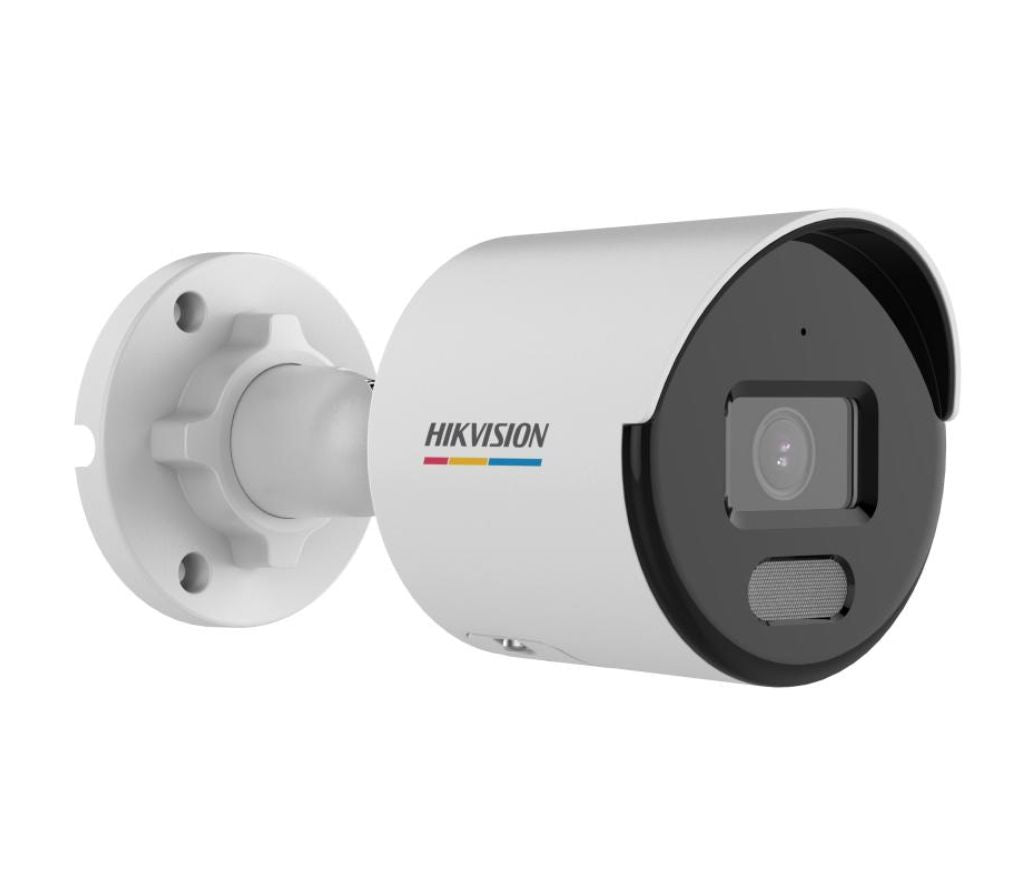

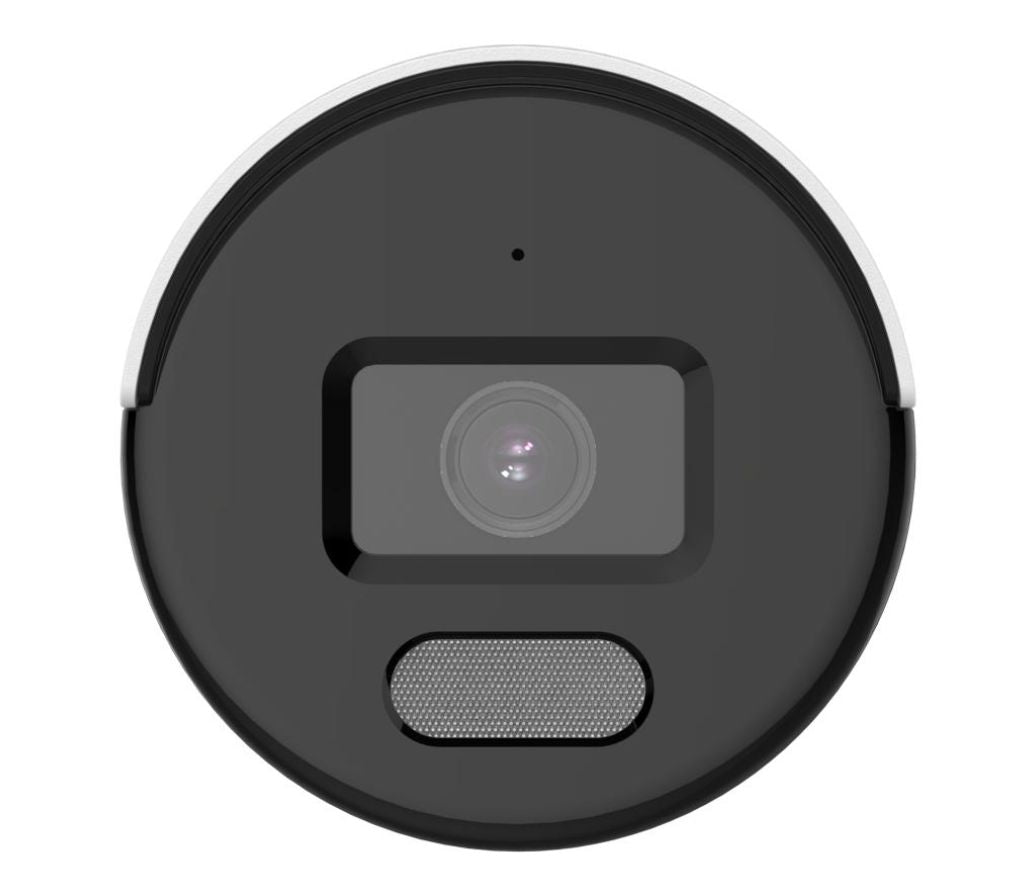

Hikvision 4MP DS-2CD3047GOE-LUF IP PoE Camera w/ Audio ColorVu Ultra Series
Hikvision 4MP DS-2CD3047GOE-LUF IP PoE Camera w/ Audio ColorVu Ultra Series
24/7 Color
Human and Vehicle Detection
One Way Audio
Out of stock
Description
Description
Hikvision 4MP DS-2CD3047GOE-LUF IP PoE Camera w/ Audio ColorVu Ultra Series
This listing includes:
-  (1) IP/POE CAMERA: DS-2CD3047G0E-LUF
DS-2CD3047G0E-LUF  view data sheet
4 MP ColorVu Fixed Mini Bullet Network Camera
- High quality imaging with 4 MP resolution
- Excellent low-light performance
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
- 24/7 colorful imaging
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
4 MP ColorVu Fixed Mini Bullet Network Camera
- High quality imaging with 4 MP resolution
- Excellent low-light performance
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
- 24/7 colorful imaging
Specification
- Camera
- Image Sensor1/3" Progressive Scan CMOS
- Max. Resolution2560 ? 1440
- Min. IlluminationColor: 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
- Shutter Time1/3 s to 1/100, 000 s
- Angle AdjustmentPan: 0? to 360?, tilt: 0? to 90?, rotate: 0? to 360?
- Lens
- Focal Length & FOV
2.8 mm, horizontal FOV 96.5?, vertical FOV 50.8?, diagonal FOV 113.9?
4 mm, horizontal FOV 75.8?, vertical FOV 40.8?, diagonal FOV 89.1?
- Lens MountM12
- FocusFixed
- ApertureF1.0
- DORI
- DORI
2.8 mm, D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
4 mm, D: 77.4 m, O: 30.7m, R: 15.5m, I: 7.7 m
- Illuminator
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- Video
- Main Stream
50 Hz:
20 fps (2560 ? 1440),
25 fps (1920 ? 1080, 1280 ? 720)
60 Hz:
20 fps (2560 ? 1440),
30 fps (1920 ? 1080, 1280 ? 720)
- Sub-Stream
50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)
60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)
- Third Stream
50 Hz: 1 fps (640 ? 360)
60 Hz: 1 fps (640 ? 360)
- Video Compression
Main stream: HH.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Region Of Interest (ROI)1 fixed region for main stream
- Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- ClientiVMS-4200, Hik-Connect
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)130 dB
- Image EnhancementBLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
- Built-In MicrophoneYes
- Reset KeyYes
- Event
- Basic EventMotion detection, video tampering alarm, exception
- Smart EventLine crossing detection, intrusion detection
- LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
- General
- Power
12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Dimension?76.6 mm ? 164.4 mm (?3" ? 6.5")
- Package Dimension234 mm ? 120 mm ? 117 mm (9.2" ? 4.7" ? 4.6")
- WeightApprox. 430 g (0.95 lb.)
- With Package WeightApprox. 648 g (1.42 lb.)
- Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
- Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Approval
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
KC (KN 32: 2015, KN 35: 2015)
- Safety
UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
