Hikvision 4MP PTZ DS-2SE7C432MW-AEB Zoom Camera PoE Smart-tracking
Hikvision 4MP PTZ DS-2SE7C432MW-AEB Zoom Camera PoE Smart-tracking
24/7 Color
One Way Audio
Pan Tilt Zoom (PTZ)
Smart Tracking
Out of stock
Description
Description

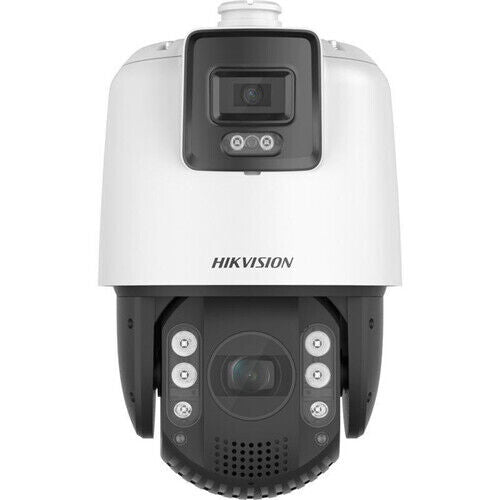

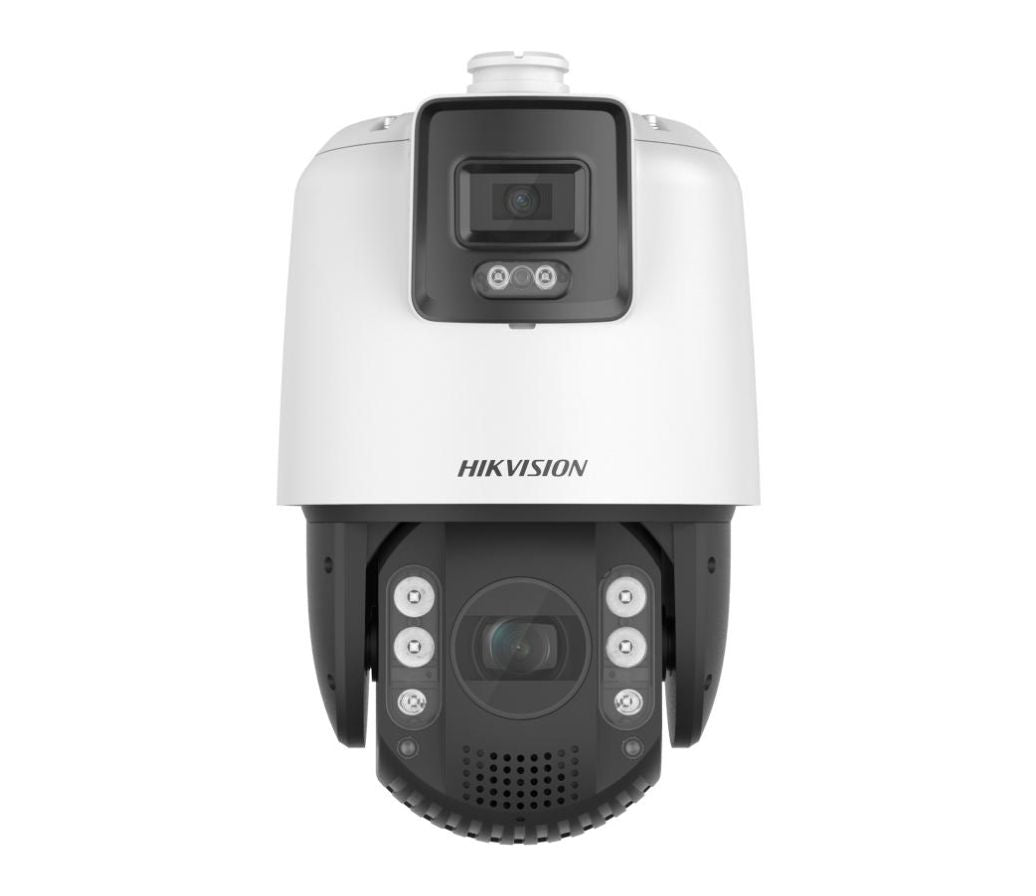

Hikvision 4MP PTZ DS-2SE7C432MW-AEB Zoom Camera PoE Smart-tracking
This listing includes:
-  (1) IP/POE CAMERA: DS-2SE7C432MW-AEB
DS-2SE7C432MW-AEB  view data sheet
TandemVu 7-inch 4 MP 32X Colorful & IR Network Speed Dome
- Captures a large area and great details at the same time
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Secures an expansive area with 32? optical zoom and 16? digital zoom
- Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus
- Expansive night view with up to 200 m IR distance
- Supports 24 VAC & Hi-PoE
- Active strobe light and audio alarm to warn intruders off
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
TandemVu 7-inch 4 MP 32X Colorful & IR Network Speed Dome
- Captures a large area and great details at the same time
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Secures an expansive area with 32? optical zoom and 16? digital zoom
- Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus, rapid focus
- Expansive night view with up to 200 m IR distance
- Supports 24 VAC & Hi-PoE
- Active strobe light and audio alarm to warn intruders off
Specification
- Camera
- Image Sensor[Bullet channel]: 1/1.8" Progressive Scan CMOS; [PTZ channel]: 1/1.8" progressive scan CMOS
- Min. Illumination
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
[PTZ channel]: Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 Lux with IR
- Shutter Speed1 s to 1/30,000 s
- Slow Shutteryes
- Focussemi-auto;manual;auto
- Day & NightICR
- Zoom[PTZ channel] 32 ? optical, 16 ? digital
- Day/Night Switchday, night, auto, scheduled-switch
- BLCyes
- WDR120 dB WDR
- HLCyes
- 3D DNRyes
- Defogyes
- EISyes
- Regional Exposureyes
- Regional Focusyes
- Image Settingssaturation;brightness;contrast;sharpness
- White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB
- SNR?52dB
- General Functionmirror, password protection, watermark, IP address filter
- Max. Resolution[Bullet channel] 2560 ? 1440, [PTZ channel] 2560 ? 1440
- Lens
- Focal Length[Bullet channel]: 4 mm; [PTZ channel]: 5.9 to 188.8 mm, 32 ? optical
- Zoom Speed[PTZ channel]: approx. 5.6 s
- FOV
[Bullet channel]: Horizontal field of view: 88.7?, Vertical field of view: 44.7?;
[PTZ channel]: Horizontal field of view: 60.2? to 2.3? (wide-tele)
- Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.5
- Illuminator
- Supplement Light Type[Bullet channel] white light, [PTZ channel] IR
- Supplement Light Range[Bullet channel] white light: up to 30 m, [PTZ channel] IR: up to 200 m
- Smart Supplement LightYes
- PTZ
- Movement Range (Pan)360?
- Movement Range (Tilt)-15? to 90? (auto flip)
- Pan Speedpan speed: configurable from 0.1? to 160?/s; preset speed: 240?/s
- Tilt Speedtilt speed: configurable from 0.1? to 120?/s, preset speed 200?/s
- Proportional Zoomyes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Power-Off Memoryyes
- Park Actionpreset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
- 3D Positioningyes
- PTZ Status Displayyes
- Preset Freezingyes
- Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
- Exception DetectionIP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot
- Video
- Stream Typemain stream;sub-stream;third stream
- Main Stream
[Bullet channel]:
50 Hz: 25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 960, 1280 ? 720)
60 Hz: 30 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 960, 1280 ? 720)
[PTZ channel]:
50 Hz: 25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 960, 1280 ? 720)
60 Hz: 30 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 960, 1280 ? 720)
- Sub-Stream
[Bullet channel]:
50 Hz: 25 fps (704 ? 576, 640 ? 480, 352 ? 288)
60 Hz: 30 fps (704 ? 480, 640 ? 480, 352 ? 240)
[PTZ channel]:
50 Hz: 25 fps (704 ? 576, 640 ? 480, 352 ? 288)
60 Hz: 30 fps (704 ? 480, 640 ? 480, 352 ? 240)
- Third Stream
[Bullet channel]:
50 Hz: 25 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 576, 640 ? 480, 352 ? 288)
60 Hz: 30 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 480, 640 ? 480, 352 ? 240)
[PTZ channel]:
50 Hz: 25 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 576, 640 ? 480, 352 ? 288)
60 Hz: 30 fps (1920 ? 1080, 1280 ? 960, 1280 ? 720, 704 ? 480, 640 ? 480, 352 ? 240)
- Video CompressionH.265;H.264;MJPEG
- Video Bit Rate32 kbps to 16384 kbps
- H.264 Typebaseline profile;main profile;high profile
- H.265 Typemain profile
- H.264+yes
- H.265+yes
- SVCyes
- ROImain stream, sub-stream and third stream respectively support eight fixed areas
- Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM
- Audio Bit Rate32 to 192 Kbps (MP2L2)
- Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
- Environment Noise Filteringyes
- Smart Features
- Smart RecordANR;Dual-VCA
- Warning And Alertwhite light and audible warning
- Network
- Network StorageNAS (NFS?SMB/ CIFS), ANR
- ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour
- APIOpen-ended API, Open Network Video Interface (Profile S, Profile G), ISAPI, Hikvision SDK, Third-party management platform, ISUP
- Simultaneous Live View20
- User/Host32
- Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
- ClientiVMS-4200;Hik-Connect
- Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+
- Image
- Image Parameters SwitchYes
- Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
- Interface
- Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
- On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
- Alarm Input2 alarm inputs
- Alarm Output1 alarm output
- Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm?10%
- Audio Output1 audio output, line level, impedance: 600 ?
- Event
- Basic Event[PTZ channel] motion detection, video tampering alarm,[PTZ channel & bullet channel] alarm input and output, exception
- Smart Event[PTZ channel & bullet channel] audio exception detection,[PTZ channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection,[Bullet channel] line crossing detection, intrusion detection, region entrance detection, region exiting detection
- Alarm Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing,[PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan)
- Smart Tracking[PTZ channel] yes
- Smart LinkageManual tracking, auto tracking, tracking takeover, track in turn
- Deep Learning Function
- Face Capture[Bullet channel] no,[PTZ channel] yes
- General
- Power24 VAC, Hi-PoE
- Power Consumption And CurrentMax. 42 W, including max. 2.6 W for heater and max. 11 W for supplement light
- Operating Conditions-30? to 6
