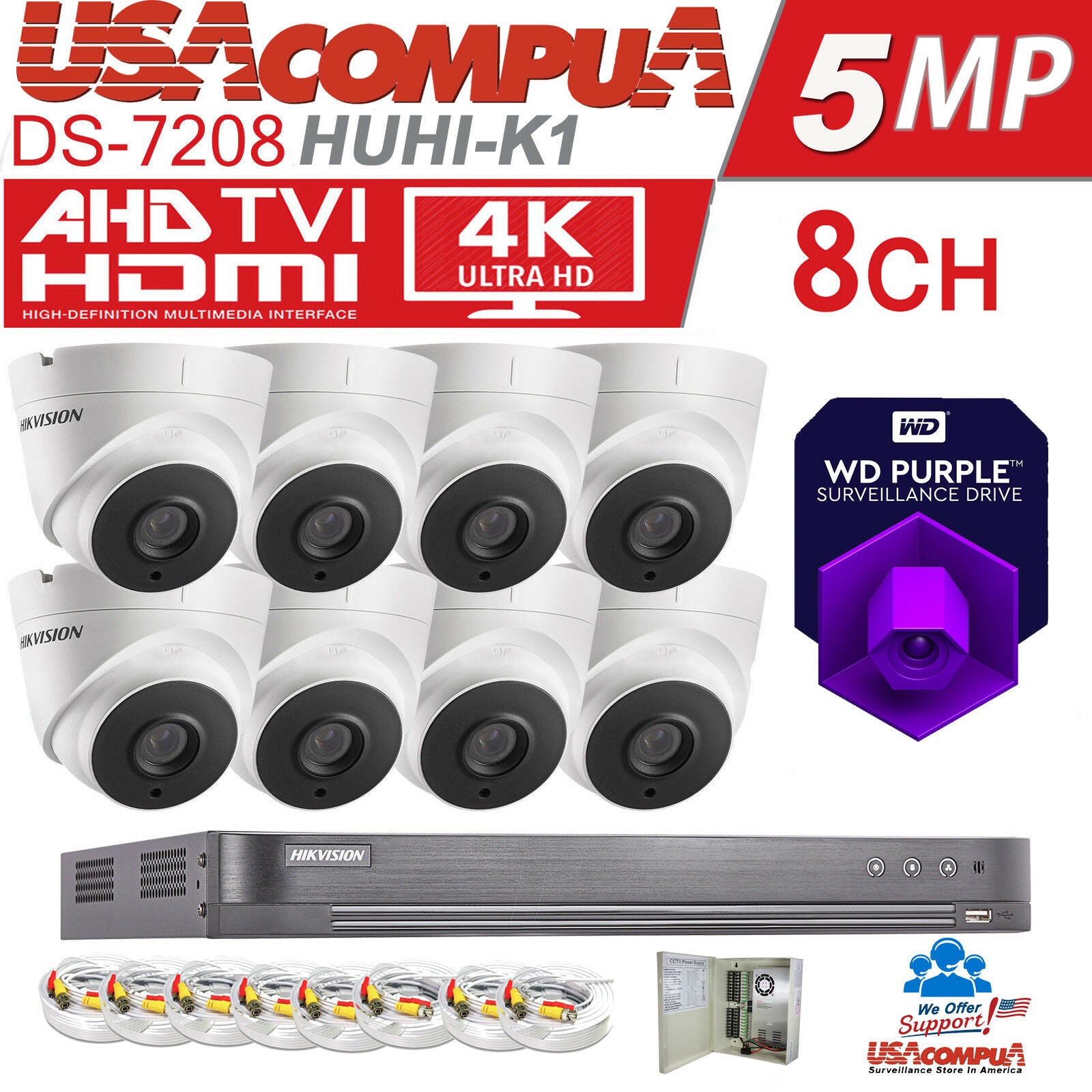

HIKVISION 5MP CCTV SYSTEM 4K-UHD DVR 8CH EXIR 20M NIGHT VISION CAMERA KIT 3TB

Data sheet PDF

Product Description

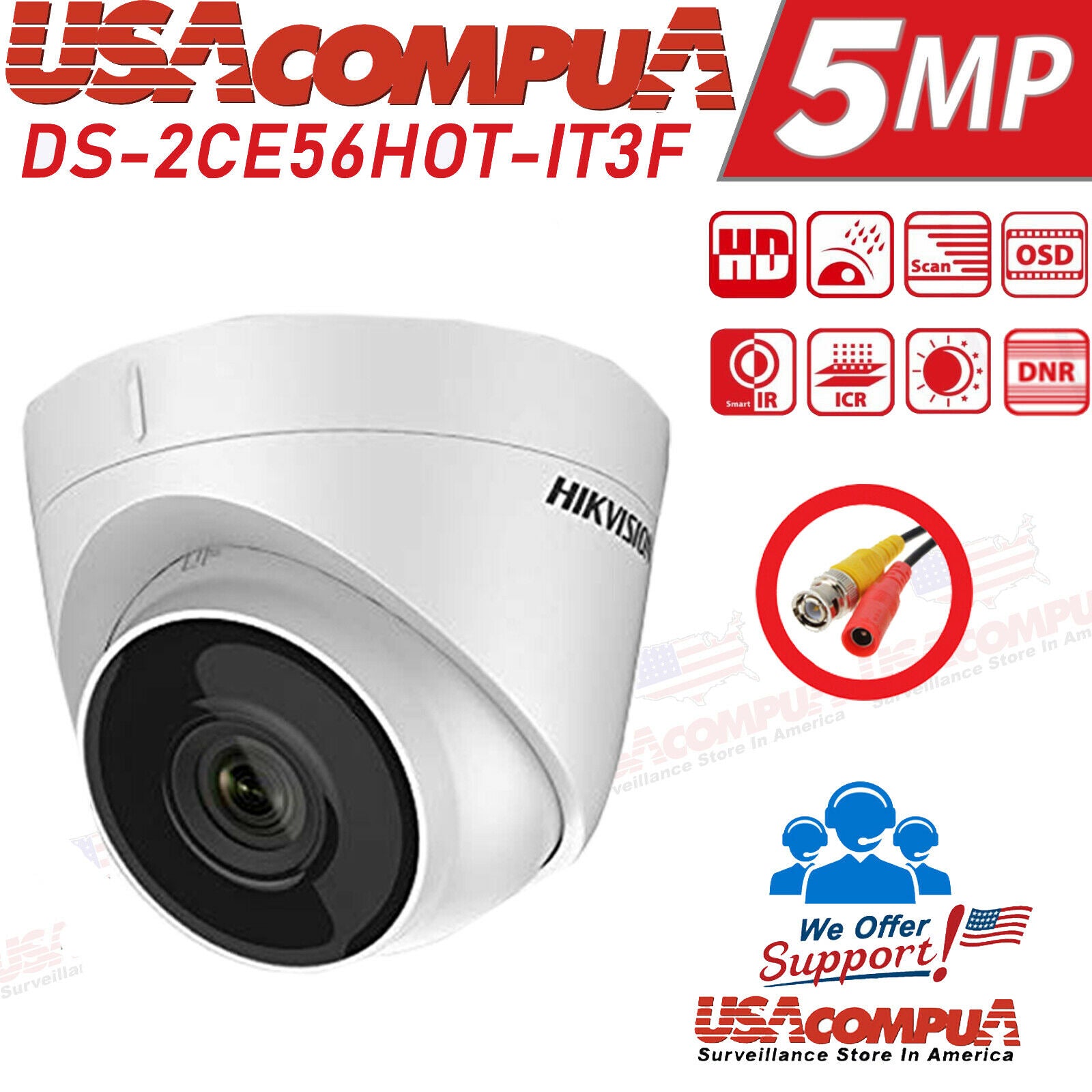

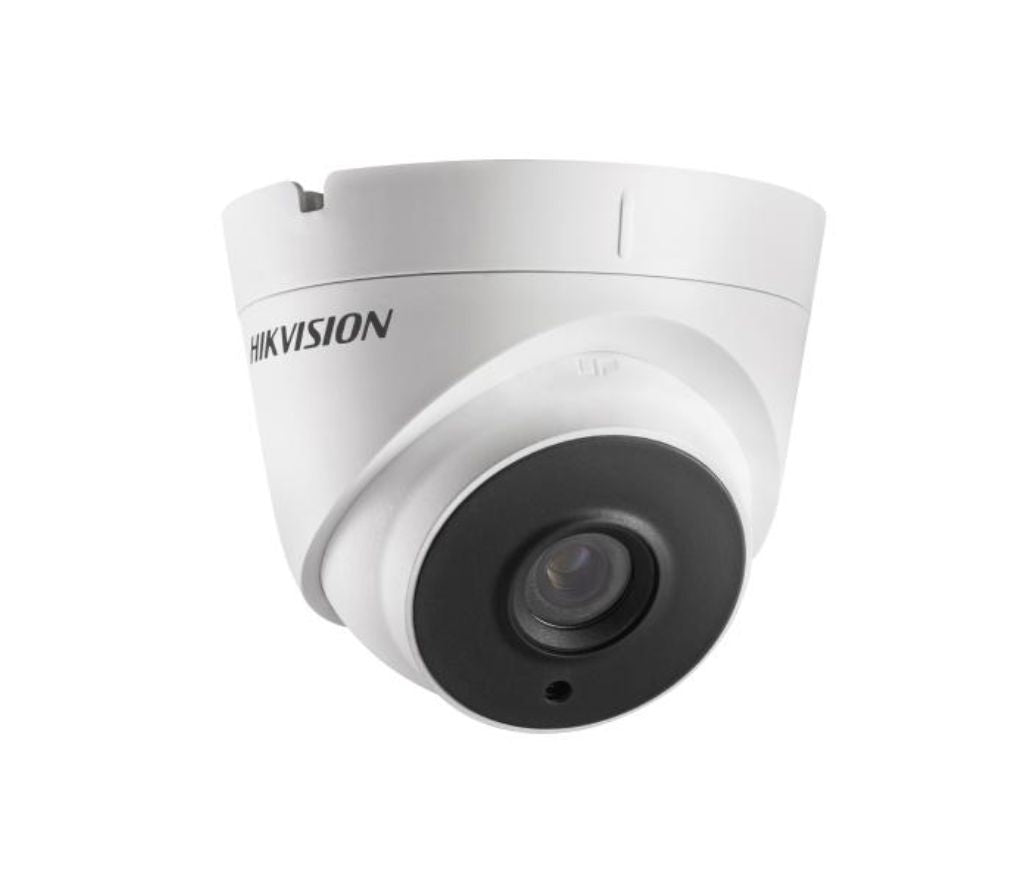

5 MP Fixed Turret Camera

• 5 MP turret camera
• EXIR 2.0: advanced infrared technology with 40 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Specification

• Camera
• Image Sensor5 MP CMOS image sensor
• Max. Resolution2560 (H) ? 1944 (V)
• Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50, 000 s
• Day & NightM12
• Angle AdjustmentIR cut filter
• Lens
• Lens TypeNTSC: 1/30 s to 1/50, 000 s
• Focal Length & FOV2.8 mm, , 6 mm, 8 mm, 12 mm fixed lens
• Lens Mount85.5? (2.8 mm), 80.1? (), 57.1? (6 mm), 41? (8 mm), 25.7? (12 mm)
• Image
• Image SettingsBrightness, Sharpness, DNR, Mirror
• Frame RatePAL: 5 MP@20fps, 4MP@25fps, 1080p@25fps,NTSC: 5MP@20fps, 4MP@30fps, 1080p@30fps,
• Wide Dynamic Range (WDR)Support
• Image EnhancementSupport
• White BalanceATW/MWB
• AGCSupport
• Interface
• Video OutputTVI/AHD/CVI/CVBS
• General
• PowerConsumption Max. 4.3W
• MaterialPlastic
• Dimension? 110 mm ? 93.2 mm (? 4.33" ? 3.67")
• Weight350 g (0.77 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), Humidity: 90% or less (non-condensation)
• CommunicationUp the coax, Protocol: HIKVISION-C (TVI output)
• LanguageEnglish
• Power Supply12 VDC ?15%
• IR Range30~60m
• Approval
• Protection1P67

Data sheet PDF

Product Description

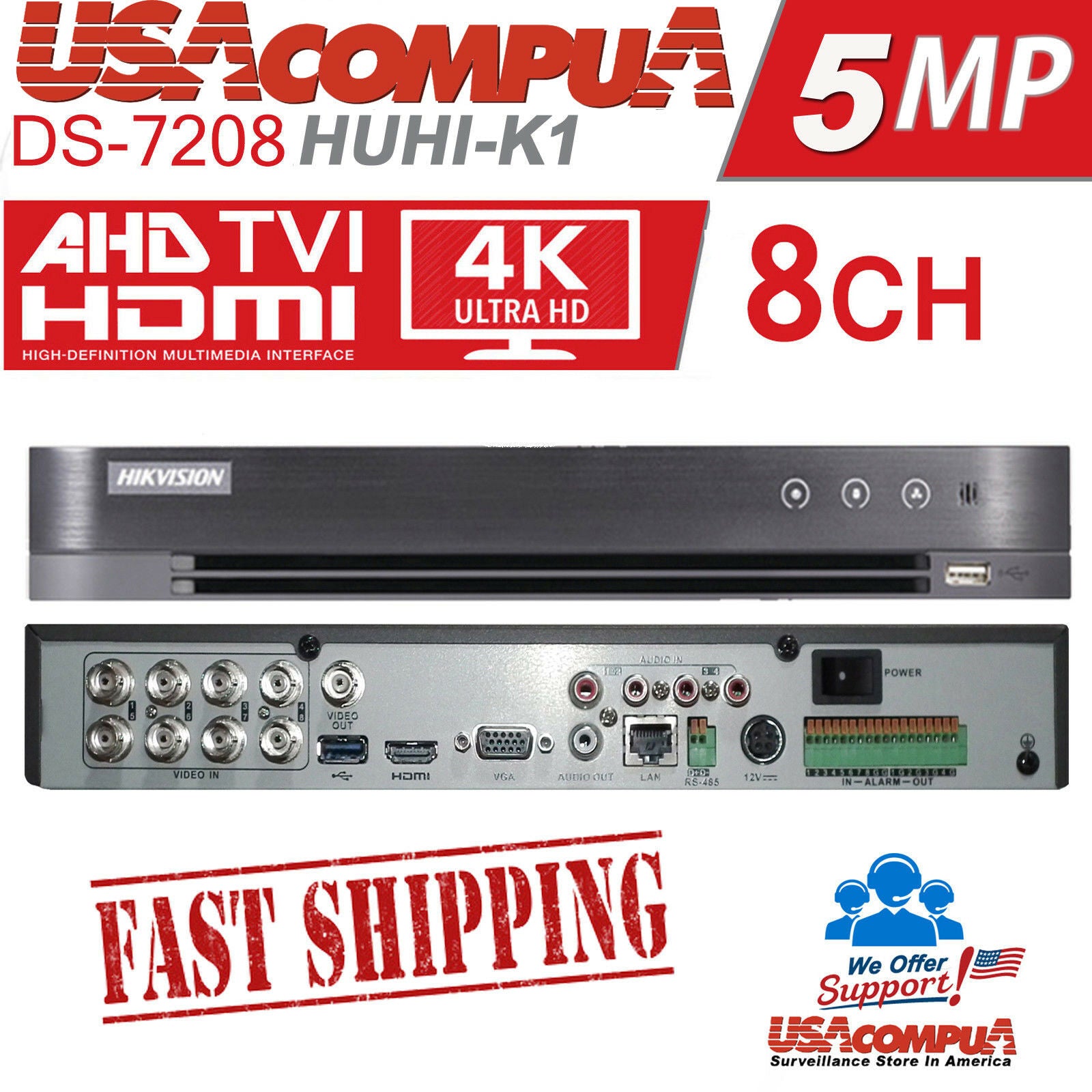

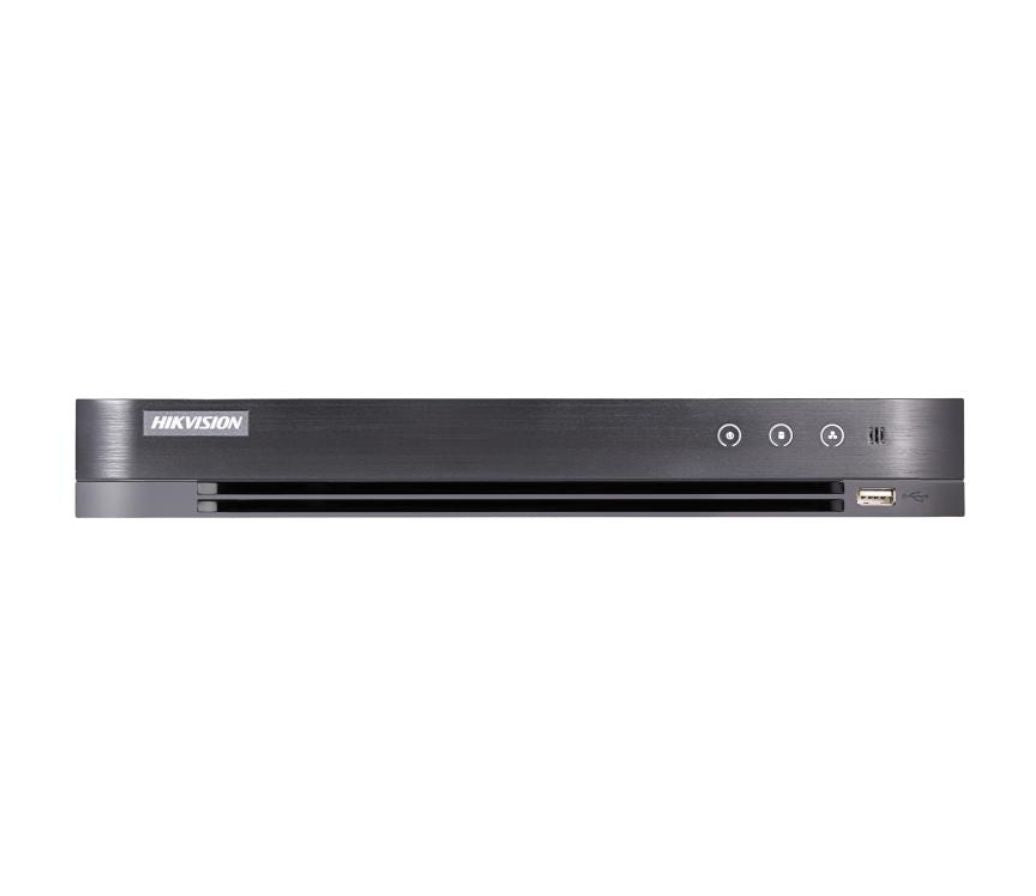

8ch 5 MP 1U H.265 DVR

• 8chs and 1 HDD 1U DVR
• Efficient H.265 pro+ compression technology
• Encoding ability up to 8 MP @ 8 fps, 5 MP @ 12 fps
• 5 signals input adaptively ("Hybrid")
• Up to 16 network cameras can be connected

Specification

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame RateMain stream: ,8 MP@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,WD1/4CIF/CIF@25fps (P)/30fps (N) ,
• Video Bit Rate32 Kbps to 10 Mbps
• Dual StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bit Rate64 Kbps
• Video And Audio
• IP Video Input8ch (up to 16ch) Up to 8 MP resolution Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input8ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
• AHD Input5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• Audio Input4ch, RCA (2.0 Vp-p, 1 K?)
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
• Synchronous Playback8ch
• HDTVI Input8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
• VGA/HDMI OutputVGA: 1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz,HDMI: 1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz,
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?),
• Network
• Remote Connections64
• Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
• Network Interface1,,RJ45 10M/100M/1000M ,self-adaptive ,Ethernet interface,
• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 10 TB capacity for each disk
• Alarm In/Out8/4
• USB InterfaceFront panel: 1 ? USB 2.0,Rear panel: 1 ? USB 3.0
• Serial InterfaceRS-485 (half-duplex)
• General
• Power Supply12 VDC
• Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
• Working Humidity10% to 90%
• Dimensions (W ? D ? H)315 ? 242 ? 45 mm (12.4 ? 9.5 ? 1.8 inch)
• Weights (Without HDD)? 2 kg (4.4 lb)
• Consumption (Without HDD)? 20 W
