HIKVISION 6MP POE IP CAMERA DS-2CD2563G0-IS Built-inMic H.265+

Data sheet PDF

Product Description

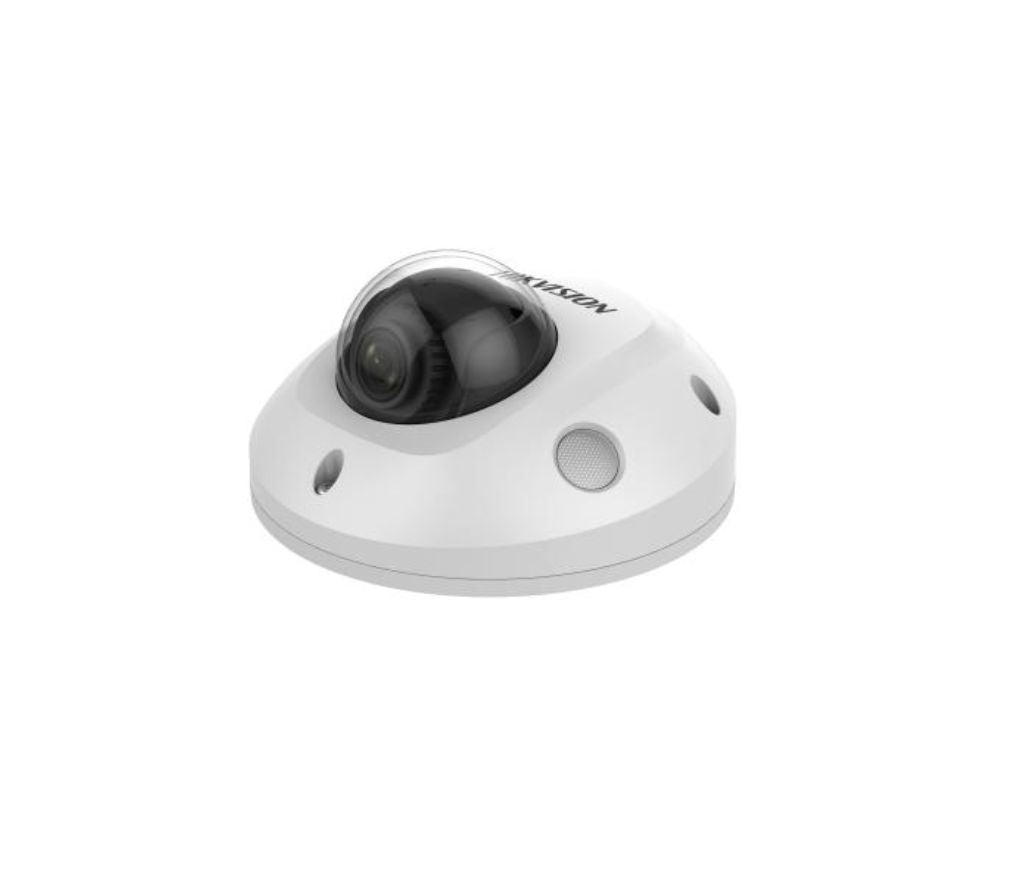

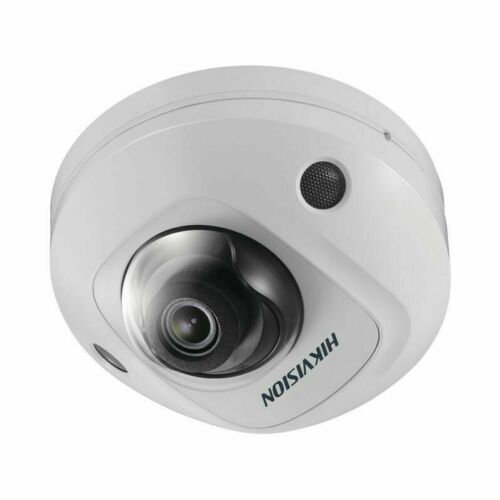

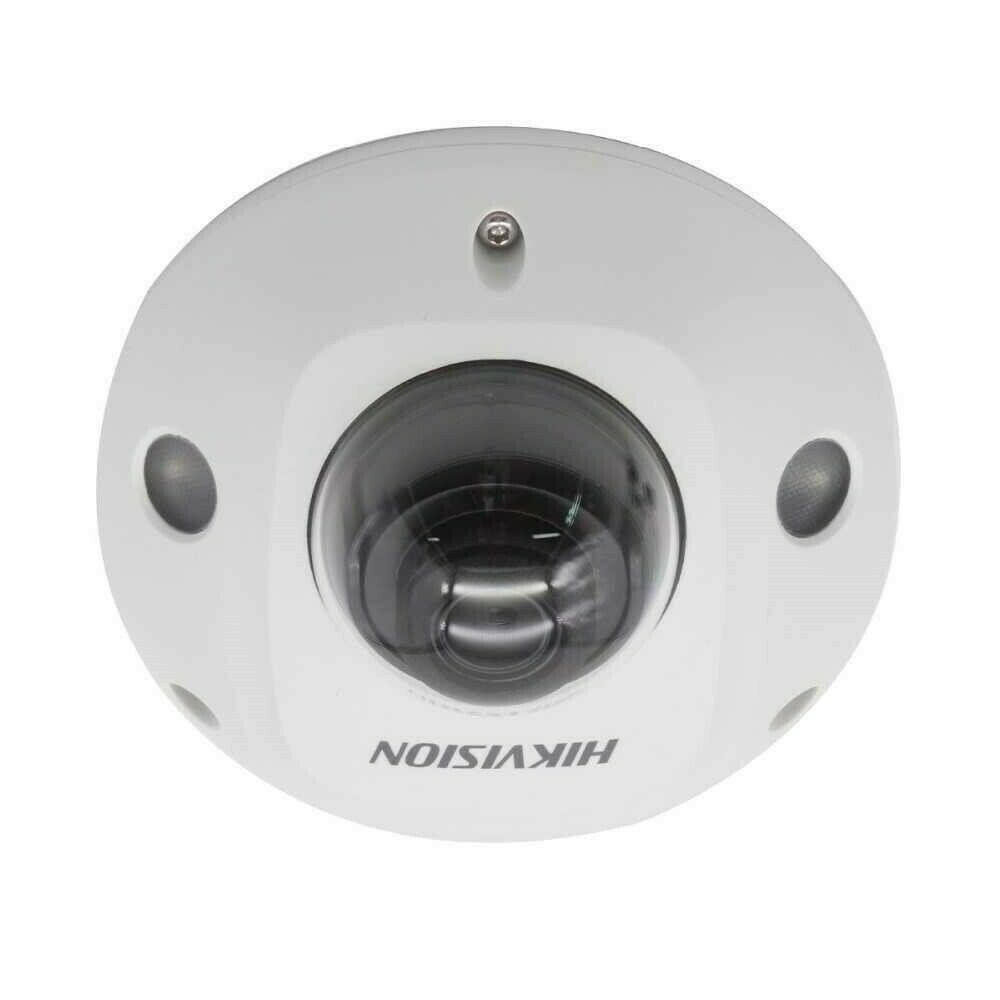

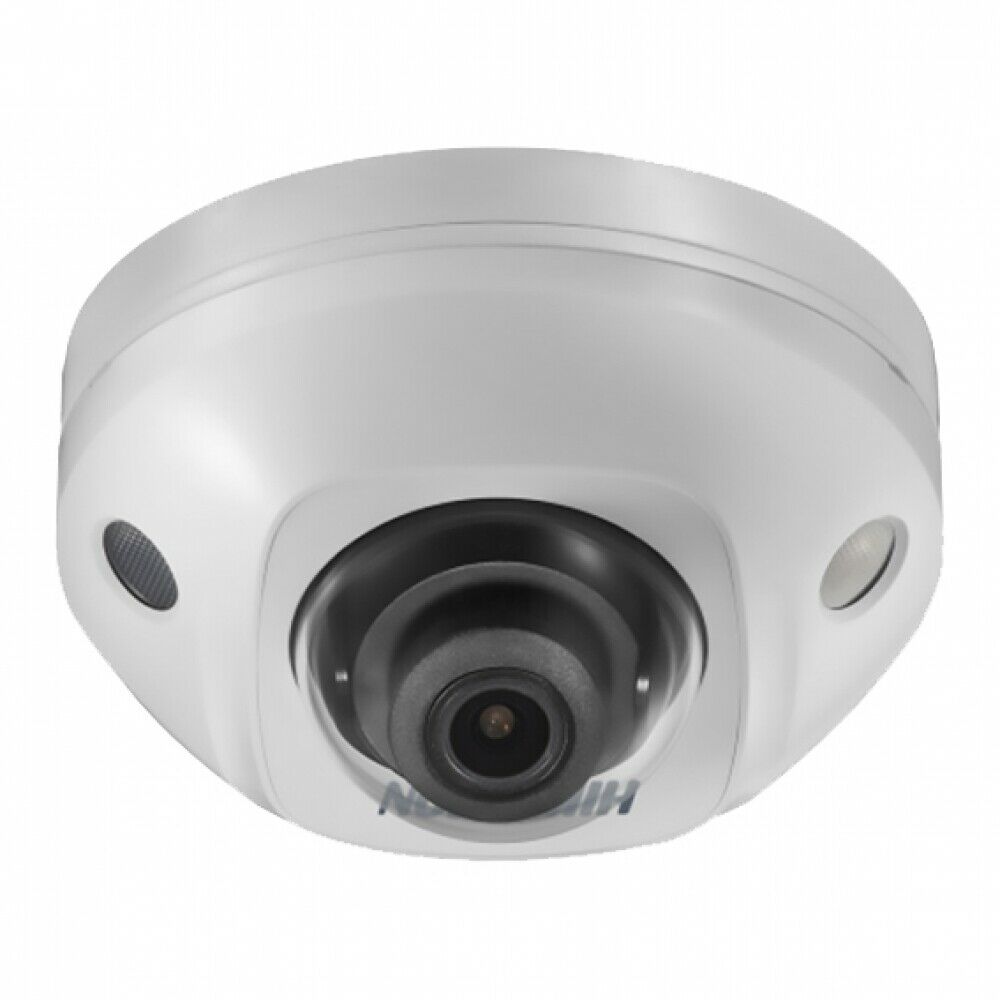

6 MP Outdoor WDR Fixed Mini Dome Network Camera

• High quality imaging with 6 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP66) and vandal proof (IK08)
• -W: Wi-Fi connection
• -S: audio and alarm interface available
• Built-in microphone for real-time audio security
• Mini size suitable for limited space

• Camera
• Image Sensor1/2.9" Progressive Scan CMOS
• Min. IlluminationColor: 0.028 lux @(F2.0, AGC ON), 0 lux with IR on
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120 dB
• Day & NightIR Cut Filter
• Angle AdjustmentPan: -30? to 30?, tilt: 0? to 75?, rotate: 0? to 360?
• Lens
• Lens Type2.8, 4, 6 mm
• FOV

  2.8 mm, horizontal FOV: 97?, vertical FOV: 67?, diagonal fov: 121?

  4 mm, horizontal FOV: 78?, vertical FOV: 53?, diagonal FOV: 98?

  6 mm, horizontal FOV: 60?, vertical FOV: 41?, diagonal FOV: 76?

• ApertureF2.0
• Lens MountM12
• Illuminator
• IR RangeUp to 10 m
• Wavelength850 nm
• Video
• Max. Resolution3072 ? 2048
• Main Stream

  50Hz: 20 fps (3072 ? 2048, 3072 ? 1728, 2944 ? 1656)

  25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)

  60Hz: 20 fps (3072 ? 2048, 3072 ? 1728, 2944 ? 1656)

  30 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50Hz: 25 fps (640 ? 480, 640 ? 360, 320 ? 240)

  60Hz: 30 fps (640 ? 480, 640 ? 360, 320 ? 240)

• Third Stream

  50Hz: 25 fps (1280 ? 720, 640 ? 360, 352 ? 288)

  60Hz: 30 fps (1280 ? 720, 640 ? 360, 352 ? 240)

• Video Compression

  Main stream: H.265/H.264

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeMain Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Scalable Video Coding (SVC)Support H.264 and H.265 encoding
• Audio
• Environment Noise FilteringYes
• Audio Sampling Rate16 kHz, 32kHz, 44.1kHz, 48kHz
• Audio CompressionG722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
• Network
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
• ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
• Network StorageSupport Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
• Client

  Wired network: Hik-Connect, iVMS-4200, Hik-Central

  Wi-Fi: iVMS-4200, Hik-Central

  *Wi-Fi connection with Hik-Connect directly is not possible.

• Web Browser

  Plug-in required live view: IE8+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+

  Local Service: Chrome 41.0+, Firefox 30.0+

• Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login
• Wi-Fi
• Encryption Mode-W: WPA, WPA2
• Wi-Fi Protocol-W: IEEE 802.11b/g/n
• Frequency Range-W: 2.412 GHz to 2.4835 GHz
• Channel Bandwidth-W: 20 MHz
• Transfer Rate

  -W:

  11b: 11 Mbps

  11g: 54 Mbps

  11n: up to 150 Mbps

• Wireless Range-W: Up to 50 m (The performance varies based on actual environment)
• Image
• Day/Night SwitchAuto/Schedule/Day/Night/Triggered by Alarm In (-S)
• Image EnhancementBLC/3D DNR/HLC
• Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
• Interface
• Audio

  -S:

  2 inputs: line in or mic in (built-in microphone)

  1 output: line out, mono sound, terminal block

• Alarm

  -S:

  1 input: alarm in

  1 output: alarm out (max. 12 VDC, 30 mA), terminal block

• On-Board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Event
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart EventLine crossing detection, intrusion detection, face detection
• Face DetectionYes
• General
• Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
• Firmware VersionV5.6.5
• Web Client Language

  32 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

• General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Startup And Operating Conditions-30 ?C to +60 ?C (-22 ?F to +140 ?F), humidity 95% or less (non-condensing)
• Power Supply

  12 VDC ? 25%

  PoE (802.3af, class 3)

• Power Consumption And Current

  12 VDC, 0.7 A, max. 8.5 W, ? 5.5mm coaxial plug power

  PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W

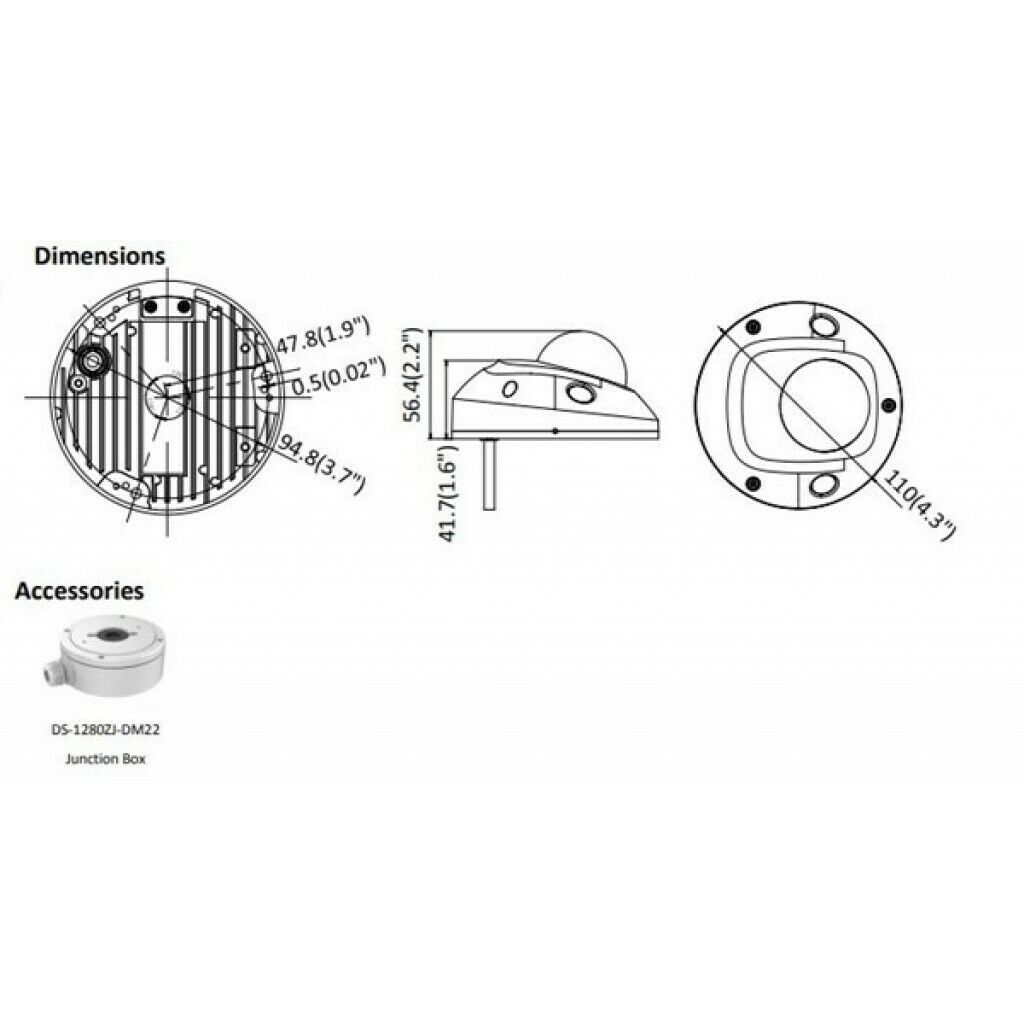

• Camera Dimension?120 mm ? 67.4 mm (?4.7" ? 2.7")
• Camera WeightCamera: approx. 400 g (0.9 lb.)
• Approval
• ProtectionIngress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)
