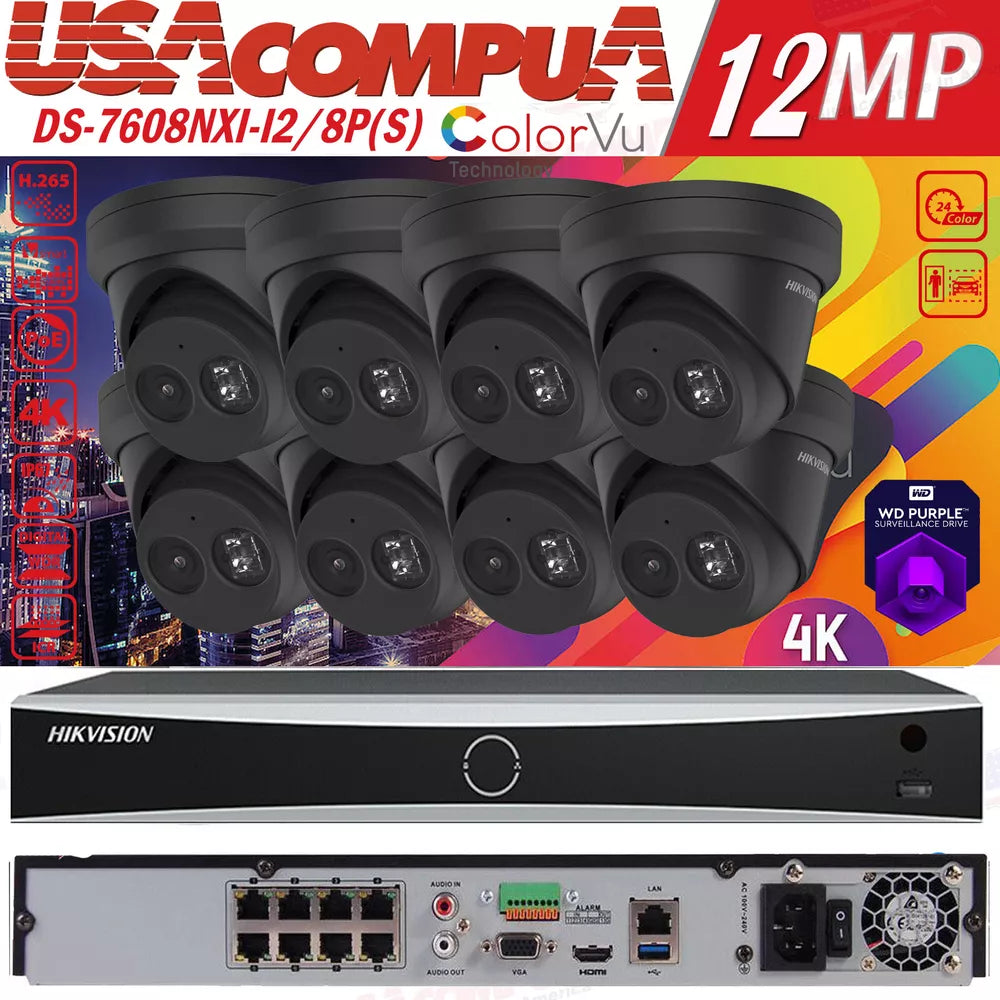

Hikvision 8CH 12MP CCTV Security Camera System DarkFigther AcuSense Black Audio

Data sheet PDF

Product Description

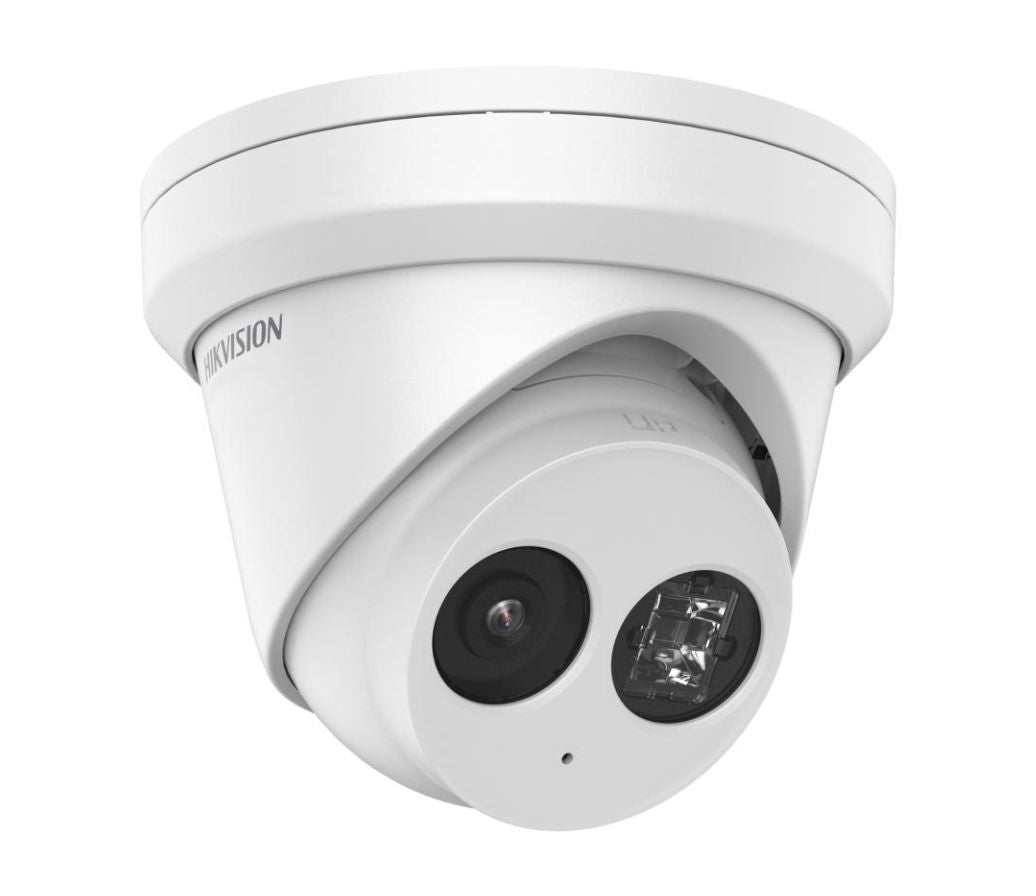

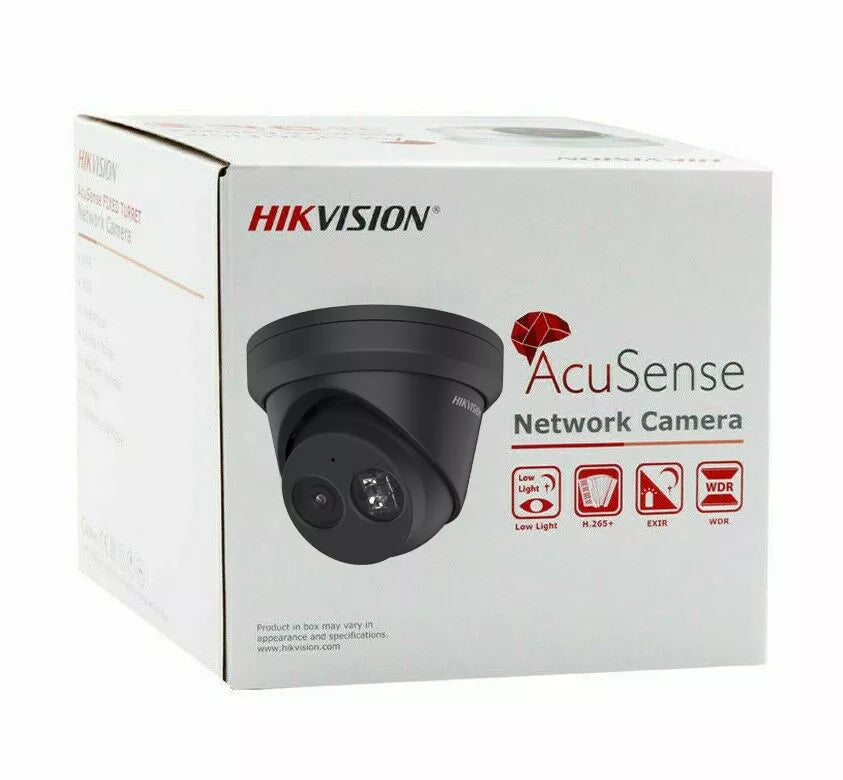

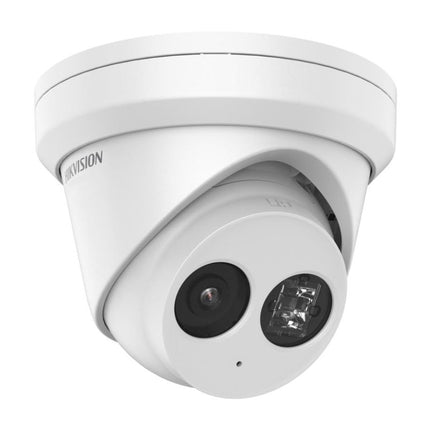

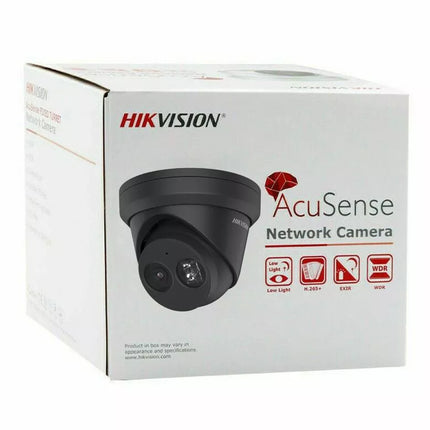

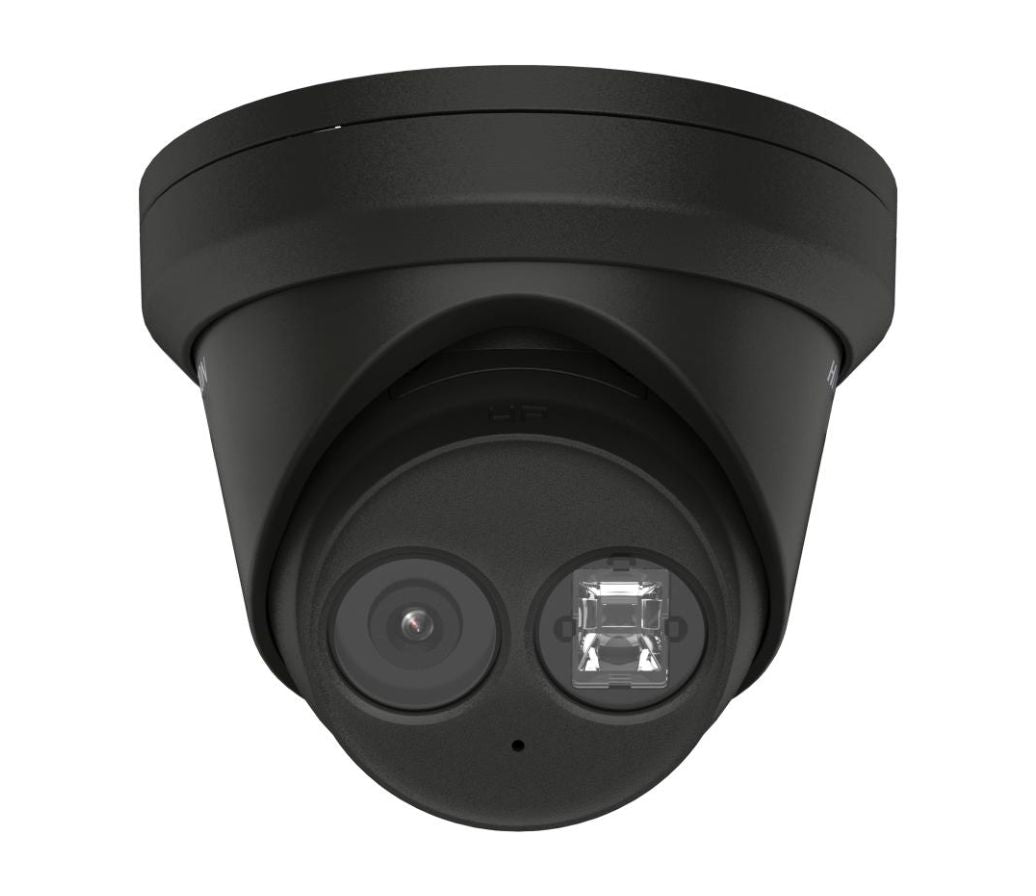

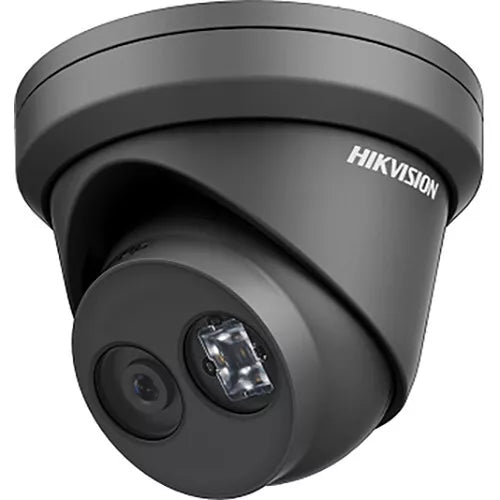

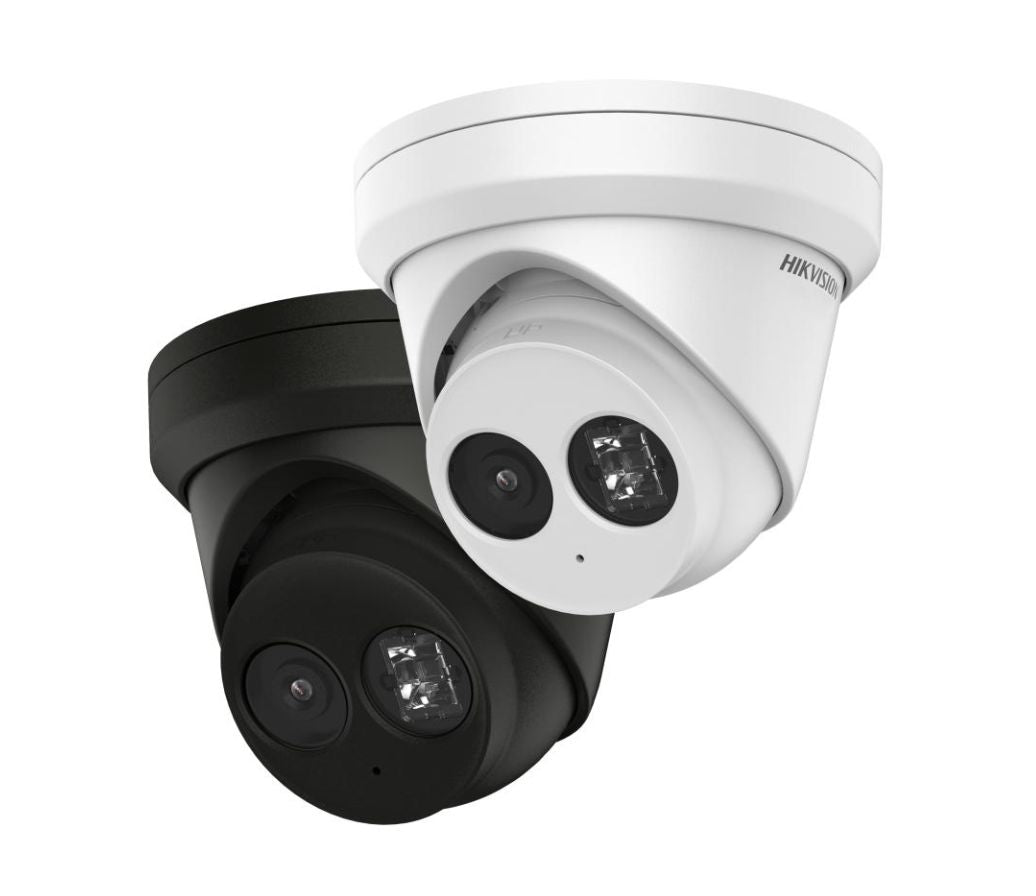

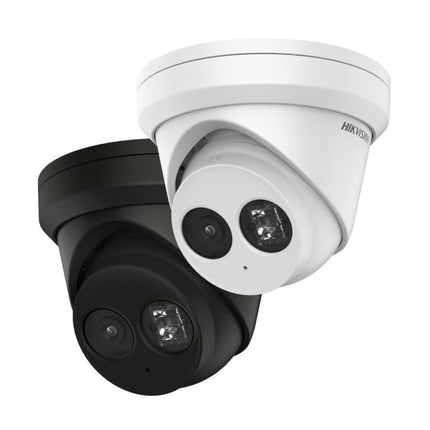

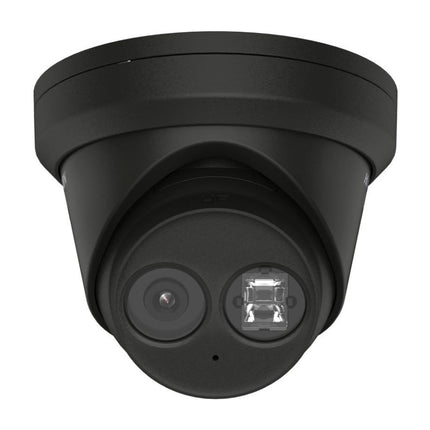

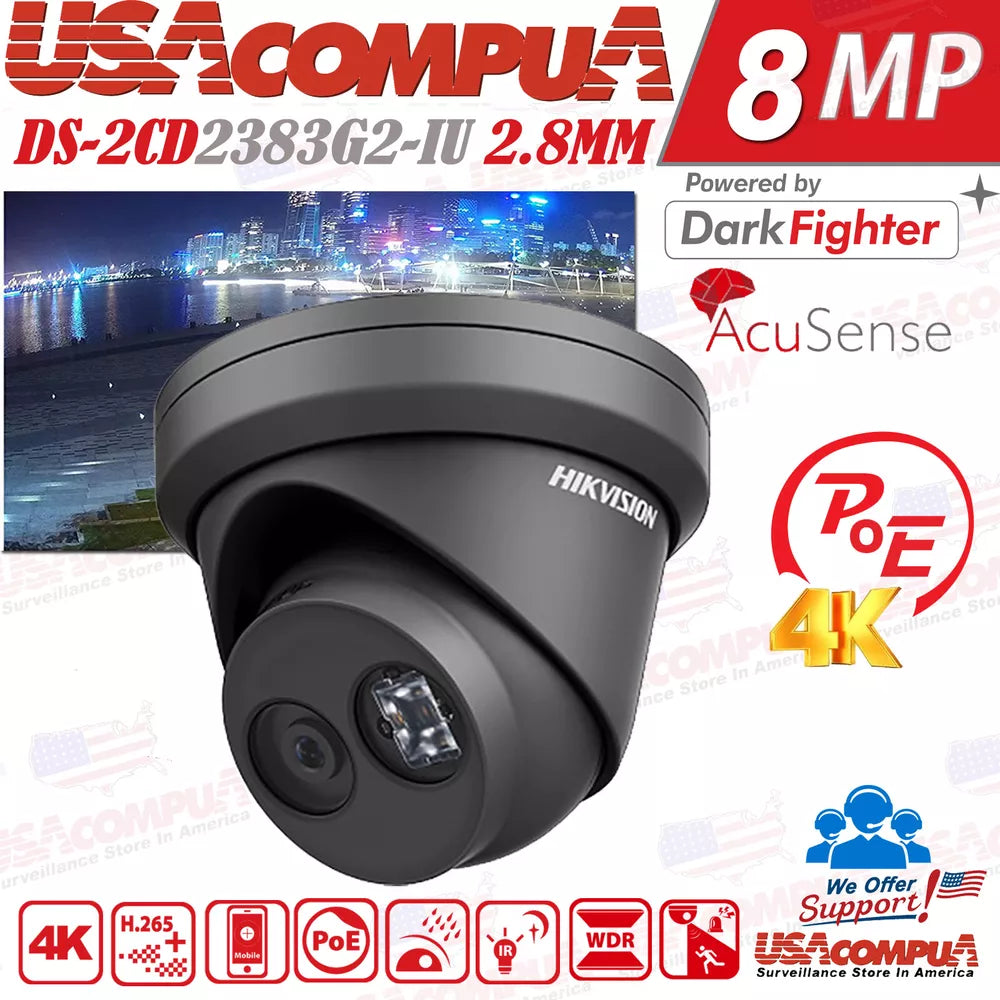

8 MP AcuSense Fixed Turret Network Camera

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight due to 120 dB WDR technology
• Focusing on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

• Camera
• Image Sensor1/2.8" Progressive Scan CMOS
• Max. Resolution3840 ? 2160
• Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR cut filter
• Angle AdjustmentPan: 0? to 360?,tilt: 0? to 75?,rotate: 0? to 360?
• Lens
• Lens TypeFixed focal lens, 2.8 and 4 mm optional
• Focal Length & FOV

  2.8 mm, horizontal FOV 107?, vertical FOV 57?, diagonal FOV 128?

  4 mm, horizontal FOV 87?, vertical FOV 46?, diagonal FOV 105?

• Lens MountM12
• Iris TypeFixed
• ApertureF1.6
• DORI
• DORI

  2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m

  4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• Smart Supplement LightYes
• IR Wavelength850 nm
• Video
• Main Stream

  50 Hz: 20 fps (3840 ? 2160) 25 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720); 60 Hz: 20 fps (3840 ? 2160) 30 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)

• Third Stream

  50 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360),

  *Third stream is supported under certain settings.

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile,Main Profile,High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR,VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264,

  Sub-stream: H.265/H.264/MJPEG,

  Third stream: H.265/H.264 (*Third stream is supported under certain settings.)

• Region Of Interest (ROI)1 fixed region(s) for main stream and sub-stream
• Audio
• Audio Type-U: Mono sound
• Audio Compression-U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering-U: Yes
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G),ISAPI,SDK
• User/Host

  Up to 32 users

  3 user levels: administrator, operator, and user

• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• ClientiVMS-4200,Hik-Connect,Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11,

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+,

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)120 dB
• SNR? 52 dB
• Image EnhancementBLC, HLC, 3D DNR
• Privacy Mask4 programmable polygon privacy masks
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage

  Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB

• Built-In Microphone-U: Yes
• Reset KeyYes
• Event
• Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
• Smart EventLine crossing detection, intrusion detection (support alarm triggering by specified target types (human and vehicle)), face detection
• LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
• General
• Power

  12 VDC ? 25%, 0.5 A, max. 6 W,?5.5 mm coaxial power plug,reverse polarity protection,

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.13 A, max. 7.5 W

• Dimension

  ?127.3 mm ? 95.9 mm (?5.0 ? 3.8\")"

• Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
• WeightApprox. 600 g (1.3 lb.)
• With Package WeightApprox. 891 g (2.0 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Language

  33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionHeartbeat,anti-flicker,password reset via email,pixel counter
• Approval
• EMC

  FCC: 47 CFR Part 15, Subpart B,

  CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

  RCM: AS/NZS CISPR 32: 2015,

  IC: ICES-003: Issue 7,

  KC: KN32: 2015, KN35: 2015

• Safety

  UL: UL 62368-1,

  CB: IEC 62368-1: 2014+A11,

  CE-LVD: EN 62368-1: 2014/A11: 2017

• Environment

  CE-RoHS: 2011/65/EU,

  WEEE: 2012/19/EU,

  Reach: Regulation (EC) No 1907/2006

• ProtectionIP67: IEC 60529-2013

Data sheet PDF

Product Description

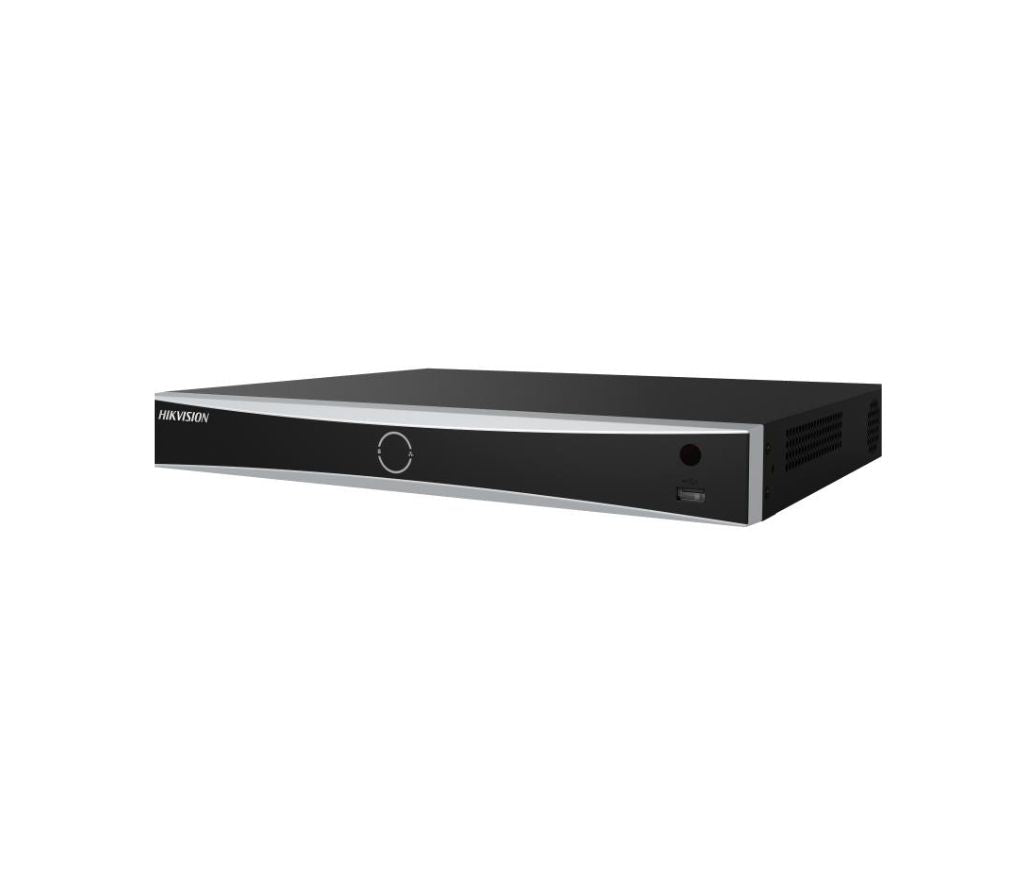

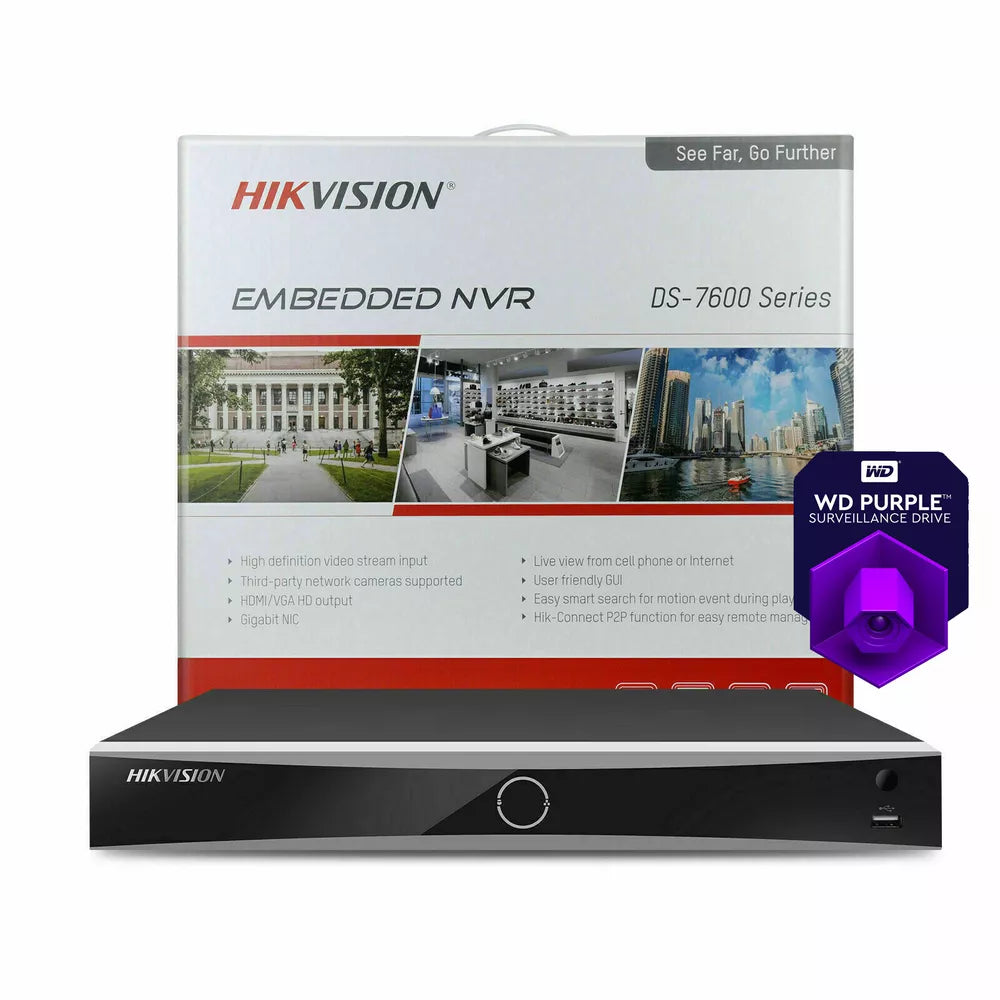

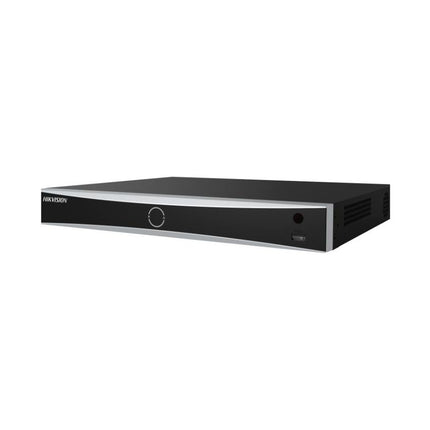

8ch 1U 8 POE AcuSense 4K NVR

• H.265+/H.265/H.264+/H.264 video formats
• Intelligent analytics based on deep learning algorithm
• Up to 4ch perimeter protection
• Up to 4ch facial recognition for video stream
• Up to 8ch facial recognition for face picture
• Up to 8ch IP camera inputs
• Up to 32ch 1080p decoding capability

• Intelligent Analytics
• AI By NVRFacial recognition, perimeter protection, motion detection 2.0
• AI By CameraFacial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA
• Engine1, engine mode is adjustable
• Facial Recognition
• Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ? 512 KB, total capacity ? 150 MB)
• Face Picture Comparison4ch face picture comparison alarm
• Facial Detection And AnalyticsFace picture comparison, human face capture, face picture search
• Facial Detection And Analytics Performance1-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
• Motion Detection 2.0
• Human/Vehicle Analysis8ch
• By NVRAll channels for Hikvision cameras
• By CameraAll channels
• Perimeter Protection
• Human/Vehicle Analysis

  Up to 4ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

  Up to 12 rules in total;Up to 4ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm

• By NVR

  4ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;

  Up to 12 rules in total

• By CameraAll channels
• ANPR
• By CameraAll channels
• Vehicle AttributesPlate number, license plate color, license plate type
• Plate AttributesVehicle brand, vehicle color, vehicle type
• Video And Audio
• IP Video Input8
• Incoming Bandwidth80 Mbps
• Outgoing Bandwidth256 Mbps
• HDMI Output4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• Video Output ModeHDMI/VGA independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?)
• Decoding
• Decoding FormatH.265,H.265+,H.264,H.264+,MPEG4
• Recording Resolution12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback8ch
• Live View Window Division1/4/6/8/9/16
• Aux Port Window Division1/4/6/8/9/16
• Decoding Capability16ch @ 1080p (30 fps)
• Audio CompressionG.711ulaw,G.711alaw,G.722,G.726,MP2L2
• Dual-Stream RecordingSupport
• Stream TypeVideo, Video & Audio
• Network
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
• APIONVIF (profile S/G); SDK; ISAPI
• Compatible BrowserIE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• PoE
• Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power? 120W
• StandardIEEE 802.3 af/at
• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 8 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
• Alarm In/Out4/1
• USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 3.0
• General
• GUI LanguageEnglish, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian, Hebrew
• Power Supply? 180 W
• Consumption? 15W
• Working Temperature-10???55?
• Working Humidity10% to 90%
• Chassis1U
• Dimension (W ? D ? H)385 ? 315 ?52 mm ( 11.6"? 9.5" ? 1.6")
• Weight? 3 kg (6.6 lb)
• Certification
• Obtained CertificationCE, CB, REACH, WEEE, UKCA, LOA
• CEEN 55032:2015, EN 61000-3-2,
