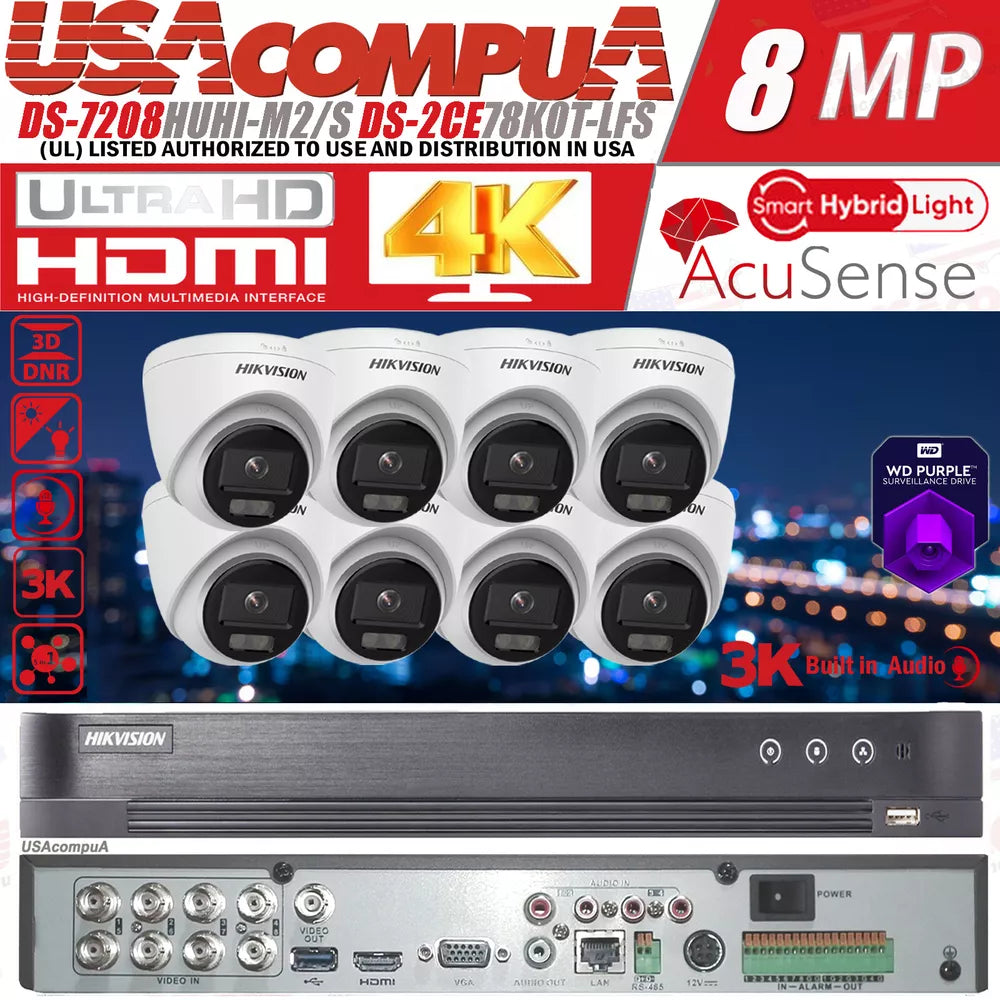

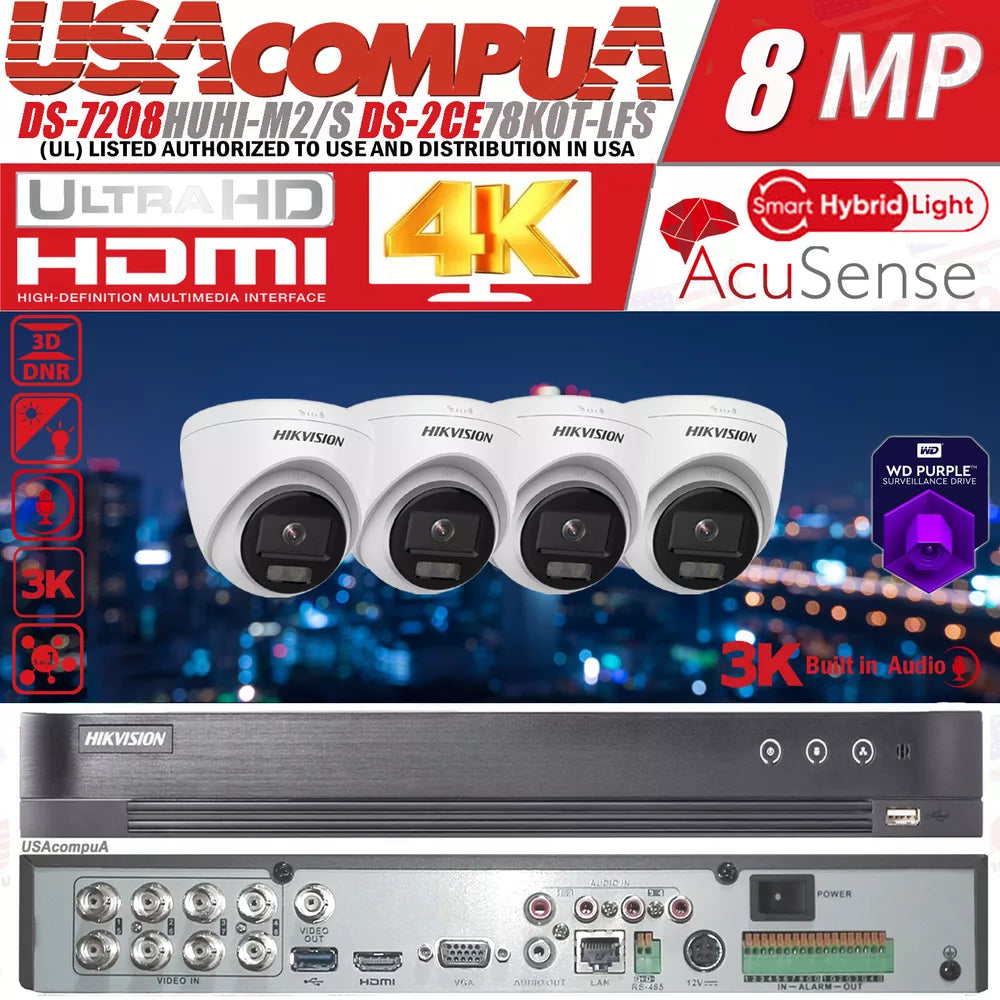

Hikvision 8Ch Home Security Cctv System Kit 8Mp Smart Ir Outdoor Camera Lo

Data sheet PDF

Product Description

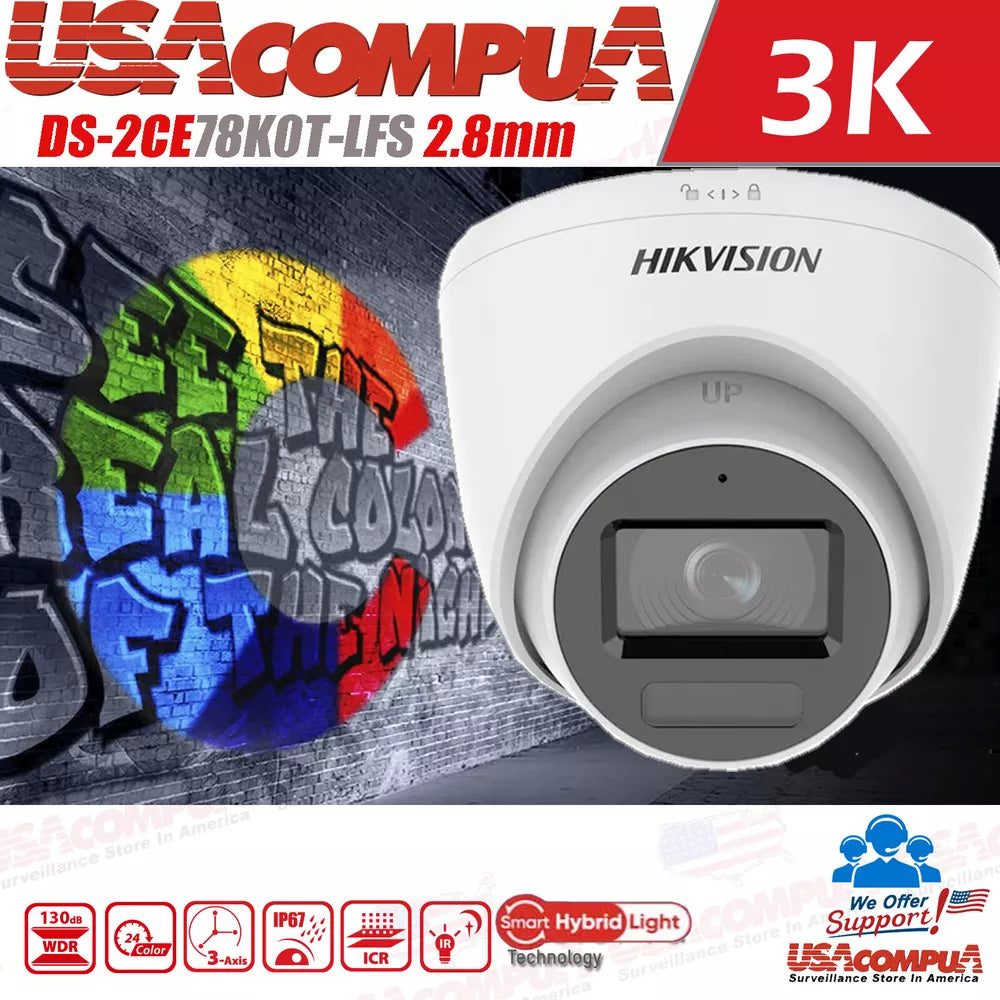

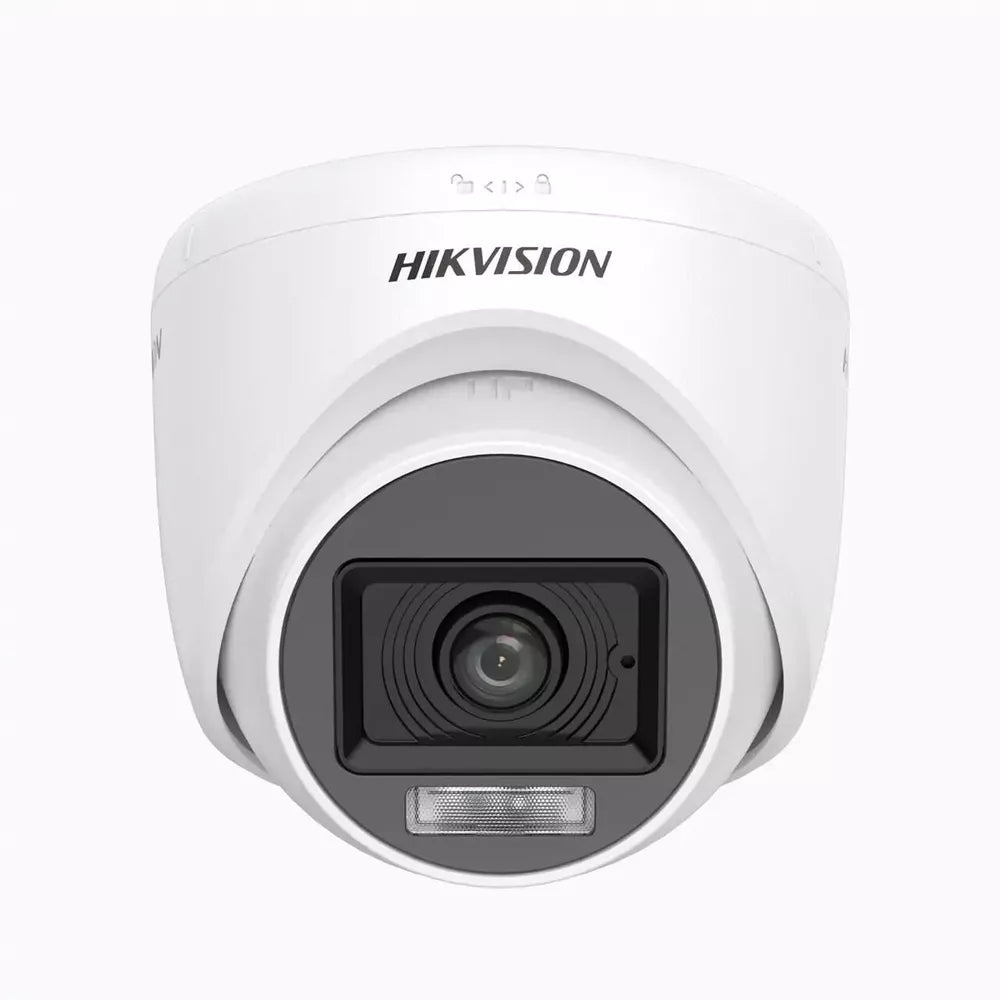

3K Smart Hybrid Light Audio Fixed Turret Camera

• High quality imaging with 3K, 2960 ? 1665 resolution
• 2.8 mm and 3.6 mm fixed focal lens
• Up to 40 m IR distance for bright night imaging
• Up to 20 m white light distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS?
• Water and dust resistant (IP67)
• High quality audio with audio over coaxial cable, built-in mic
• Smart-Hybrid light, optimize your security with flexible lighting options

Specification
Camera
Image Sensor 3K CMOS
Max. Resolution 2960 (H) ? 1665 (V)
Min. Illumination 0.01 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day ? Night ICR
Angle Adjustment Pan: 0 to 360?, Tilt: 0 to 75?, Rotation: 0 to 360?
Signal System PAL/NTSC
Lens
Lens Type 2.8 mm and 3.6 mm fixed focal lens
Focal Length ? FOV
2.8 mm, horizontal FOV: 104.9?, vertical FOV: 67.3?, diagonal FOV: 129.8?
3.6 mm, horizontal FOV: 81.3?, vertical FOV: 50.7?, diagonal FOV: 102.4?
Lens Mount M12
Illuminator
Supplement Light Type White Light,IR
Supplement Light Range
IR : Up to 40 m
White Light : Up to 20 m
Image Settings Brightness, Sharpness, Smart IR
Frame Rate
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement DWDR/BLC/HLC/Global
White Balance Auto/Manual
AGC Yes
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
Built-in Microphone Yes
General
Material
Body?Metal
Enclosure? Plastic
Dimension 97.9 mm ? ? 110 mm (3.85" ? ? 4.33")
Weight Approx. 340 g (0.75 lb.)
Operating Condition -40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply
12 VDC ? 25%
*You are recommended to use one power adapter to supply the power for one
camera.
Consumption Max. 3.3 W

Data sheet PDF

Product Description

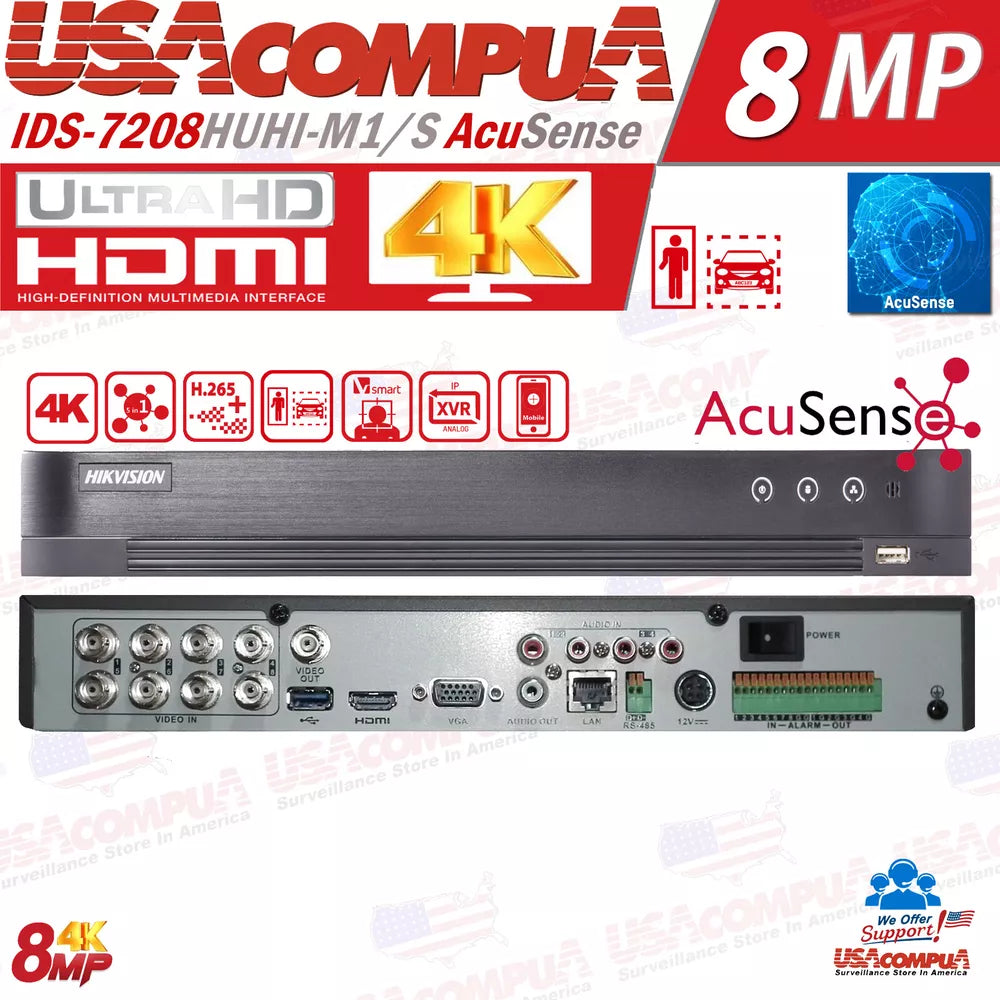

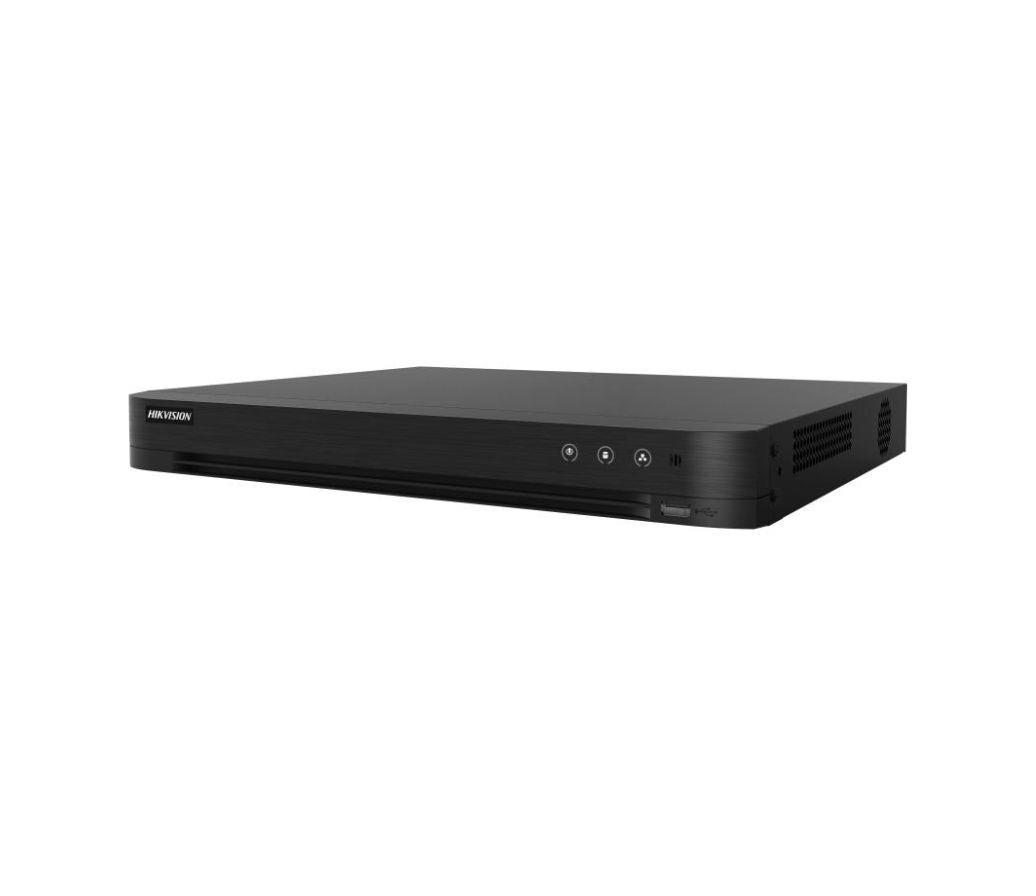

8ch 5MP 1U H.265 AcuSense POC DVR

• Transmits both HDTVI video and power over the same coaxial cable
• 8chs and 2 HDD 1U DVR
• Efficient H.265 pro+ compression technology
• Encoding ability up to 8MP @8 fps ?5 MP @ 12 fps
• 5 signals input adaptively ("Hybrid")
• Up to 16 network cameras can be connected

Specification

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Perimeter Protection
• Line Crossing Detection/Intrusion DetectionUp to 4ch
• Facial Detection
• Facial Detection And CaptureFace picture detection, face picture search
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution8 MP/5 MP/3k/5MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate

  Main stream:

  8 MP@8 fps/3k/5MP@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 10 Mbps
• Dual-StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Video And Audio
• IP Video Input

  4ch (up to 12-ch)

  Enhanced IP mode on: 8ch (up to 16ch), each up to 4 Mbps

  Up to 8 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input

  8ch;

  BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection

• PoC Camera Input

  Support Hikvision PoC camera

• HDMI Output1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
• CVBS InputPAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 ?),

  resolution: PAL: 704 ? 576, NTSC: 704 ? 480

• Synchronous Playback8ch
• HDTVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 3k/5MP(2960 x 1665)@20 fps, 5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
• HDCVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 5 MP(2592 ? 1944)@20 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Video Output ModeHDMI/VGA simultaneous output
• Audio Output1-ch, RCA (Linear, 1 K?)
• Audio Input

  4ch, RCA (2.0 Vp-p, 1 K?)

  4ch via coaxial cable

• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the audio input)
• Network
• Total Bandwidth128 Mbps
• Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
• Remote Connection64
• Network Interface1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 10 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 2.0
• Alarm In/Out8/4
• General
• Power Supply48 VDC, 2.5 A
• Consumption? 15 W (without HDD)
• Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
• Working Humidity10% to 90%
• Dimension (W ? D ? H)380 ? 320 ? 48 mm (15.0 ? 12.6 ? 1.9 inch)
• Weight? 3.4 kg (without HDD, 7.5 lb.)
