Hikvision 8Ch Security System CCTV KIT HDD 5MP Camera 4K DVR

Data sheet PDF

Product Description

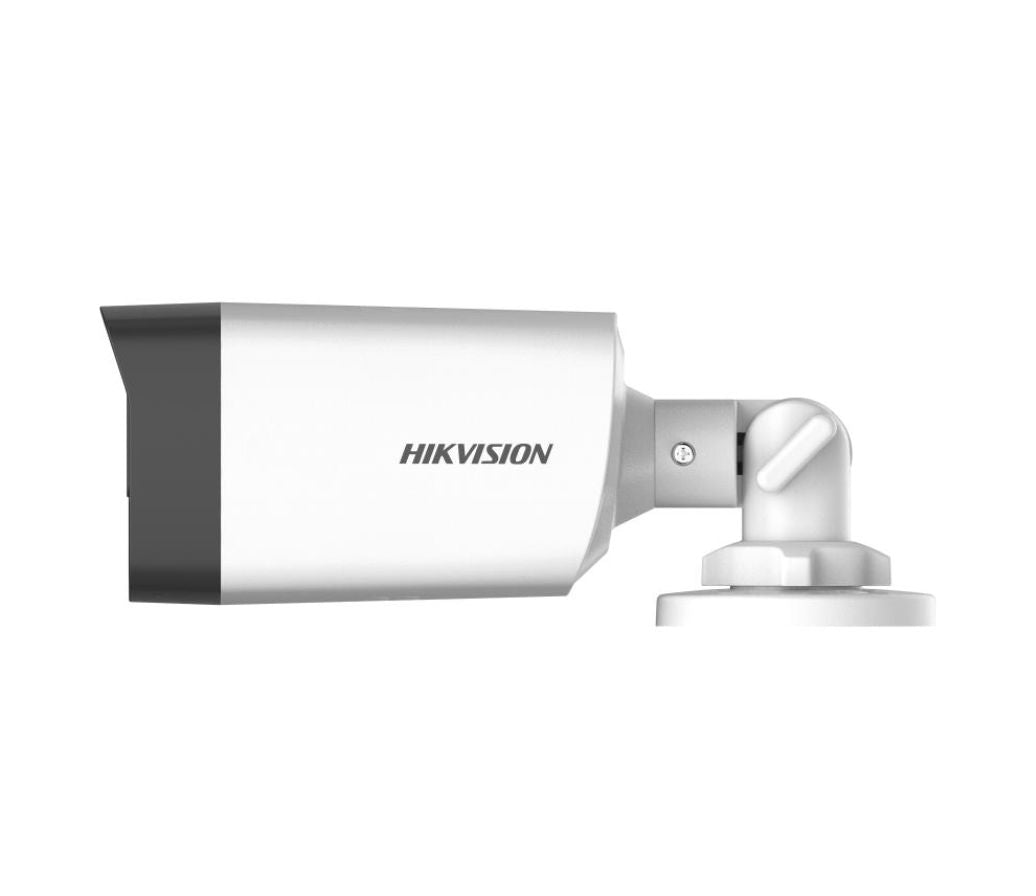

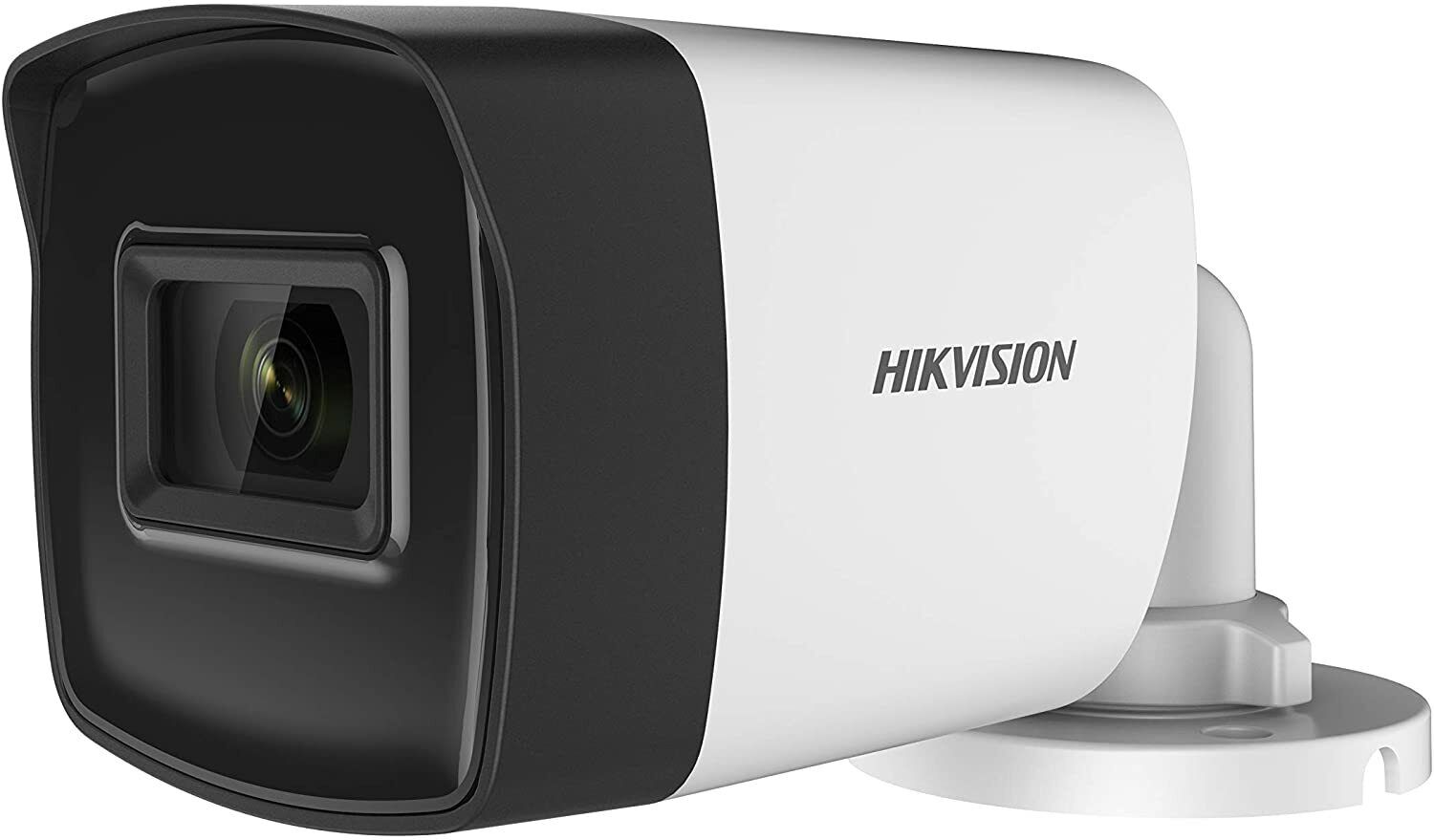

5 MP Fixed Bullet Camera

• High quality imaging with 5 MP, 2560 ? 1944 resolution
• 2.8 mm, , 6 mm, 8mm, 12mm fixed focal lens
• Up to 40 m IR distance for bright night imaging
• Water and dust resistant (IP67)

Specification

• Camera
• Image Sensor5 MP CMOS
• Max. Resolution2560 (H) ? 1944 (V)
• Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time

  PAL: 1/25 s to 1/50, 000 s

  NTSC: 1/30 s to 1/50, 000 s

• Day & NightICR
• Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 180?, Rotation 0 to 360?
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm, , 6 mm, 8 mm, 12 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 85?, vertical FOV: 63?, diagonal FOV:110?

  , horizontal FOV: 80?, vertical FOV: 63?, diagonal FOV:105?

  6 mm, horizontal FOV: 57?, vertical FOV: 43?, diagonal FOV:72?

  8 mm, horizontal FOV: 41?, vertical FOV: 31?, diagonal FOV:52?

  12 mm, horizontal FOV: 26?, vertical FOV: 19?, diagonal FOV:32?

• Lens MountM12
• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Mirror, Smart IR
• Frame Rate

  TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

  AHD: 5M@20fps, 4M@30fps, 4M@25fps

  CVI: 4M@30fps, 4M@25fps

  CVBS: PAL/NTSC

• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementDWDR/BLC/HLC/Global
• Noise ReductionYes
• White BalanceAuto/Manual
• AGCSupport
• Interface
• Video OutputTVI/AHD/CVI/CVBS
• General
• Material

  Front Cover: Metal

  Main Body: Plastic

• Dimension78.9 mm ? 75.4 mm ? 216.6 mm (3.10" ? 2.97" ? 8.53")
• WeightApprox. 330 g (0.73 lb.)
• Operating Condition-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ? 25%
• Consumption

  Max. 4.3 W

• IR RangeUp to 40 m
• Approval
• ProtectionIP67

Data sheet PDF

Product Description

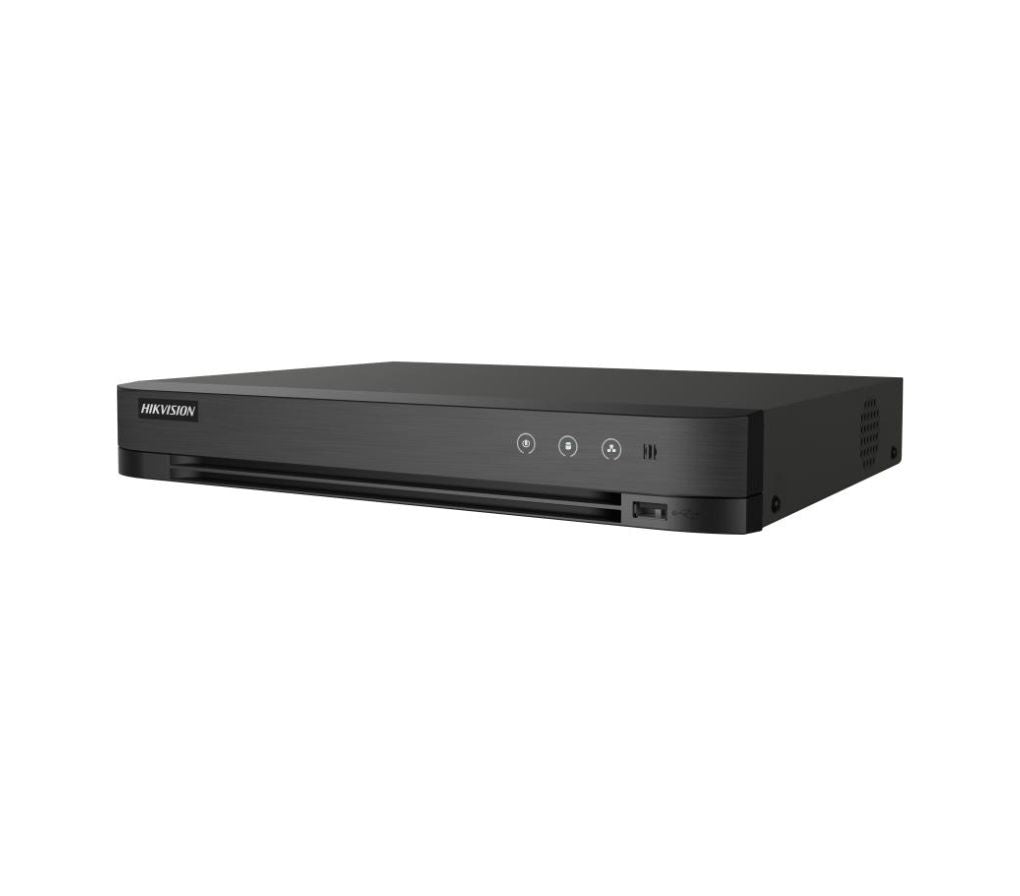

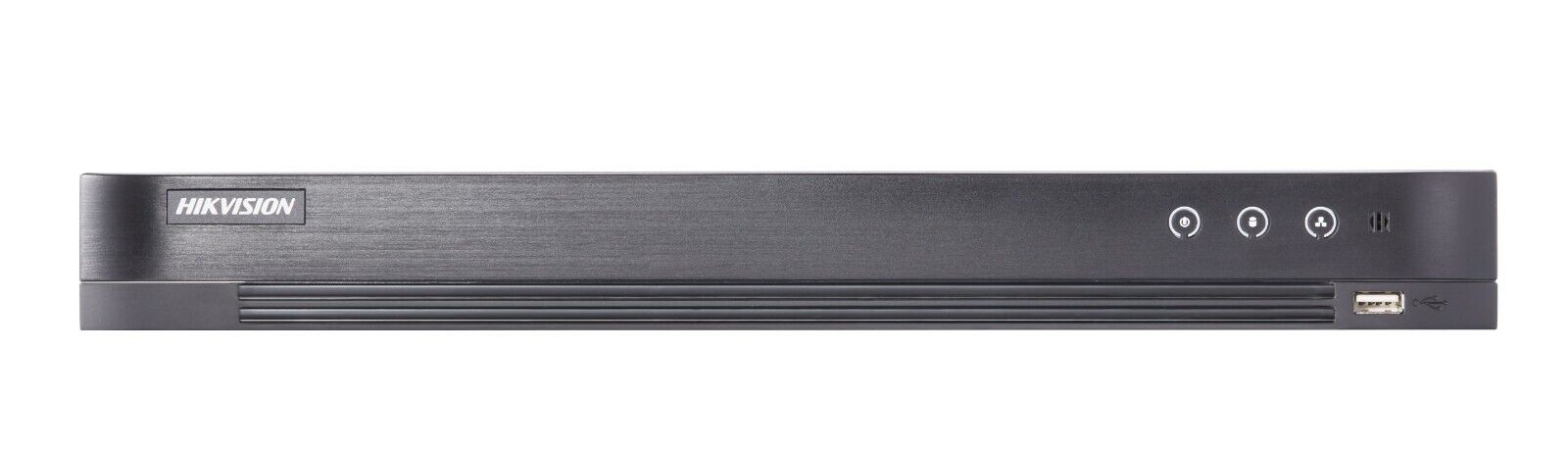

8ch 5 MP 1U H.265 AcuSense DVR

• 8chs and 1 HDD 1U AcuSense DVR
• False alarm reduction by human and vehicle target classification based on deep learning
• Efficient H.265 pro+ compression technology
• Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
• 5 signals input adaptively ("Hybrid")
• Up to 16 network cameras can be connected.

Specification

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Perimeter Protection
• Human/Vehicle AnalysisUp to 4ch

• Facial Detection
• Facial Detection And CaptureFace picture detection, face picture search

• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution8 MP/5 MP/3k/5MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate

  Main stream:

  8 MP@8 fps/3k/5MP@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 10 Mbps
• Dual-StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps

• Video And Audio
• IP Video Input

  4ch (up to 12-ch)

  Up to 8 MP resolution

  Enhanced IP mode on:

  8ch (up to 16ch), each up to 4 Mbps

  ;Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input8ch;BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
• HDMI Output

  1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz,

  1920 ? 1080/60Hz,

  1280 ? 1024/60Hz,

  1280 ? 720/60Hz

  HDMI/VGA simultaneous output

• CVBS InputPAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 ?),

  resolution: PAL: 704 ? 576, NTSC: 704 ? 480

• Synchronous Playback8ch
• HDTVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 3k/5MP(2960 x 1665)@20 fps, 5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• VGA Output

  1-ch, 1920 ? 1080/60Hz,

  1280 ? 1024/60Hz,

  1280 ? 720/60Hz

• HDCVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 5 MP(2592 ? 1944)@20 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Audio Output1-ch, RCA (Linear, 1 K?)
• Audio Input1-ch, RCA (2.0 Vp-p, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)

• Network
• Total Bandwidth128Mbps
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
• Remote Connection64
• Network Interface

  1,RJ45 10M/100M/1000M self-adaptive

  Ethernet interface

• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 10 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB Interface

  1 ? USB 2.0?

  1 ? USB 3.0

• Alarm In/OutN/A

• General
• Power Supply12 VDC
• Consumption? 10 W
• Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
• Working Humidity10% to 90%
• Dimension (W ? D ? H)315 ? 242 ? 45 mm (12.4 ? 9.5 ? 1.8 inch)
• Weight? 2 kg (4.4 lb)
