Hikvision 8K 32MP NVR 16CH CCTV Camera System DS-2CD2347G2-LU 4MP Lot
Hikvision 8K 32MP NVR 16CH CCTV Camera System DS-2CD2347G2-LU 4MP Lot
24/7 Color
Human and Vehicle Detection
One Way Audio
Hurry up, only 2 items left in stock.
products.product.pickup_availabilities
Description
Description

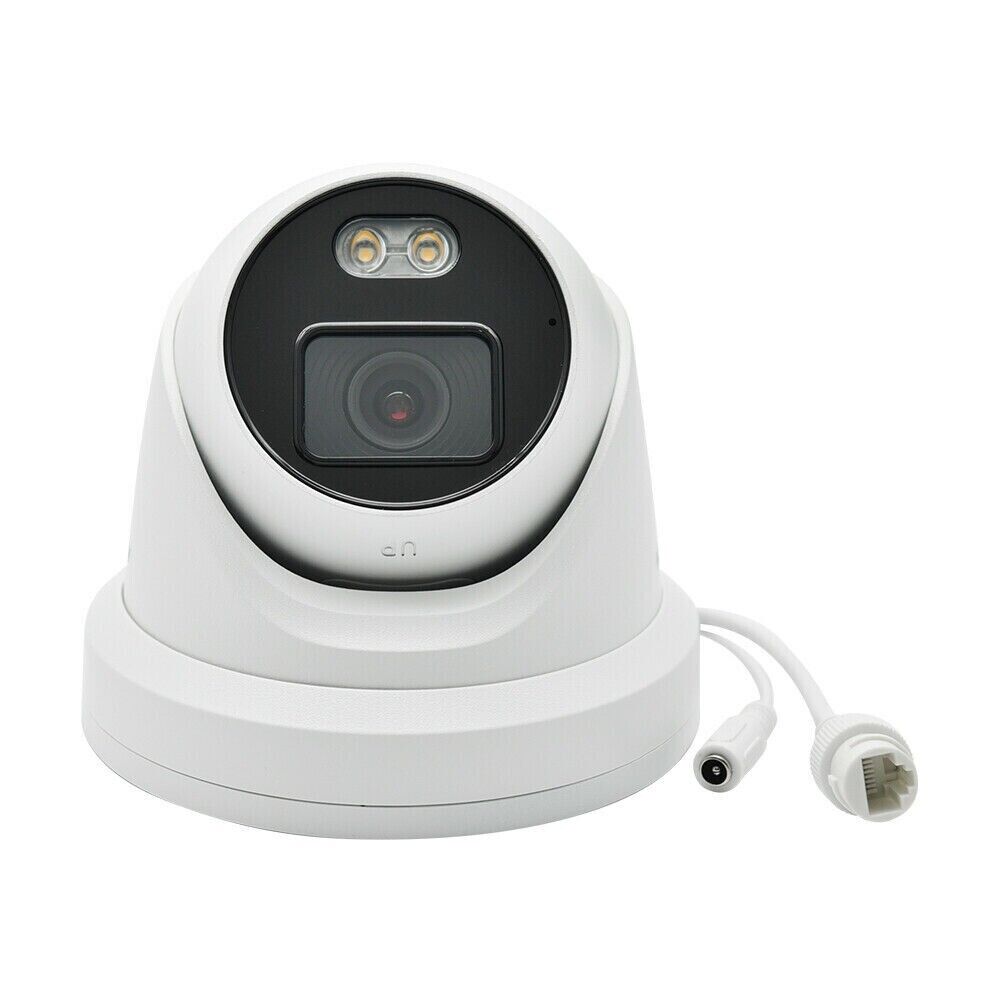

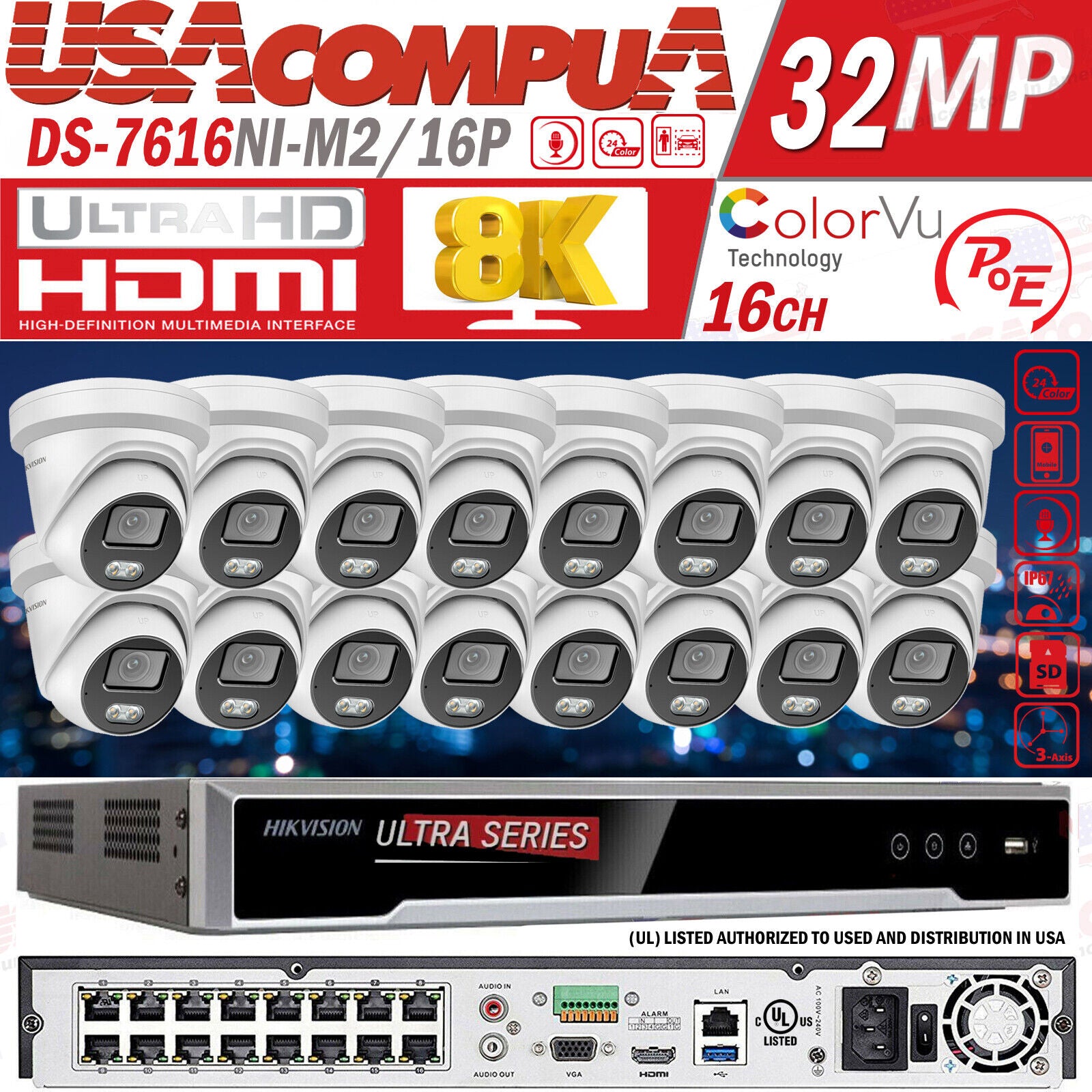

Hikvision 4MP ColorVu IP Kit + 16-Channel 8K PoE NVR

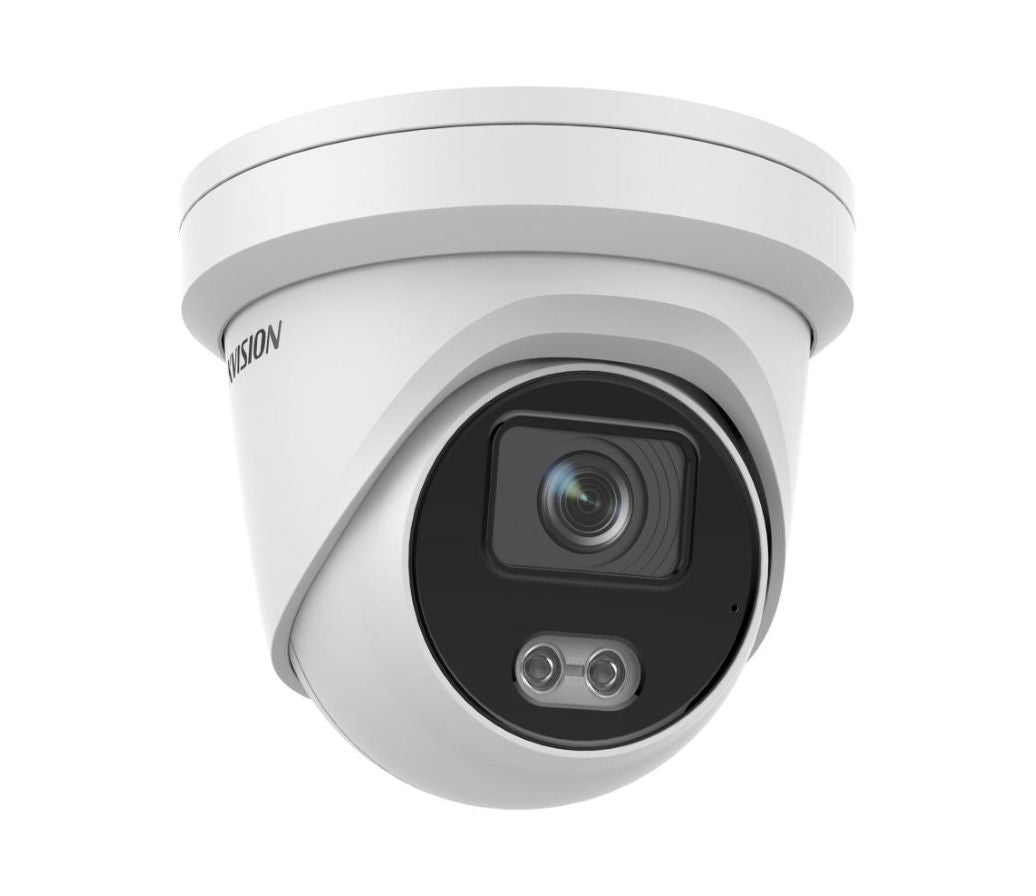

Build a system that actually solves problems at night and scales easily as you grow. This kit combines the DS-7616NI-M2/16P NVR (16 IP channels, 16-port PoE, 8K HDMI, H.265+) with DS-2CD2347G2-LU ColorVu cameras (4 MP, 24/7 color, 130 dB WDR, smart white light to 30 m, built-in mic).
The result: clean one-cable installs, clear color evidence after dark, smoother multi-camera playback, and longer retention on the same drives—without the usual headaches.
Why Buyers Choose This Kit
- See in color at night: ColorVu + smart white light makes IDs, clothing, and vehicle colors obvious—when it matters most.
- All-in-one simplicity: 16 built-in PoE ports power cameras directly—no extra PoE switch, fewer failure points.
- Performance headroom: 256 Mbps in/out keeps live view and playback smooth across many cameras.
- Crystal local display: HDMI up to 8K for sharp on-site monitoring; independent VGA for a second screen.
- Smarter storage: H.265+ trims file sizes so you keep more days without bigger disks.
Features & Benefits
- 4 MP ColorVu cameras (2688×1520) @ up to 30 fps — zoom in with confidence on faces and plates.
- F1.0 lens + white light (to 30 m) — full-color evidence 24/7 and a visible deterrent at night.
- 130 dB WDR — balanced video at glass doors, loading bays, and backlit entries.
- Built-in mic (-U) — capture context and audio cues that clarify incidents.
- DS-7616NI-M2/16P: 16 IP channels, up to 32 MP per camera — record modern ultra-high-resolution cameras without bottlenecks.
- 8K HDMI + independent VGA — run dual monitors with crisp, readable video.
- 16-port PoE (af/at), ≤200 W budget — single-cable installs that save time and reduce clutter.
- H.265+/H.265/H.264+/H.264 — maximize retention with efficient codecs.
- Strong decoding + 16-ch synchronous playback — reconstruct events from multiple angles in minutes.
- 2 × SATA (up to 16 TB per disk) — scale local storage to your policy.
- PoE (802.3af) or 12 VDC on cameras — flexible power options for any run.
- IP67 camera housing; wide temp range — reliable outdoors through heat, cold, dust, and rain.
- Modern, secure access — plugin-free browser viewing, TLS-encrypted streaming, double verification.
What This Helps You Avoid
- Useless gray night clips — color video preserves crucial details after dark.
- Messy, failure-prone wiring — onboard PoE reduces extra switches and power bricks.
- Choppy multi-camera playback — higher bandwidth + decoding keeps views smooth.
- Storage bloat — efficient H.265+ stretches retention on the same drives.
- Browser plug-in hassles — view securely in modern browsers without legacy add-ons.
What’s in the Box
- 1 × DS-7616NI-M2/16P Network Video Recorder
- DS-2CD2347G2-LU ColorVu cameras — quantity as ordered
- Quick start / documentation
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
DS-1273ZJ-140B, DS-1273ZJ-140, DS-1275ZJ-SUS, DS-1280ZJ-PT6, DS-1276ZJ-SUS, DS-1271ZJ-140
Accessories & Mounts Available
Hikvision DS-1273ZJ-140 Wall Mount Bracket for Turret Cameras Aluminum
In stock
Choose your option
DS-1275ZJ-SUS Hikvision Vertical pole mount Horizontal Stainless Steel
In stock
Choose your option
Hikvision DS-1280ZJ-PT6 Metal Junction Box for Secure Camera Cable Management
In stock
Choose your option
Technical Specifications
Hikvision ColorVu 4 MP IP Kit + 16-Channel 8K PoE NVR
This kit pairs the DS-7616NI-M2/16P NVR (16 IP channels, 16-port PoE, 8K HDMI, H.265+) with DS-2CD2347G2-L(U) ColorVu cameras (4 MP, 24/7 color, 130 dB WDR, smart white light up to 30 m, optional built-in mic).
You get one-cable installs, smooth multi-camera playback, and longer retention—plus full-color evidence at night and IP67 durability outdoors.
Key Features
- 16 IP channels, up to 32 MP — record ultra-high-resolution cameras without bottlenecks.
- HDMI up to 8K + independent VGA — crisp on-site display with flexible dual-monitor layouts.
- Dedicated 16-port PoE (af/at) — power cameras directly from the NVR for clean wiring.
- 256 Mbps in / 256 Mbps out — smooth multi-camera recording and remote access.
- H.265+ — significantly reduces storage consumption versus H.264.
- Strong decoding & 16-ch synchronous playback — e.g., up to 20-ch@4 MP or 40-ch@1080p.
- Security & control — TLS-encrypted streaming and double verification for playback/download.
- Smart & POS — VCA events, special camera functions (heat map, ANPR, people counting), and POS overlay/trigger.
- Web access without plug-in — easier remote viewing in modern browsers.
- 4 MP ColorVu full-color imaging — bright, vivid images day and night.
- 130 dB WDR — clear imaging against strong backlight.
- Smart white light (to 30 m) — full-color evidence after dark and visible deterrence.
- Built-in microphone (-U) — real-time audio security.
- Human/vehicle classification — focus on important events.
- IP67 weather resistance — reliable outdoor operation.

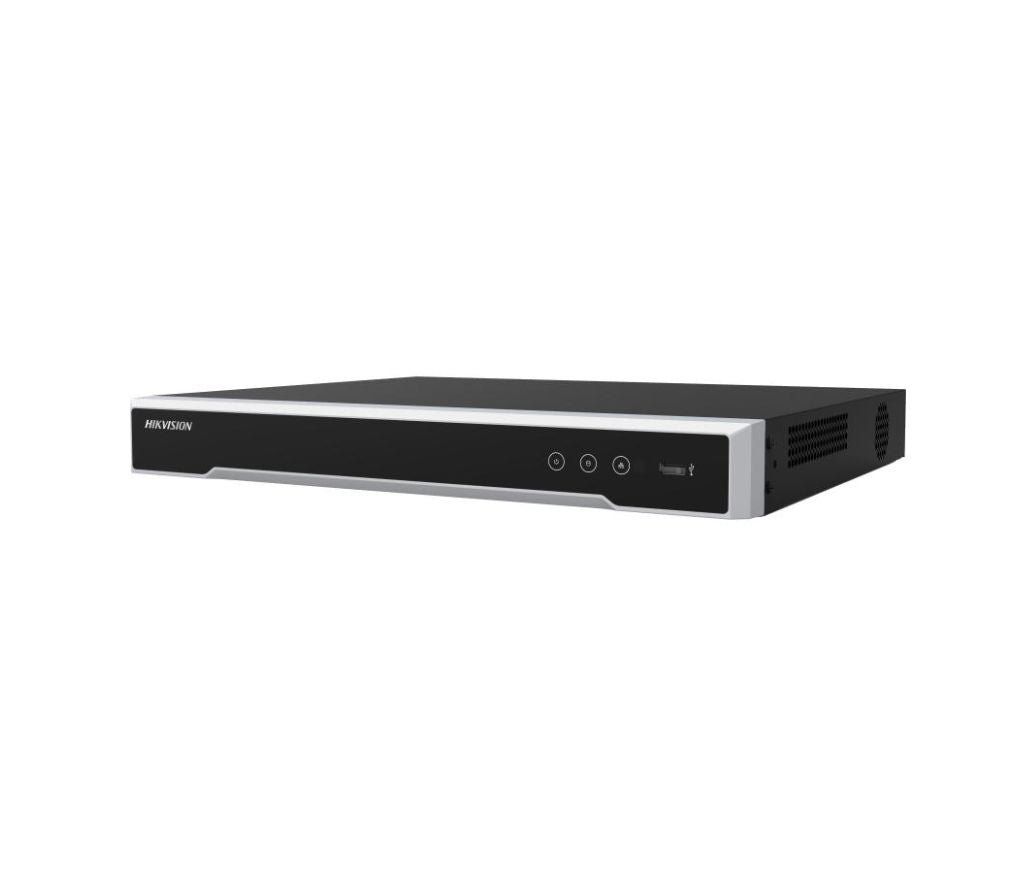

NVR — DS-7616NI-M2/16P
Video & Audio
Decoding & Playback
Network
PoE
Storage
Interfaces & I/O
General
Certifications

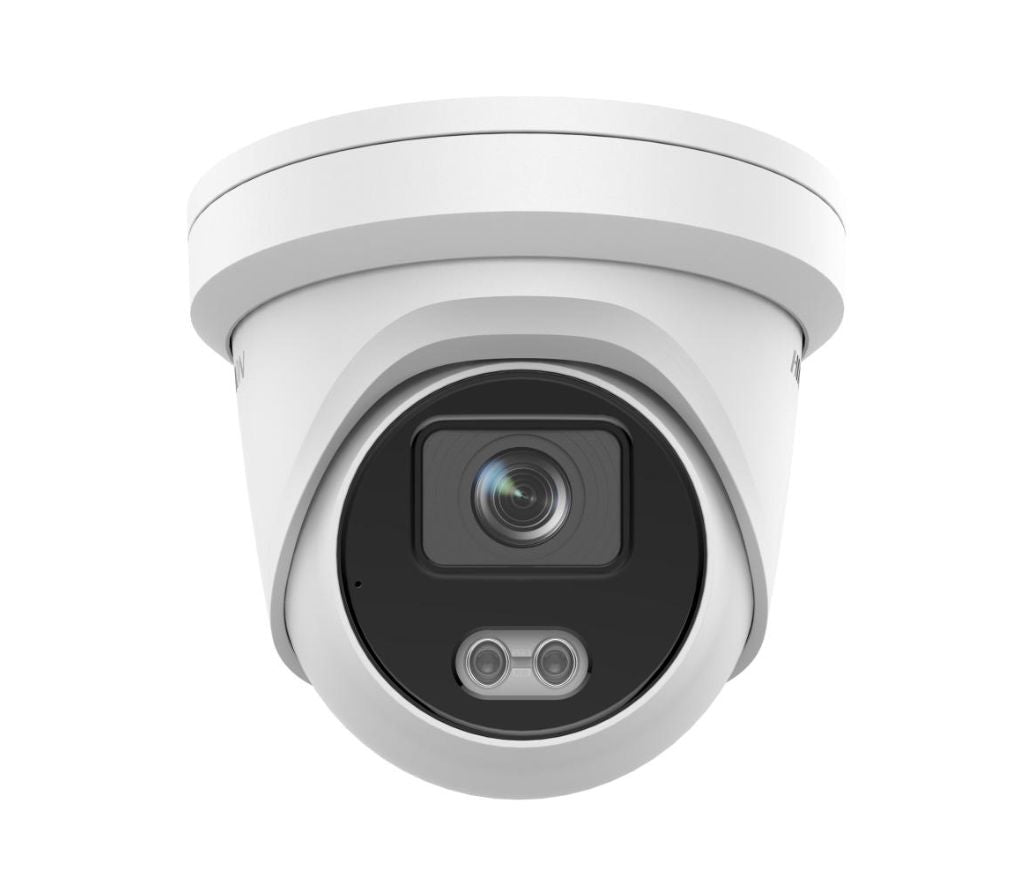

Camera — DS-2CD2347G2-L(U)
Camera
Lens
DORI
Illuminator
Video
*Third stream supported under certain settings.
Audio
Network
Interface
Event
Deep Learning
General & Power
Materials & Dimensions
Approvals & Protection

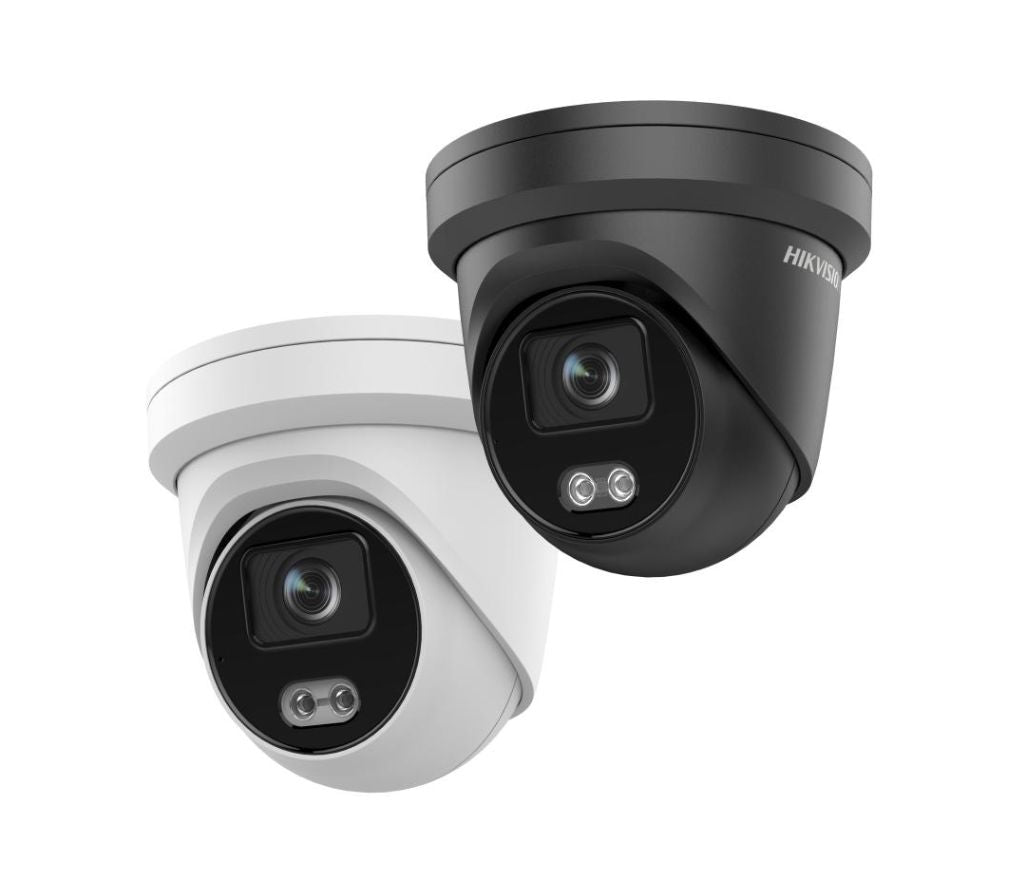

Available Models
Accessories (Camera – Optional)
- DS-1273ZJ-140B — Wall Mount
- DS-1273ZJ-140 — Wall Mount
- DS-1275ZJ-SUS — Vertical Pole Mount
- DS-1280ZJ-PT6 — Junction Box
- DS-1276ZJ-SUS — Corner Mount
- DS-1271ZJ-140 — Pendant Mount
Ideal Applications & Common Uses
- Entrances, parking areas, storefronts — 24/7 color imaging with strong WDR.
- Outdoor installations — IP67 weather resistance on cameras.
- Multi-camera retail & POS — overlay register data and trigger recordings on exceptions.
- Mixed-resolution deployments — combine 4 MP to 32 MP cameras and play back synchronously.
- High-impact monitoring — local 8K HDMI output for crisp onsite displays.
- Plug-and-play PoE builds — power up to 16 IP cameras directly from the NVR.
- Security-conscious sites — TLS streaming and double verification protect recorded evidence.
What’s in the Box
- 1 × DS-7616NI-M2/16P Network Video Recorder
- DS-2CD2347G2-L(U) ColorVu cameras — quantity as ordered
- Quick start / documentation
Downloads
Frequently Asked Questions — DS-2CD2347G2-L(U) ColorVu Camera
It delivers 4 MP imaging with a maximum resolution of 2688 × 1520.
Yes. ColorVu uses an F1.0 super-aperture lens with smart white light to provide 24/7 colorful imaging.
Fixed 2.8 mm, 4 mm, or 6 mm options. FOVs: 2.8 mm—112°(H)/61°(V)/134°(D); 4 mm—95°/51°/115°; 6 mm—58°/31°/69°.
Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light.
Main stream: up to 25/30 fps at 2688 × 1520, 1920 × 1080, or 1280 × 720. Sub-stream: up to 25/30 fps at 1280 × 720/640 × 480/640 × 360. A third stream (up to 10 fps) is available under certain settings.
H.265/H.264 with H.265+ and H.264+ enhancements; the sub-stream also supports MJPEG. Bit rate is 32 Kbps to 8 Mbps with CBR/VBR control.
Yes, models with “-U” include a built-in microphone for real-time audio and environment noise filtering.
The smart white light illuminator has a range of up to 30 meters.
On-board microSD/microSDHC/microSDXC slot supports up to 512 GB. Network storage via NAS (NFS/SMB/CIFS) and ANR is also supported.
12 VDC ±25% or PoE (802.3af, Class 3); max consumption 6.6 W (12 VDC) or 7.6 W (PoE). Operating temperature −30 °C to 60 °C; enclosure is IP67.
Frequently Asked Questions — DS-7616NI-M2/16P NVR
It supports 16 IP channels and can record cameras up to 32 MP (with ultra-HD mode notes as specified).
Yes. It provides 16 independent PoE ports (IEEE 802.3 af/at) with a total PoE power budget of up to ≤ 200 W.
HDMI supports up to 8K (7680 × 4320 @ 30 Hz); VGA supports up to 1920 × 1080 @ 60 Hz. HDMI and VGA operate independently.
It supports 256 Mbps incoming bandwidth and 256 Mbps outgoing bandwidth for smooth multi-camera recording and remote access.
H.265+, H.265, H.264+, and H.264 are supported for recording and playback.
It supports 16-channel synchronous playback and strong decoding, e.g., up to 20-ch @ 4 MP or 40-ch @ 1080p (30 fps).
Two SATA interfaces are available, supporting up to 16 TB per disk.
Yes. It supports plug-in-free web access and smooth streaming technology for easier remote viewing.
Yes. It supports VCA events and special camera functions (e.g., heat map, ANPR, people counting) plus POS overlay/trigger (with compatible cameras/systems).
Alarm I/O is 4 in / 1 out; USB ports include front 1 × USB 2.0 and rear 1 × USB 3.0. Power is 100–240 VAC; consumption ≤ 15 W (NVR only, without HDD/PoE). Operating temperature is −10 °C to 55 °C.
