Hikvision 8K 32MP NVR 16CH ip Security Camera System DS-2CD2047G2-L 4MP Lot

Data sheet PDF

Product Description

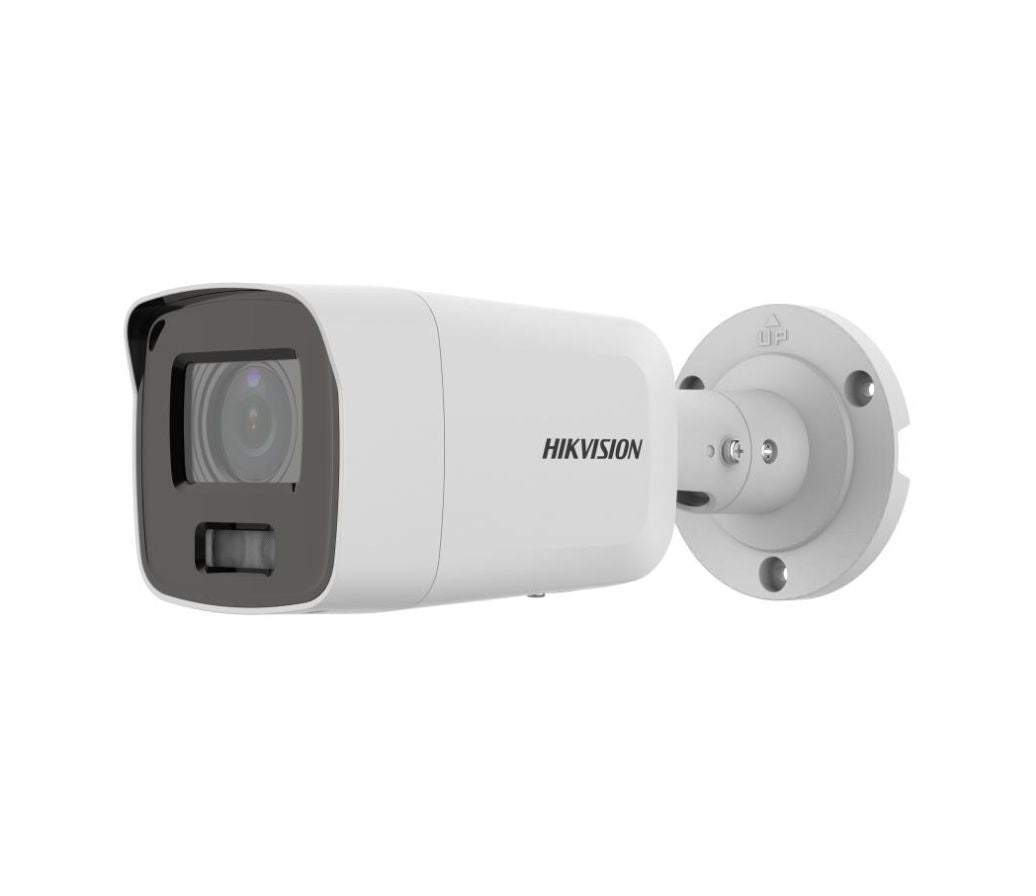

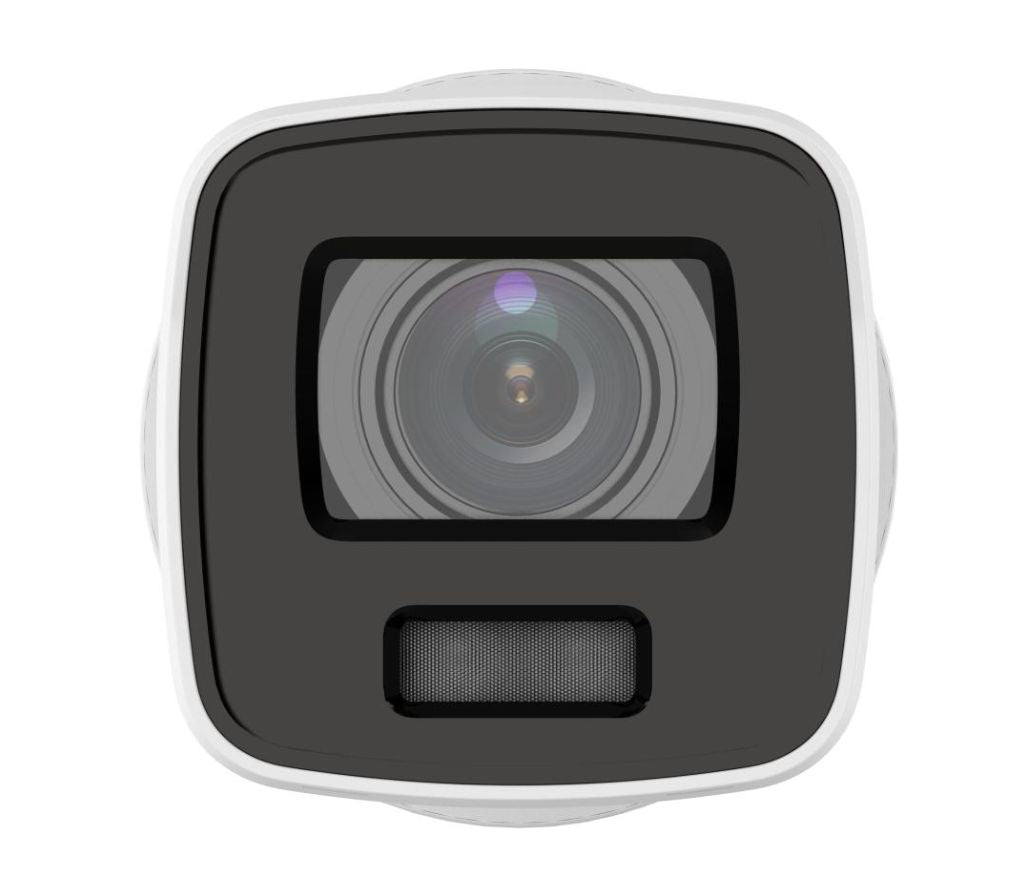

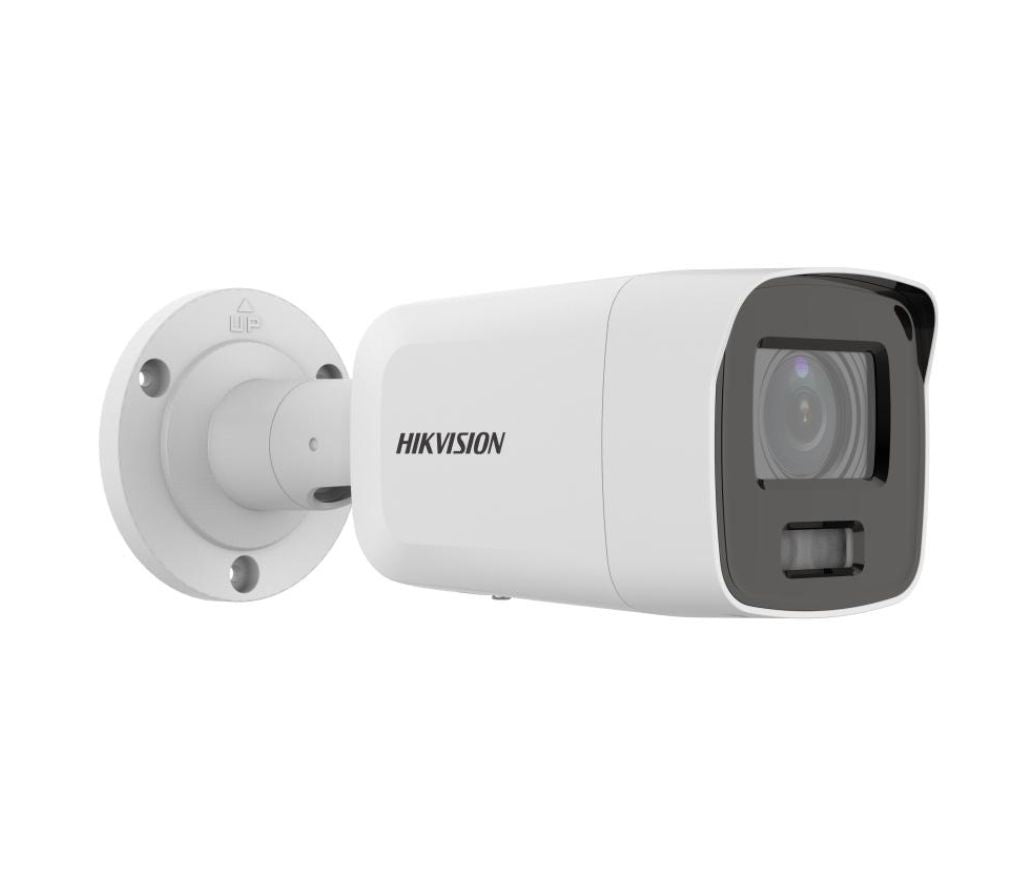

4 K ColorVu Fixed Bullet Network Camera

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 130 dB WDR technology
• Focus on human and vehicle classification based on deep learning
• 24/7 colorful imaging
• Built-in microphone for real-time audio security (-U)

• Camera
• Image Sensor1/1.2" Progressive Scan CMOS
• Max. Resolution3840 ? 2160
• Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
• Shutter Time1/3 s to 1/100,000 s
• Angle AdjustmentPan: 0? to 360?, tilt: 0? to 90?, rotate: 0? to 360?
• Lens
• Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
• Focal Length & FOV

  2.8 mm: horizontal FOV102?, vertical FOV 52?, diagonal FOV 124?

  4 mm: horizontal FOV 88?, vertical FOV 47?, diagonal FOV 104?

  6 mm: horizontal FOV 54?, vertical FOV 30?, diagonal FOV 62?

• Iris TypeFixed
• ApertureF1.0
• Depth Of Field

  2.8 mm: 4.5 m to ?

  4 mm: 7 m to ?

  6 mm: 13 m to ?

• DORI
• DORI

  2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m

  4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m

  6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m

• Illuminator
• Supplement Light TypeWhite light
• Supplement Light Range40 m
• Smart Supplement LightYes
• Video
• Main Stream

  50 Hz:

  25 fps (3840 ? 2160, 3200 ? 1800 , 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

  60 Hz:

  24 fps (3840 ? 2160)

  30 fps (3200 x 1800 , 2688 ? 1520, 1920 ? 1080, 1280 ? 720)

• Sub-Stream

  50 Hz: 25 fps (640 ? 480, 640 ? 360)

  60 Hz: 30 fps (640 ? 480, 640 ? 360)

• Third Stream

  50 Hz: 10 fps (1920 x 1080 , 1280 ? 720, 640 ? 480, 640 ? 360)

  60 Hz: 10 fps (1920 x 1080 , 1280 ? 720, 640 ? 480, 640 ? 360)

• Video Compression

  Main stream: H.265/H.264/H.264+/H.265+

  Sub-stream: H.265/H.264/MJPEG

  Third stream: H.265/H.264

• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Bit Rate ControlCBR/VBR
• Scalable Video Coding (SVC)H.264 and H.265 encoding
• Region Of Interest (ROI)1 fixed region for main stream and sub-stream
• Audio
• Audio Compression-U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
• Audio Bit Rate-U: 64 Kbps (G.711 ulaw)/64 Kbps(G.711 alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/32 to 192 Kbps(MP2L2)/8 to 320 Kbps(MP3)/16 to 64Kbps(AAC)
• Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering-U: Yes
• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
• User/HostUp to 32 users. 3 user levels: administrator, operator and user
• SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web Browser

  Plug-in required live view: IE 10, IE 11

  Plug-in free live view : Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image Parameters SwitchYes
• Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night SwitchDay, Night, Auto, Schedule
• Wide Dynamic Range (WDR)130 dB
• SNR? 52 dB
• Image EnhancementBLC, HLC, 3D DNR
• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
• Built-In Microphone-U: Yes
• Reset KeyYes
• Event
• Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart Event

  Line crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle))

  Scene change detection

• LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email
• Deep Learning Function
• Face CaptureYes
• General
• Power

  12 VDC ? 25%, 0.5 A, max. 6 W, ?5.5 mm coaxial power plug, reverse polarity protection

  PoE: (802.3af, Class 3, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W

• Dimension78.8 ? 78.6 ? 215.2 mm (3.1" ? 3.1" ? 8.5")
• Package Dimension315 ? 137 ? 141 mm (12.4" ? 5.4" ? 5.6")
• WeightApprox. 850 g (1.9 lb.)
• With Package WeightApprox. 1270 g (2.8 lb.)
• Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
• Language

  33 languages

  English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

• General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter
• Approval
• EMC

  FCC (47 CFR Part 15, Subpart B);

  CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);

  RCM (AS/NZS CISPR 32: 2015);

  IC (ICES-003: Issue 7)

• Safety

  UL (UL 62368-1);

  CB (IEC 62368-1:2014+A11)

  CE-LVD (EN 62368-1:2014/A11:2017)

• Environment

  CE-RoHS (2011/65/EU);

  WEEE (2012/19/EU);

  Reach (Regulation (EC) No 1907/2006)

• ProtectionIP67 (IEC 60529-2013)

Data sheet PDF

Product Description

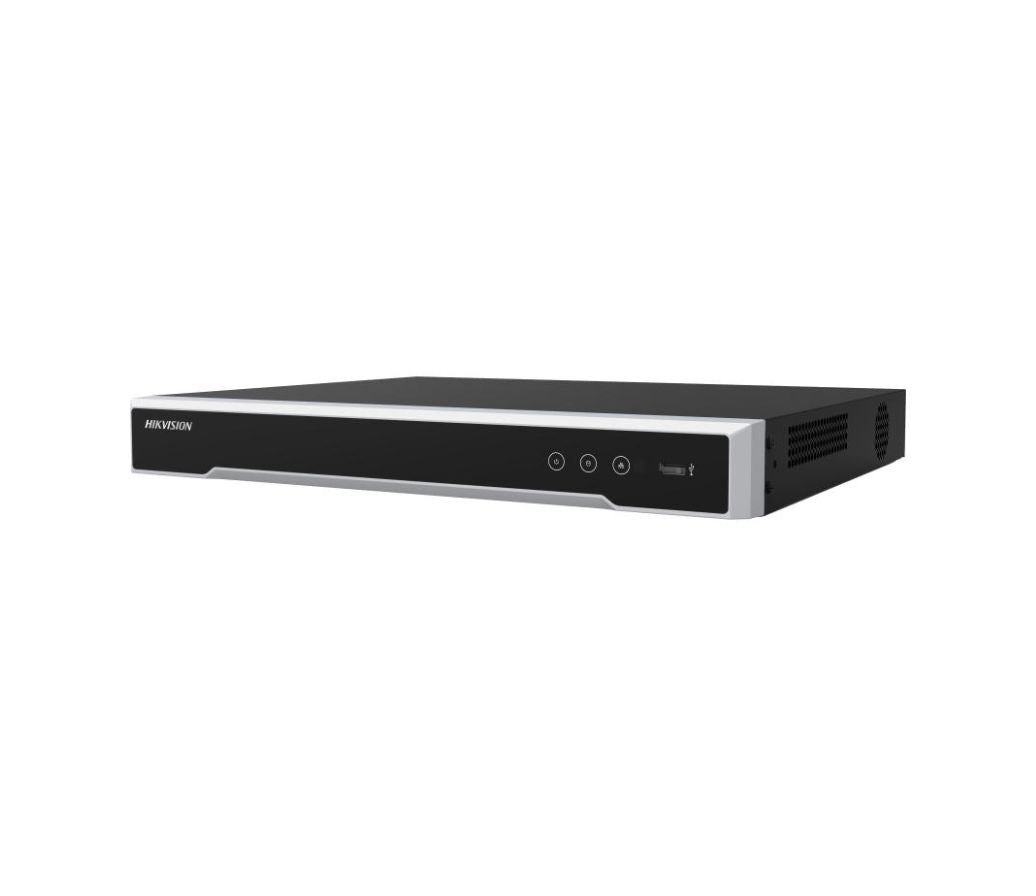

16ch 1U 16 PoE 8K NVR

• H.265+/H.265/H.264+/H.264 video formats
• Up to 16ch IP camera inputs
• Up to 16ch@4MP decoding capacity
• Up to 256 Mbps incoming bandwidth

Specification

• Video And Audio
• IP Video Input

  16ch

  Up to 32 MP resolution

  *: After ultra HD resolution mode is enabled, the NVR supports up to 8ch 32 MP/24 MP IP video inputs.

• Incoming Bandwidth256 Mbps
• Outgoing Bandwidth256 Mbps
• HDMI Output8K (7680 ? 4320)/30Hz, 4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• VGA Output1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• Video Output ModeHDMI/VGA independent output
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
• Decoding
• Decoding FormatH.265+/H.265/H.264+/H.264
• Recording Resolution

  32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

  *: After ultra HD resolution mode is enabled, the NVR supports up to 8ch 32 MP/24 MP IP video inputs.

• Synchronous Playback16ch
• Decoding Capability2-ch@32 MP (30 fps)+2-ch@8MP?30fps?/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
• Dual-Stream RecordingSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
• Network
• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• PoE
• Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power? 200 W
• StandardIEEE 802.3 af/at
• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 16 TB capacity for each HDD
• Alarm In/Out4/1
• USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 3.0
• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption? 15 W (without HDD and PoE off)
• Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
• Working Humidity10% to 90%
• Dimension (W ? D ? H)385 ? 315? 52 mm (15.2" ? 12.4" ? 2.0")
• Weight? 3 kg (without HDD, 2.2 lb.)
• Certification
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CE

  EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201

  9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
