Hikvision 8MP 16CH CCTV Camera system DS-7216HUHI-M2/S ColorVu Lot D1

Data sheet PDF

Product Description

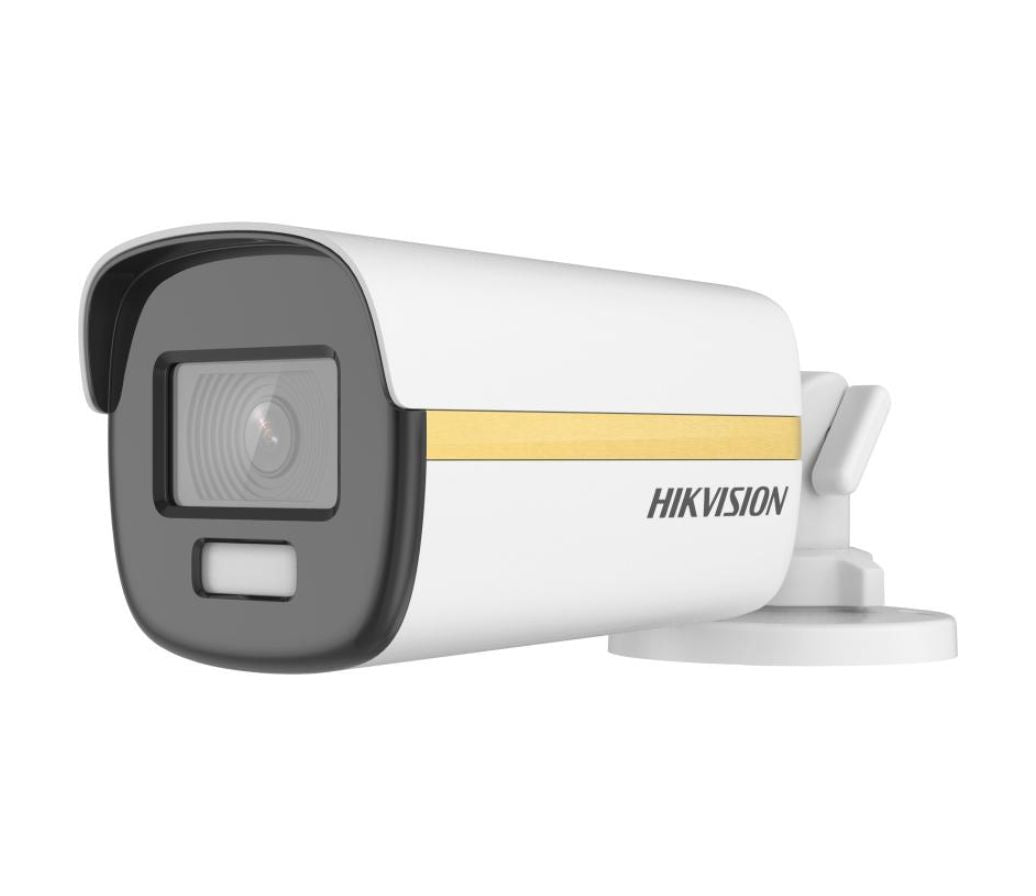

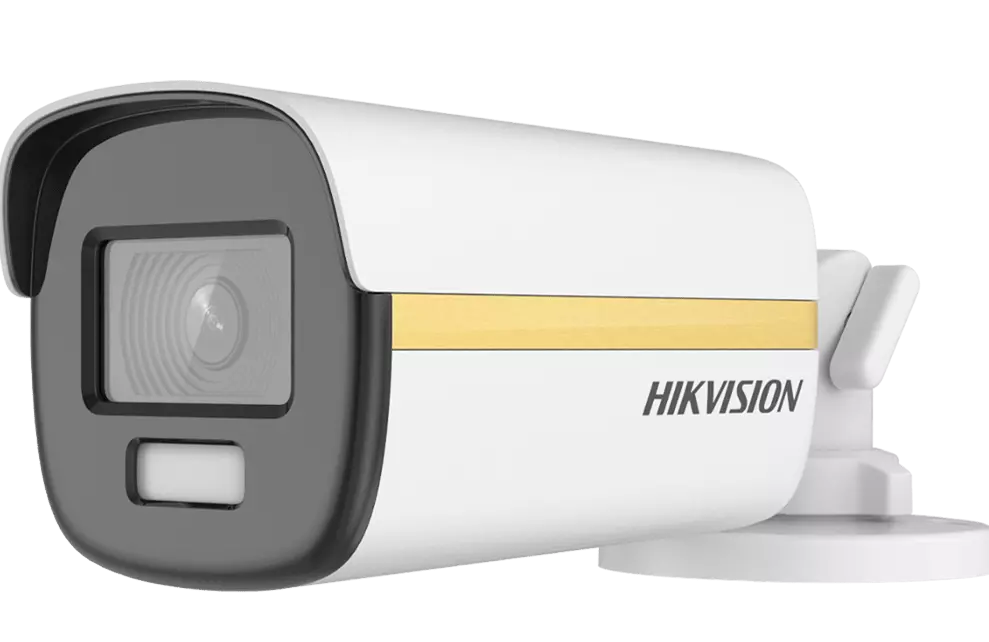

4K ColorVu PoC Fixed Mini Bullet Camera

• High quality imaging with 8 MP, 3840 ? 2160 resolution

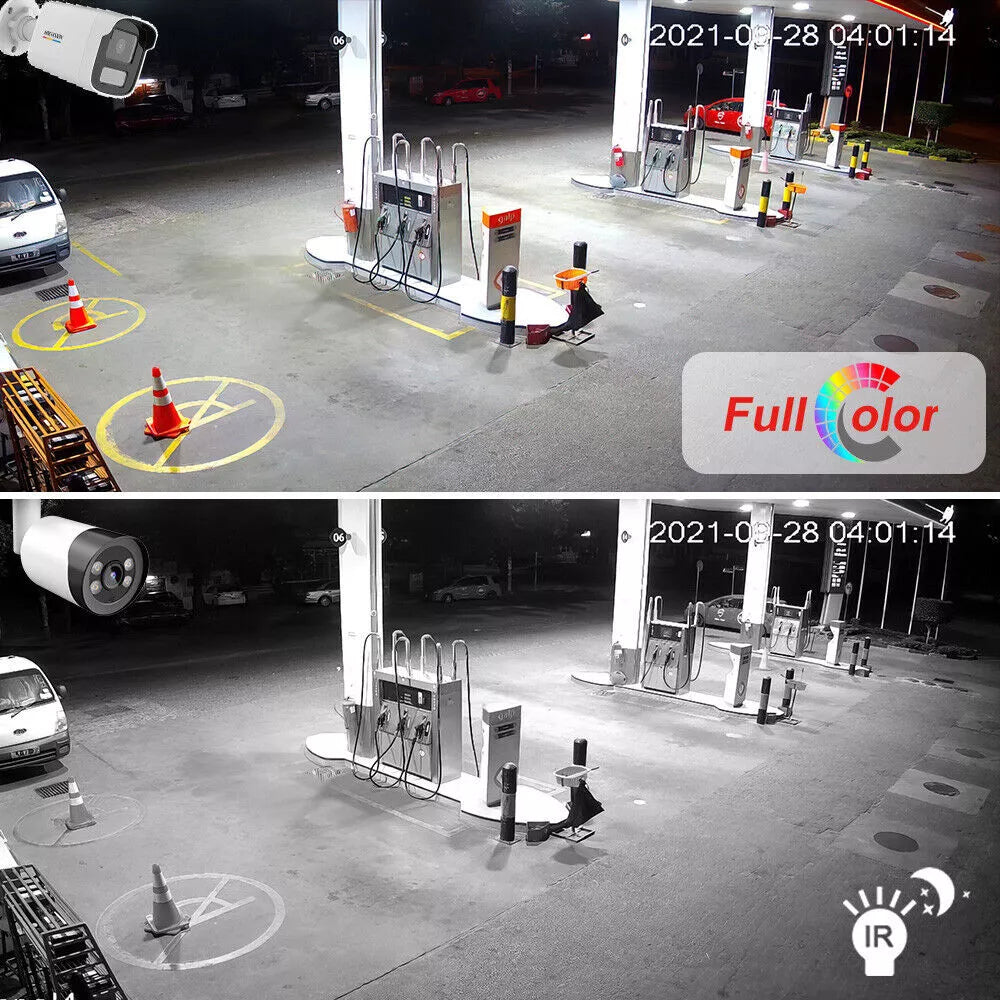

• 24/7 color imaging
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, , 6mm fixed focal lens
• Up to 40 m white light distance for bright night imaging
• Water and dust resistant (IP67)








Specification

Camera

Lens

Illuminator


Interface

Event

General

Approval

• Camera
• Image Sensor8 MP CMOS
• Signal SystemPAL/NTSC
• Max. Resolution3840 (H) ? 2160 (V)
• Min. Illumination0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light
• Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
• Day & Night24/7 Color Imaging
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 180?, Rotation: 0? to 360?
• Lens
• Lens Type2.8 mm, , 6mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 110?, vertical FOV: 59?, diagonal FOV: 131?

  , horizontal FOV: 93?, vertical FOV: 48?, diagonal FOV: 113?

  6 mm, horizontal FOV: 57?, vertical FOV: 30?, diagonal FOV: 67?

• Lens MountM16
• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 40 m
• Image
• Frame RateTVI: 8 MP @ 12.5 fps/15 fps, 3k/5MP @ 20 fps, 1080P @ 25 fps/30 fps
• Wide Dynamic Range (WDR)?130 dB
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Day/Night ModeColor
• White BalanceAuto/Manual
• Image EnhancementWDR, BLC, HLC, Global, HLS
• Privacy Mask4 programmable privacy masks
• Noise Reduction3D DNR/2D DNR
• Image SettingsBrightness, Contrast, Mirror, Sharpness, Anti-Banding, Smart Light, AGC
• Interface
• Video Output1 HD analog output
• AlarmSolid Light Alarm (White Light)
• Event
• Motion Detection4 programmable motion areas
• General
• LanguageEnglish
• Operating Condition-40?C to 60?C (-40?F to 140?F), Humidity: 90% or less (non-condensing)
• MaterialMetal
• CommunicationHIKVISION-C
• Dimension194.2 mm ? 78 mm ? 74.5 mm (7.65" ? 3.07" ? 2.93")
• WeightApprox. 566 g (1.25 lb.)
• Power

  12 VDC ? 25%/PoC.at, Max. 5.1 W

  *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.

• Approval
• ProtectionIP67

Data sheet PDF

Product Description

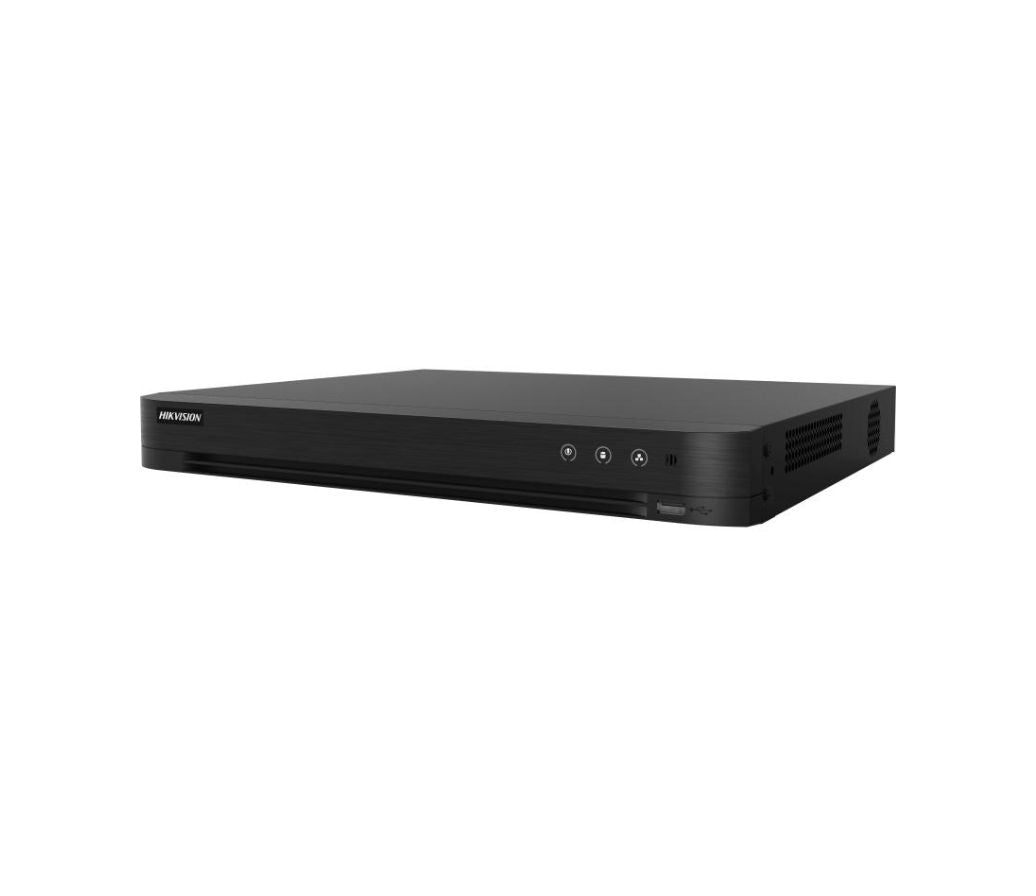

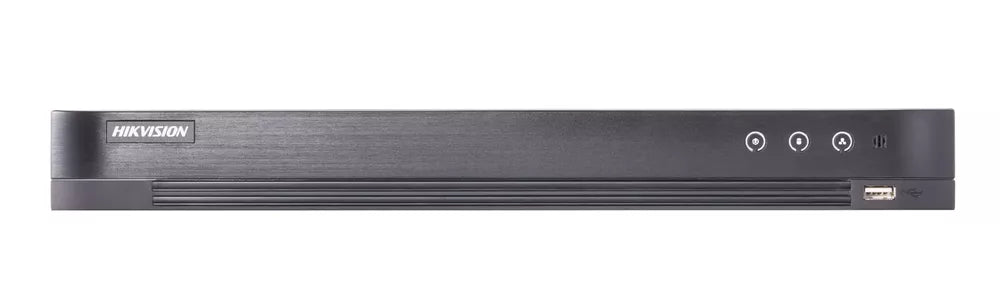

16ch 5 MP 1U H.265 AcuSense DVR

• Deep learning-based motion detection 2.0 for all analog channels
• Deep learning-based perimeter protection
• Efficient H.265 pro+ compression technology
• Up to 8 MP@8 fps/5 MP@12 fps encoding capability
• "Hybrid" video inputs
• Up to 32ch IP camera inputs (up to 8 MP)

Specification

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels,

  it can classify human and vehicle, and extremely reduce false alarms caused by objects

  like leaves and lights;

  Quick search by object or event type is supported;

• Perimeter Protection
• Human/Vehicle AnalysisUp to 4ch
• Facial Detection
• Facial Detection And CaptureFace picture detection, face picture search
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution8 MP/5 MP/3k/5MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Frame Rate

  Main stream:

  8 MP@8 fps/3k/5MP@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 10 Mbps
• Dual-StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Video And Audio
• IP Video Input

  8ch (up to 24ch)

  Enhanced IP mode on: 16ch (up to 32ch), each up to 4 Mbps

  Up to 8 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

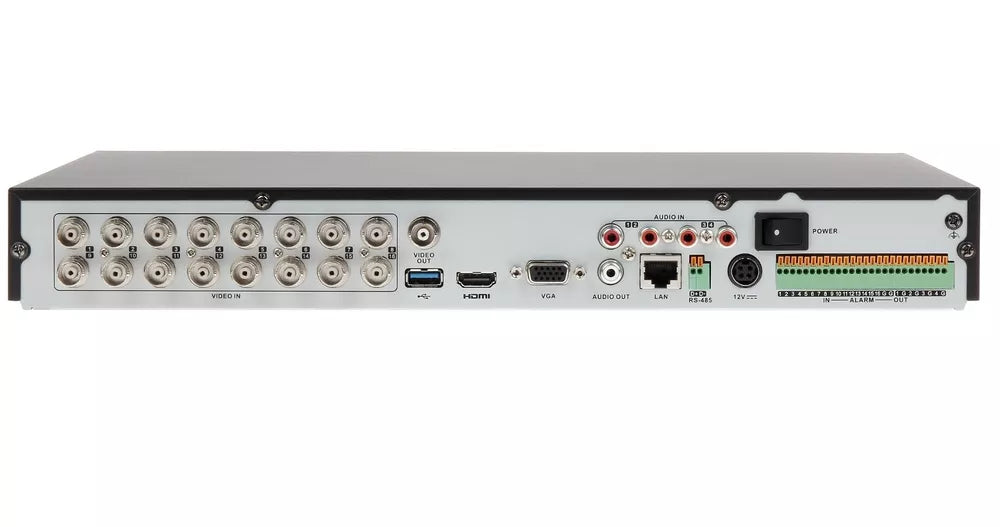

• Analog Video Input

  16ch

  BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection

• HDMI Output

  1-ch, 4K (3840 ? 2160)/30Hz,

  2K (2560 ? 1440)/60Hz,

  1920 ? 1080/60Hz,

  1280 ? 1024/60Hz,

  1280 ? 720/60Hz

  HDMI/VGA simultaneous output

• VGA Output

  1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz

  HDMI/VGA simultaneous output

• CVBS InputPAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 ?),

  resolution: PAL: 704 ? 576, NTSC: 704 ? 480

• Synchronous Playback16ch
• HDTVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 3k/5MP(2960 x 1665)@20 fps, 5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 5 MP(2592 ? 1944)@20 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Audio Output1-ch, RCA (Linear, 1 K?)
• Audio Input

  1-ch (up to 16ch is optional), RCA (2.0 Vpp,1 K?)

  16ch via coaxial cable

• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the audio input)
• Network
• Total Bandwidth128Mbps
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
• Remote Connection128
• Network Interface

  1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

• Wi-FiWi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 10 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB Interface

  Front panel: 1 ? USB 2.0

  Rear panel: 1 ? USB 3.0

• Alarm In/OutN/A (optional to support)
• General
• Power Supply12 VDC, 5 A
• Consumption? 19 W
• Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
• Working Humidity10% to 90%
• Dimension (W ? D ? H)380 ? 320 ? 48 mm (15.0 ? 12.6 ? 1.9 inch)
• Weight? 2.1 kg (4.6 lb)
