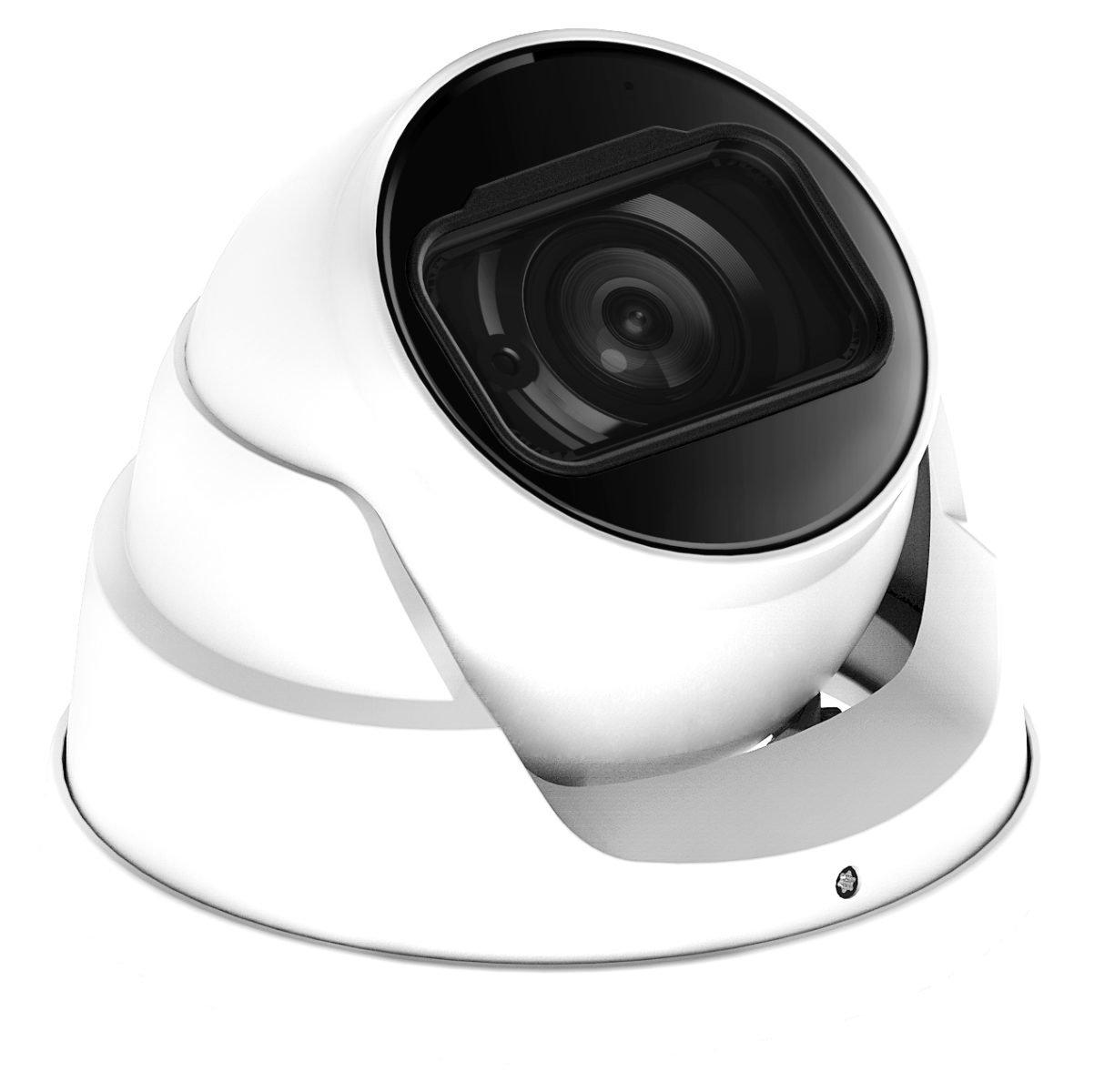

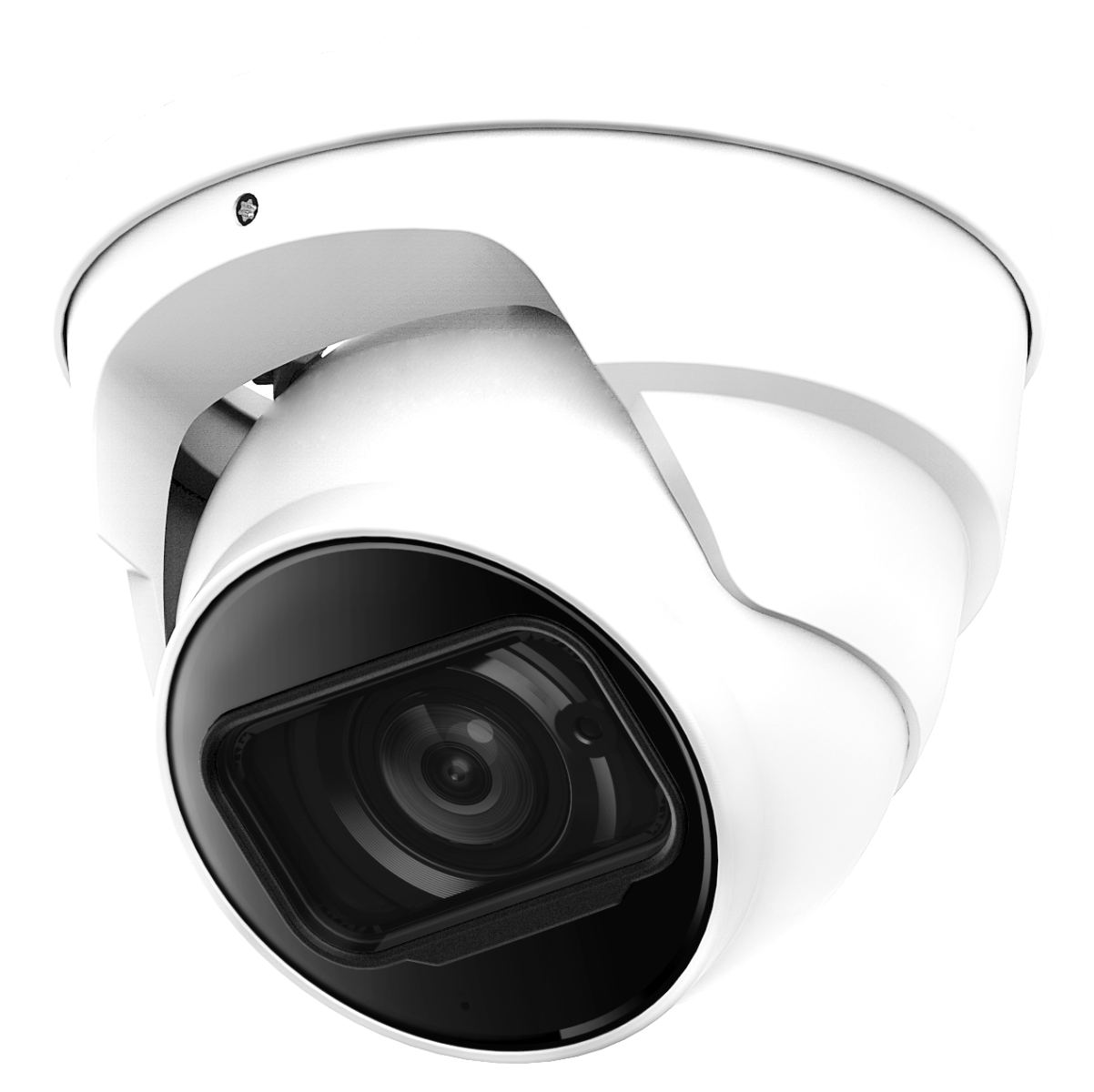

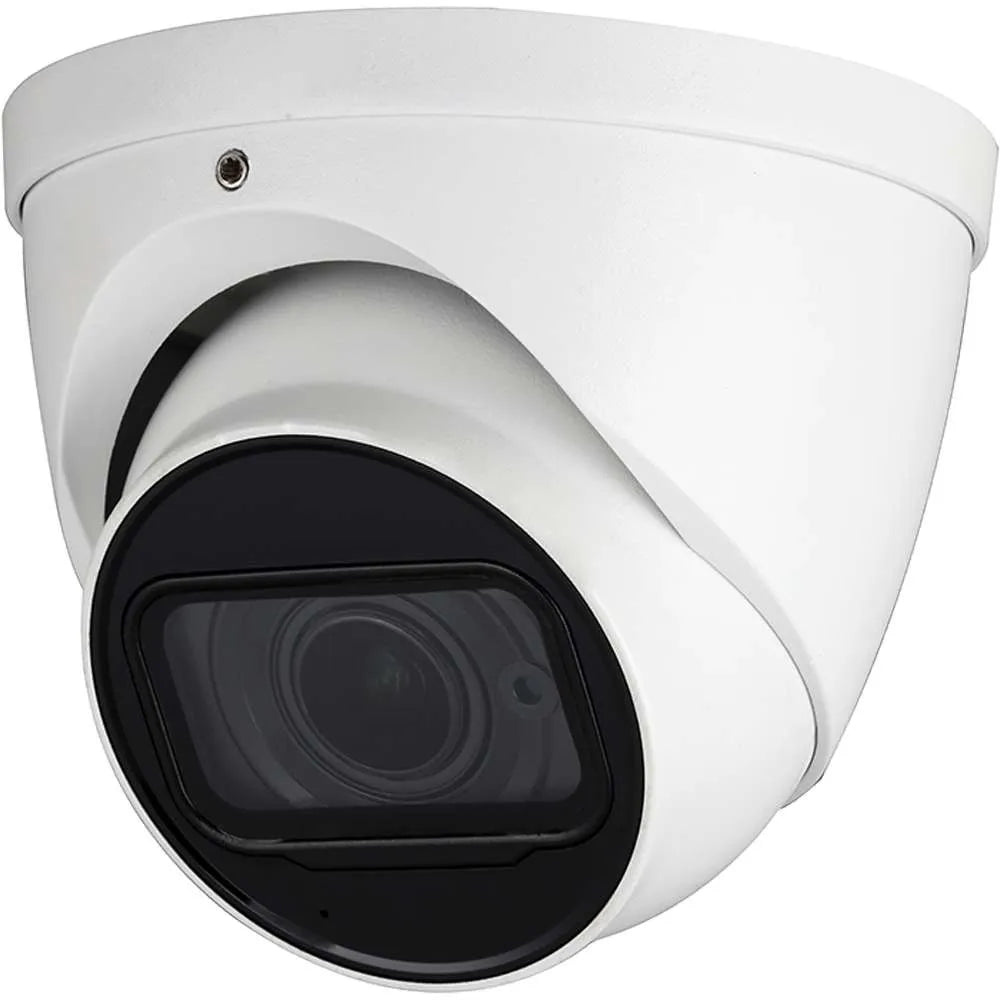

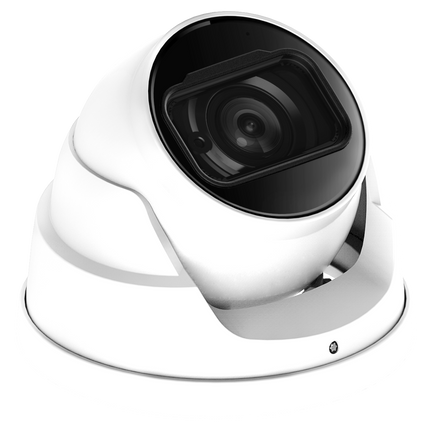

HIKVISION 8MP 4K W/ AUDIO CAMERA NO LOGO TURBO-HD TVI CCTV TURRET 2.8mm

Data sheet PDF

Product Description

C

Diamond 4K HDCVI IR Eyeball 2.8 Fixed HD Analog Security Camera HCC3381T-IRA/28

? Housing: Turret
? Resolution: 4K / 8MP
? Signal: CVI/TVI/CVBS/AHD
? Lens Category: 2.8mm Fixed
? Night Vision: Infrared / IR
? WDR: True WDR
? Water Resistance Rating : IP67
? NDAA Compliant: No
? Hardware Features: Built-in Mic

Wide Dynamic Range

With its advanced Wide Dynamic Range technology (WDR), the camera

captures highly detailed images and produces high-definition recordings

in high-contrast lighting conditions, and in scenes with backlighting or

shadows.

Super Adapt

With its intelligent algorithm, the camera automatically adjusts its

parameters to provide optimal performance and vivid images.

Advanced 3DNR

Diamond's advanced 3DNR technology reduces image noise with

little to no impact on image sharpness, especially in poor lighting

conditions.

It detects the noise, and compares the sequential frames to effectively

reduce the noise. It also makes efficient use of bandwidth, saving on

storage space.

Smart IR Illumination

With its IR illumination, the camera provides optimal performance in

low light conditions, ensuring uniformity in the brightness of B/W

images. Through its smart IR technology, the camera also compensates

for the distance of targets by adjusting the intensity of its IR LEDs,

preventing overexposure of images as targets move closer to the

camera.

? Max. 15 fps@4K.

? 120 dB true WDR, 3D NR.

? Smart IR Illumination.

? 30 m illumination distance.

? Super Adapt

? Built-in MIC (-A).

? fixed lens (2.8 mm optional).

? CVI/CVBS/AHD/TVI switchable.

? IP67, 12 VDC.

HCC3381T-IRA/28

4K Starlight HDCVI Fixed IR Turret Camera

The Lite Series is a great choice for consumers looking for high quality

monitoring products at a reasonable price. Its low cost and high

performance make it ideal for residential areas and SMB solutions. This

series is equipped with a wide range of technologies, such as full-color

and starlight, providing various solutions for different scenarios.

System Overview

Functions

WDR IP67

Protection (IP67, Wide Voltage)

IP67: The camera passed a series of rigorous dust and immersion tests.

Its enclosure is both dust-proof and waterproof, and can function

normally while being immersed in 1 m deep water for up to 30 minutes.

Wide voltage: The camera has ?30% input voltage tolerance (for some

power supplies) and a wide voltage range, making it suitable for a variety

of outdoor scenarios.

Broadcast-quality Audio

Audio signal transmission over coaxial cables is supported by the

HDCVI camera. It adopts a unique audio processing and transmission

technology that restores source audio and eliminates noise, ensuring

the quality and reliability of the audio information that is collected. This

becomes important for video surveillance applications that use audio

information as a type of supplementary evidence.

4 Signals over 1 Coaxial Cable

HDCVI technology supports 4 signals (video, audio*, data and power)

which are simultaneously transmitted over a coaxial cable. Dual-way

data transmission allows the HDCVI camera to interact with the XVR to

perform various actions such as sending control signals and triggering

alarms. HDCVI technology also supports PoC, which makes the camera

easy and quick to install.

* Audio input is available for select HDCVI camera models.

Long Distance Transmission

HDCVI technology provides long distance transmission in real time

without transmission loss. It supports transmission distances up to 700

m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to

300 m through UTP cables.

www.enssecurity.com

| HCC3381T-IRA/28

Technical Specification

Camera

Pixel 8 MP

Image Sensor 4K CMOS

Max. Resolution 3840 (H) ? 2160 (V)

Scanning System Progressive

Electronic Shutter Speed PAL: 1/25 s?1/100000 s

NTSC: 1/30 s?1/100000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)

0.001 lux@F2.0 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio >65 dB

Illumination Distance 30 m (98.43 ft)

Illuminator On/Off Control Auto/Manual

Illuminator Number 1 (IR light)

Pan/Tilt/Rotation Range

Pan: 0??360?

Tilt: 0??78?

Rotation: 0??360?

Lens

Lens Type Fixed-focal

Lens Mount M12

Focal Length 2.8 mm;

Max. Aperture F2.0

Field of View 2.8 mm: H: 106?; V: 56?; D: 125?

: H: 88?; V: 46?; D: 105?

Iris Control Fixed

Close Focus Distance 2.8 mm: 1.3 m (4.27 ft)

: 1.9 m (6.23 ft)

DORI

Distance

Lens Detect Observe Recognize Identify

2.8 mm 88 m

(288.71 ft)

35.2 m

(115.49 ft)

17.6 m

(57.74 ft)

8.8 m

(28.87 ft)

106.7 m

(350.07 ft)

42.7 m

(140.09 ft)

21.3 m

(69.88 ft)

10.7 m

(35.10 ft)

Video

Video Frame Rate

CVI:

PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps; 1080p@25 fps

NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps; 1080p@30

fps

TVI:

PAL: 4K@15 fps

NTSC: 4K@15 fps

AHD:

PAL: 4K@15 fps

NTSC: 4K@15 fps

CVBS:

PAL: 960H

NTSC: 960H

Resolution 4K (3840 x 2160); 5M (2880 x 1620); 4M (2560 x 1440);

1080p (1920 x 1080); 960H (960 x 576/960 x 480)

Day/Night Auto(ICR)/Color/B/W

BLC BLC; HLC; WDR; HLC-Pro

WDR 120 dB

White Balance Auto;Area white balance

Gain Control Auto/Manual

Noise Reduction 3D NR

Smart Illumination Smart IR

Defog Electronic defog

Mirror Yes

Privacy Masking Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;

CE-EMC: EN 55032; EN 55035

FCC: 47 CFR FCC Part 15, Subpart B;

UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC

port

Audio Input One channel built-in MIC (-A)

Power

Power Supply 12 VDC ? 30%

Power Consumption Max 4.7 W (12 VDC, IR on)

Environment

Operating Temperature ?40 ?C to +60 ?C (?40 ?F to +140 ?F)

Operating Humidity <95% (RH), non-condensing

Storage Temperature ?40 ?C to +60 ?C (?40 ?F to +140 ?F)

Protection IP67

Structure

Casing Material Metal

Product Dimensions ?94.0 mm ? 85.7 mm (?3.70" ? 3.37")

Packaging Dimensions 121 mm ? 118 mm ? 109 mm (4.76" ? 4.65" ? 4.29")

Net Weight 0.33 kg (0.73 lb)

Gross Weight 0.47 kg (1.04 lb)

Installation Wall mount; ceiling mount; vertical pole mount

www.enssecurity.com

Lite Series | HCC3381T-IRA/28

Dimensions (mm[inch])

www.enssecurity.com

Accessories

Optional:

PFA13A-E

Junction

Box

PFB205W-E

Wall Mount

Bracket

PFA152-E

Pole Mount

Bracket

Ordering Informati&a
