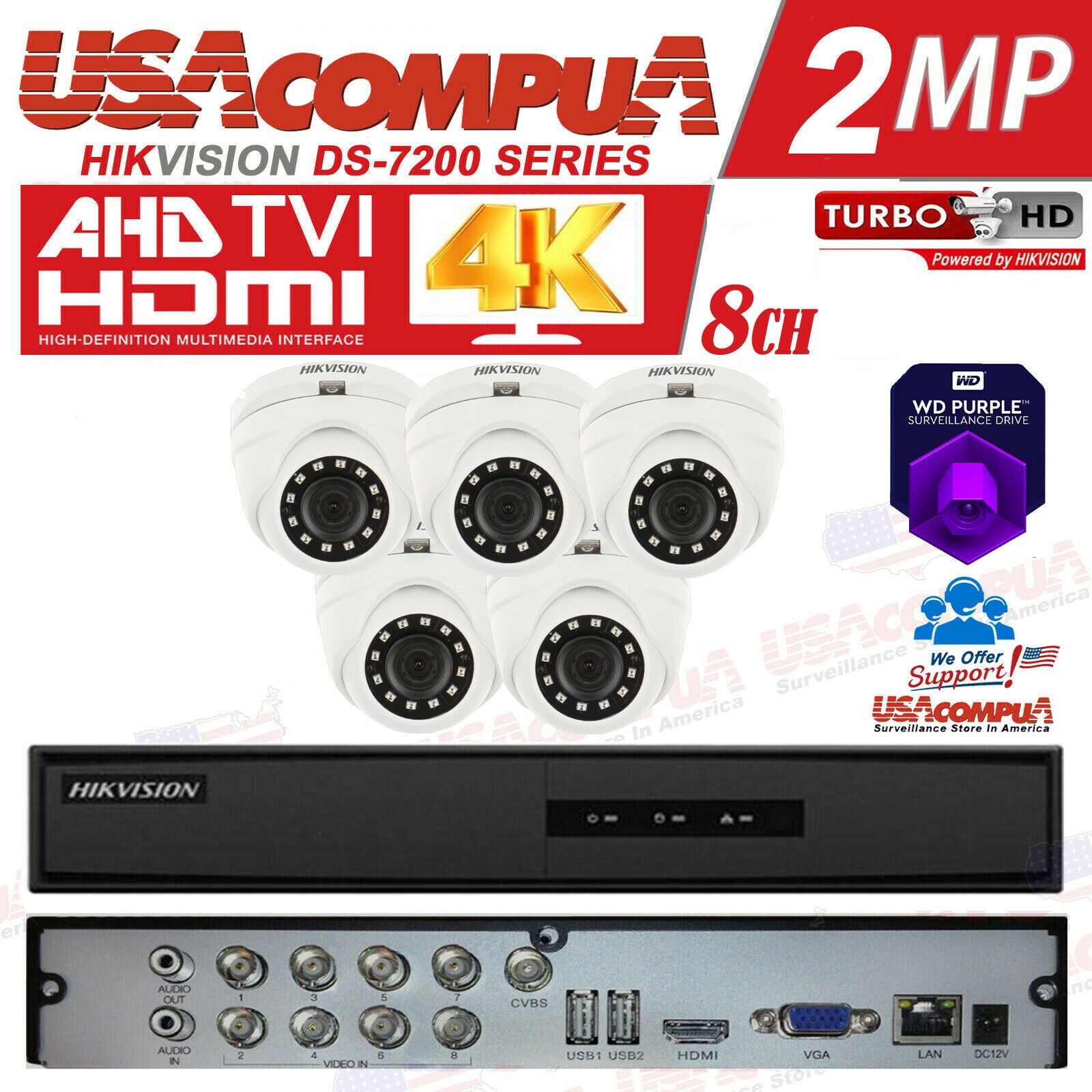

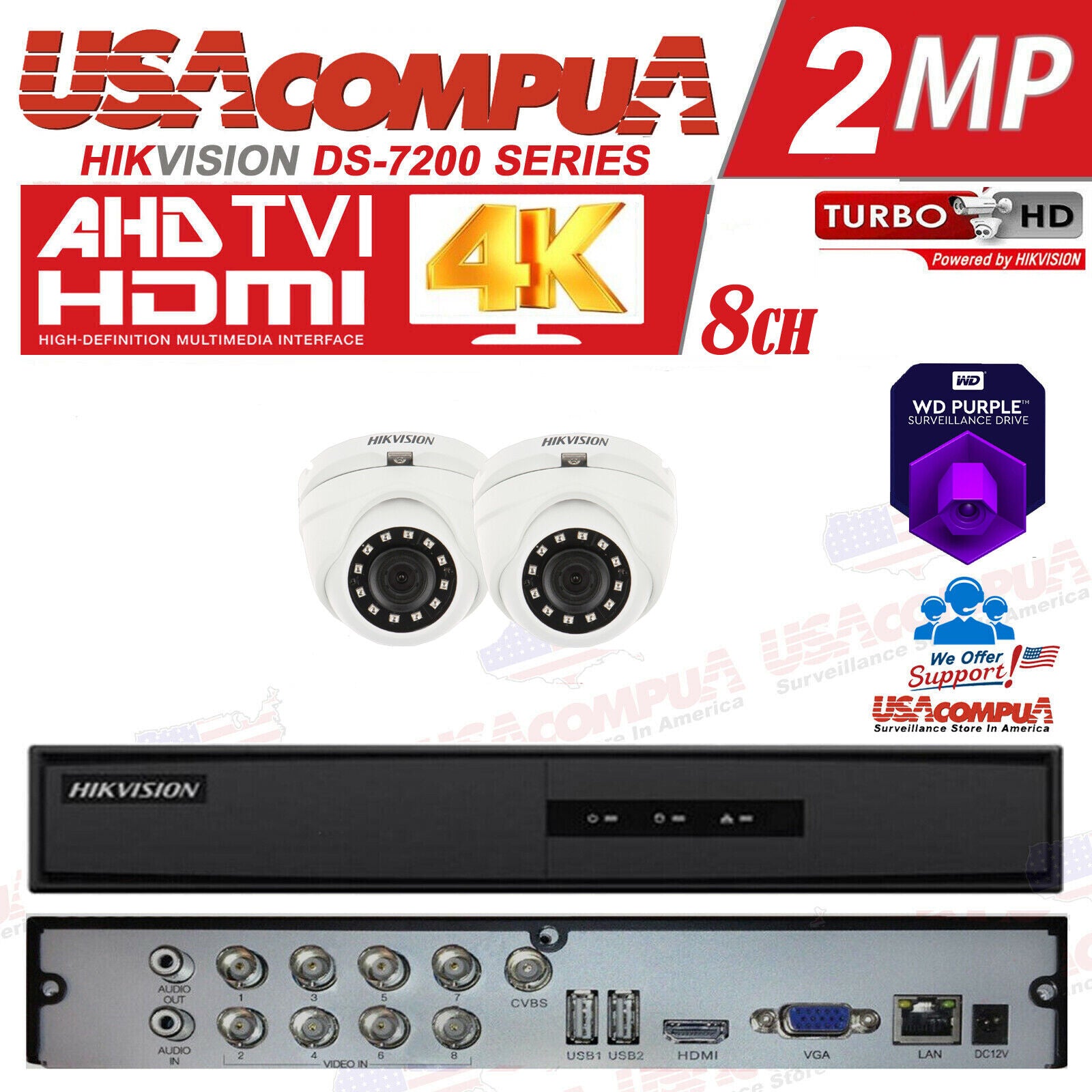

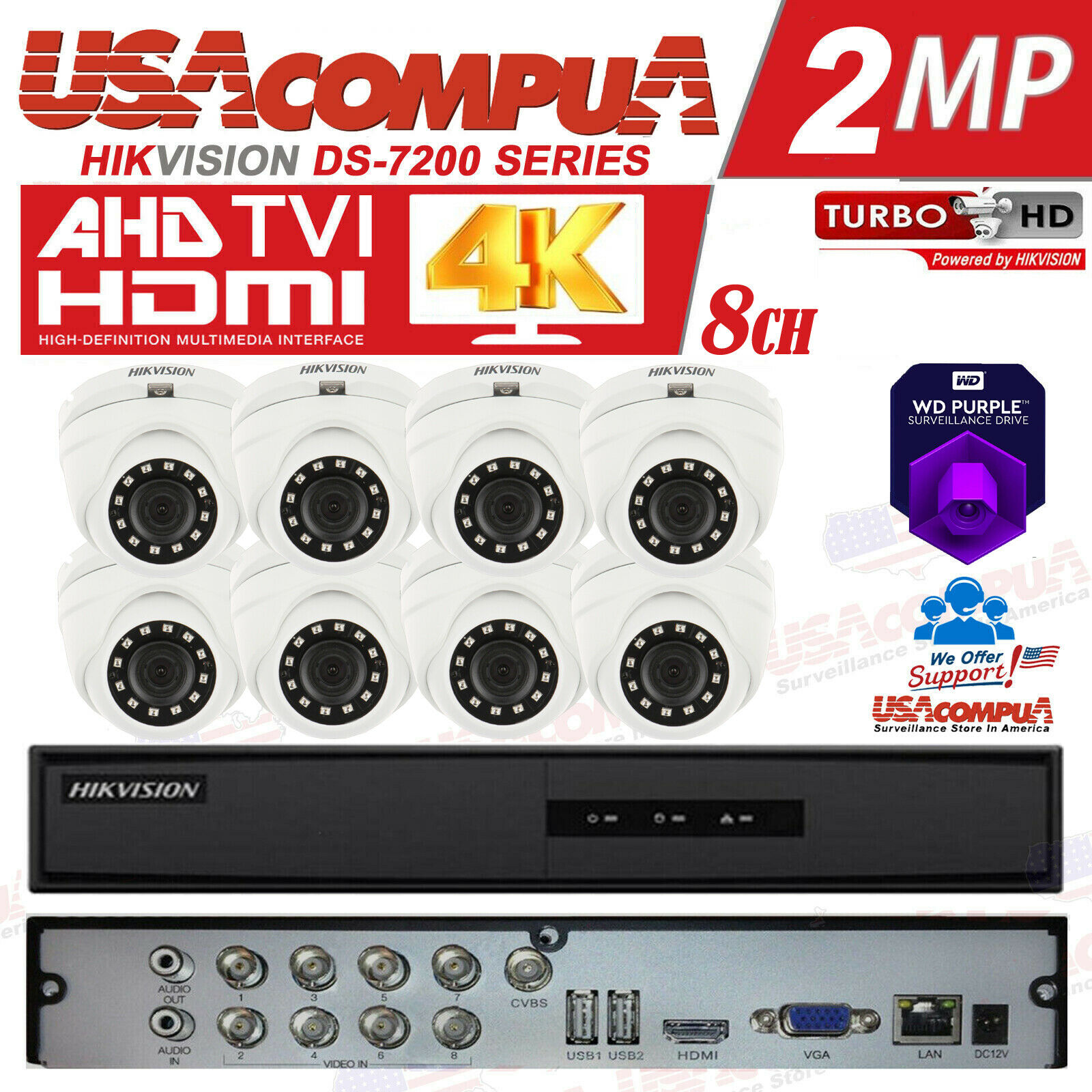

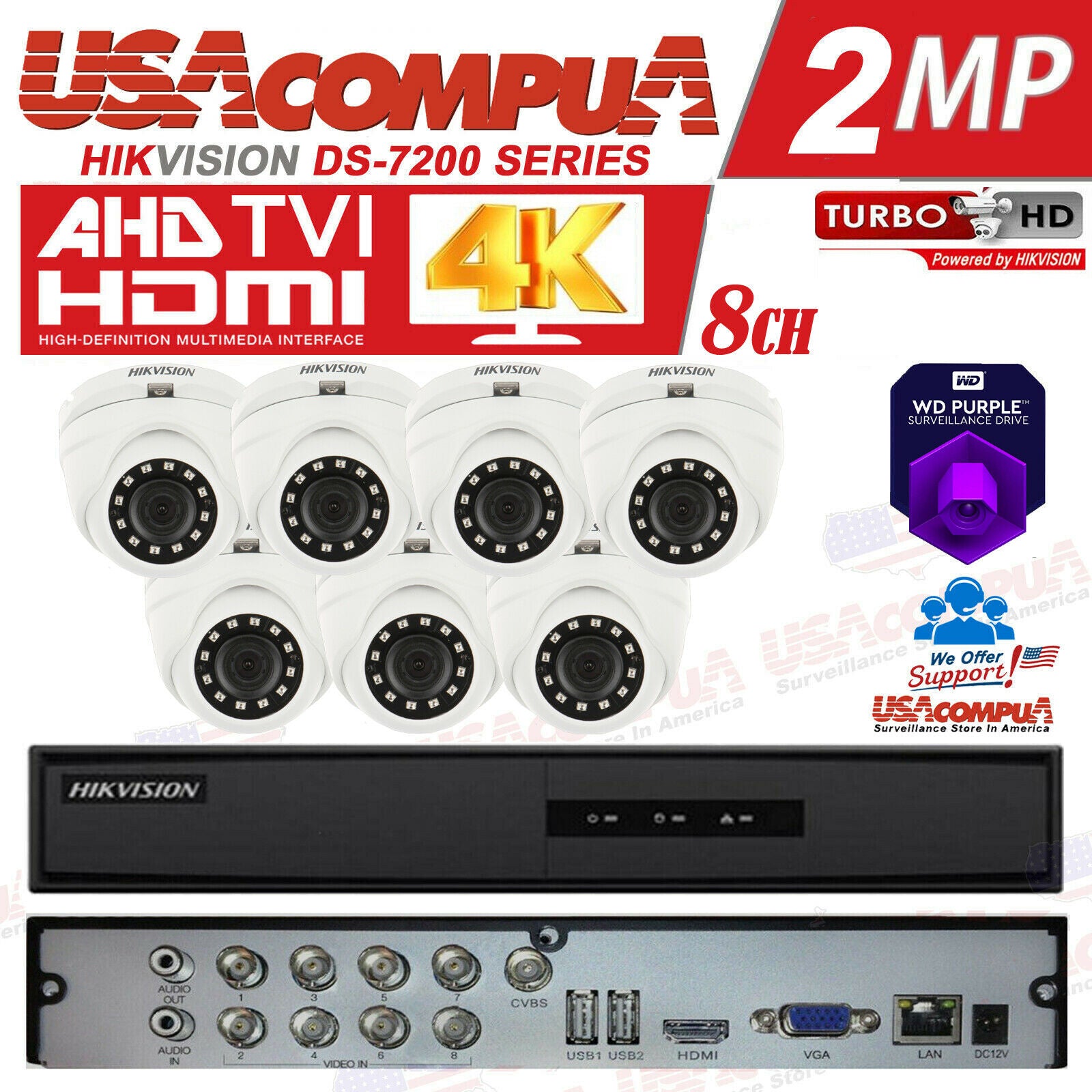

HIKVISION CCTV Security Camera System Kit 8CH Turbo HD DOME 1080P (CUSTOM)

Data sheet PDF

Product Description

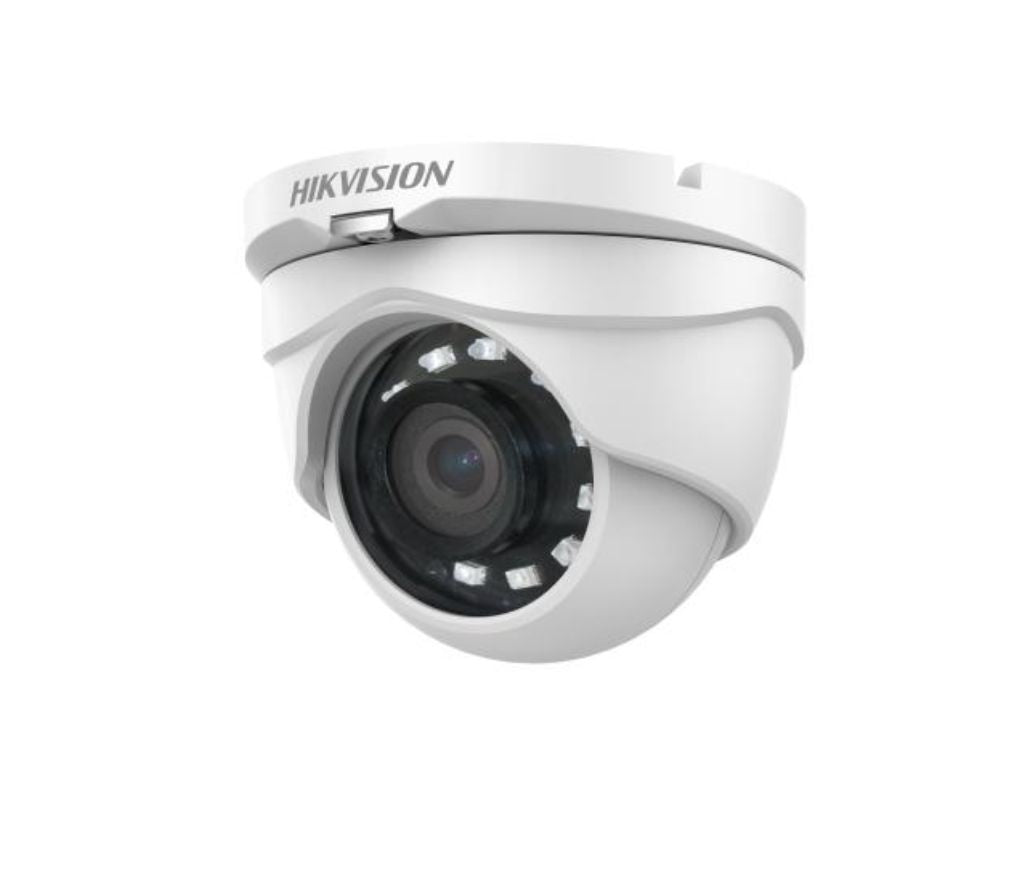

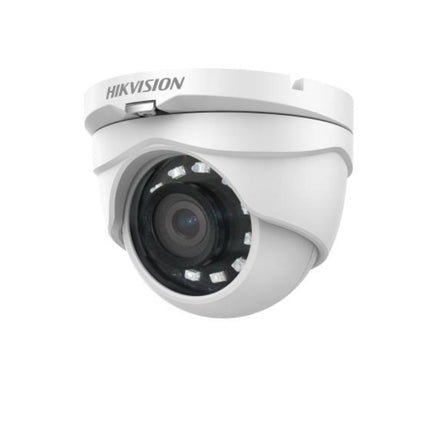

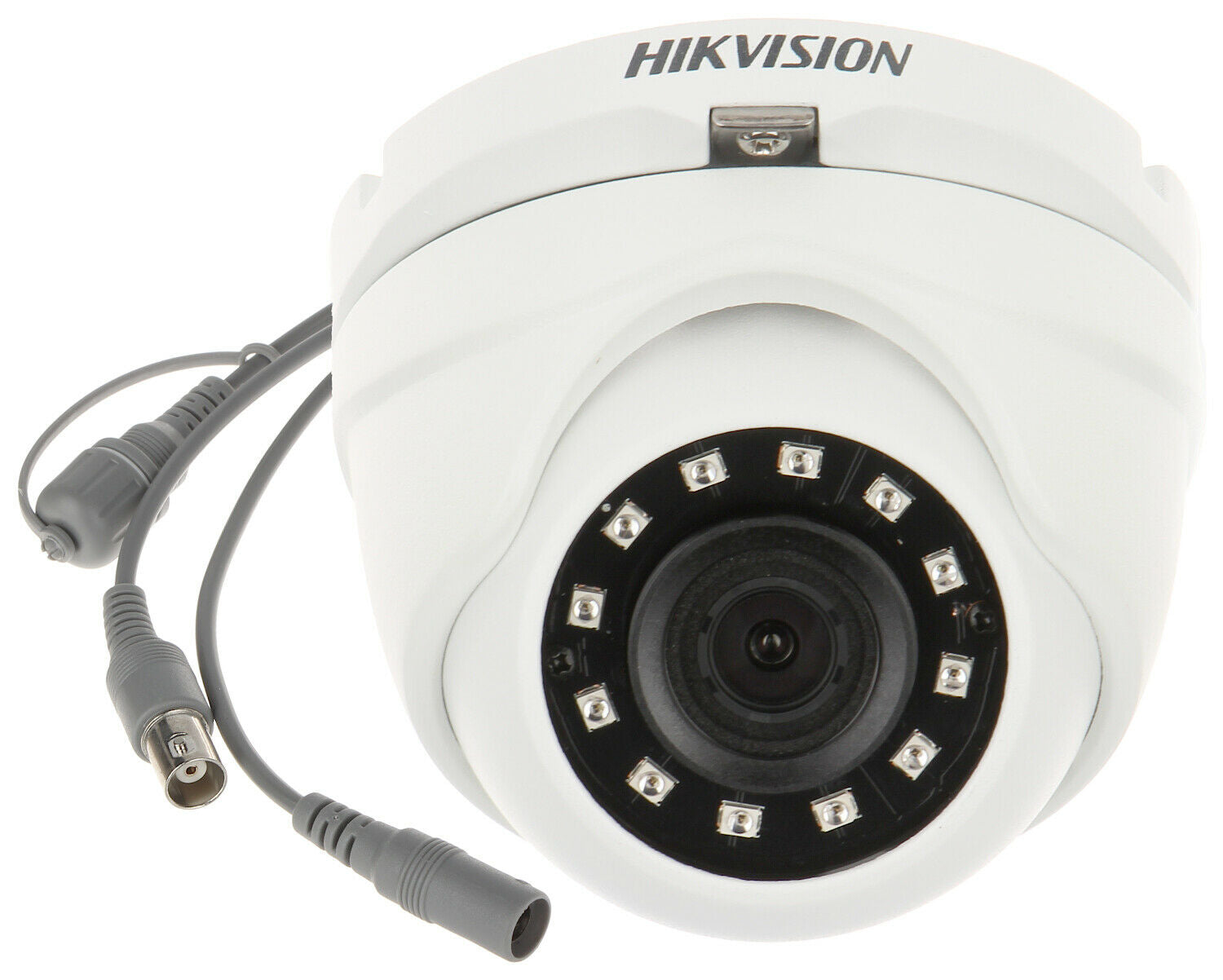

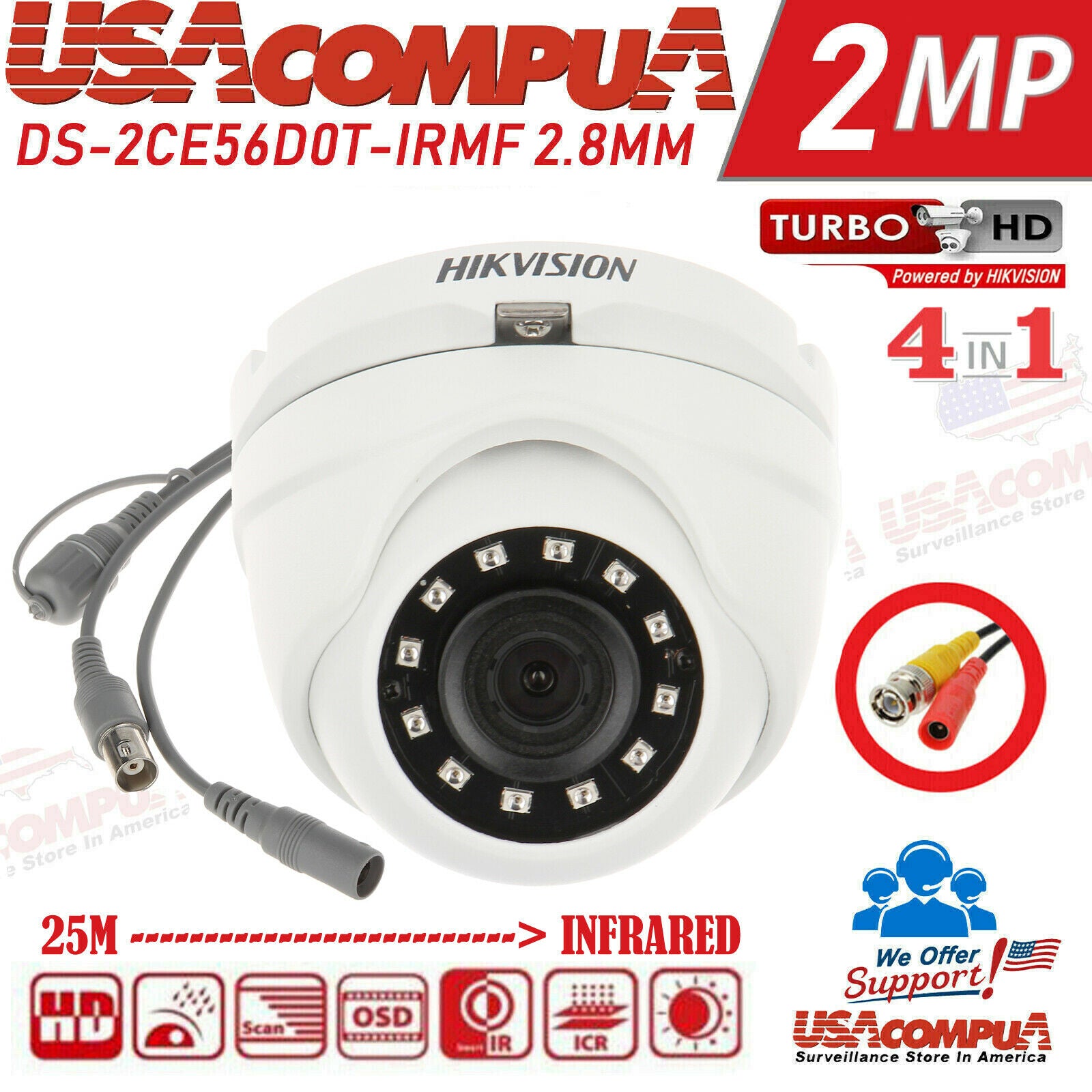

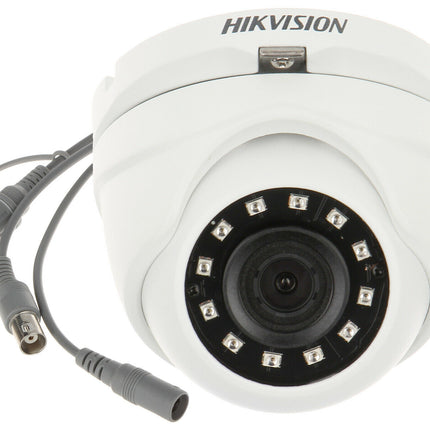

2 MP Fixed Turret Camera

• 2 MP turret camera
• Smart IR: up to 25 m IR distance
• Water and dust resistant (IP67)
• 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)

Specification

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.01Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter TimePAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s
• Day & NightICR
• Angle AdjustmentPan: 0 to 360?, Tilt: 0 to 75?, Rotation: 0 to 360?
• Signal SystemPAL/NTSC
• Lens
• Lens Type2.8 mm, , 6 mm fixed lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 101?, vertical FOV: 60?, diagonal FOV: 122?

  , horizontal FOV: 79.6?, vertical FOV: 43.5?, diagonal FOV: 93.7?

  6 mm, horizontal FOV: 51.9?, vertical FOV: 30?, diagonal FOV: 58.8?

• Lens MountM12
• Image
• Image Parameters SwitchSTD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame RateTVI: 1080P@30fps, 1080P@25fps CVI: 1080P@30fps, 1080P@25fps AHD: 1080P@30fps, 1080P@25fps CVBS: PAL/NTSC
• Day/Night ModeAuto/Color/BW (Black and White)
• Wide Dynamic Range (WDR)Digital WDR
• Image EnhancementBLC, HLC
• White BalanceAuto/Manual
• AGCYes
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• General
• MaterialMetal

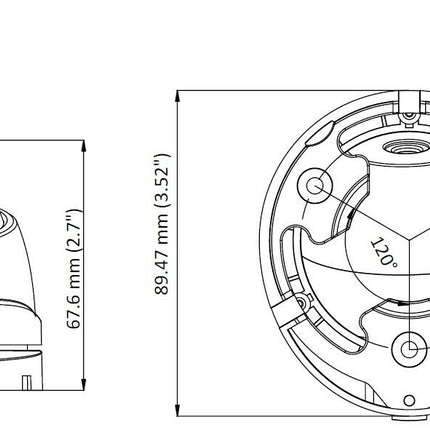

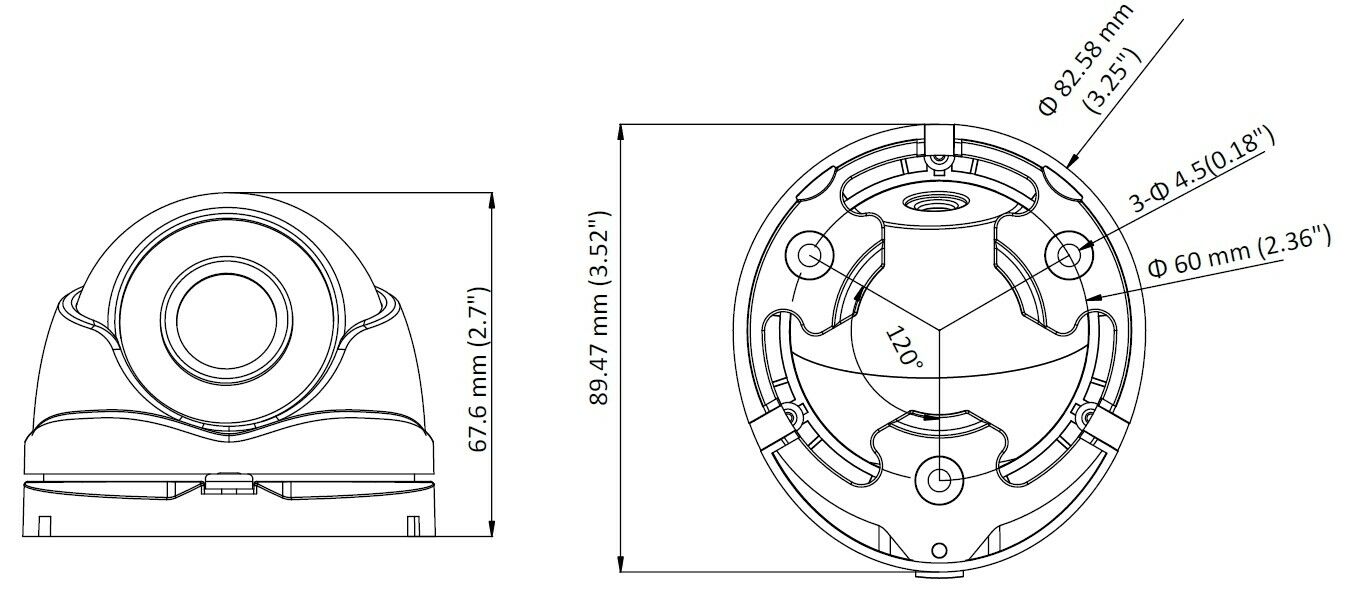

• Dimension89.47 mm ? 67.6 mm (3.52" ? 2.70")
• WeightApprox. 250 g (0.55 lb.)
• Operating Condition?-40 ?C to 60 ?C (-40 ?F to 140 ?F), humidity: 90% or less (non-condensation)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power Supply12 VDC ? 25%
• ConsumptionMax. 3 W
• IR RangeUp to 25 m
• Approval
• ProtectionIP67

Data sheet PDF

Product Description

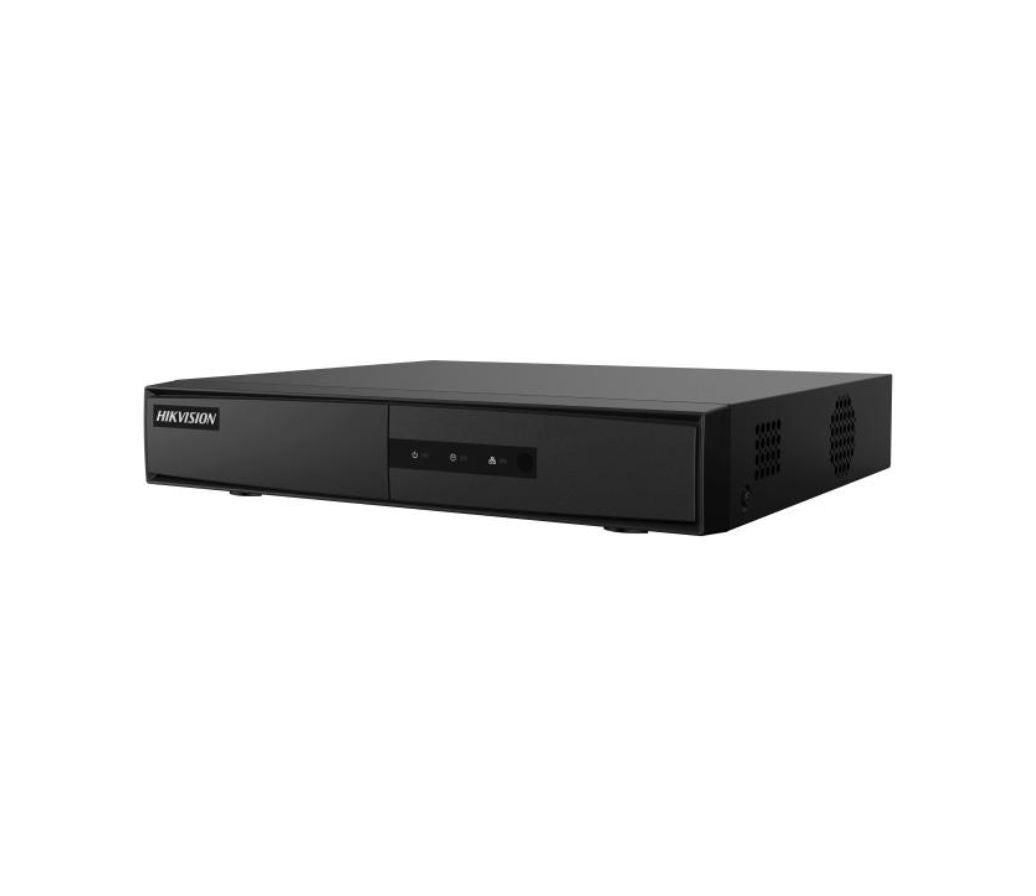

8ch 1080p Lite 1U H.264 DVR

• 8chs and 1 HDD 1U DVR
• H.264+ / H.264 video compression
• Encoding ability up to 1080p lite @ 25/30 fps
• 5 signals input adaptively ("Hybrid")
• Up to 10 network cameras can be connected

Specification

• Recording
• Video CompressionH.264+/H.264
• Encoding ResolutionWhen 1080p Lite mode not enabled: 720p/WD1/4CIF/VGA/CIF,When 1080p Lite mode enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF
• Frame RateMain stream: ,When 1080p Lite mode not enabled:,For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),When 1080p Lite mode enabled:,1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N),Sub-stream: ,2CIF@6fps; CIF/QVGA/QCIF@ 25fps (P)/30fps (N),
• Video Bit Rate32 Kbps to 4 Mbps
• Dual StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bit Rate64 Kbps
• Video And Audio
• IP Video Input2-ch (up to 10-ch) Up to 1080p resolution Support H.264+/H.264 IP cameras
• Analog Video Input8ch BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
• Turbo HD Input1080p25, 1080p30, 720p25, 720p30
• AHD Input1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputSupport
• Audio Input1-ch, RCA (2.0 Vp-p, 1 K?)
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way AudioReuse the first audio input
• Synchronous Playback8ch
• VGA/HDMI Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• Network
• Remote Connections128
• Network ProtocolsTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS
• Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
• Auxiliary Interface
• SATA1 SATA interface
• CapacityUp to 6 TB capacity for each disk
• Alarm In/OutN/A
• USB InterfaceRear panel: 2 ? USB 2.0
• General
• Power Supply12 VDC
• Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
• Working Humidity10% to 90%
• Weights (Without HDD)? 1 kg (2.2 lb)
• Consumption(Without HDD)? 12 W
• Dimensions(W ? D ? H)260 ? 222 ? 45 mm (10.2 ? 8.7 ? 1.8 inch)
