Hikvision DS-2CD6944G0-IHS 16MP 180° Panoramic Outdoor IP Camera IK10
Hikvision DS-2CD6944G0-IHS 16MP 180° Panoramic Outdoor IP Camera IK10
One Way Audio
Panoramic 180
Two Way Audio
Out of stock
Description
Description

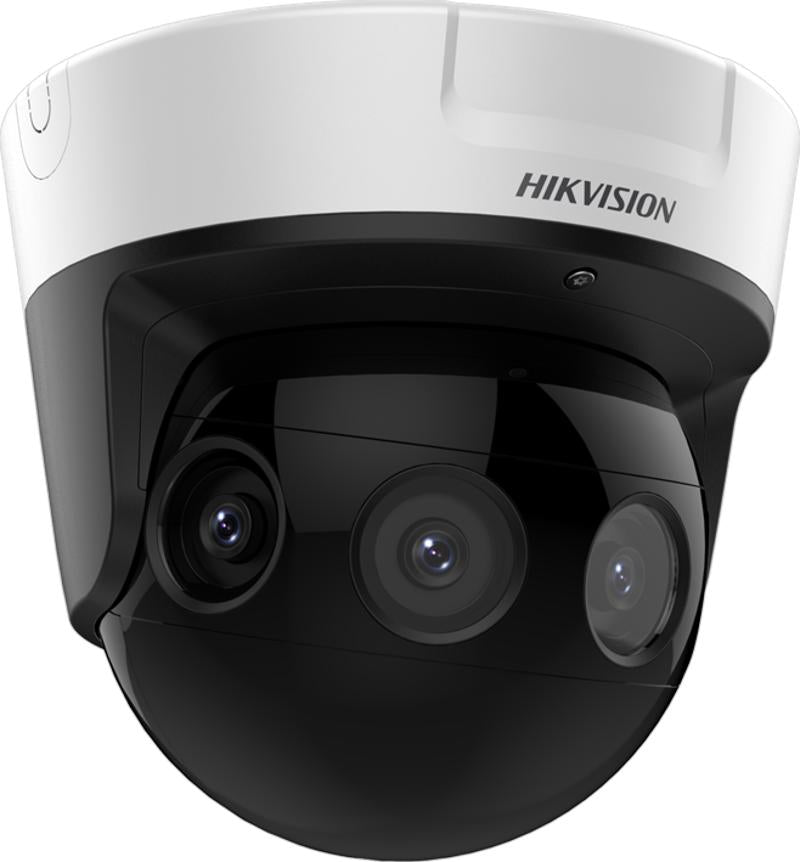

Hikvision DS-2CD6944G0-IHS 180° Panoramic Network Camera
When you need to see the whole picture without managing multiple cameras, the DS-2CD6944G0-IHS is designed to simplify wide-area surveillance. Its 180° panoramic design captures a complete scene in a single view, helping you stay aware of everything that matters at once. Built for demanding outdoor environments, this model combines high-resolution coverage with rugged protection and cold-weather reliability. The result is confidence—knowing fewer blind spots and fewer devices are working harder for you.
Why Buyers Choose This Model
Buyers choose the DS-2CD6944G0-IHS because it replaces complex multi-camera setups with one intelligent panoramic solution. It’s trusted for locations where wide coverage, durability, and reliable performance matter more than chasing specs alone. This model is often selected to reduce installation complexity while still delivering professional-grade image quality and flexibility.
Key Features That Work for You
- 180° panoramic splicing image — lets you monitor an entire wide area in one continuous view, reducing blind spots and the need for multiple cameras.
- Multiple display modes — gives you flexibility to view the scene as a full panorama, divided views, or panorama with ePTZ so you can focus where it matters most.
- 16 MP PanoVu imaging platform — delivers detailed wide-area coverage, helping you recognize activity across large spaces without constant camera switching.
- Built-in heater with -40 °C startup — ensures dependable operation in extreme cold, so you don’t worry about downtime during harsh winters.
- IP67 weatherproof & IK10 vandal resistance — protects your investment from rain, dust, and impact in outdoor or public-facing installations.
- H.265+/H.265 compression — helps reduce bandwidth and storage usage while maintaining clear, usable video.
- Onboard microSD support up to 256 GB — provides local recording and backup when network or NVR access is limited.
- Built-in microphone and speaker — supports audio monitoring or deterrence scenarios without needing additional devices.
What This Helps You Avoid
This camera helps you avoid the frustration of installing and managing several cameras just to cover one wide area. It reduces blind spots caused by mismatched angles and eliminates the complexity of stitching footage from multiple devices. With its rugged design and built-in heater, it also helps you avoid weather-related failures that can leave critical areas unmonitored. Instead of reacting to missed events, you gain a clearer, more complete view from the start.
What’s in the Box
Mounting hardware and installation accessories (as supplied by manufacturer)
Quick start / documentation
DS-1602ZJ Wall Mount
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Downloads
Product Manuals, data sheets.
Downloads
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
DS-1661ZJ, DS-1602ZJ
Technical Specifications
Hikvision DS-2CD6944G0-IHS(/NFC) — 16 MP 180° PanoVu Network Camera
Need full-scene coverage without stitching multiple cameras together? This 180° PanoVu design is built to cover wide areas in one view, while still giving you flexible display modes for monitoring and review. It’s also engineered for real-world installs with a built-in heater for ultra-low temperature startup and rugged IK10/IP67 protection.
Key Features
- 180° splicing image — helps you see the full scene in one continuous view, reducing blind spots and “camera hopping.”
- Built-in heater — supports ultra-low temperature start up to -40 °C for cold-weather reliability.
- IP67 + IK10 — built to handle dust/water exposure and vandal-prone locations with more confidence.
- Multiple display modes — panorama, original, panorama + ePTZ, and divided panorama so you can view the way your site needs.
- 16 MP class PanoVu platform — wide-area coverage with strong detail options depending on mode and lens variant.
- Built-in microphone & speaker — supports audio use cases where two-way awareness matters (as configured).
- microSD support up to 256 GB — on-board recording option when you want local backup or edge storage.
Camera
Panorama mode: 4800 × 2688
Original mode: 2688 × 1520
Divided panorama: 2400 × 1344
Panorama mode: 8160 × 1440
Original mode: 2688 × 1520
Divided panorama: 2032 × 1440
Lens
6 mm: horizontal FOV 180°, vertical FOV 25°
Illuminator
Video
Panorama mode: 50Hz: 25fps (4800 × 2688, 3840 × 2160, 2688 × 1520), 60Hz: 30fps (4800 × 2688, 3840 × 2160, 2688 × 1520)
Original mode: 50Hz: 25fps (2688 × 1520), 60Hz: 30fps (2688 × 1520)
Panorama mode: 50Hz: 25fps (8160 × 1440, 6720 × 1200, 4800 × 840), 60Hz: 30fps (8160 × 1440, 6720 × 1200, 4800 × 840)
Original mode: 50Hz: 25fps (2688 × 1520), 60Hz: 30fps (2688 × 1520)
Audio
1 output (line out), 3.5 mm 3-section connector/2-core terminal block/connector not included, max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Network
Interface
Event
Deep Learning Function
General
PoE (802.3at, 42.5 V to 57 V), 0.5 to 0.4 A
Approval
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015)
CE (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment & Protection
DORI
Typical Application (Anti-Corrosion Level Guidance)
Available Model
DS-2CD6944G0-IHS/NFC(4mm)
DS-2CD6944G0-IHS/NFC(6mm)
DS-2CD6944G0-IHS(2.8mm)
DS-2CD6944G0-IHS(4mm)
DS-2CD6944G0-IHS(6mm)
DS-2CD6944G0-IHS(2.8mm)(D)
Accessories
DS-1602ZJ — Wall mount
Accessories Found
Optional accessories listed in the datasheet:
- DS-1661ZJ — Pendant Mount
- DS-1602ZJ — Wall mount
Note: Audio connectors are referenced as “connector not included” in the interface description (for certain terminal block / 3.5mm connector options).
Ideal Applications / Common Uses
- Parking lots & building perimeters — 180° coverage helps reduce blind spots across wide open areas.
- Warehouses & loading bays — panorama view supports broad situational awareness where activity spans a wide footprint.
- Retail fronts & entrances — divided panorama / panorama + ePTZ viewing options help monitor both the overall scene and key zones.
- Schools, campuses, courtyards — wide coverage can reduce the number of cameras needed for large outdoor spaces.
- Cold-weather outdoor deployments — built-in heater and -40 °C startup supports harsh winter installs.
```
Downloads
Frequently Asked Questions
The DS-2CD6944G0-IHS is designed as a single 180° panoramic camera using four fixed lenses that are internally stitched. This allows it to capture a continuous wide scene without the gaps, overlaps, or synchronization issues often found when using multiple separate cameras. According to the datasheet, it also supports multiple display modes such as panorama, original view, divided panorama, and panorama with ePTZ. This gives operators flexibility to monitor wide areas while still zooming into details from a single device.
The camera supports several viewing modes including panorama, original mode, panorama plus ePTZ, and divided panorama. Resolution depends on the lens variant and selected mode, with panorama mode reaching up to 4800 × 2688 (2.8 mm) or 8160 × 1440 (6 mm). Original mode outputs 2688 × 1520, while divided panorama splits the scene into multiple views. These options are listed directly in the datasheet and allow installers to balance coverage, detail, and bandwidth.
The datasheet specifies a minimum illumination of 0.009 Lux in color and 0.0018 Lux in black and white with AGC enabled. When lighting drops further, the camera can operate at 0 Lux with its built-in infrared illumination. It includes four IR LEDs with an effective range of up to 20 meters. An IR cut filter and blue glass module are also used to improve night image quality and reduce ghosting.
Yes, the camera is built for demanding outdoor use with an IP67 rating for dust and water resistance. It also carries an IK10 impact rating, which helps protect it against vandalism or accidental impacts. The housing is made of aluminum alloy, adding mechanical strength. These protection ratings are explicitly listed in the approval and environment sections of the datasheet.
The datasheet confirms that the camera includes a built-in heater. This heater supports startup and operation at temperatures as low as -40 °C (-40 °F). Storage and operating temperature ranges are both specified from -40 °C to +60 °C. This makes the camera suitable for cold climates where standard cameras may fail to initialize.
The camera supports modern compression standards including H.265+, H.265, H.264+, and H.264 on the main stream. Sub-streams support H.265, H.264, and MJPEG depending on configuration. According to the datasheet, this flexibility allows users to reduce bandwidth and storage requirements while maintaining image quality. Scalable Video Coding (SVC) is also supported with H.264 encoding.
Yes, the datasheet specifies that the camera includes a built-in microphone and a built-in speaker. It supports multiple audio compression formats such as G.711, G.722.1, G.726, MP2L2, and PCM. Audio input and output interfaces are available via 3.5 mm connectors or terminal blocks, depending on installation. This allows the camera to be used in applications where audio awareness or deterrence is required.
The camera supports a wide range of network protocols including TCP/IP, HTTP, HTTPS, RTSP, RTP, and IPv4/IPv6. It is compliant with ONVIF Profile S and Profile G, making it compatible with many third-party VMS platforms. According to the datasheet, it also supports ISAPI, SDK, and Ehome for deeper integration. Up to 20 channels of simultaneous live view are supported.
Yes, the camera includes a built-in memory card slot. It supports microSD, microSDHC, and microSDXC cards with capacities up to 256 GB. The datasheet also lists support for NAS storage using NFS or SMB/CIFS. This allows for edge recording or backup recording even if the network connection is interrupted.
According to the datasheet, people density detection is supported only on the “Without (D)” version of this camera. This function works exclusively in panorama mode and is not available on models marked with “(D)”. The feature is listed under the deep learning function section of the specifications. Users should verify the exact model variant when this capability is required.
