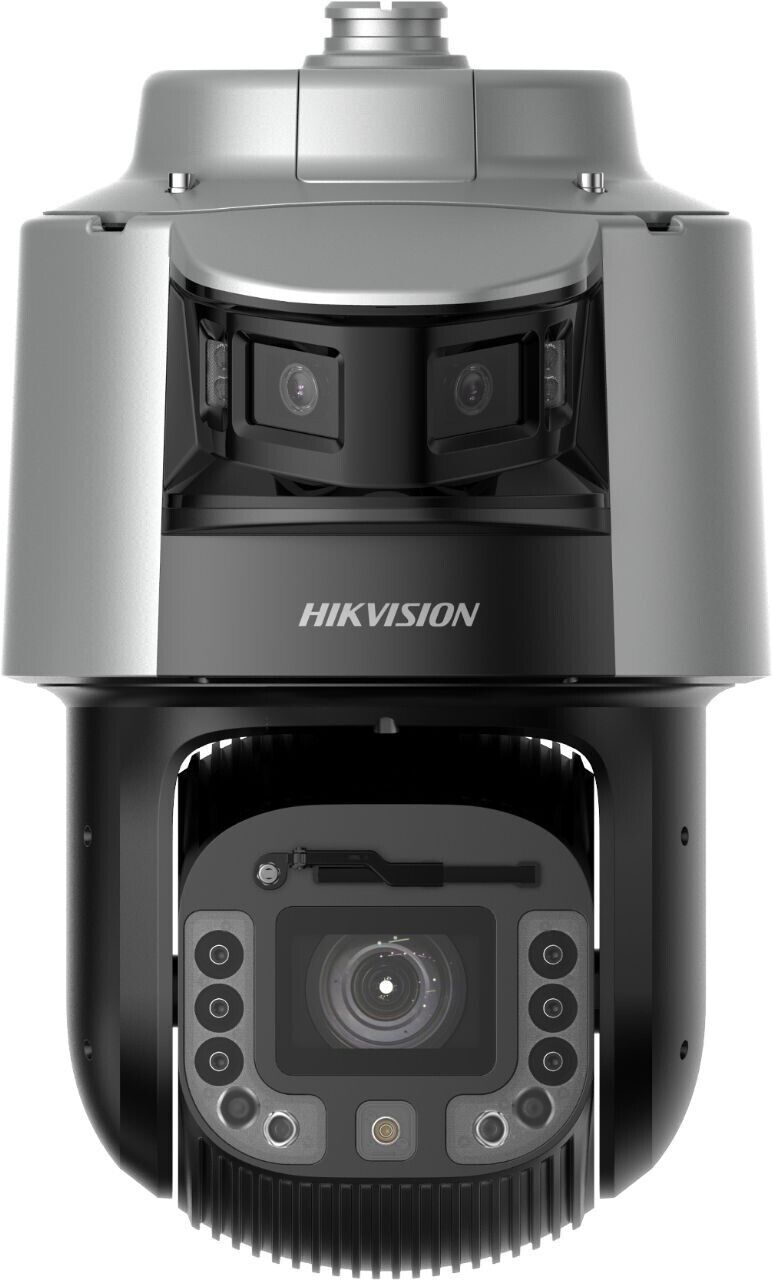

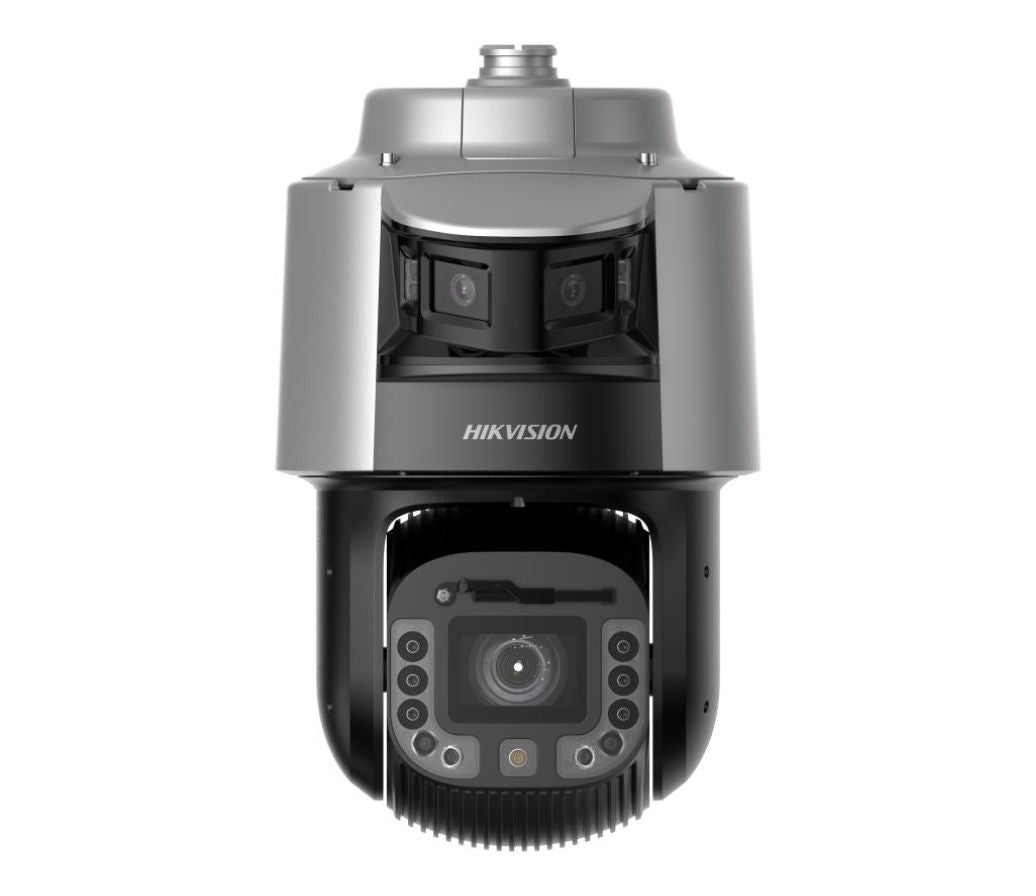

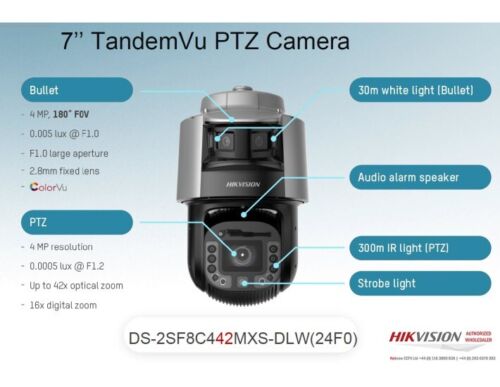

This model is built as a TandemVu PTZ camera, which means it combines a panoramic channel and a PTZ channel in one unit. The datasheet shows the panoramic channel captures a wide field of view at 190° ± 5° horizontal and 80° ± 5° vertical, while the PTZ channel adds 42× optical zoom for detailed close-up viewing. That matters because you can monitor the big picture and still zoom in on specific activity without relying on two separate cameras. For buyers covering large outdoor spaces, that can simplify system design while improving overall situational awareness.

The datasheet lists two different maximum resolutions because this is a dual-channel camera. The panoramic channel supports up to 3632 × 1632, while the PTZ channel supports up to 2560 × 1440. That gives you a wide overview image from the panoramic side and a detailed zoom-capable image from the PTZ side. In real use, this helps buyers keep broader coverage without giving up the ability to inspect details more closely.

The PTZ channel supports 42× optical zoom and 16× digital zoom, according to the datasheet. Its focal length is listed as 6 to 252 mm, which is what allows it to move from a wider view to long-distance detail. That matters when you are trying to monitor a large property, roadway, yard, or perimeter and need to bring distant activity much closer. For a buyer, this means one camera can cover a broader area and still give you a much better look at what is happening far away.

The camera is designed for strong night performance on both channels. The datasheet states the panoramic channel has white light up to 30 m, while the PTZ channel has IR up to 300 m, and Smart Supplement Light is supported. It also lists very low minimum illumination values for both channels, including 0 lux with IR for the PTZ channel and 0 Lux with light for the panoramic channel. That gives buyers a better chance of maintaining usable coverage after dark across both wide scenes and long-range views.

Yes, the feature summary and specification sheet point to large-area outdoor use as a core strength of this model. It captures a large area and great details at the same time, combines a wide panoramic view with a 42× PTZ zoom channel, and is rated IP67 and IK10 for outdoor durability and vandal resistance. The operating condition is also listed at -40 °C to 70 °C with humidity up to 95% non-condensing. For buyers, that combination makes it well suited for demanding sites where weather, distance, and broad coverage are all important.

Yes, this model supports multiple smart and deep learning functions. The datasheet lists smart events such as line crossing detection, intrusion detection, region entrance detection, and region exiting detection on both the panoramic and PTZ channels. It also shows Smart Tracking on the PTZ channel, plus Smart Linkage with manual tracking, tracking takeover, and linked tracking capture. That matters because it helps the camera do more than just record video, giving buyers more intelligent event response in active environments.

According to the datasheet, the PTZ channel supports simultaneous detection and capture of human body and face. That is important because some cameras can detect movement but cannot separate out more meaningful targets the same way. In practical terms, this can give operators more useful event information when monitoring areas with human activity. For a buyer, it means the camera is designed to support more advanced scene analysis than basic motion-only surveillance.

Yes, the datasheet lists a built-in memory card slot supporting microSD, microSDHC, and microSDXC cards up to 256 GB. It also includes 7 alarm inputs, 2 alarm outputs, 1 audio input, 1 audio output, and 1 RS-485 interface. That gives buyers more flexibility if they want local backup recording, external alarms, audio connections, or broader system integration. In other words, this model is built to work as part of a more complete security setup rather than only as a basic standalone camera.

The datasheet lists 120 dB WDR on both the panoramic and PTZ channels, along with HLC, 3D DNR, optical defog, and EIS with a built-in gyroscope to improve stabilization performance. These features matter because wide outdoor scenes often involve glare, uneven light, haze, vibration, or motion that can make footage harder to use. The camera also supports privacy masks, regional exposure, and image adjustments such as brightness, contrast, sharpness, gain, and white balance. For a buyer, that adds more control over image quality in challenging real-world conditions.

The accessory section of the datasheet lists three optional mounts. These are the DS-1603ZJ-P wall mount, DS-1661ZJ-P pendant mount, and DS-1603ZJ-Pole-P vertical pole mount. That matters because mounting method often depends on where the camera will be deployed and how the structure is built. For buyers planning a project, those listed accessories help clarify the supported installation options without guessing which brackets are intended for the unit.
