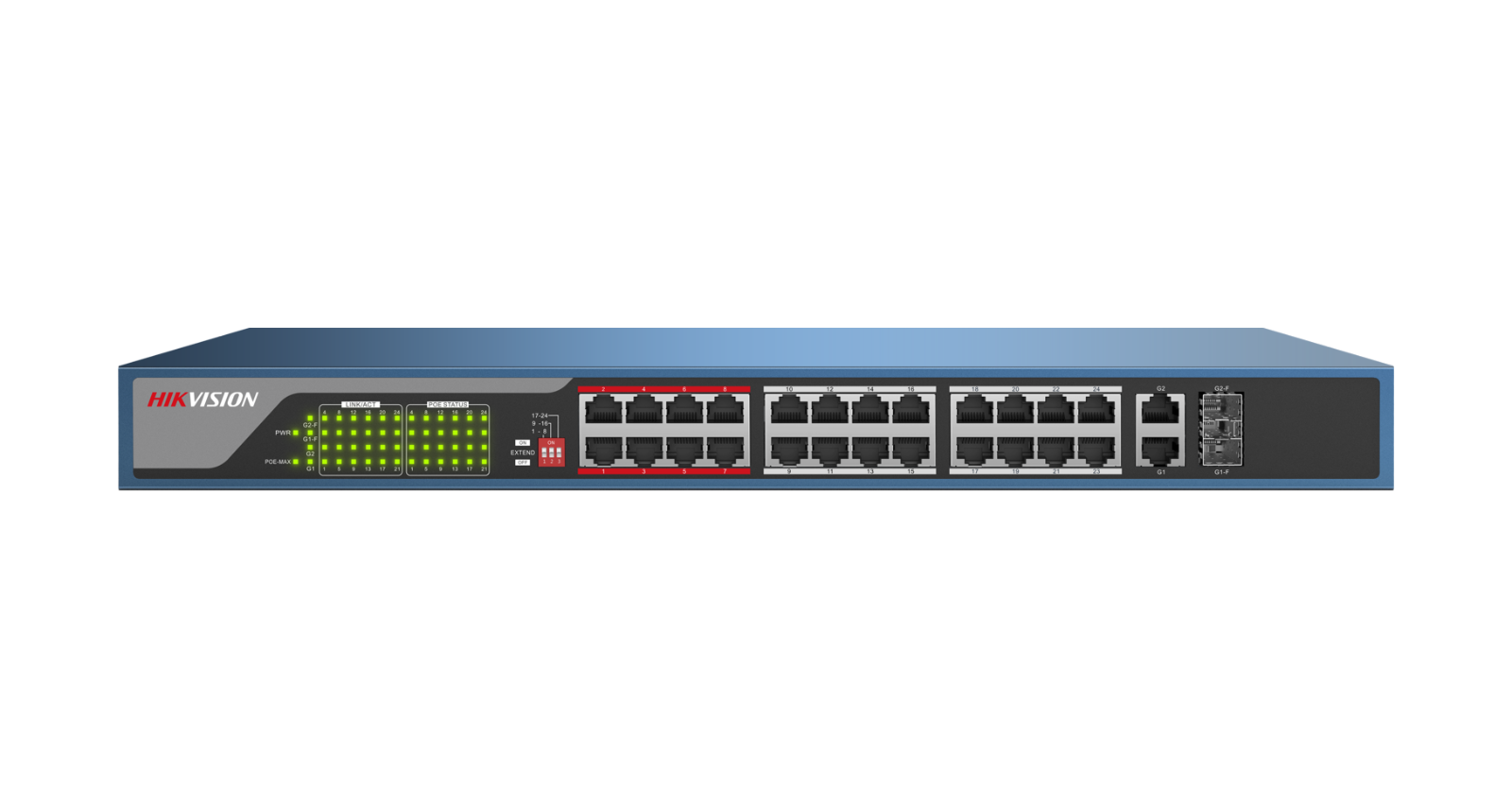

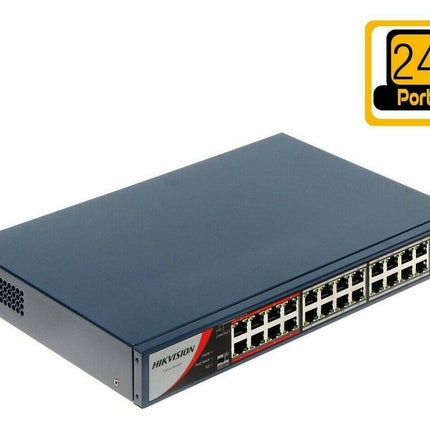

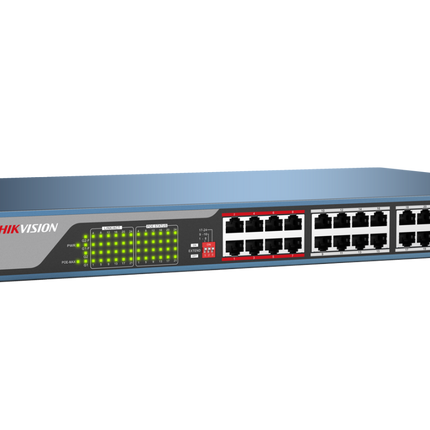

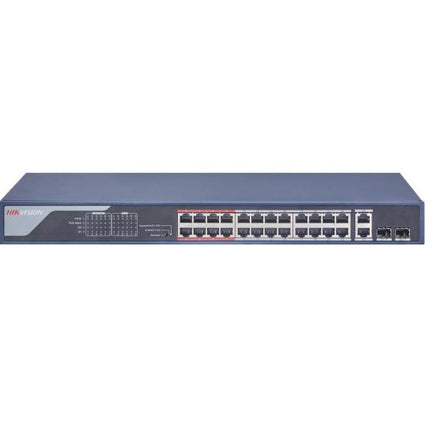

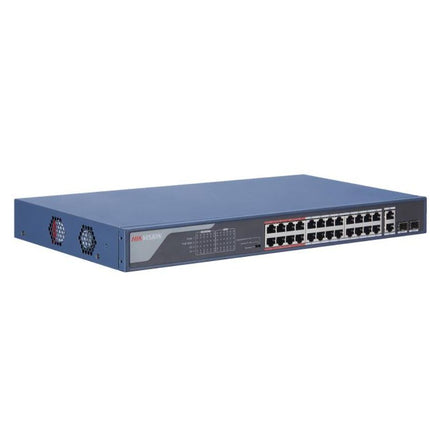

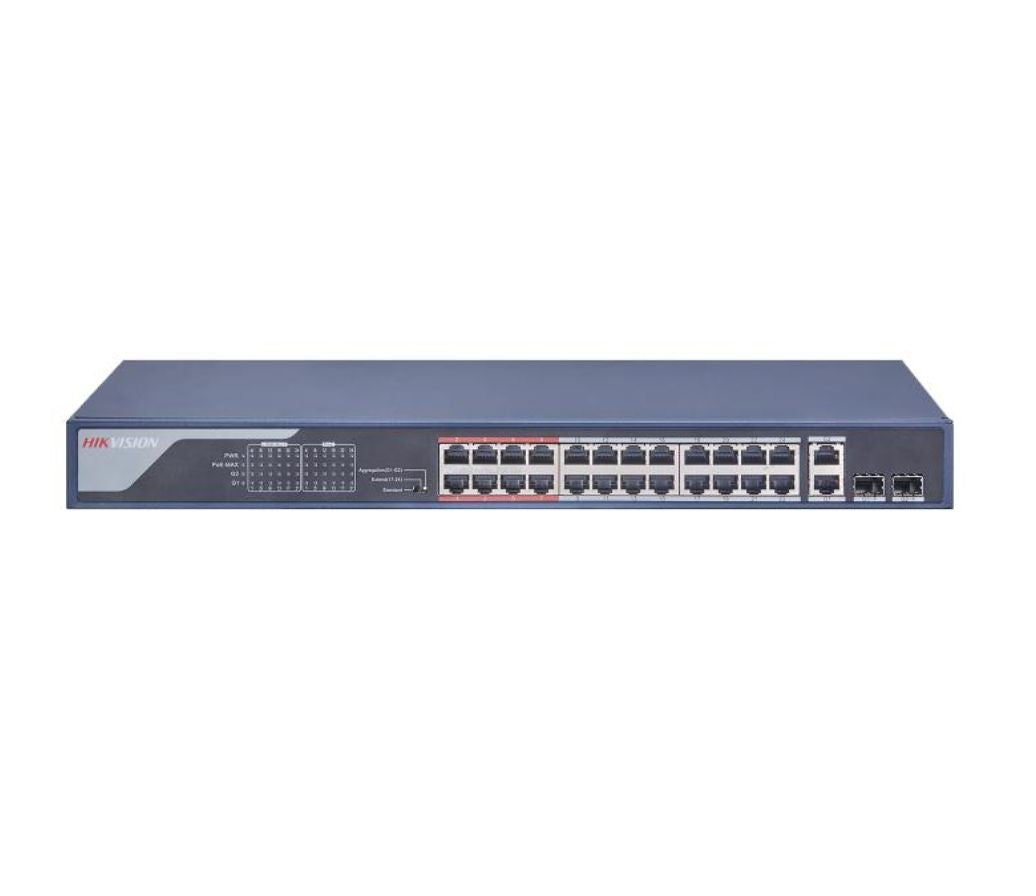

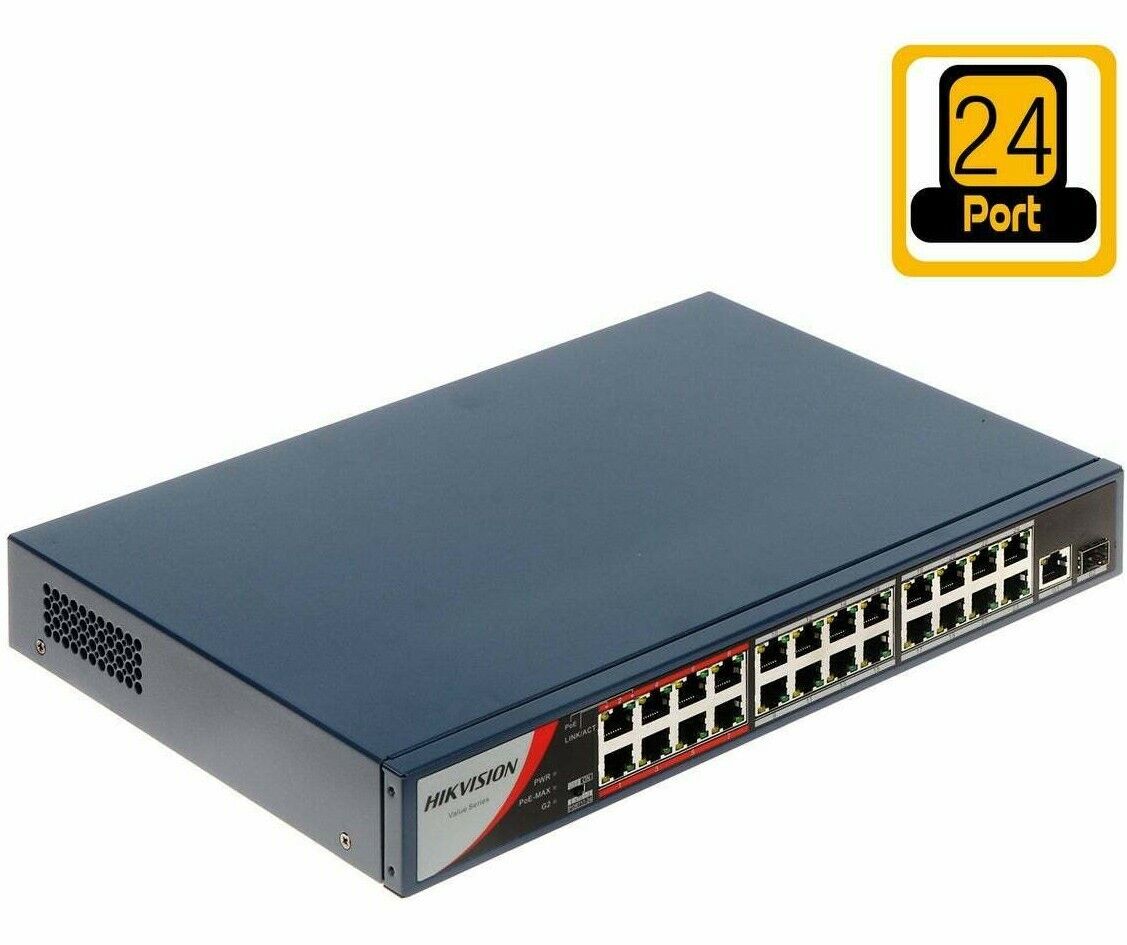

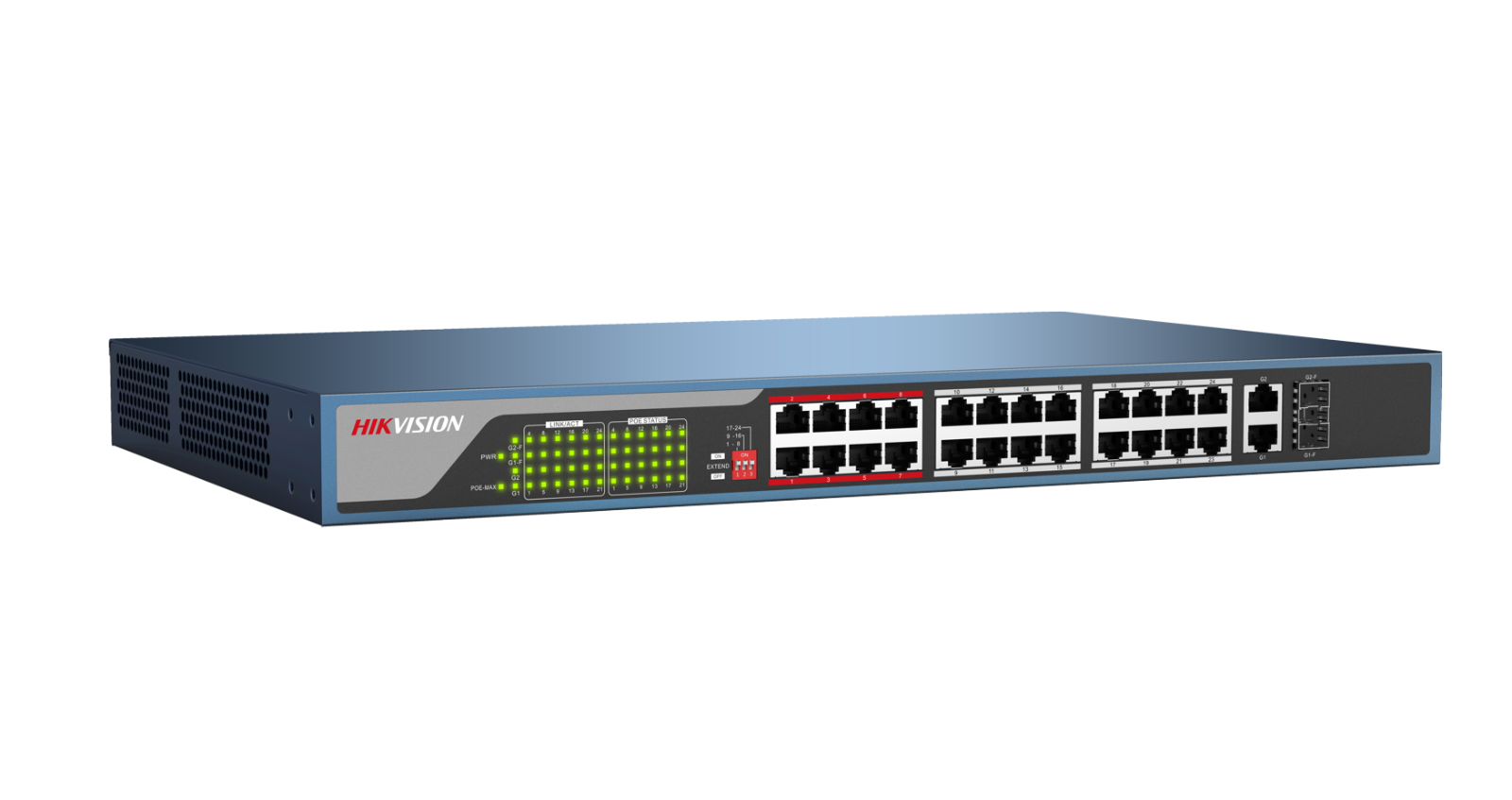

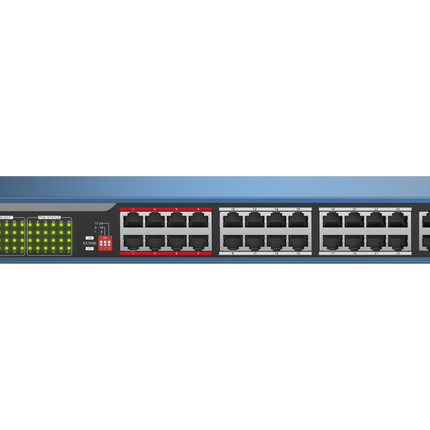

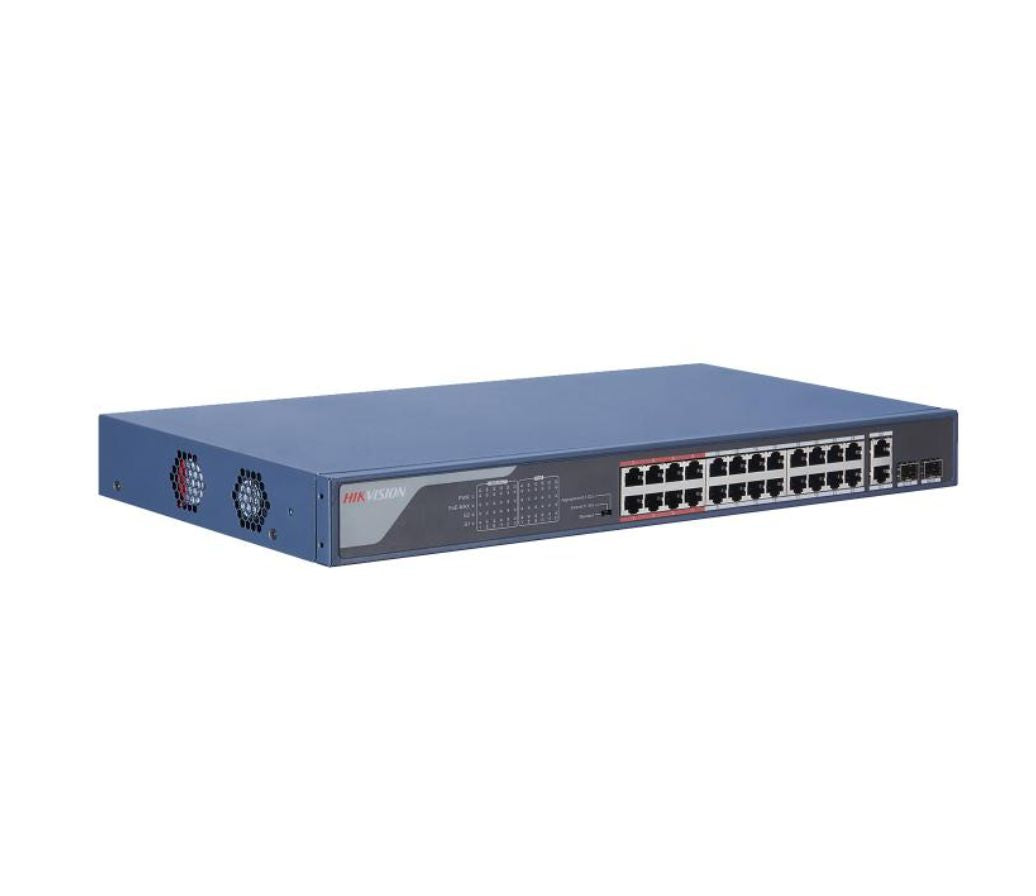

Hikvision DS-3E0326P-E2 Unmanaged Ethernet 24 PoE Switch 100Mbps Network Access
Hikvision DS-3E0326P-E2 Unmanaged Ethernet 24 PoE Switch 100Mbps Network Access
Out of stock
Description
Description
Hikvision DS-3E0326P-E2 Unmanaged Ethernet 24 PoE Switch 100Mbps Network Access
This listing includes:
-  (1) ACCESSORIES: DS-3E0326P-E2
DS-3E0326P-E2  view data sheet
24 Port Fast Ethernet Unmanaged POE Switch
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
24 Port Fast Ethernet Unmanaged POE Switch
- Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
- 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Specification
- Network Parameters
- Ports24 ? 10/100 Mbps PoE ports, 2 ? Gigabit combos
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- Working ModeStandard mode (default); Extend mode
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
- Forwarding ModeStore-and-forward switching
- High Priority PortsPorts 1 to 8
- MAC Address Table4 K
- Switching Capacity8.8 Gbps
- Packet Forwarding Rate6.547 Mpps
- Internal Cache2.75 Mbits
- Ports For Long-Distance TransmissionPorts 17 to 24
- PoE Power Supply
- PoE StandardIEEE 802.3af, IEEE 802.3at
- PoE Power Pin
End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
- PoE PortPorts 1 to 24
- Max. Port Power30 W
- PoE Power Budget370 W
- Dialing Function
- Long RangePorts 17 to 24: up to 300 m; and the speed rate of the port is 10 Mbps.
- General
- Dimensions (W ? H ? D)440 mm ? 44 mm ? 220.8 mm (17.3? ? 1.73? ? 8.7?)
- ShellMetal material
- Gross Weight3.62 kg (7.98 lb)
- Net Weight2.75 kg (6.06 lb)
- Operating Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
- Operating Humidity5% to 95% (no condensation)
- Storage Temperature-40 ?C to 85 ?C (-40 ?F to 185 ?F)
- Storage Humidity5% to 95% (no condensation)
- Power Consumption In Idle30 W
- Power Supply100 to 240 VAC, 50/60 Hz, Max. 6.5 A
- Max. Power Consumption400 W
- Approval
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
