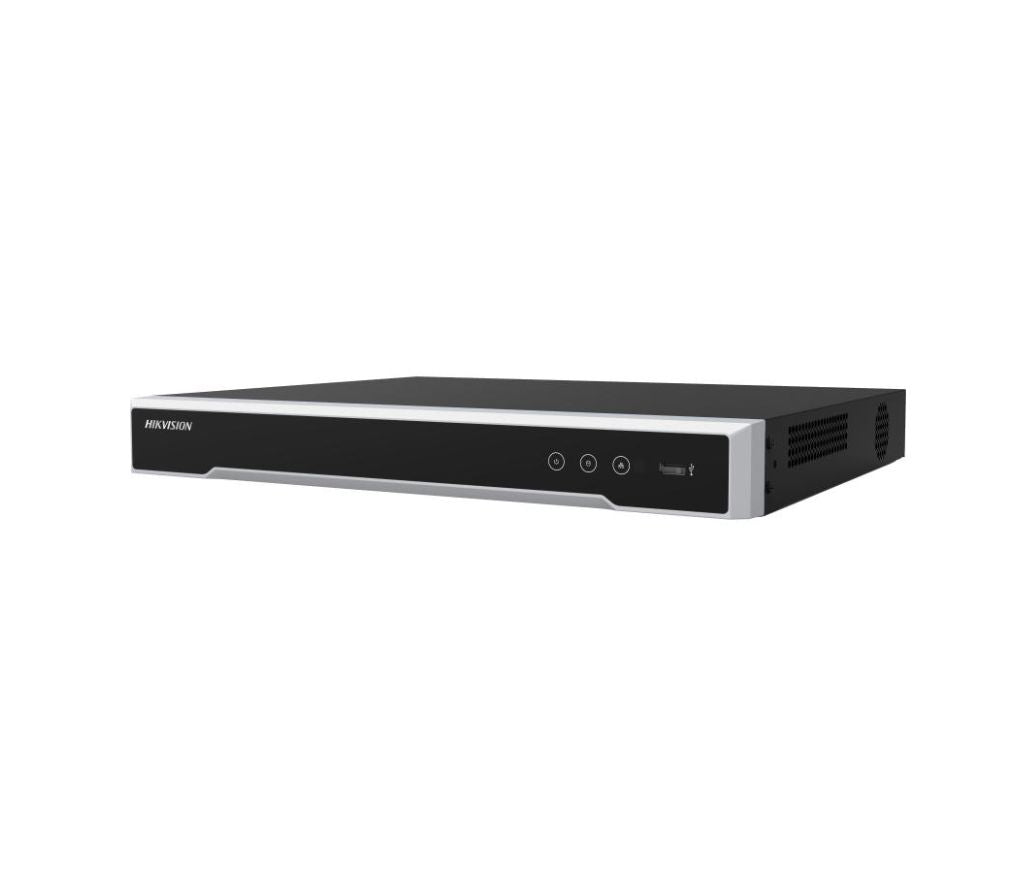

The DS-7616NI-M2/16P supports up to 16 IP camera inputs, which makes it a strong fit for larger home, business, or multi-area surveillance setups. It also supports up to 32 MP resolution, and when ultra HD resolution mode is enabled, it can support up to 8 channels of 32 MP or 24 MP IP video inputs. The recorder is built with up to 256 Mbps incoming bandwidth, so it is designed to handle heavier camera traffic than entry-level models. For buyers, that means more room to build a higher-resolution system without running into limits too quickly.

Yes, this model includes 16 independent PoE network interfaces. The datasheet lists 16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces for PoE, using IEEE 802.3 af/at, with PoE power rated at up to 200 W. That matters because you can power and connect compatible cameras through a single cable, which helps reduce installation clutter and extra power adapters. In practical terms, it makes large camera deployments much cleaner and easier to manage.

Yes, the HDMI output supports up to 8K resolution at 7680 × 4320 and 30 Hz. It also supports 4K at 60 Hz and 30 Hz, plus 2K and 1080p output options, which gives you flexibility depending on the display you are using. The unit also provides independent HDMI and VGA outputs, along with a CVBS output. For buyers, that means you can use a high-resolution display for detailed monitoring while still keeping compatibility with other monitor types.

This recorder supports 16-channel synchronous playback, which is useful when you need to review multiple camera feeds at the same time. Its decoding capability is listed as 2 channels at 32 MP and 30 fps plus 2 channels at 8 MP and 30 fps, or 10 channels at 8 MP and 30 fps, or 20 channels at 4 MP and 30 fps, or 40 channels at 1080p and 30 fps. It also supports dual-stream recording, which can help save bandwidth while maintaining recording performance. That gives buyers a lot more flexibility when balancing image quality, playback smoothness, and network load.

The datasheet lists 2 SATA interfaces for hard drive connection. It supports up to 16 TB capacity for each disk, giving the unit substantial storage potential for larger surveillance systems. It also supports H.265+, H.265, H.264+, and H.264 video formats, and Hikvision notes that H.265+ can reduce storage space by up to 75%. For buyers, that can mean longer recording retention and better use of drive space, especially when running many cameras.

Yes, the DS-7616NI-M2/16P supports Hik-Connect and DDNS for easier network management. The datasheet also lists support for a wide range of network protocols, including TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, HTTP, HTTPS, ONVIF, and more, along with support for up to 128 remote connections. It includes one RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface for LAN connectivity. That matters because it gives buyers more flexibility for remote monitoring, multi-user access, and integration into existing IP surveillance networks.

This model supports multiple VCA, or Video Content Analytics, events. The datasheet also lists configurable special camera smart functions such as motion detection, line crossing, intrusion detection, heat map, ANPR, and people counting. In addition, it supports POS information overlay on live view and playback, along with POS-triggered recording and alarm. For a buyer, that means it is designed for more advanced use cases where finding meaningful events quickly matters more than simply recording everything nonstop.

Yes, it supports 1-channel audio output through RCA and 1-channel two-way audio using the audio input. The datasheet also lists audio compression formats including G.711ulaw, G.711alaw, G.722, G.726, AAC, and MP2L2. It even supports up to 8 IP speakers connected to the recorder. That matters when your surveillance setup needs not just video evidence, but also audio monitoring or communication capability in compatible environments.

The datasheet lists the dimensions as 384 × 317 × 52 mm, or about 15.1 × 12.5 × 2.0 inches. Power supply is rated at 100 to 240 VAC, 50 to 60 Hz, and power consumption is listed as 15 W or less without HDD and with PoE off. The unit weight is listed as 3 kg or less without HDD. For buyers planning rack, shelf, or equipment-room installation, those details help confirm fit, power compatibility, and handling before purchase.

According to the datasheet’s physical interface section, the recorder includes 16 PoE network interfaces, 1 LAN interface, audio in, audio out, HDMI, VGA, CVBS video output, alarm in and alarm out, a front USB 2.0 port, a rear USB 3.0 port, GND, power input, and a power switch. That gives the unit strong flexibility for display connection, networking, storage control, and peripheral support. It is especially helpful for installers who need a recorder that can fit into more advanced or customized surveillance setups. The rear-panel diagram in the datasheet also visually confirms the placement of these interfaces.
