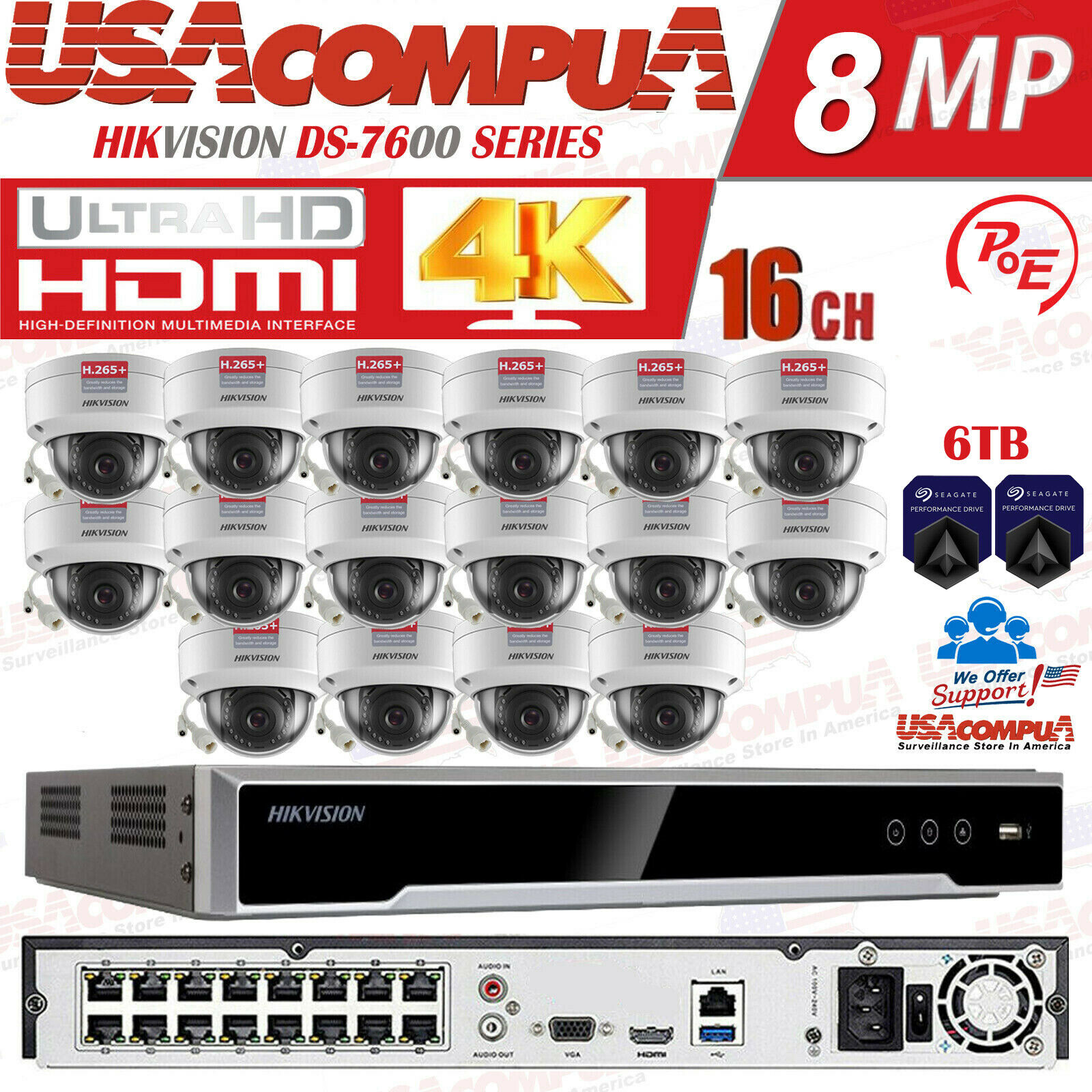

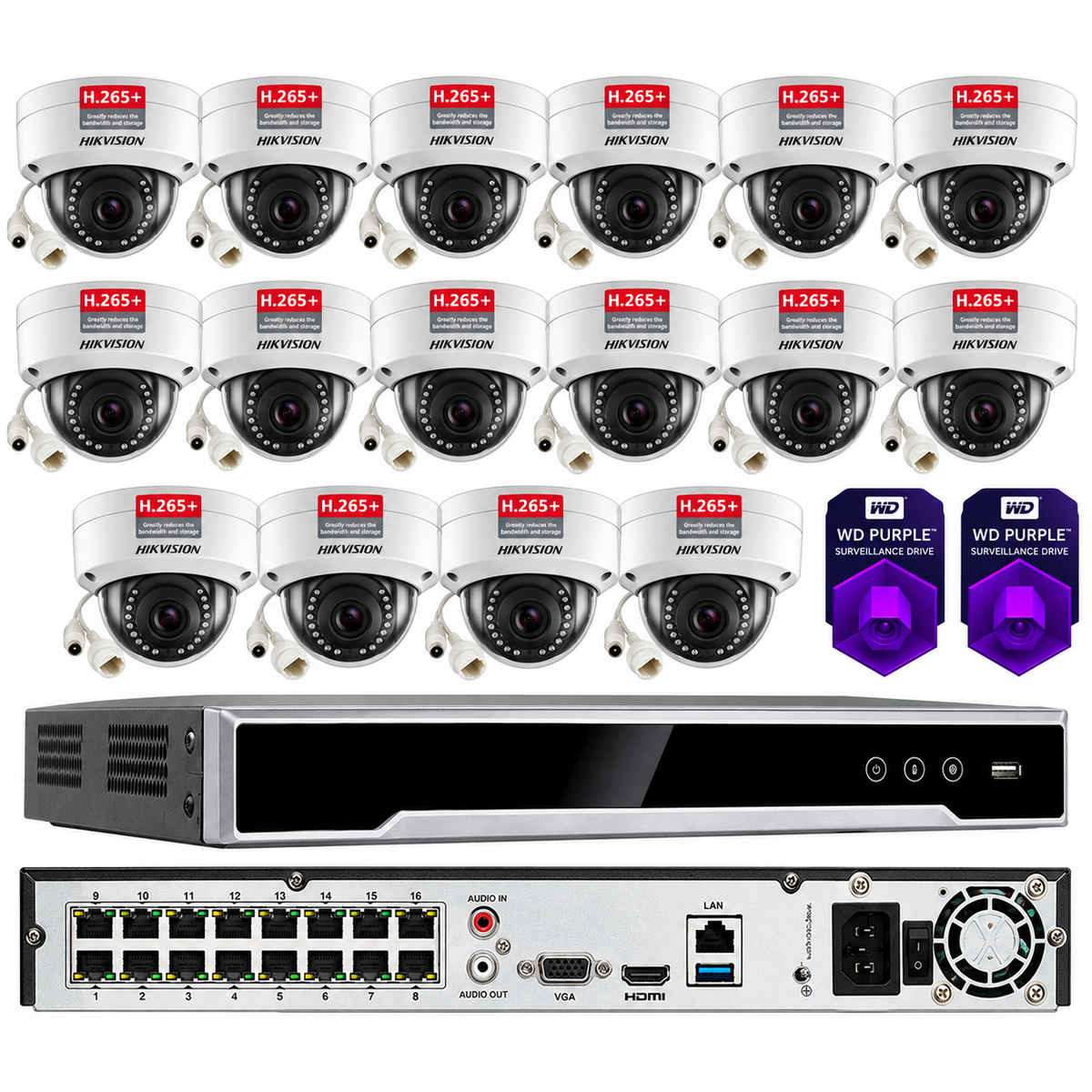

Hikvision DS-7616NI-Q2/16P 16CH 4K 8MP NVR 16 x 4MP Dome IP POE Camera System

Description

Hikvision DS-7616NI-Q2/16P 16CH 4K 8MP NVR 16 x 4MP Dome IP POE Camera System


This listing includes:

  •  CAMERA QUANTITY (DS-2CD1143G0-I): 4;6;8;10;12;14;16
  • HARD DRIVE OPTION FOR RECORDER DS-7616NI-Q2/16P: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB


DS-2CD1143G0-I  view data sheet

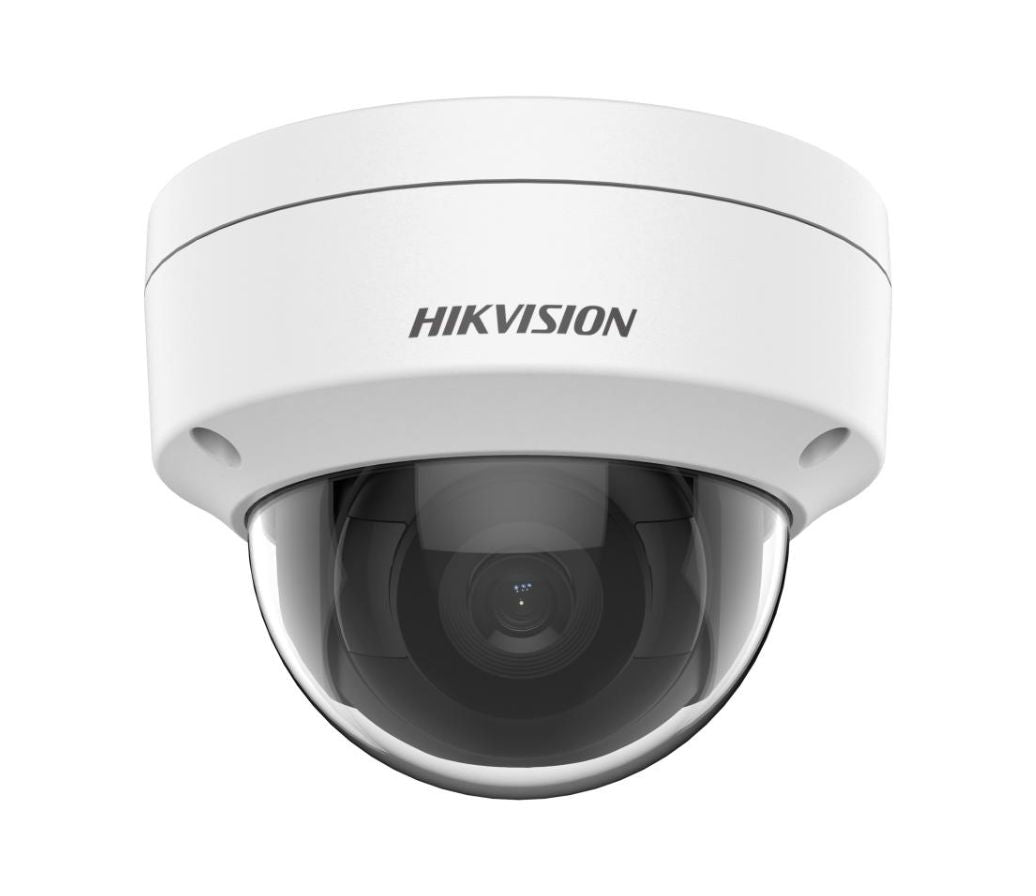

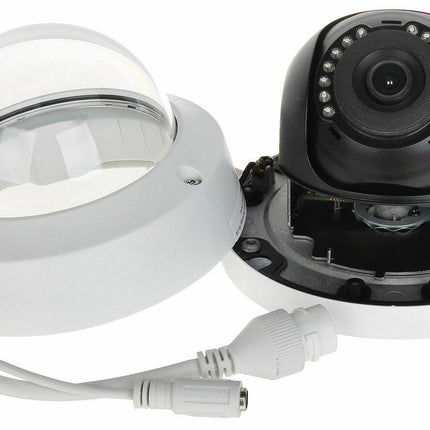

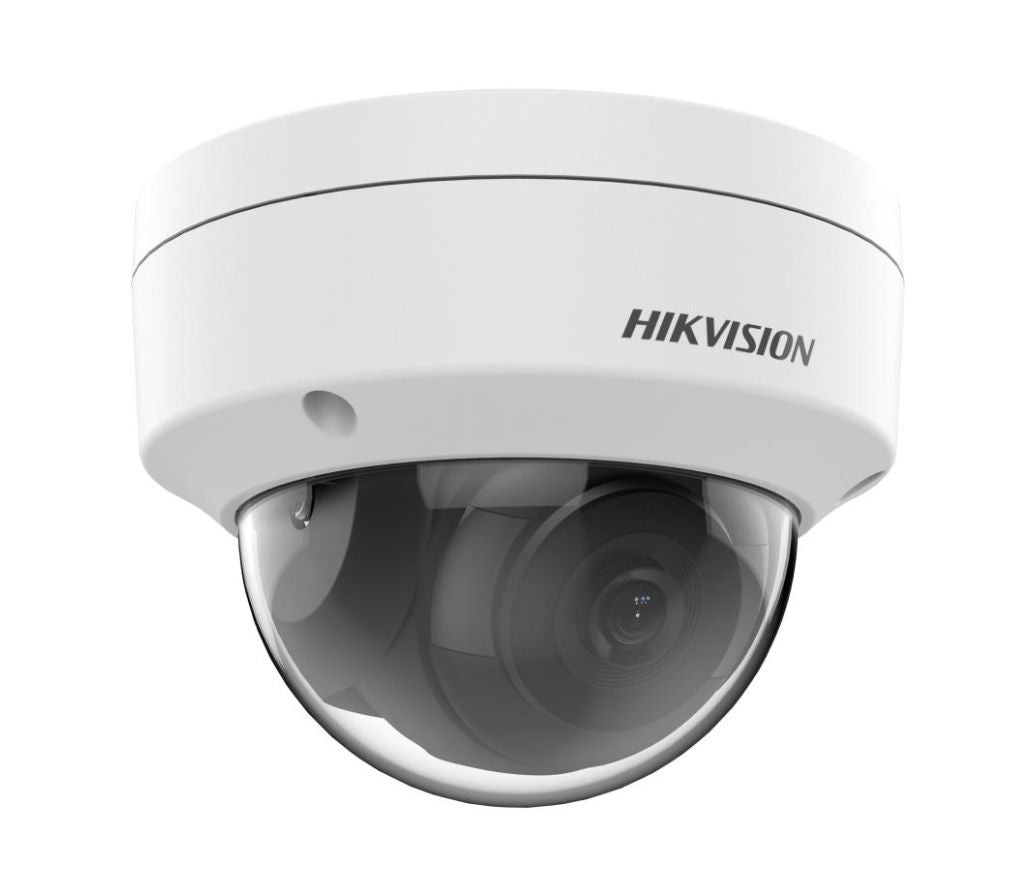

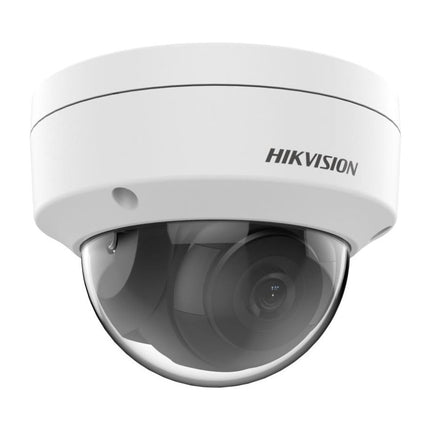

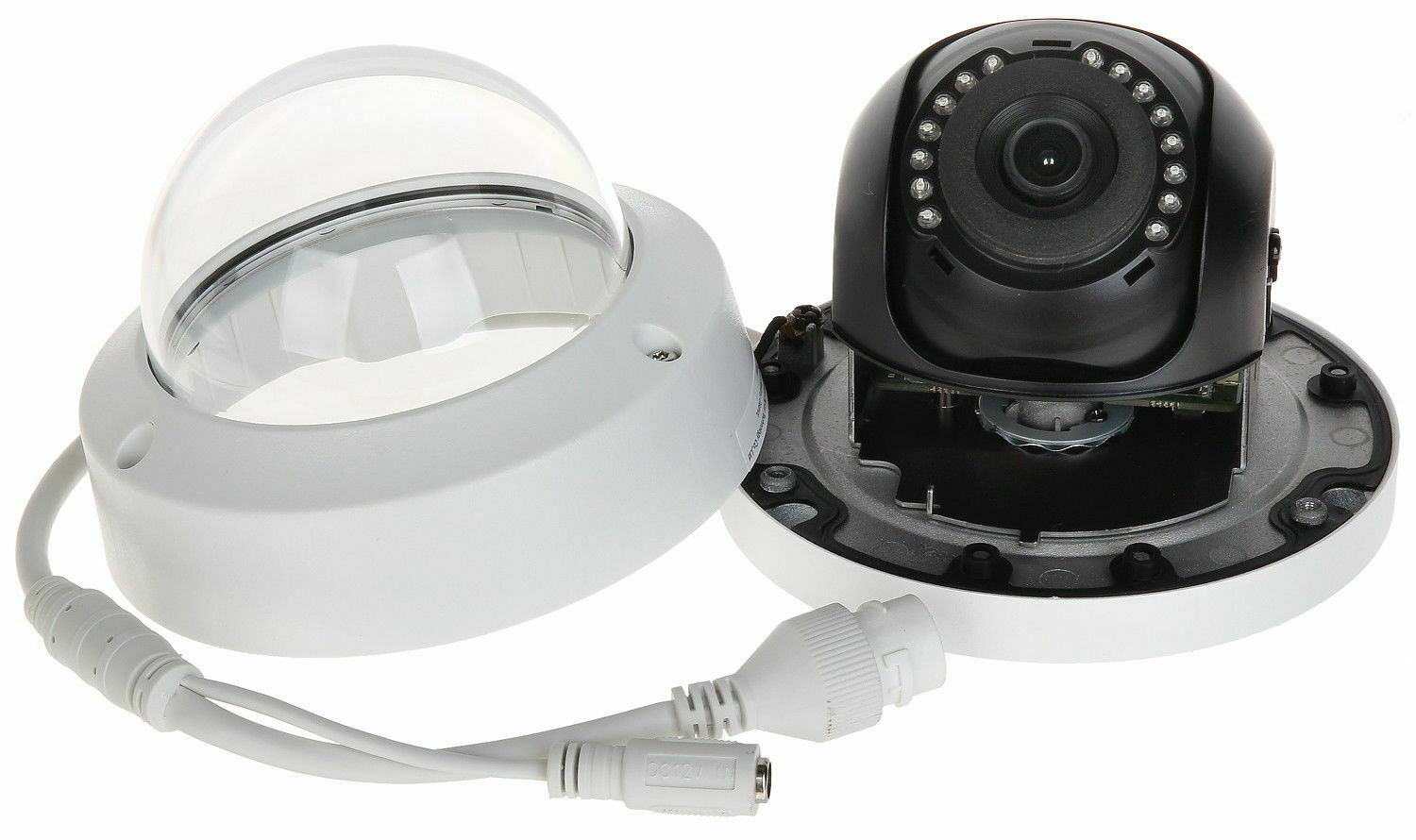

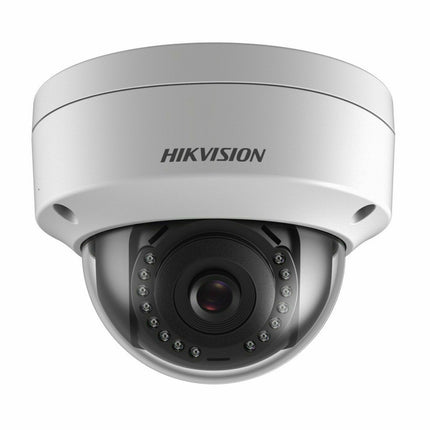

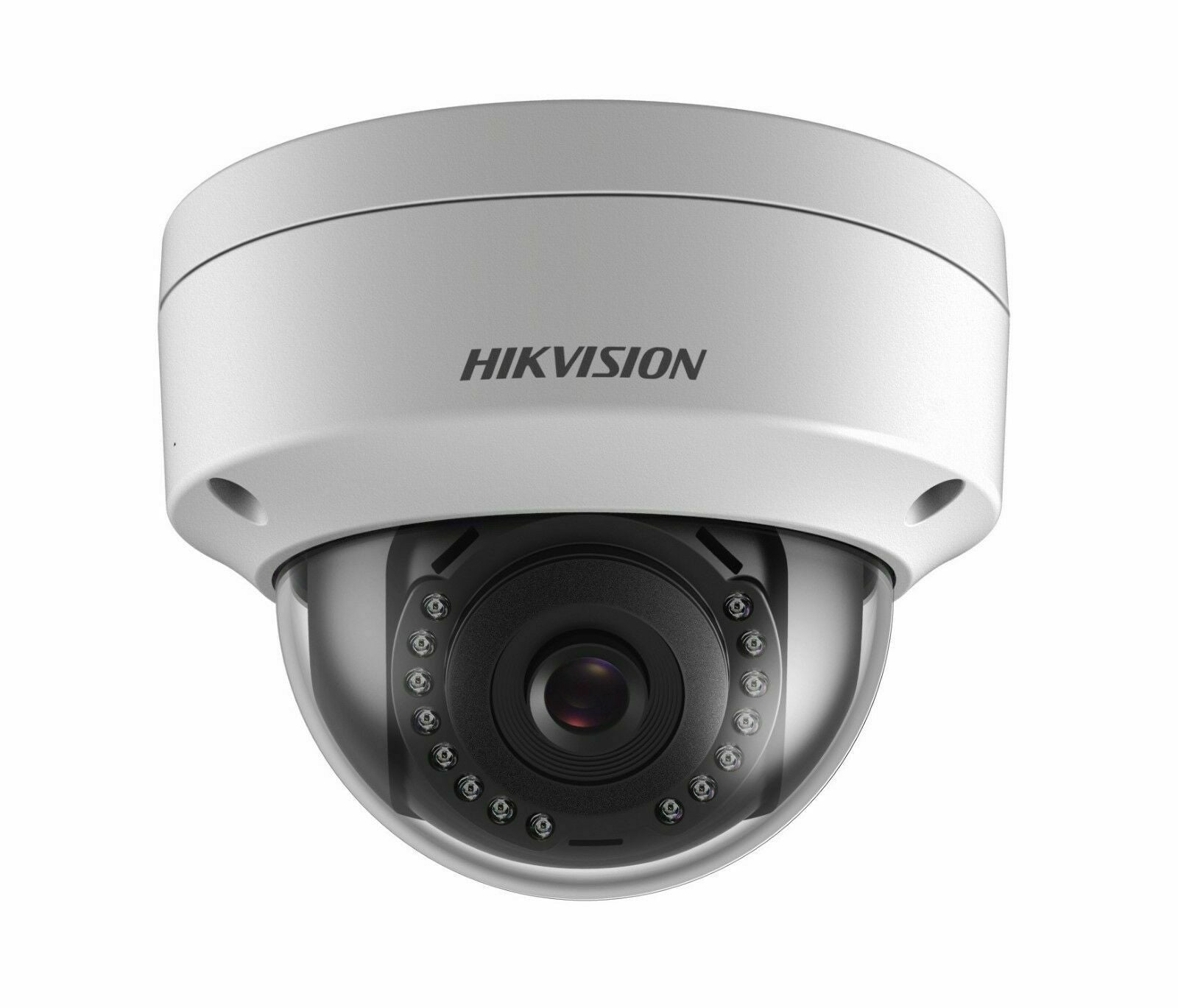

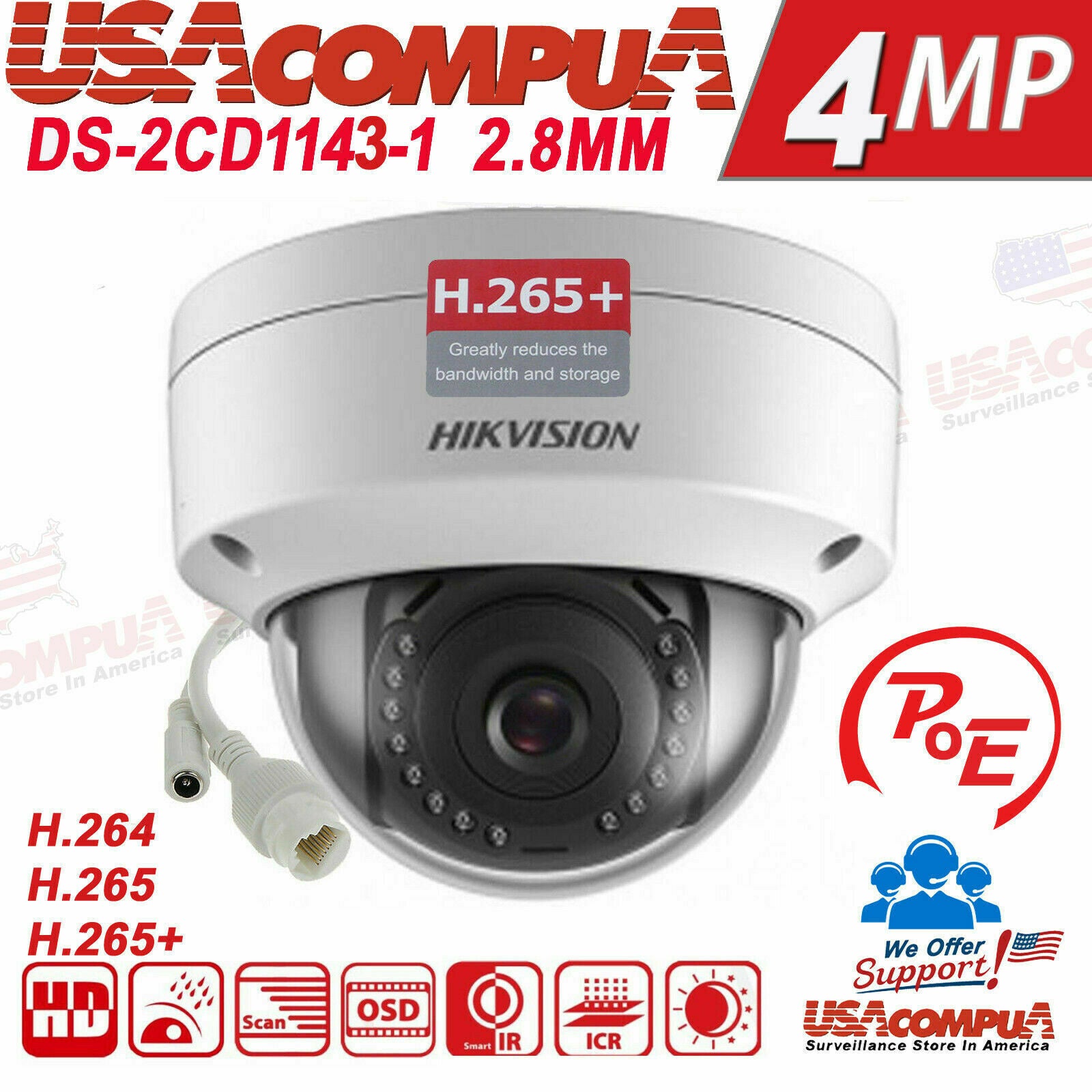

4MP Fixed Dome Network Camera

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging even with strong back lighting due to 120 dB WDR
  • Water and dust resistant (IP67) and vandal resistant (IK10)
  • EXIR 2.0: advanced infrared technology with long IR range


DS-7616NI-Q2/16P  view data sheet

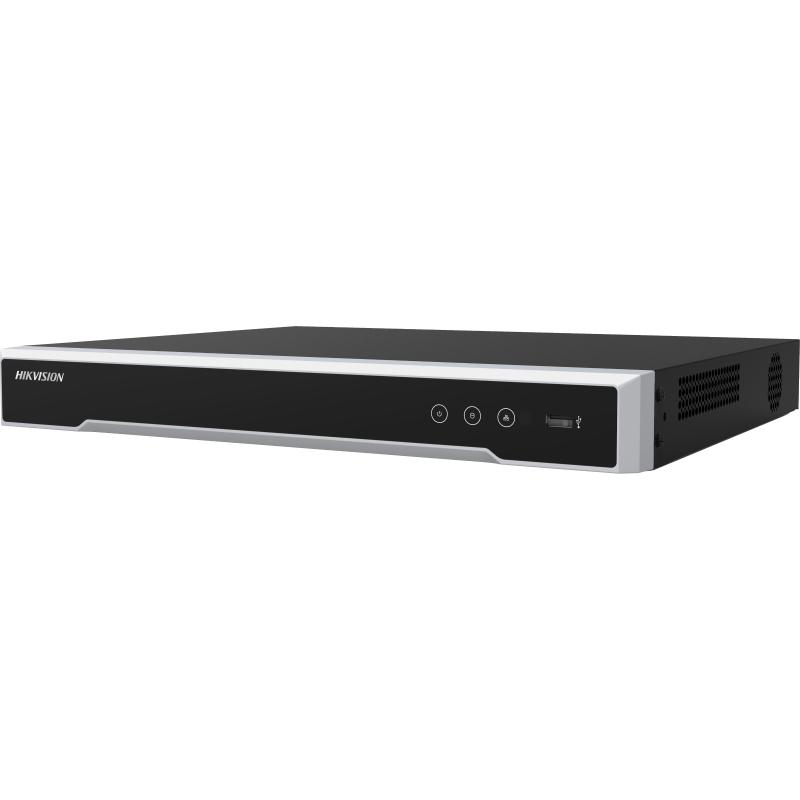

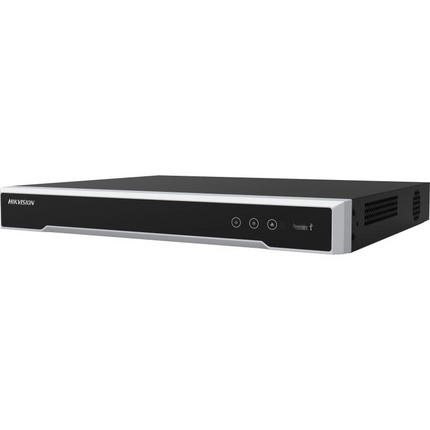

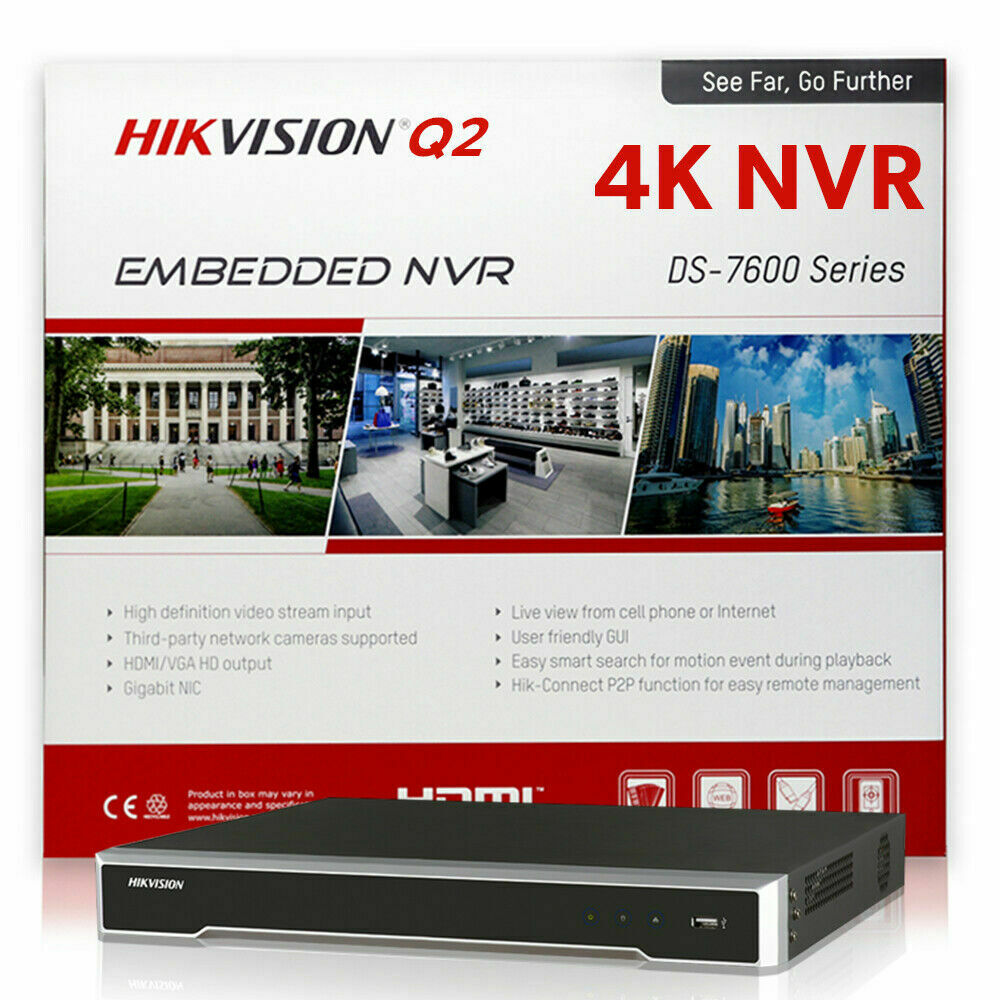

16ch 1U 16 PoE 4K NVR

  • Up to 16ch IP camera inputs
  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
  • Up to 160 Mbps incoming bandwidth

Hikvision DS-7616NI-Q2/16P 16CH 4K 8MP NVR 16 x 4MP Dome IP POE Camera System

Product form

SKU: 750943668966-QP4

$733.52 $672.95

Out of stock

      • Guaranteed secure & safe checkout.

        paypal

      Description

      Hikvision DS-7616NI-Q2/16P 16CH 4K 8MP NVR 16 x 4MP Dome IP POE Camera System


      This listing includes:

      •  CAMERA QUANTITY (DS-2CD1143G0-I): 4;6;8;10;12;14;16
      • HARD DRIVE OPTION FOR RECORDER DS-7616NI-Q2/16P: NO HARD DRIVE;2TB;4TB;8TB;10TB;12TB;16TB


      DS-2CD1143G0-I  view data sheet

      4MP Fixed Dome Network Camera

      • High quality imaging with 4 MP resolution
      • Efficient H.265+ compression technology
      • Clear imaging even with strong back lighting due to 120 dB WDR
      • Water and dust resistant (IP67) and vandal resistant (IK10)
      • EXIR 2.0: advanced infrared technology with long IR range


      DS-7616NI-Q2/16P  view data sheet

      16ch 1U 16 PoE 4K NVR

      • Up to 16ch IP camera inputs
      • H.265+/H.265/H.264+/H.264 video formats
      • Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
      • Up to 160 Mbps incoming bandwidth
      Total Control, Anywhere

      Total Control, Anywhere

      Mobile app access so you can monitor your home remotely which means you feel in control no matter where you are—whether you're at work, on vacation, or just out for dinner, your home is always just a tap away.

      📑 Product Data Sheet ▸

      Data sheet PDF

      Product Description

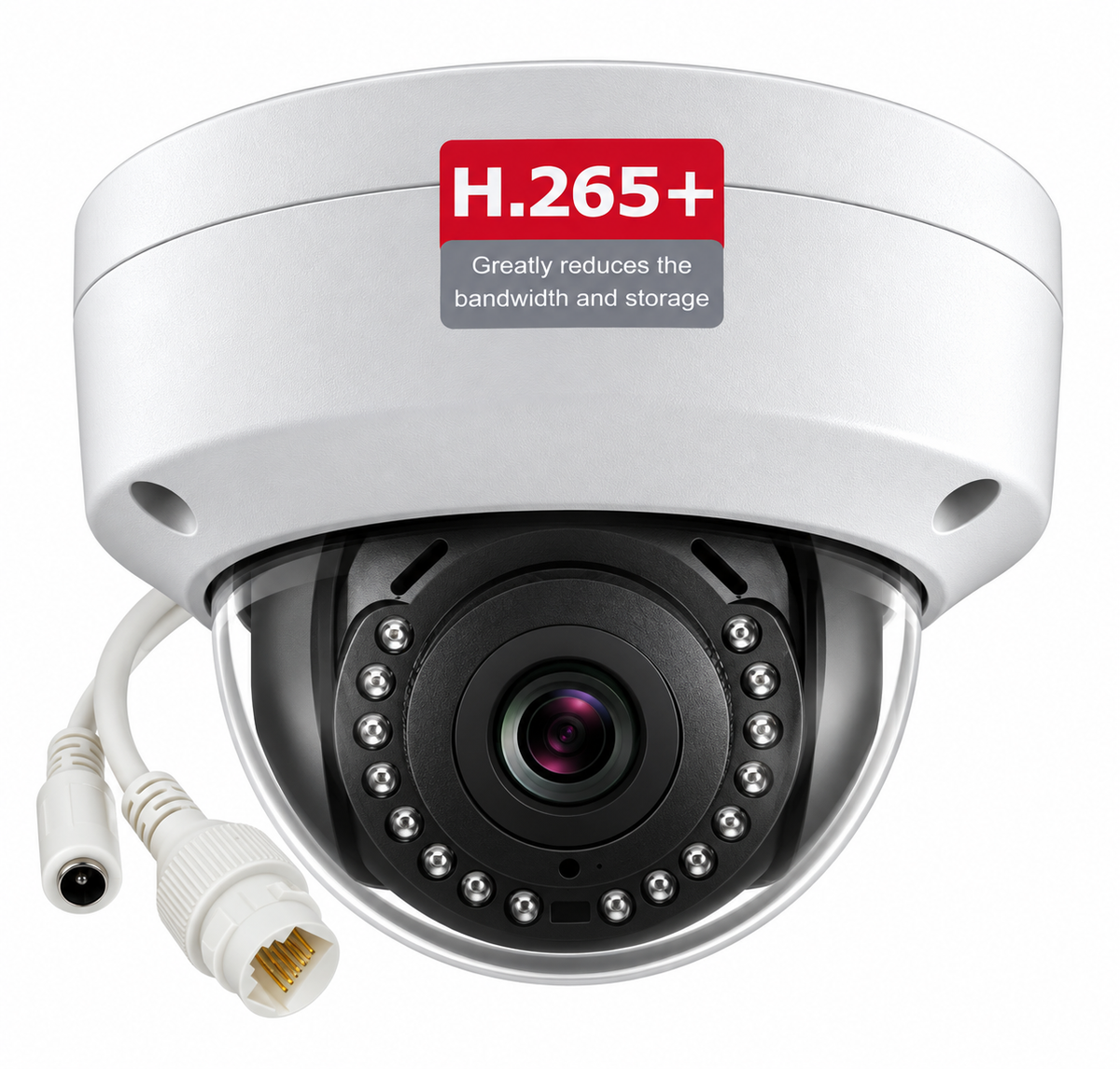

      4MP Fixed Dome Network Camera

      • High quality imaging with 4 MP resolution
      • Efficient H.265+ compression technology
      • Clear imaging even with strong back lighting due to 120 dB WDR
      • Water and dust resistant (IP67) and vandal resistant (IK10)
      • EXIR 2.0: advanced infrared technology with long IR range

      Specification

        • Camera
        • Image Sensor1/3" progressive scan CMOS
        • Max. Resolution2560 ? 1440
        • Min. IlluminationColor: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
        • Shutter Time1/3 s to 1/100, 000 s
        • Day & NightIR cut filter
        • Angle AdjustmentPan: 0? to 355?, tilt: 0? to 75?
        • Lens
        • Focal Length & FOV

          2.8 mm, horizontal FOV 98.0?, vertical FOV 53.1?, diagonal FOV 114.7?

          4 mm, horizontal FOV 78.7?, vertical FOV 43.1?, diagonal FOV 92.3?

        • Lens MountM12
        • FocusFixed
        • ApertureF2.0
        • Lens TypeFixed focal lens, 2.8 and 4 mm optional
        • Iris TypeFixed
        • Illuminator
        • Supplement Light TypeIR
        • Supplement Light RangeUp to 30 m
        • IR Wavelength850 nm
        • Smart Supplement LightYes
        • Video
        • Main Stream

          50 Hz: 20 fps (2560 ? 1440)

          25 fps (1920 ? 1080, 1280 ? 720)

          60 Hz: 20 fps (2560 ? 1440)

          30 fps (1920 ? 1080, 1280 ? 720)

        • Sub-Stream

          50 Hz: 25 fps (640 ? 480, 640 ? 360)

          60 Hz: 30 fps (640 ? 480, 640 ? 360)

        • Video Compression

          Main stream: H.265/H.264/H.264+/H.265+

          Sub-stream: H.265/H.264/MJPEG

        • Video Bit Rate32 Kbps to 8 Mbps
        • H.264 TypeBaseline Profile/Main Profile/High Profile
        • H.265 TypeMain Profile
        • Region Of Interest (ROI)1 fixed region for main stream
        • Network
        • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
        • Simultaneous Live ViewUp to 6 channels
        • APIOpen Network Video Interface, ISAPI
        • User/HostUp to 32 users. 3 levels: administrator, operator and user
        • ClientiVMS-4200, Hik-Connect
        • Web Browser

          Plug-in required live view: IE 10+

          Plug-in free live view: Chrome 57.0+, Firefox 52.0+

          Local service: Chrome 57.0+, Firefox 52.0+

        • Image
        • Image Settings

          Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client

          software or web browser

        • Day/Night SwitchAuto, Schedule, Day, Night
        • Wide Dynamic Range (WDR)120 dB
        • Image EnhancementBLC, 3D DNR
        • Interface
        • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
        • Event
        • Basic EventMotion detection, video tampering alarm, exception
        • LinkageUpload to FTP, notify surveillance center, send email
        • General
        • Power

          12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug

          PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

        • Dimension?111 mm ? 82.4 mm (? 4.4" ? 3.2")
        • Package Dimension134 mm ? 134 mm ? 108 mm (5.3" ? 5.3" ? 4.3")
        • WeightApprox. 360 g (0.8 lb.)
        • With Package WeightApprox. 560 g (1.2 lb.)
        • Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
        • Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity: 95% or less (non-condensing)
        • LanguageEnglish, Ukrainian
        • General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
        • Approval
        • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
        • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
        • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
        • ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)

      Data sheet PDF

      Product Description

      16ch 1U 16 PoE 4K NVR

      • Up to 16ch IP camera inputs
      • H.265+/H.265/H.264+/H.264 video formats
      • Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity
      • Up to 160 Mbps incoming bandwidth

      Specification

        • Motion Detection 2.0
        • Human/Vehicle Analysis4
        • Video And Audio
        • IP Video Input16ch
        • HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
        • VGA Output1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz
        • Video Output ModeHDMI/VGA simultaneous output
        • Incoming Bandwidth160 Mbps
        • Outgoing Bandwidth80 Mbps
        • Audio Output1-ch, RCA (Linear, 1 K?)
        • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)
        • Decoding
        • Decoding FormatH.265+,H.265,H.264+,H.264
        • Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
        • Synchronous Playback16ch
        • Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
        • Network
        • Network ProtocolTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP?, HTTPS
        • Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
        • PoE
        • Interface16ch;16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
        • Power? 150W
        • StandardIEEE 802.3 af/at
        • RAID
        • RAID TypeNo
        • Auxiliary Interface
        • SATA2 SATA interfaces
        • CapacityUp to 8TB capacity for each disk
        • USB Interface2 ? USB 2.0
        • General
        • Power Supply100-240V?, 50/60Hz, 3.2A MAX
        • Consumption? 15W
        • Working Temperature-10 to +55? C (+14 to +131? F)
        • Working Humidity10 to 90 %
        • Chassis1U chassis
        • Dimension (W ? D ? H)385 ? 315 ? 52 mm (15.2"? 12.4" ? 2.0")
        • Weight? 2.6 kg (5.7 lb)
