Product Description

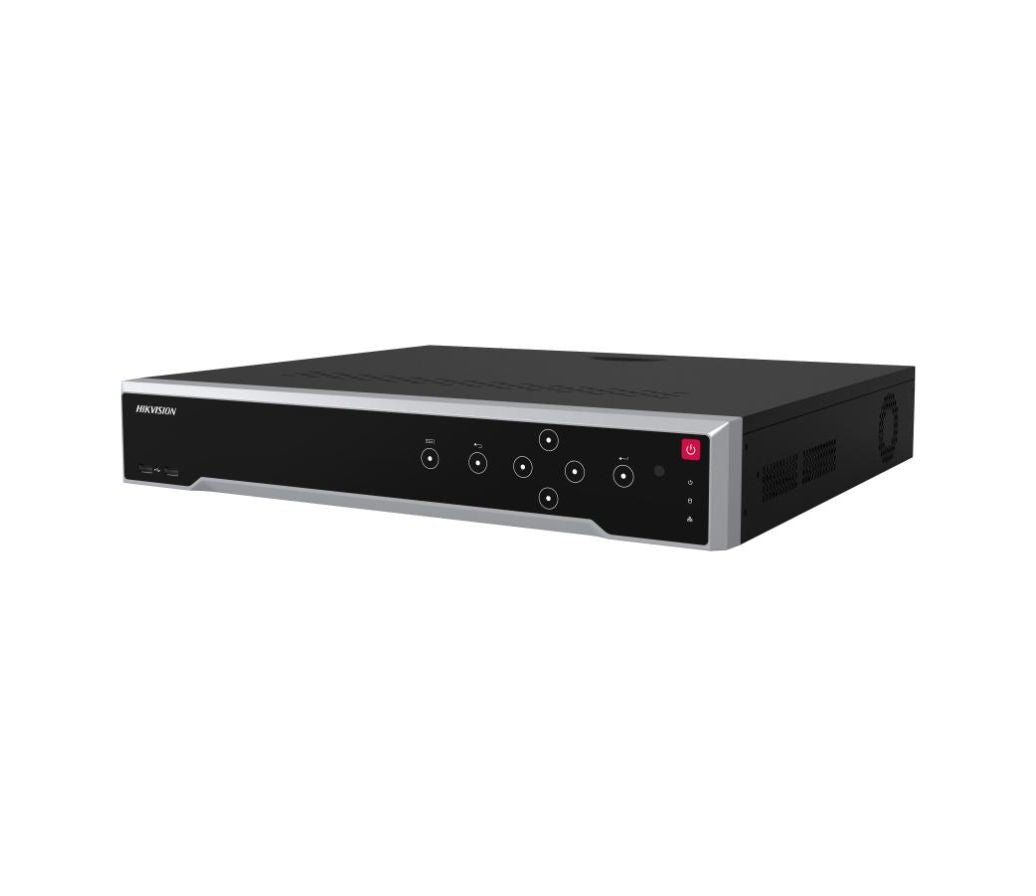

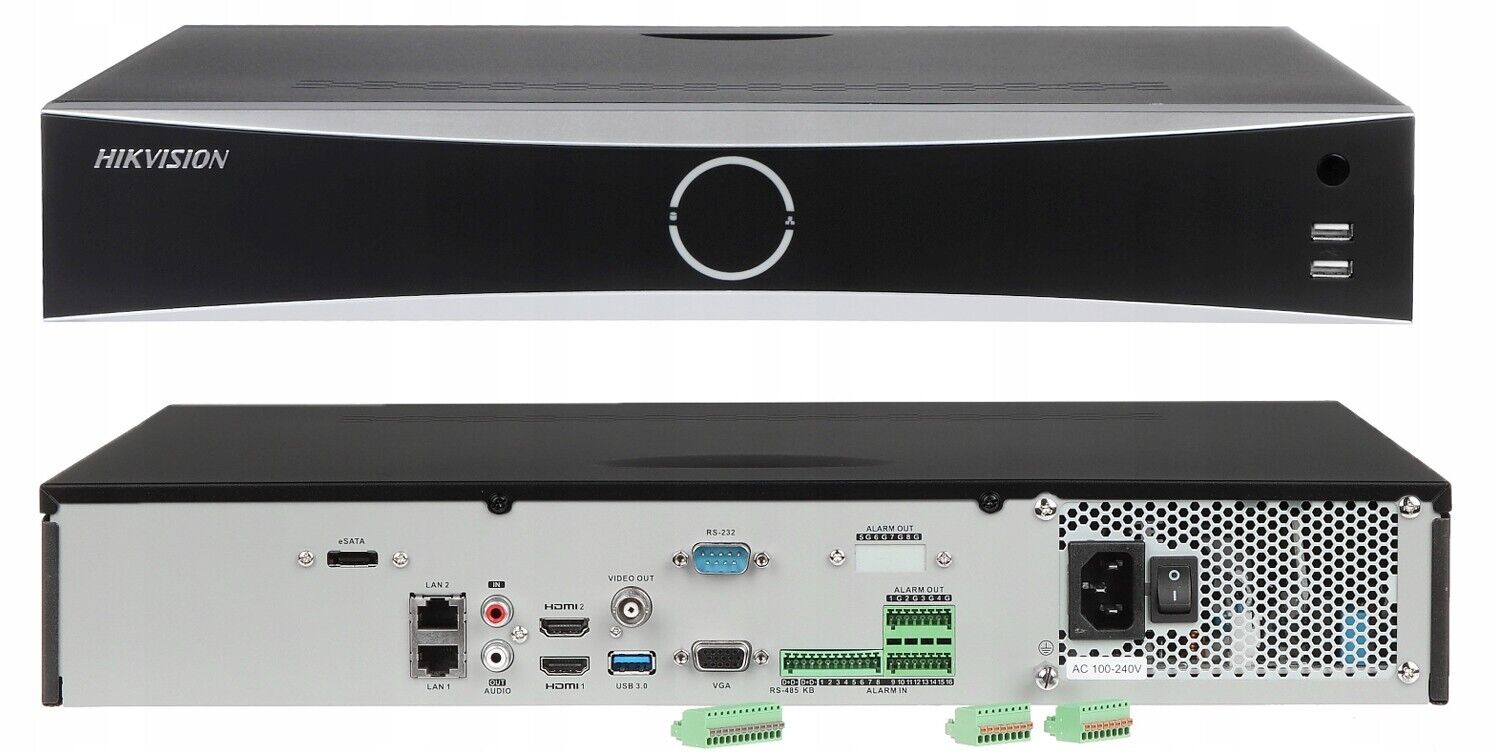

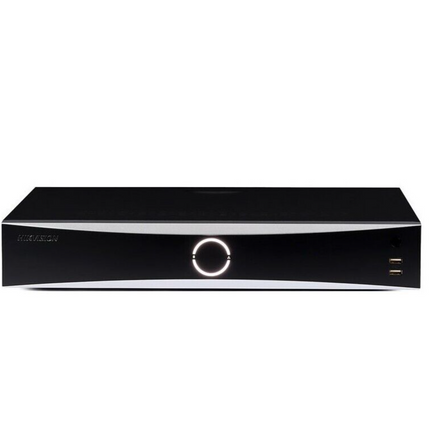

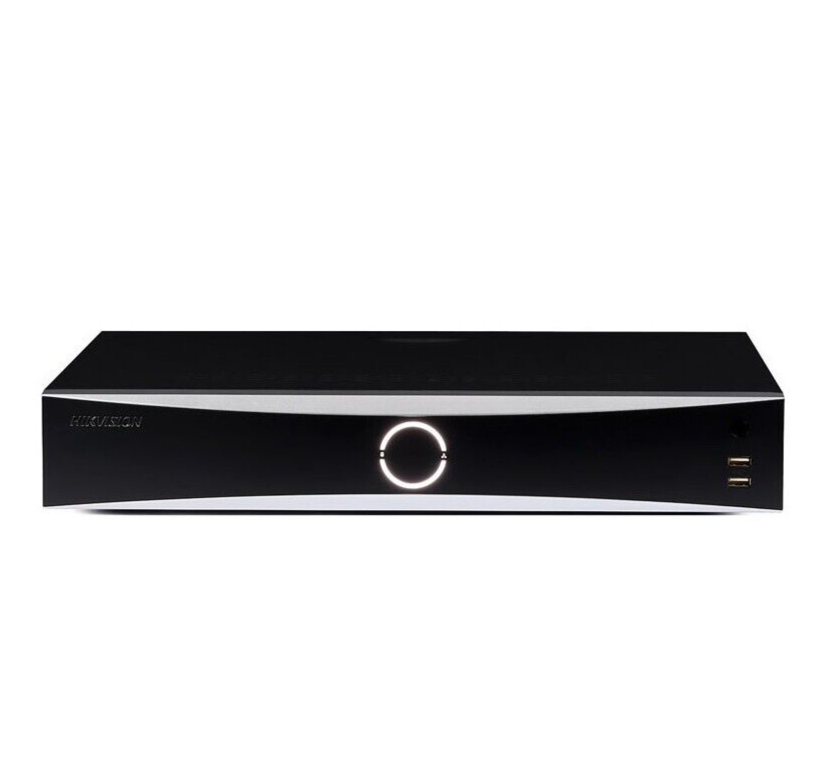

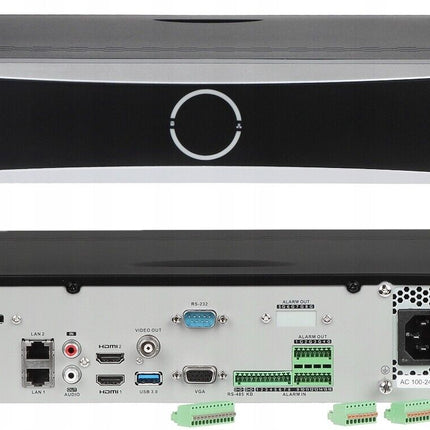

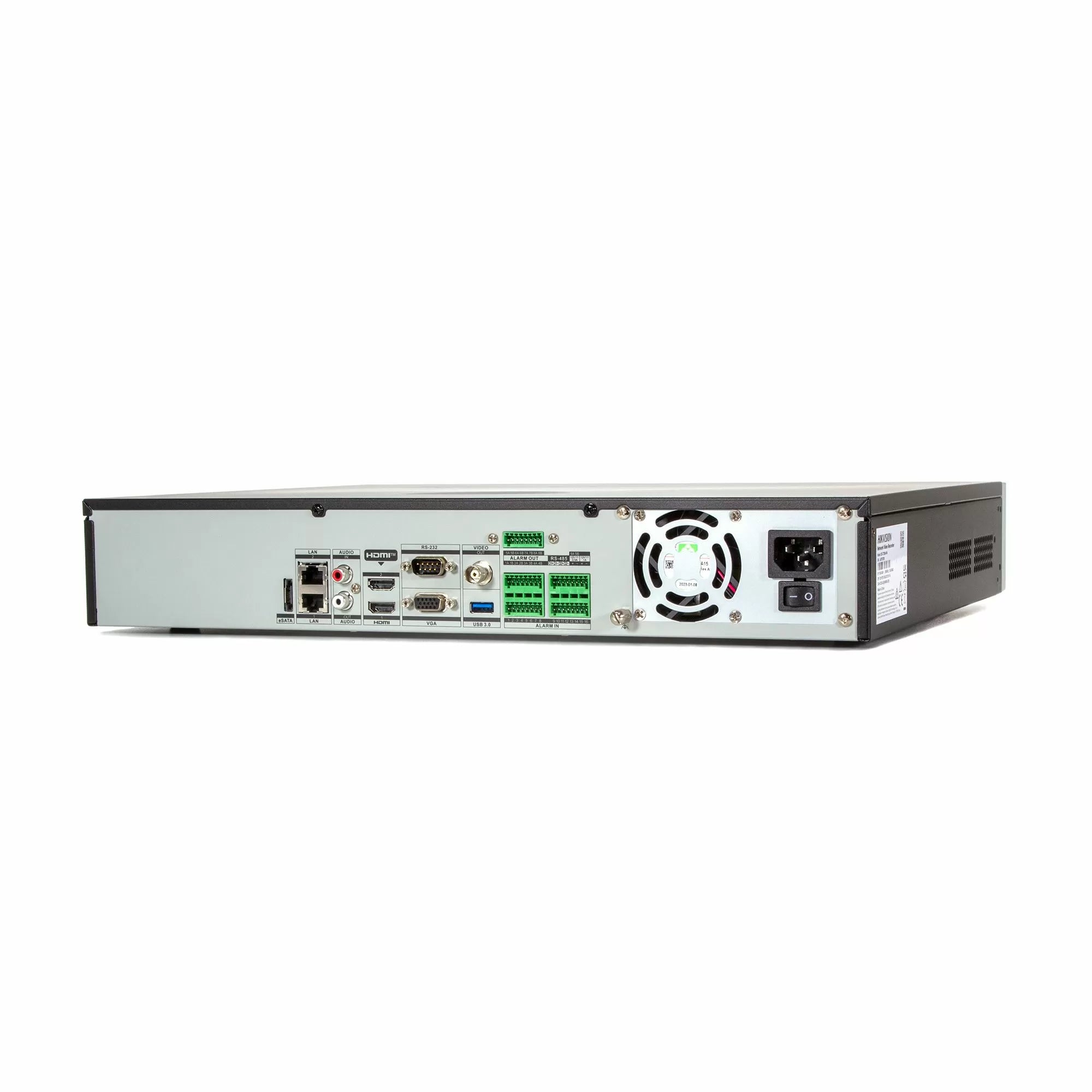

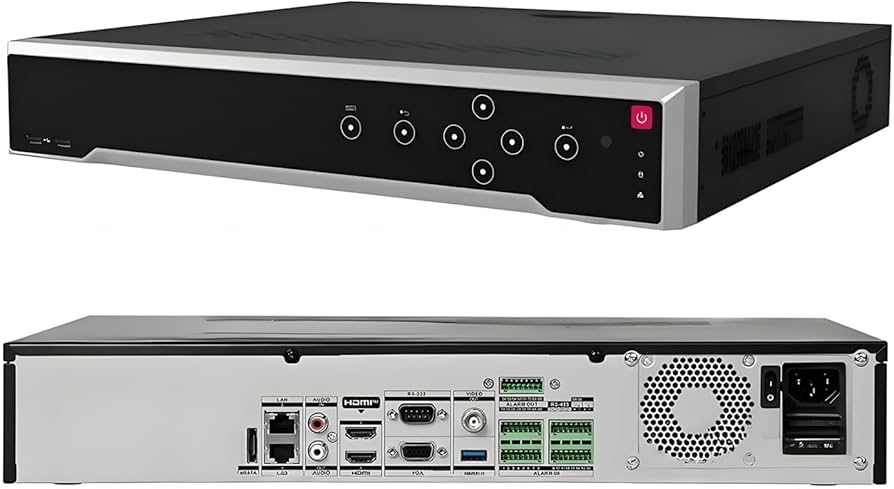

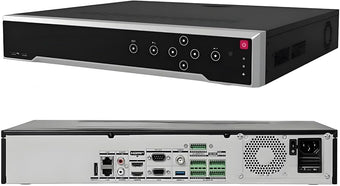

32ch 1.5U 8K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Up to 32ch IP camera inputs
- Up to 32ch@1080p decoding capacity
- Up to 320 Mbps incoming bandwidth
Specification
- Video And Audio
- IP Video Input
32ch
Up to 32 MP resolution
*: After ultra HD resolution mode is enabled, the NVR supports up to 8ch 32 MP/24 MP IP video inputs.
- Incoming Bandwidth320 Mbps
- Outgoing Bandwidth400 Mbps
- HDMI 1 Output8K (7680 ? 4320)/30Hz, 4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- HDMI 2 Output4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- VGA Output1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
- Decoding
- Decoding FormatH.265+/H.265/H.264+/H.264
- Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
*: After ultra HD resolution mode is enabled, the NVR supports up to 8ch 32 MP/24 MP IP video inputs.
- Synchronous Playback16ch
- Decoding Capability2-ch@32 MP (30 fps)+2-ch@8MP?30fps?/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
- Dual-Stream RecordingSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
- Network
- Remote Connection128
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
- Network Interface2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- RAID
- RAID TypeN/A
- Auxiliary Interface
- ESATA1 eSATA interface
- SATA4 SATA interfaces
- CapacityUp to 16 TB capacity for each HDD
- Serial Interface2 RS-485 (half-duplex), 1 RS-232
- Alarm In/Out16/9
- USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
- Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.
*: The Ctrl 12V power is controlled by alarm output 9.
- DC 12V12 VDC, 1 A power output
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption? 15 W (without HDD )
- Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
- Working Humidity10% to 90%
- Chassis19-inch rack-mounted 1.5U chassis
- Dimension (W ? D ? H)445 ? 400 ? 75 mm ( 17.5"? 15.7" ? 3.0")
- Weight? 5 kg (without HDD, 11 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
Feature Highlight
Scroll to Explore key features.

Human and Vehicle Detection
Removes unnecessary notifications
Human and Vehicle Detection
Removes unnecessary notifications
Advanced Security, Made Simple.

Accurate Alerts Only
Human and Vehicle detection so you avoid false alarms which means you feel confident every alert matters. No more unnecessary pings from shadows, animals, or swaying trees—just real notifications when something important happens. It’s security that respects your attention and your time.

Record video continuously 24/7!
Record video continuously—24 hours a day, 7 days a week—without interruptionComplete Coverage: Never miss an event, even during quiet hours. Reliable Evidence: Essential for reviewing incidents with accurate timelines. Peace of Mind: Know your property is monitored at all times. Ideal for High-Risk Areas: Great for businesses, warehouses, or remote properties that require constant surveillance. Perfect for anyone needing maximum security and a full visual record of all activity.

Total Control, Anywhere
Mobile app access so you can monitor your home remotely which means you feel in control no matter where you are—whether you're at work, on vacation, or just out for dinner, your home is always just a tap away.
