The DS-7104HGHI-F1/N supports HDTVI, AHD, HDCVI, CVBS, and IP video input formats. This flexibility allows users to connect different camera technologies without needing to completely replace an existing surveillance setup. It supports up to 4 analog channels and up to 4 IP camera inputs with resolutions up to 960p. This makes it useful for upgrading older analog systems while still allowing newer camera integration.

Yes, the DVR supports Hik-Connect and DDNS (Dynamic Domain Name System) for remote network management. This allows users to monitor cameras, review playback, and manage the system remotely using supported devices and network connections. The DVR also supports protocols such as TCP/IP, DHCP, DNS, SMTP, NTP, HTTPS, and UPnP™. Remote access is especially useful for homeowners and business owners who need to check their property while away.

The DS-7104HGHI-F1/N includes one SATA interface that supports up to 6 TB capacity for a single hard drive. This gives users the ability to retain surveillance footage locally for extended periods depending on recording settings and camera usage. The DVR also supports H.264+ compression, which helps reduce storage costs by improving encoding efficiency. This allows users to maximize recording retention without constantly upgrading storage.

The recorder supports multiple encoding resolutions including 1080p lite, HD 720p lite, WD1, 4CIF, VGA, and CIF depending on configuration settings. When 1080p lite mode is enabled, the image effect is designed to appear similar to 1080p resolution. The DVR also supports Turbo HD, AHD, and HDCVI input resolutions including 1080p25, 1080p30, 720p25, and 720p30. This gives users flexibility depending on the type of cameras connected to the system.

Yes, the DS-7104HGHI-F1/N is designed as a hybrid DVR that supports analog and IP camera inputs. It supports HDTVI, AHD, HDCVI, CVBS, and H.264+/H.264 IP cameras. This flexibility helps users upgrade existing analog systems gradually without needing to replace every camera immediately. It is especially useful for businesses or homeowners transitioning from older analog technology to IP surveillance.

The DVR supports smart search functionality for more efficient playback review. This helps users locate important footage faster instead of manually reviewing long recording timelines. The DS-7104HGHI-F1/N also supports 4-channel synchronous playback, allowing multiple camera views to be reviewed simultaneously. This can save valuable time during investigations or incident reviews.

The recorder supports both H.264+ and H.264 video compression formats. H.264+ improves encoding efficiency and helps reduce data storage costs compared to standard H.264 recording. This means users can often retain footage longer while using less hard drive space. Efficient compression is especially important for systems recording continuously throughout the day.

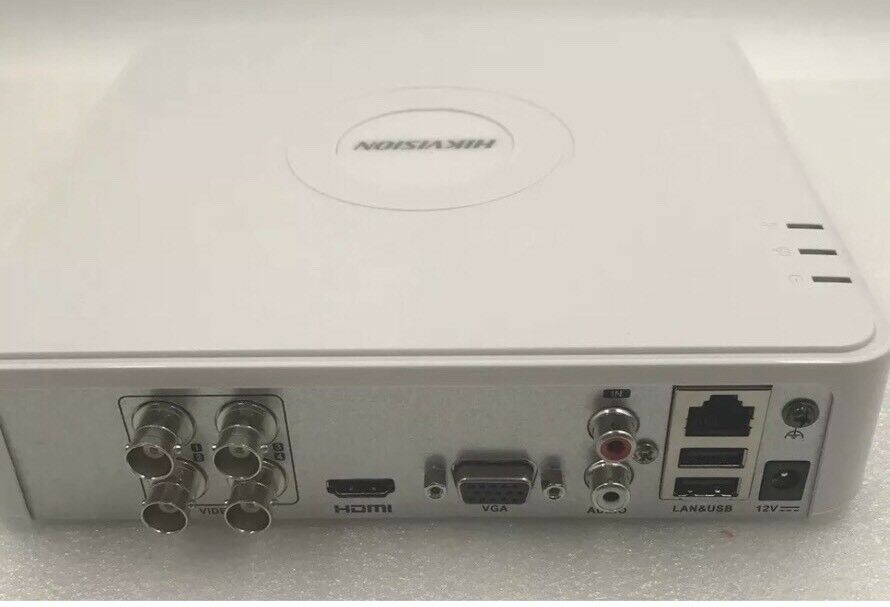

The DS-7104HGHI-F1/N includes both HDMI and VGA output interfaces. Supported output resolutions include 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, and 1024 × 768/60Hz. This gives users flexibility when connecting to modern monitors or older display systems. Having both HDMI and VGA outputs can make installation easier in different surveillance environments.

Yes, the recorder includes 1-channel RCA audio input and 1-channel RCA audio output. It also supports two-way audio by reusing the first audio input channel. Audio compression uses the G.711u format with a 64 Kbps audio bit rate. This can help users capture additional audio context alongside video recordings where permitted by local regulations.

Yes, the DS-7104HGHI-F1/N is well suited for homes, small offices, retail shops, restaurants, and other smaller surveillance installations. Its compact size, support for multiple camera technologies, remote viewing capabilities, and efficient storage management make it practical for everyday security monitoring. The DVR also supports long-distance HDTVI signal transmission up to 1200 meters for 720p HDTVI cameras. This makes it flexible for different property layouts and installation needs.
