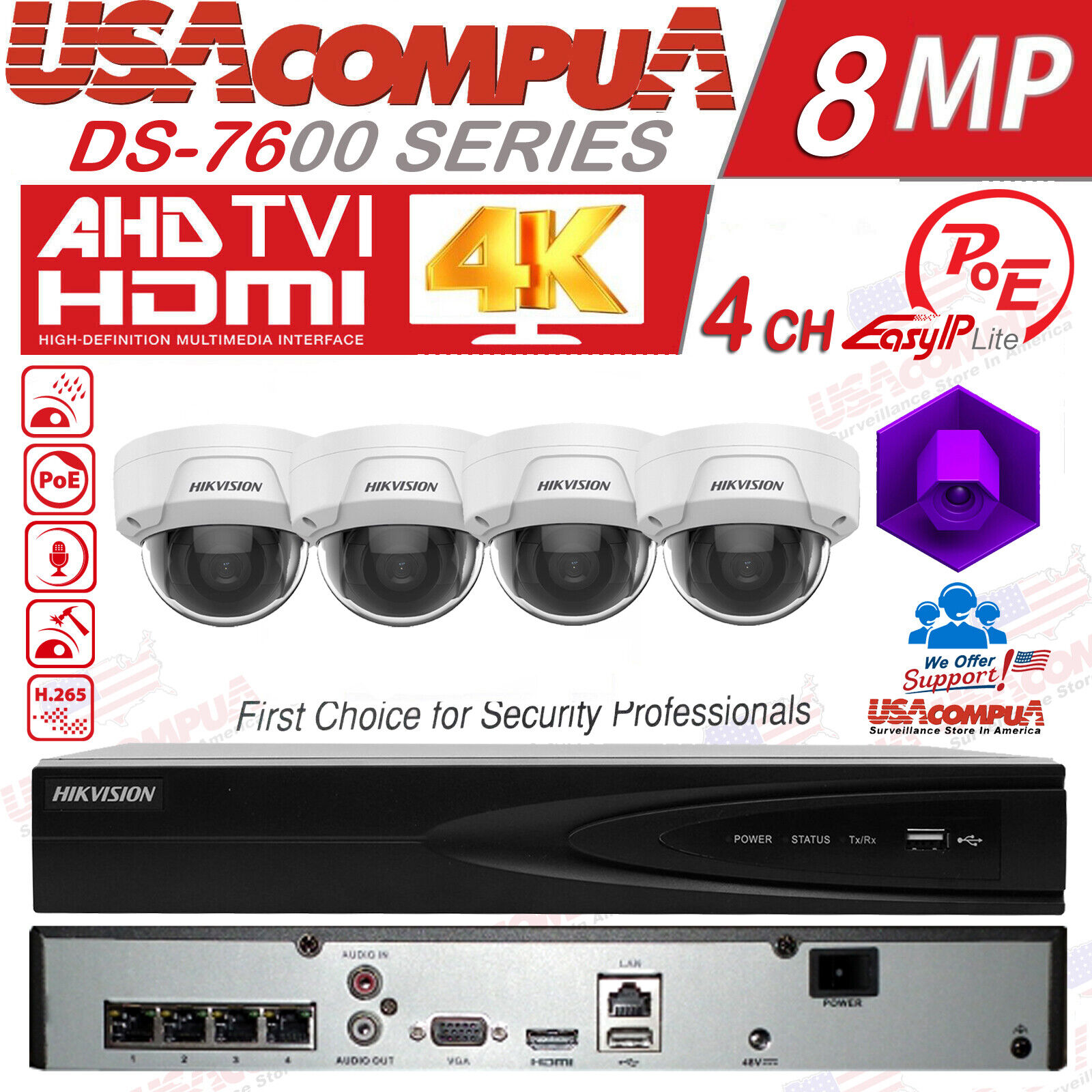

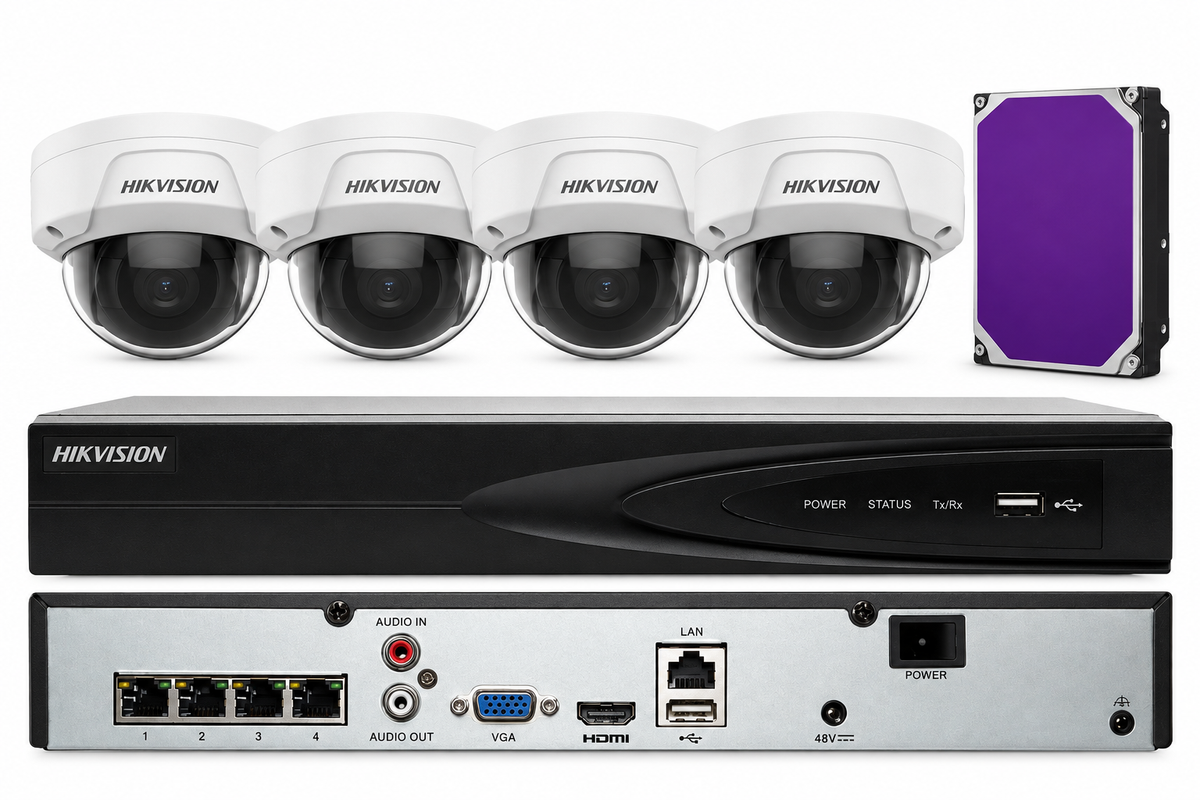

Hikvision ECI-D14F2 NVR 4K 4CH Security System W/ 4MP Vandal Proof Camera Lot
Hikvision ECI-D14F2 NVR 4K 4CH Security System W/ 4MP Vandal Proof Camera Lot
One Way Audio
Hurry up, only 2 items left in stock.
Description
Description
Hikvision ECI-D14F2 NVR 4K 4CH Security System W/ 4MP Vandal Proof Camera Lot
This listing includes:
- CAMERA QUANTITY (ECI-D14F2): 1;2;3;4

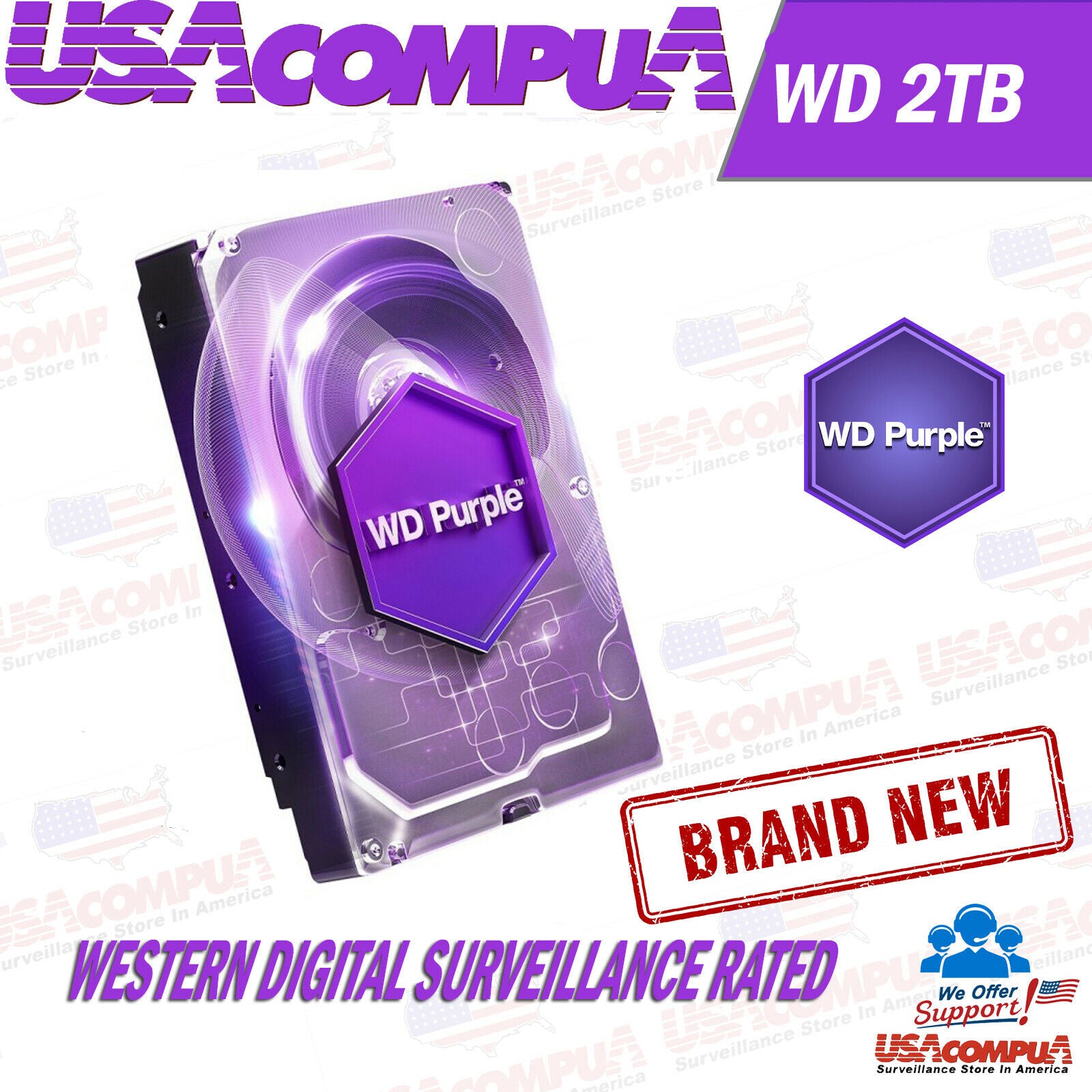

- HARD DRIVE OPTION FOR RECORDER DS-7604NI-Q1/4P: NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB
ECI-D14F2 view data sheet
4MP Build-in Mic Fixed Dome Network Camera
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Water and dust resistant (IP67) and vandal resistant (IK10)
- EXIR 2.0: advanced infrared technology with long IR range
- Support up to 256 GB SD card storage
- Built-in microphone for real-time audio security
DS-7604NI-Q1/4P view data sheet
4ch 1U 4 PoE 4K NVR
- Up to 4ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description

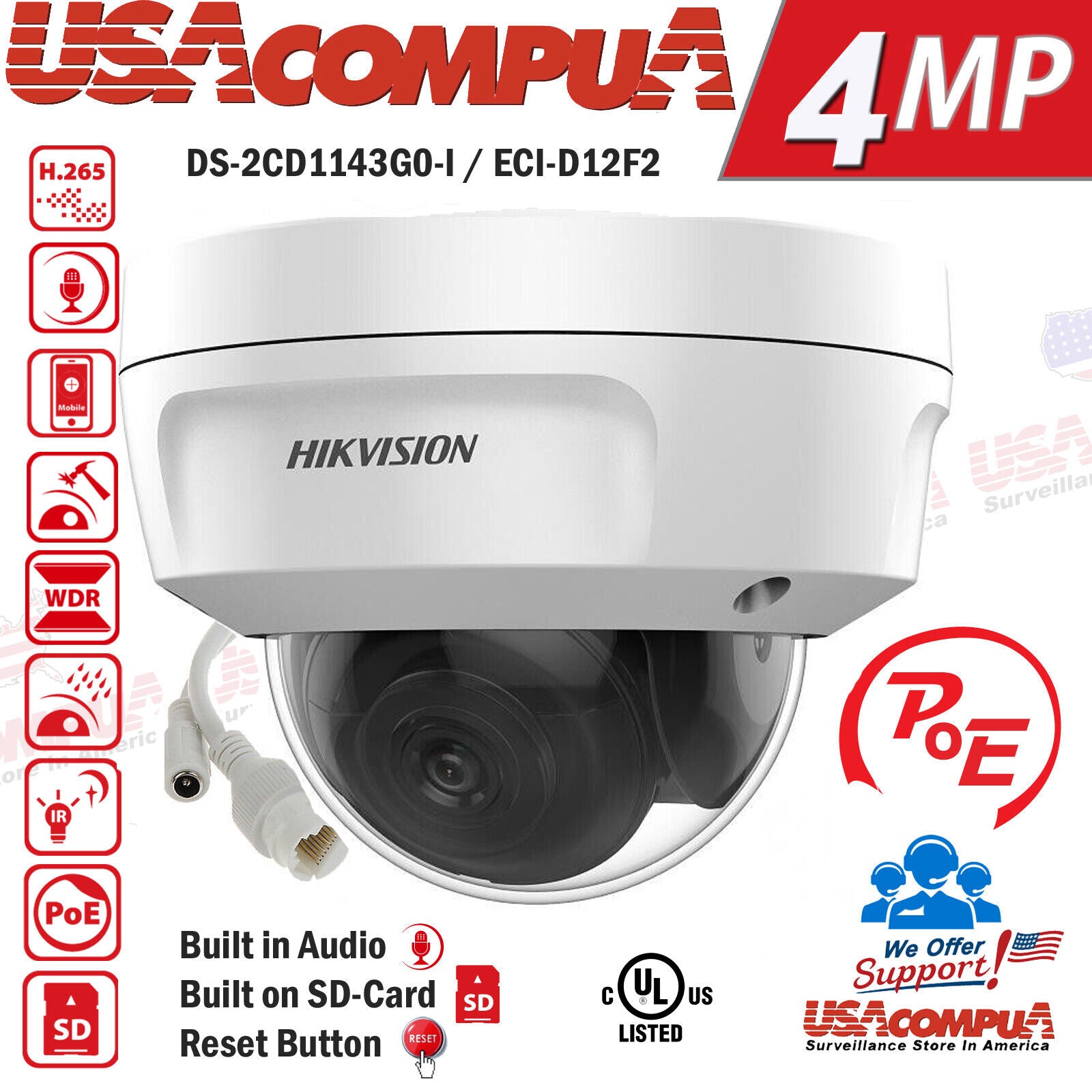

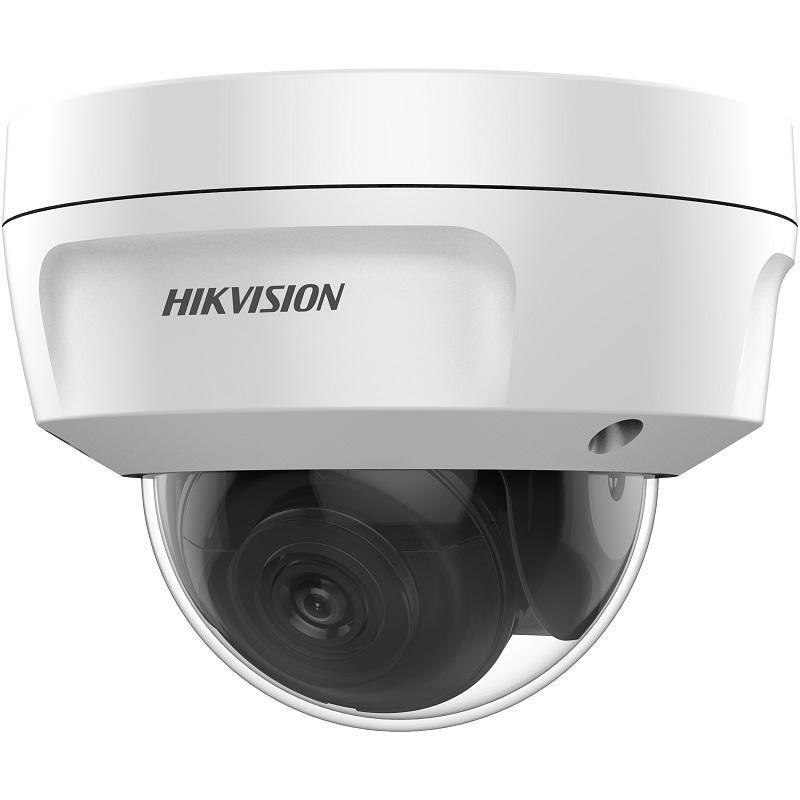

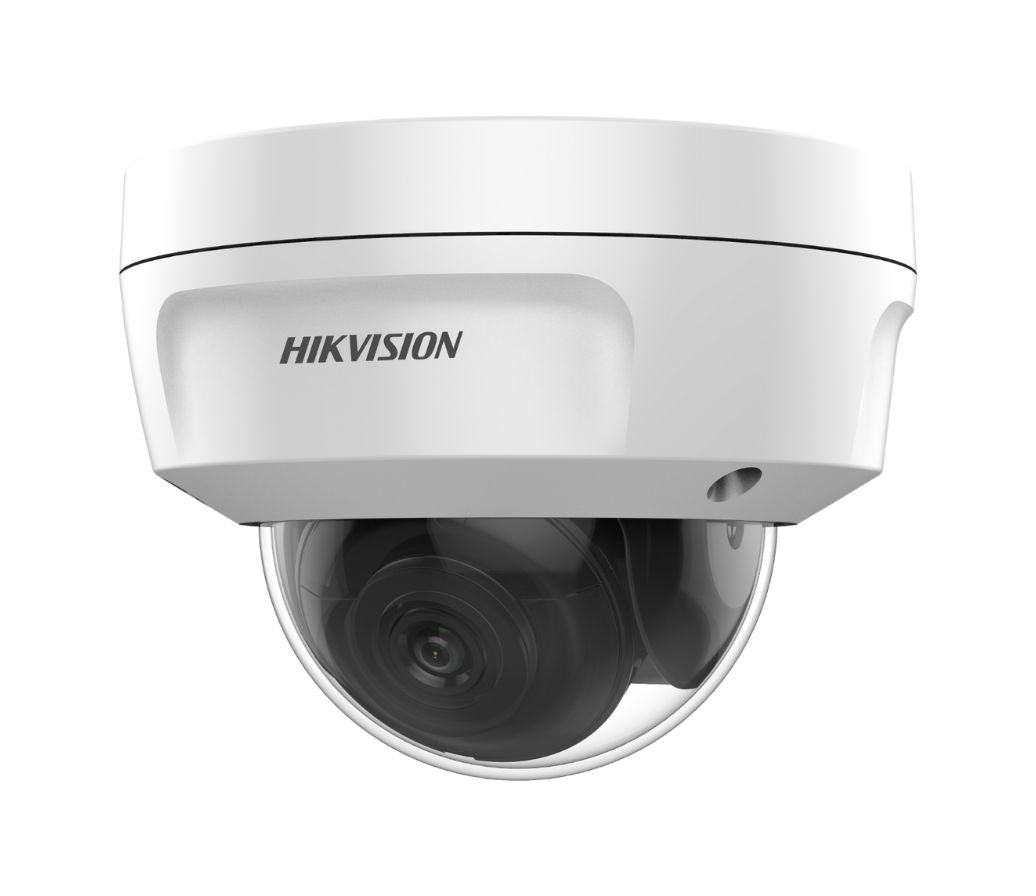

4MP Build-in Mic Fixed Dome Network Camera
- High quality imaging with 4 MP resolution
- Efficient H.265+ compression technology
- Clear imaging even with strong back lighting due to 120 dB WDR
- Water and dust resistant (IP67) and vandal resistant (IK10)
- EXIR 2.0: advanced infrared technology with long IR range
- Support up to 256 GB SD card storage
- Built-in microphone for real-time audio security
Specification
- Camera
- Image Sensor1/3" progressive scan CMOS
- Max. Resolution2560 ? 1440
- Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0? to 355?, tilt: 0? to 75?
- Lens
- Focal Length & FOV
2.8 mm, horizontal FOV 98.0?, vertical FOV 53.1?, diagonal FOV 114.7?
4 mm, horizontal FOV 78.7?, vertical FOV 43.1?, diagonal FOV 92.3?
- Lens MountM12
- Iris TypeFixed
- ApertureF2.0
- Illuminator
- Supplement Light TypeIR
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz: 20 fps (2560 ? 1440)
25 fps (2304 ? 1296, 1920 ? 1080, 1280 ? 720)
60 Hz: 20 fps (2560 ? 1440)
30 fps (2304 ? 1296, 1920 ? 1080, 1280 ? 720)
- Sub-Stream
50 Hz: 25 fps (640 ? 480, 640 ? 360)
60 Hz: 30 fps (640 ? 480, 640 ? 360)
- Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Region Of Interest (ROI)1 fixed region for main stream and sub-stream
- Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI
- User/HostUp to 32 users. 3 levels: administrator, operator and user
- Network StorageNAS (NFS, SMB/CIFS), ANR
- ClientiVMS-4200, Hik-Connect
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night SwitchAuto, Schedule, Day, Night
- Wide Dynamic Range (WDR)120 dB
- SNR? 52 dB
- Image EnhancementBLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
- Built-In MicrophoneYes
- Reset KeyYes
- Event
- Basic EventMotion detection, video tampering, exception
- LinkageUpload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture
- General
- Power
12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
- Dimension?120 mm ? 92.2 mm (4.72" ? 3.63")
- Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
- WeightApprox. 440 g (1.0 lb.)
- With Package WeightApprox. 680 g (1.5 lb.)
- Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
- LanguageEnglish, Ukrainian
- General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
- Approval
- EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013), IK10 (IEC 62262:2002)
Data sheet PDF
Product Description

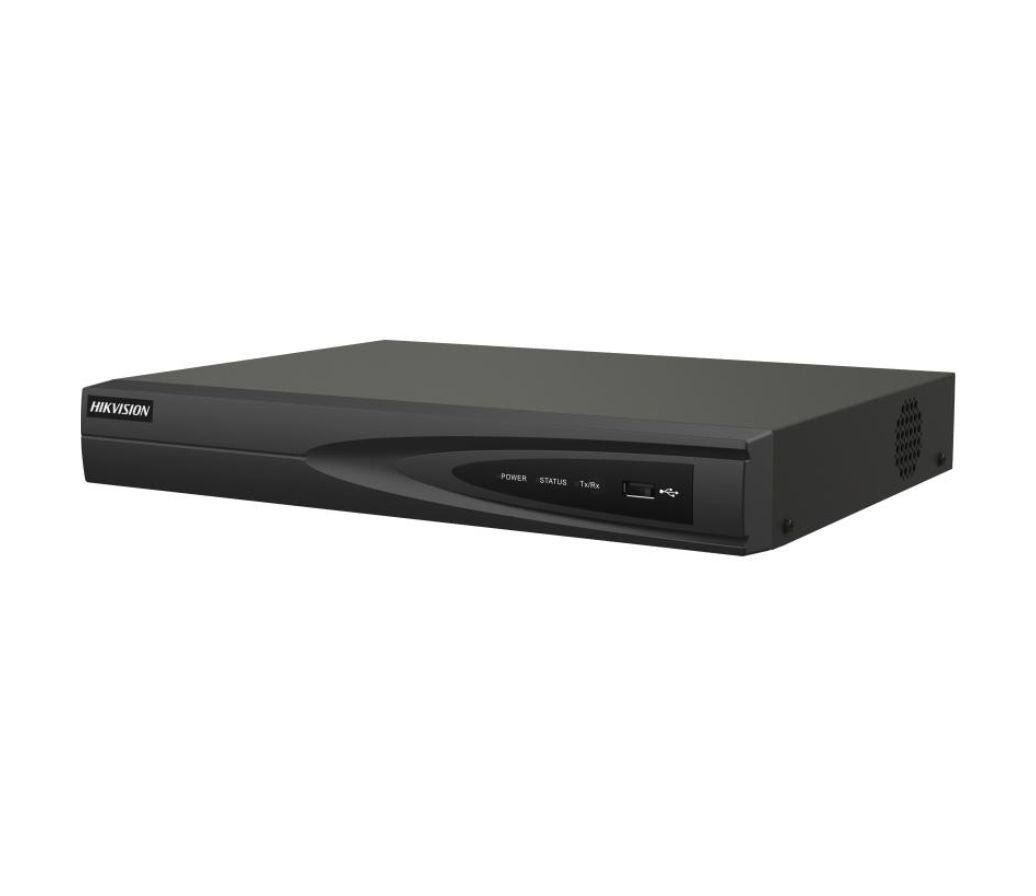

4ch 1U 4 PoE 4K NVR
- Up to 4ch IP camera inputs
- H.265+/H.265/H.264+/H.264 video formats
- Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
- Up to 40 Mbps incoming bandwidth
Specification
- Motion Detection 2.0
- Human/Vehicle Analysis1-ch;4ch
- Recording
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
- Video And Audio
- IP Video Input4ch
- Incoming Bandwidth40 Mbps
- Outgoing Bandwidth80 Mbps
- HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz;1-ch, 4K?4096x2160?/30Hz?4K (3840?2160) /30Hz, 2K?2560?1440?/60Hz?1920?1080/60Hz?1600?1200/60Hz?1280?1024/60Hz?1280?720/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K (3840 ? 2160)/30Hz, 1920 ? 1080p/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz; ,HDMI/VGA simultaneous output,;1-ch, 4K?4096x2160?/30Hz?4K (3840?2160) /30Hz, 2K?2560?1440?/60Hz?1920?1080/60Hz?1600?1200/60Hz?1280?1024/60Hz?1280?720/60Hz ,HDMI/VGA simultaneous output,
- VGA Output1-ch, 1920 ? 1080p/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz ;HDMI/VGA simultaneous output,;1-ch, 1920 ? 1080/60 Hz, 1280 ? 1024/60 Hz, 1280 ? 720/60 Hz;1-ch, 1920 ? 1080p/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz ;,HDMI/VGA simultaneous output,
- Video Output ModeHDMI/VGA simultaneous output
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)
- Decoding
- Decoding FormatH.265+,H.265,H.264+,H.264
- Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Decoding Capability1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
- Synchronous Playback4ch
- Network
- Remote Connection32
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
- Network Interface1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- PoE
- Interface4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
- Power? 50 W
- StandardIEEE 802.3 af/at
- Auxiliary Interface
- SATA1 SATA interface
- CapacityUp to 8 TB capacity for each disk
- USB Interface2 ? USB 2.0
- Alarm In/OutN/A (4/1 is optional)
- General
- Power Supply48 VDC, 1.35 A
- Consumption? 10 W (without HDD, and PoE off)
- Working Temperature-10 to +55? C (+14 to +131? F)
- Working Humidity10% to 90%
- Dimension (W ? D ? H)320 ? 240 ? 48 mm (12.4" ? 9.4" ? 1.9")
- Weight? 1 kg (without HDD, 2.2 lb.)
- Certification
- FCCPart 15 Subpart B, ANSI C63.4-2014
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
