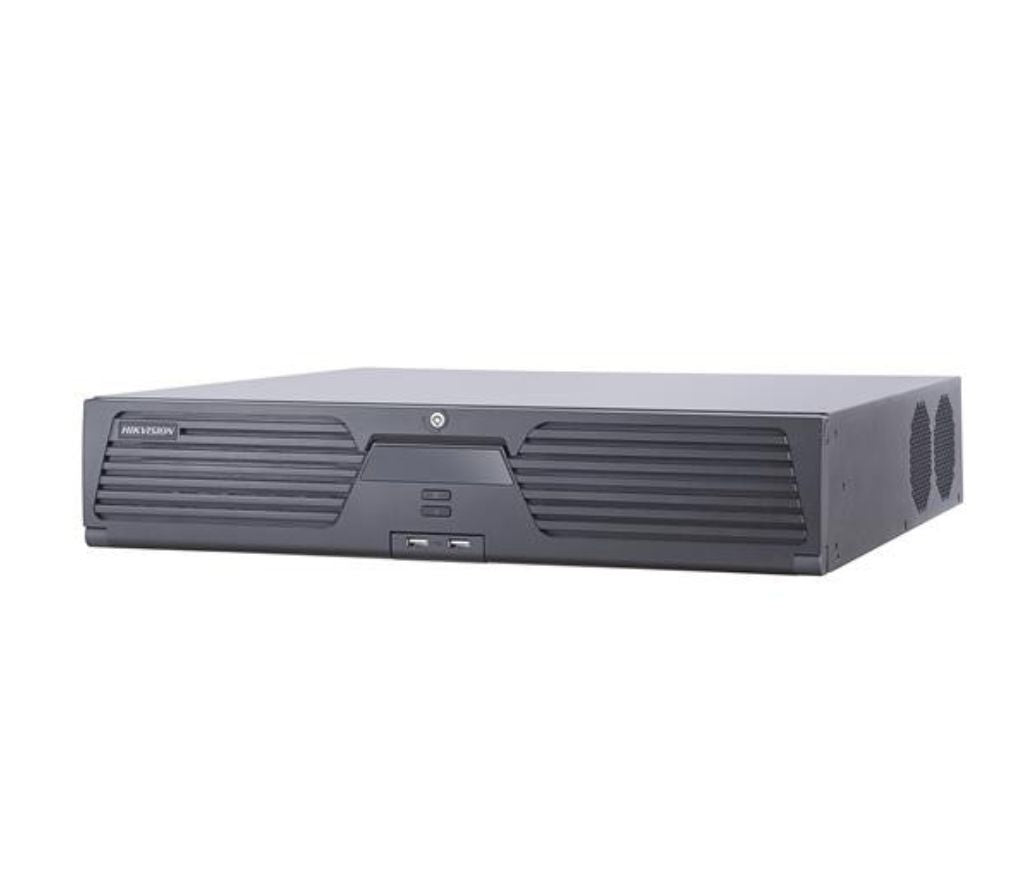

Hikvision IDS-9632NXI-I8/16S 32-ch 2U 4K DeepinMind NVR
Hikvision IDS-9632NXI-I8/16S 32-ch 2U 4K DeepinMind NVR
Human and Vehicle Detection
Out of stock
Description
Description
Hikvision IDS-9632NXI-I8/16S 32-ch 2U 4K DeepinMind NVR
This listing includes:
-  (1) HARD DRIVE OPTION: NO HARD DRIVE;8TB;16TB;32TB;48TB;64TB;80TB
- (1) NETWORK RECORDER: IDS-9632NXI-I8/16S
IDS-9632NXI-I8/16S  view data sheet
32ch 2U 4K DeepinMind NVR
- H.265+/H.265/H.264+/H.264 video formats
- Up to 32ch IP cameras can be connected
- 8 HDD can be used for continuous video recording
- Intelligent analytics based on deep learning algorithm
- Up to 16ch perimeter protection
- Up to 16ch 1080p decoding capability
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
32ch 2U 4K DeepinMind NVR
- H.265+/H.265/H.264+/H.264 video formats
- Up to 32ch IP cameras can be connected
- 8 HDD can be used for continuous video recording
- Intelligent analytics based on deep learning algorithm
- Up to 16ch perimeter protection
- Up to 16ch 1080p decoding capability
Specification
- Perimeter Protection
- Human/Vehicle AnalysisUp to 16ch 2 MP video analysis for human and vehicle recognition to filter false alarm
- Video And Audio
- IP Video Input32ch
- HDMI 1 OutputVGA1: 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz,HDMI1: 4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- HDMI 2 Output1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- VGA OutputHDMI,VGA
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
- Incoming Bandwidth320 Mbps/250 Mbps
- Audio Output2-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)
- Decoding
- Decoding FormatH.265+,H.265,H.264+,H.264
- Decoding Capability16ch @ 1080p (30fps)
- Synchronous Playback16ch
- Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF /2CIF/CIF/QCIF
- Network
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- PoE
- InterfaceN/A
- RAID
- RAID TypeYes
- Auxiliary Interface
- SATA8 SATA interfaces
- ESATA1 eSATA interface
- CapacityUp to 10 TB capacity for each HDD
- Serial InterfaceRS-232; RS-485; Keyboard
- USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
- Alarm In/Out16/4 (16/8 is optional)
- General
- Power Supply200 W
- Consumption? 70 W
- Working Temperature-10 to +55? C (+14 to +131? F)
- Working Humidity10 to 90 %
- Chassis2U
- Dimension (W ? D ? H)445 ? 470 ?90 mm (17.5"? 18.5" ? 3.5")
- Weight? 10 kg (22 lb)
- Others
- Abandoned ItemHuman body detection, face detection, vehicle detection, line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection, sudden scene change detection, and defocus detection
