Sale -$65.94Last stock!

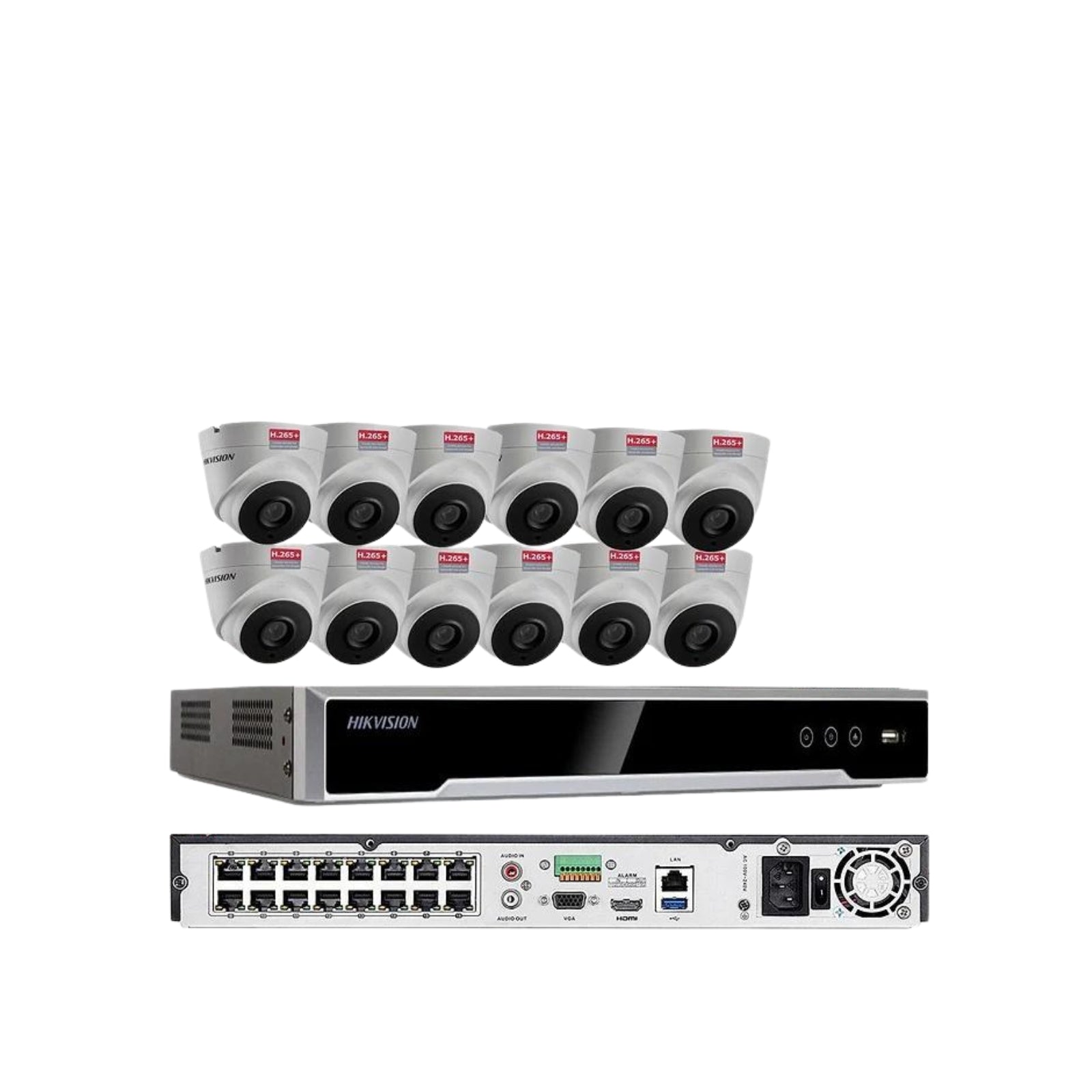

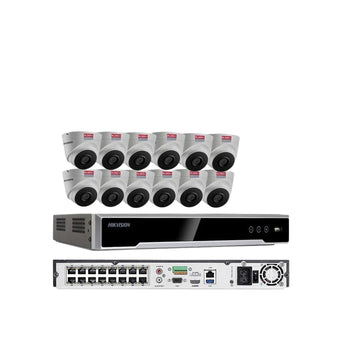

HIKVISION NVR 12M 16CH POE 16 Camera Security System Kit / 4TB HDD 4MP 3 Ax

VendorHIKVISION
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

Condition: New 30-Day Free Returns 3-Year Warranty

SKU: 396678108966-QP4

CAMERA QUANTITY Free pickup in our shop(s) Free pickup in our shop(s)

CAMERA QUANTITY Free pickup in our shop(s)

HARD DRIVE OPTION Free pickup in our shop(s)

IP/POE CAMERA Free pickup in our shop(s)

4 in stock

$1,007.89 $941.95

Guaranteed secure & safe checkout.

Why This Matters. ▸

Advanced Security, Made Simple.

Total Control, Anywhere

Mobile app access so you can monitor your home remotely which means you feel in control no matter where you are—whether you're at work, on vacation, or just out for dinner, your home is always just a tap away.

Data sheet PDF

Product Description

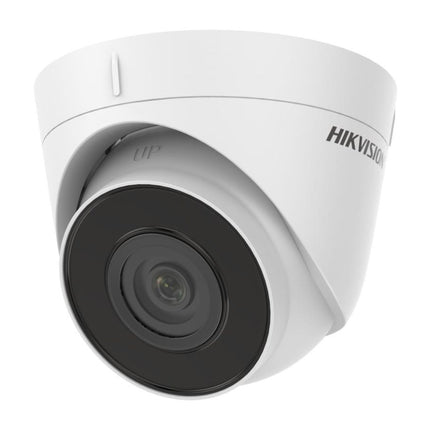

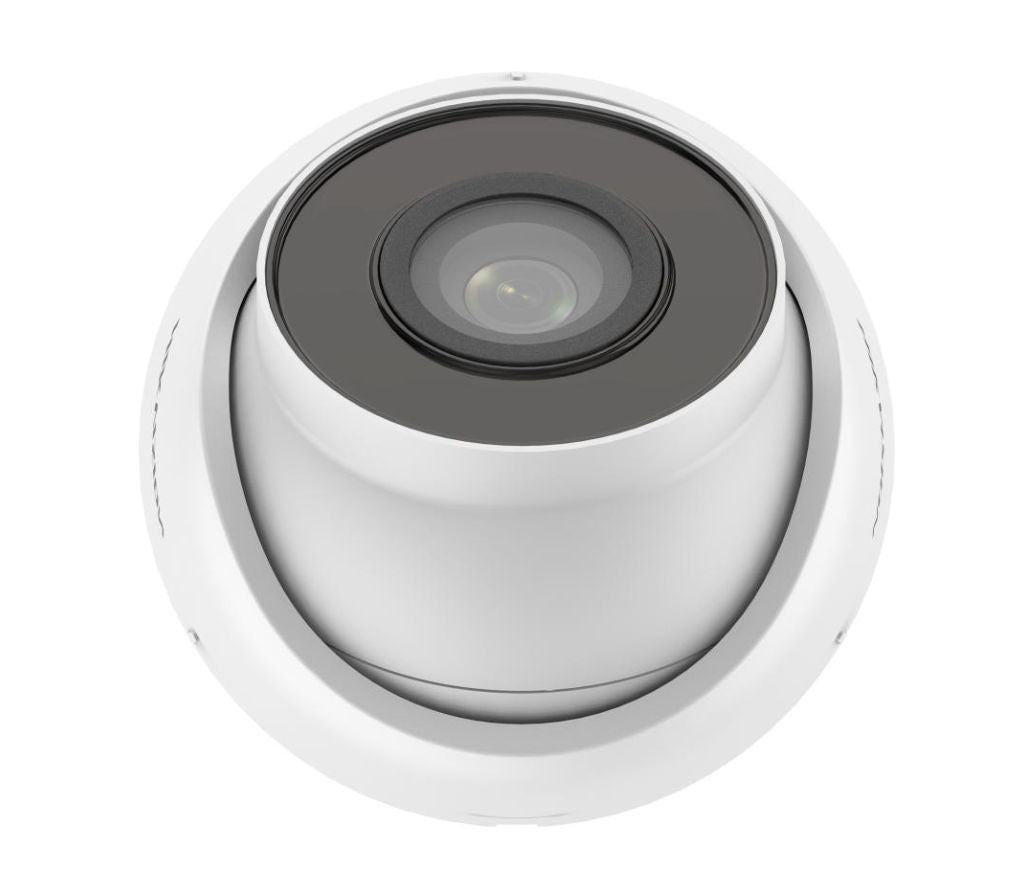

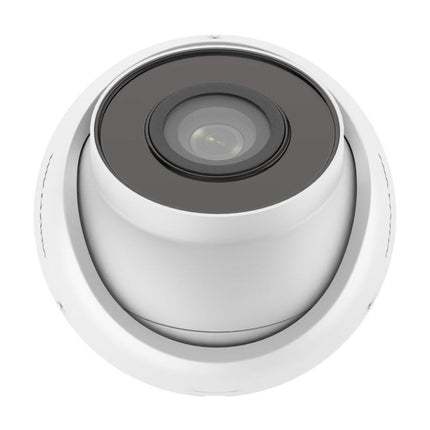

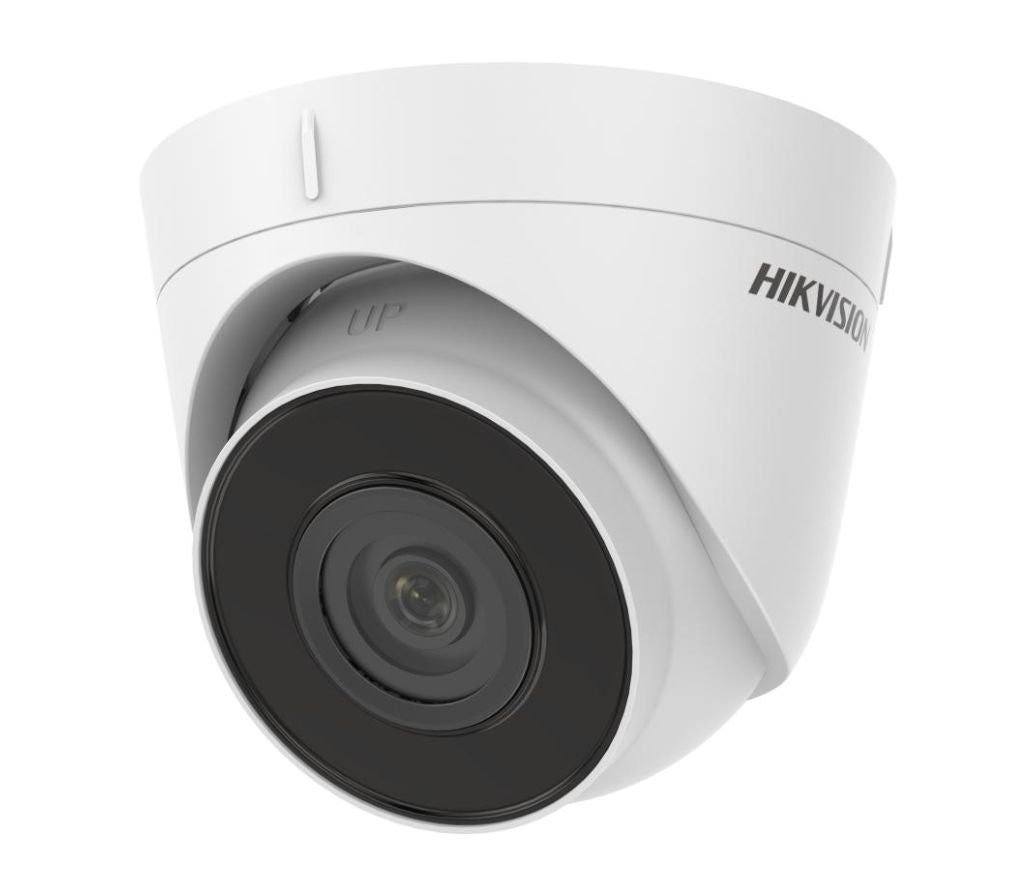

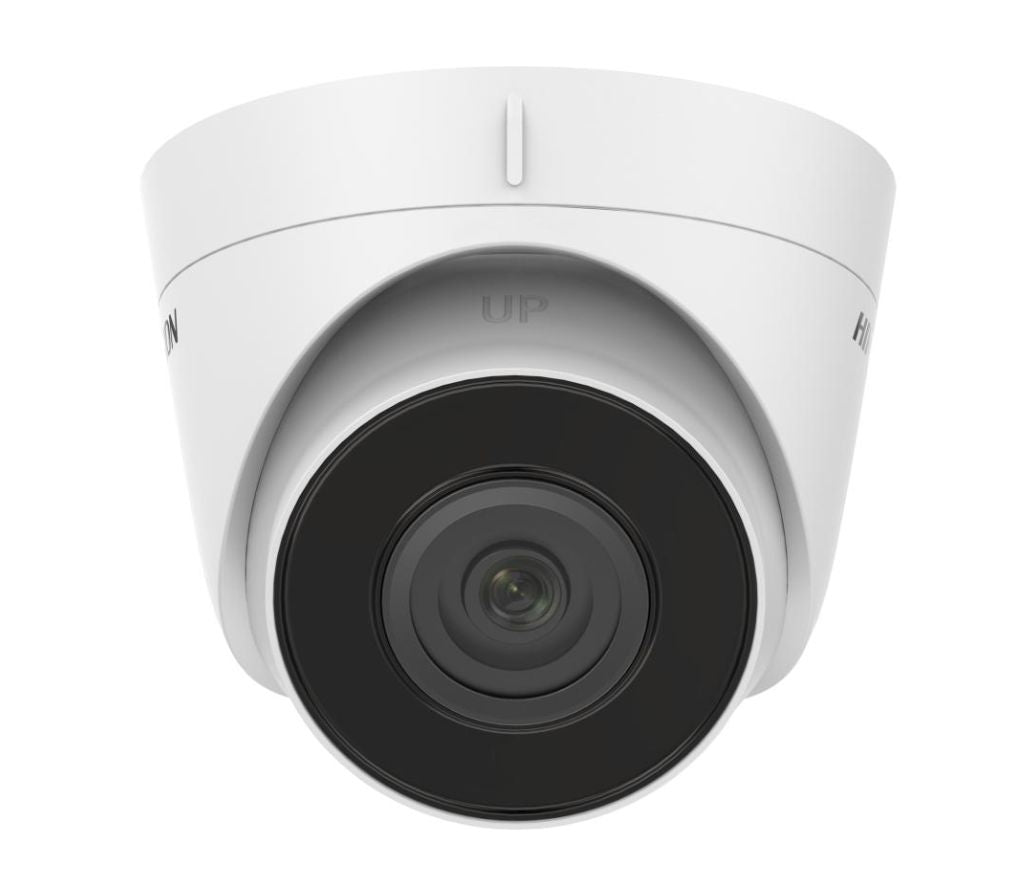

4 MP Fixed Turret Network Camera

High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to 120 dB WDR
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range
-UF: Built-in microphone for real-time audio security
-UF: Support up to 256 GB SD card storage

Specification

Camera
Image Sensor1/3" progressive scan CMOS
Max. Resolution2560 ? 1440
Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?

Lens
Lens TypeFixed focal length, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 98.0?, vertical FOV 53.1?, diagonal FOV 114.7?
4 mm, horizontal FOV 78.7?, vertical FOV 43.1?, diagonal FOV 92.3?
Lens MountM12
Iris TypeFixed
ApertureF2.0

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 30 m
Smart Supplement LightYes
IR Wavelength850 nm

Video
Main Stream
50 Hz:
20 fps (2560 ? 1440)
25 fps (1920 ? 1080, 1280 ? 720)
60 Hz:
20 fps (2560 ? 1440)
30 fps (1920 ? 1080, 1280 ? 720)
Sub-Stream
50 Hz: 25 fps (640 ? 480, 640 ? 360)
60 Hz: 30 fps (640 ? 480, 640 ? 360)
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region Of Interest (ROI)1 fixed region for main stream

Audio
Audio Compression-UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate-UF: 8 kHz/16 kHz
Environment Noise Filtering-UF: Yes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP?, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night SwitchAuto, Schedule, Day, Night
Wide Dynamic Range (WDR)120 dB
Image EnhancementBLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage-UF: Built-in memory card slot, support microSD card, up to 256 GB
Built-In Microphone-UF: Yes
Reset Key-UF: Yes

Event
Basic EventMotion detection, video tampering, exception
Linkage
Upload to FTP, notify surveillance center, send email
-UF also supports: upload to memory card, trigger recording, trigger capture

General
Power
12 VDC ? 25%, 0.4 A, max. 5 W, ?5.5 mm coaxial power plug
PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
Dimension?110 mm ? 85.3 mm (? 4.3" ? 3.4")
Package Dimension150 mm ? 150 mm ? 141 mm (5.9" ? 5.9" ? 5.6")
WeightApprox. 320 g (0.7 lb.)
With Package WeightApprox. 556 g (1.2 lb.)
Storage Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 ?C to 60 ?C (-22 ?F to 140 ?F). Humidity 95% or less (non-condensing)
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)

Data sheet PDF

Product Description

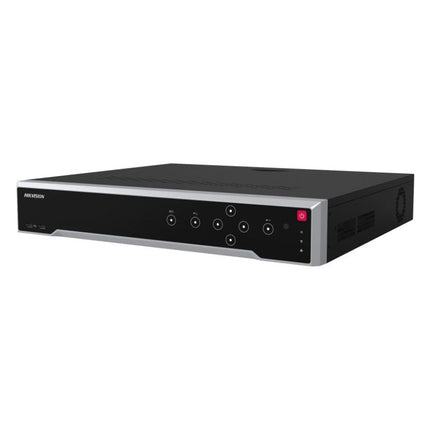

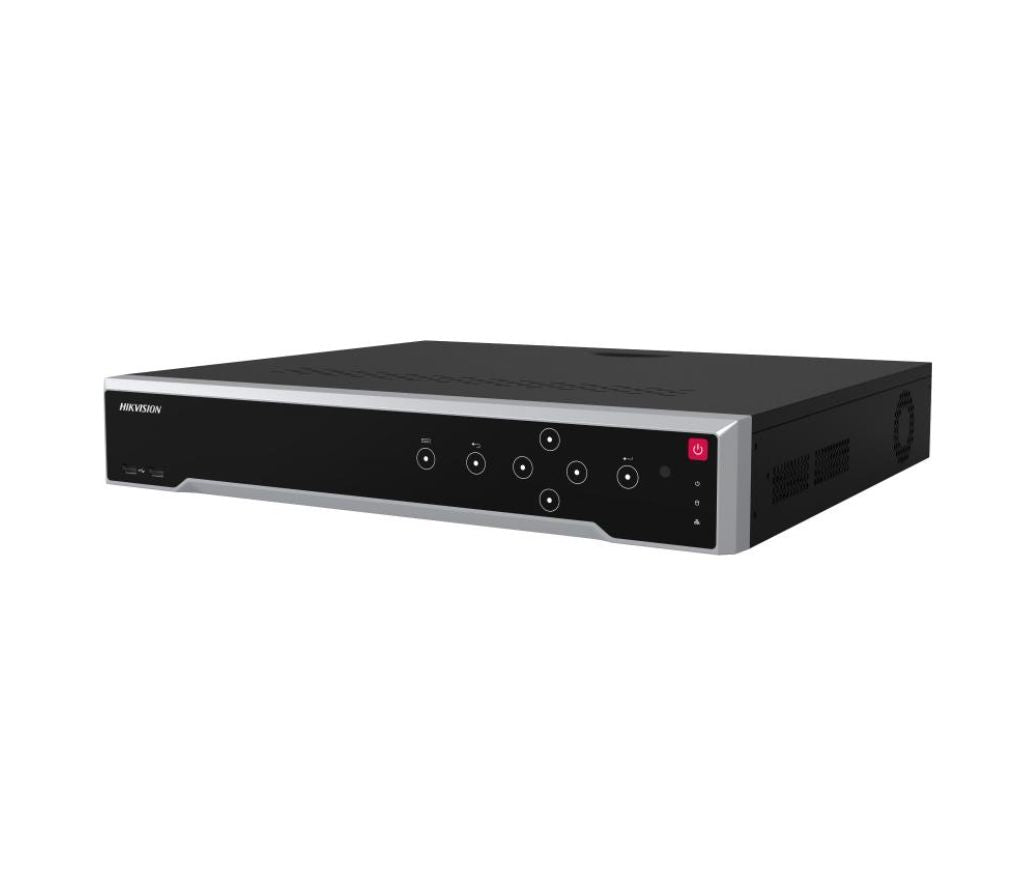

16ch 1.5U 16 PoE 4K NVR

Up to 16ch IP cameras can be connected
Up to 2-ch @ 12 MP/16ch @ 1080p decoding capacity
Only (B) version support 2 HDMI and 1 VGA interfaces, and HDMI interfaces support independent video output
4 HDDs for continuous video recording
Plug & Play with 16 Power-over-Ethernet (PoE) interfaces
Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
Supports dual-stream recording to save time and bandwidth.

Specification

Video And Audio
IP Video Input
16ch;16ch
Up to 12 MP resolution
Outgoing Bandwidth256 Mbps
VGA Output1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz;HDMI,VGA
CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
HDMI 1 Output4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
HDMI 2 Output1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
Incoming Bandwidth160 Mbps
Audio Output1-ch, RCA (Linear, 1 K?)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)

Decoding
Dual-Stream RecordingSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4;H.265/H.265+/H.264/H.264+/MPEG4
Decoding Capability2-ch@12 MP (20 fps)/4ch@8 MP (25 fps)/8ch@4 MP (30 fps)/16ch@1080p (30 fps);16ch@1080p
Synchronous Playback16ch
Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF /DCIF/ 2CIF/CIF/QCIF ;12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF

Network
Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
Remote Connection128
Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
Interface16, RJ-45 10/100 Mbps self-adaptive Ethernet interface;16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces
Power? 200 W
StandardIEEE 802.3 af/at

Auxiliary Interface
ESATA1 eSATA interface (optional)
SATA4 SATA interfaces for 4HDDs;4 SATA interfaces
CapacityUp to 10 TB capacity for each disk
Serial Interface1 RS-485 (half-duplex), 1 RS-232
USB InterfaceFront panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
Alarm In/Out16/4 (16/8 optional)

General
Power Supply100 to 240 VAC, 50 to 60 Hz
Consumption? 20 W (without HDD and PoE off)
Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
Working Humidity10% to 90%
Chassis19-inch rack-mounted 1.5U chassis
Dimension (W ? D ? H)440 ? 387 ? 75 mm ( 17.3"? 15.2" ? 3.0")
Weight? 5 kg (11 lb) (without HDD)

Certification
FCCPart 15 Subpart B, ANSI C63.4-2014
CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
