Technical Specifications

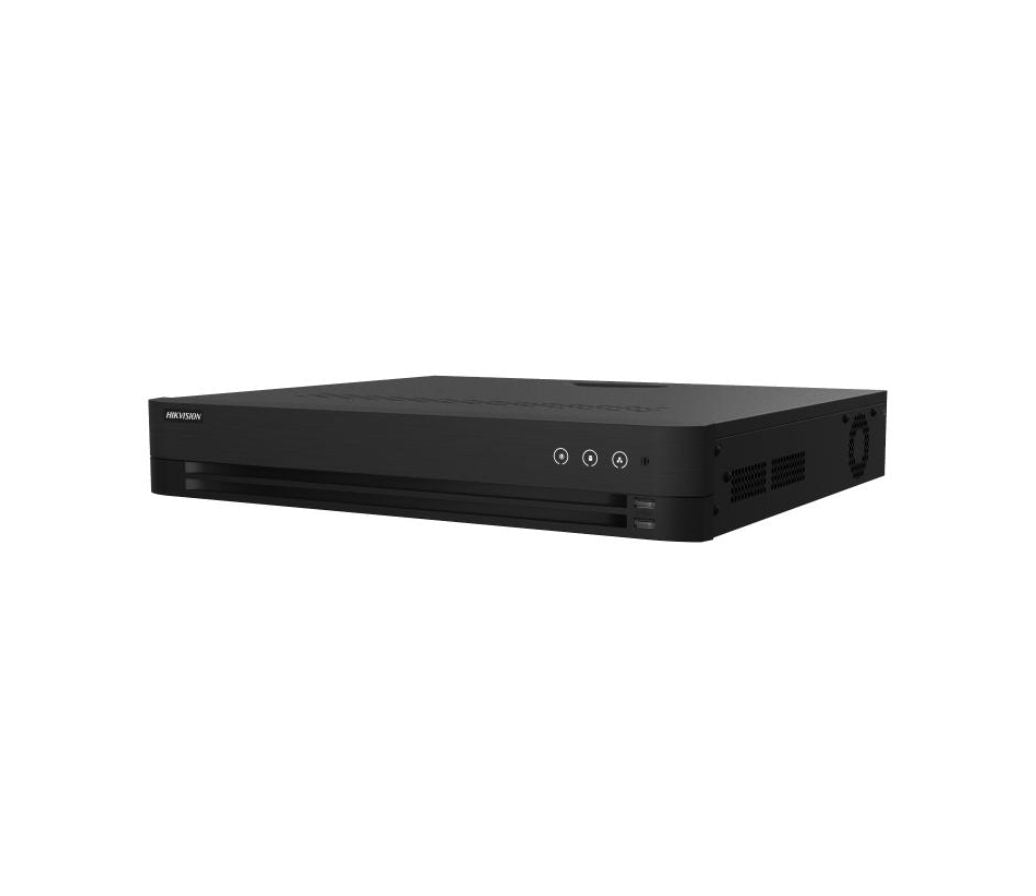

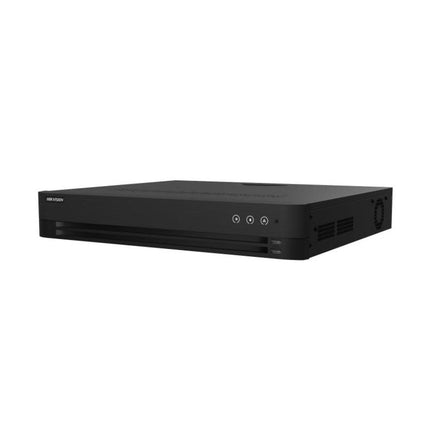

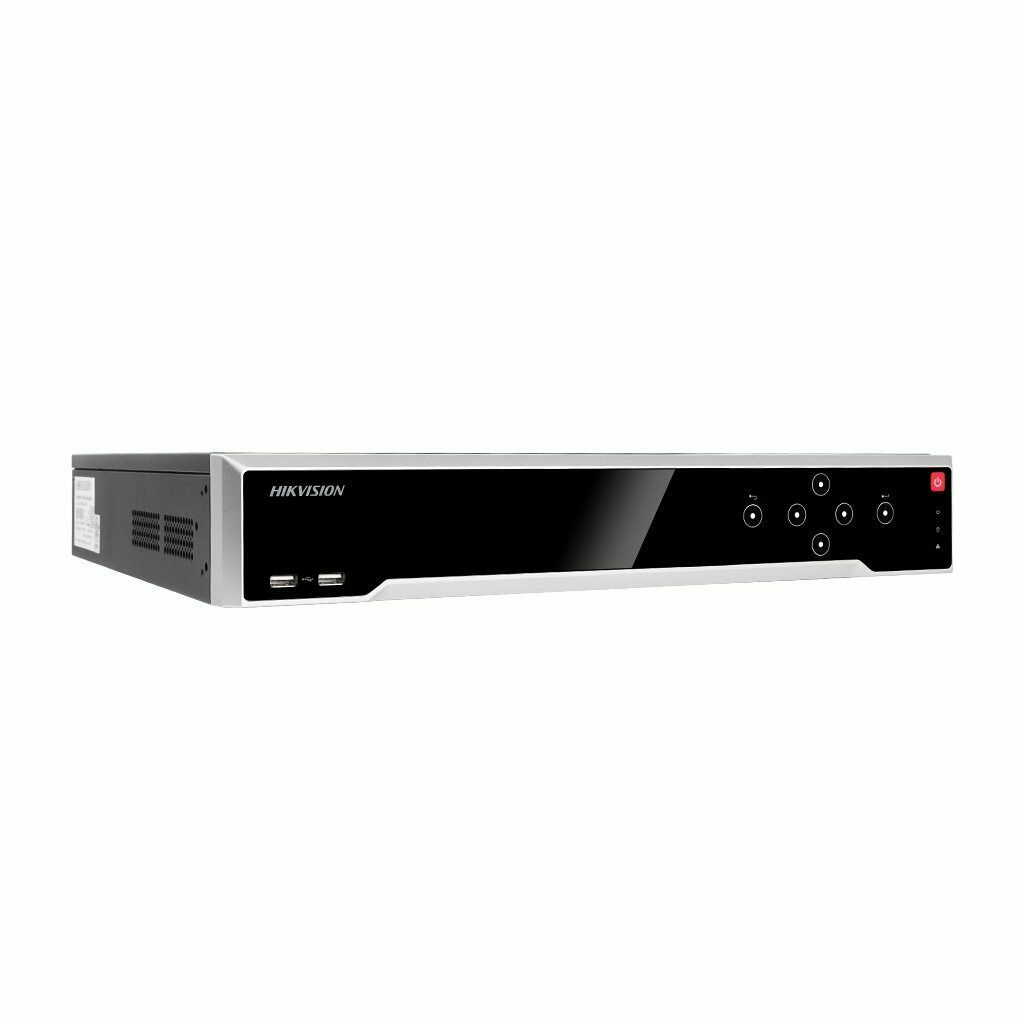

Hikvision DS-7716NI-Q4/16P NVR – 16-Channel PoE 4K Network Video Recorder

The Hikvision DS-7716NI-Q4/16P gives you a powerful way to secure your property with crystal-clear recording, easy plug-and-play PoE connections, and reliable 24/7 performance. Whether you’re protecting a business, office, or large home, this NVR ensures smooth playback, ample storage, and advanced smart detection so you never miss what matters.

Why Buyers Choose This Model

  • 16-channel IP support — monitor multiple cameras at once for complete coverage.
  • 4K HDMI output — see every detail in ultra-high definition for better awareness.
  • Built-in 16 PoE ports — simplify installation with one cable for power and video per camera.
  • H.265+ compression — save up to 75% storage while keeping video quality sharp.
  • Smart analytics — motion, intrusion, and line-crossing detection to reduce false alarms.
  • Expandable storage — up to 4 HDDs (32 TB max) for long-term recording peace of mind.

What This Helps You Avoid

No more struggling with complicated wiring, storage shortages, or grainy footage. This NVR keeps everything simple: plug in, record in 4K, and access your video securely from anywhere.

Video & Audio

IP Video Input
16 channels, up to 8 MP resolution
Incoming Bandwidth
160 Mbps
Outgoing Bandwidth
80 Mbps
HDMI Output
Up to 4K (4096×2160/30Hz)
VGA Output
Up to 1920×1080/60Hz
Decoding Capability
1×8MP @30fps or 6×1080p @30fps
Synchronous Playback
16 channels
Recording Resolution
8MP/6MP/5MP/4MP/3MP/1080p and lower

Storage & Interfaces

HDD Bays
4× SATA (up to 8TB each, max 32TB)
USB Ports
3 (2 front, 1 rear)
Alarm I/O
16 inputs / 4 outputs
Serial Ports
RS-485, RS-232

Network

Network Interface
1× RJ-45 (10/100/1000 Mbps)
PoE Ports
16× RJ-45 (10/100 Mbps), IEEE 802.3 af/at
Remote Connections
Up to 64

General

Power Supply
100–240 VAC, 50/60Hz
Max Power Consumption
≤150W with PoE; ≤15W without HDD/PoE
Operating Temp
-10°C to 55°C (14°F to 131°F)
Humidity
10–90%
Dimensions
445 × 400 × 75 mm
Weight
≤5 kg (11 lb, without HDD)

Included Accessories

  • Power cable
  • Mounting screws
  • User manual

Ideal Applications

This NVR is perfect for:

  • Small-to-medium businesses needing reliable surveillance
  • Retail stores monitoring multiple entrances and aisles
  • Warehouses and logistics hubs requiring 24/7 recording
  • Offices, schools, and institutions seeking centralized video management
