Hikvision Security Camera System NVR 8Ch 4K 12 Megapixel PoE 8MP Turret W audio

Data sheet PDF

Product Description

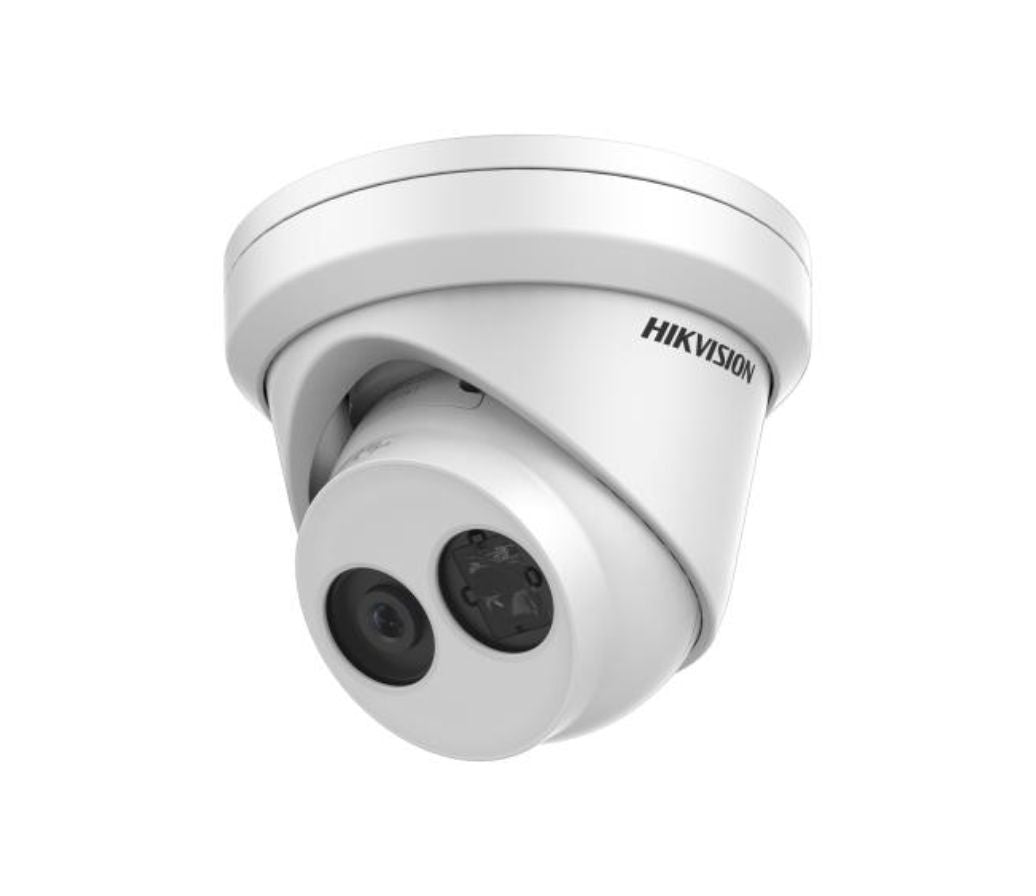

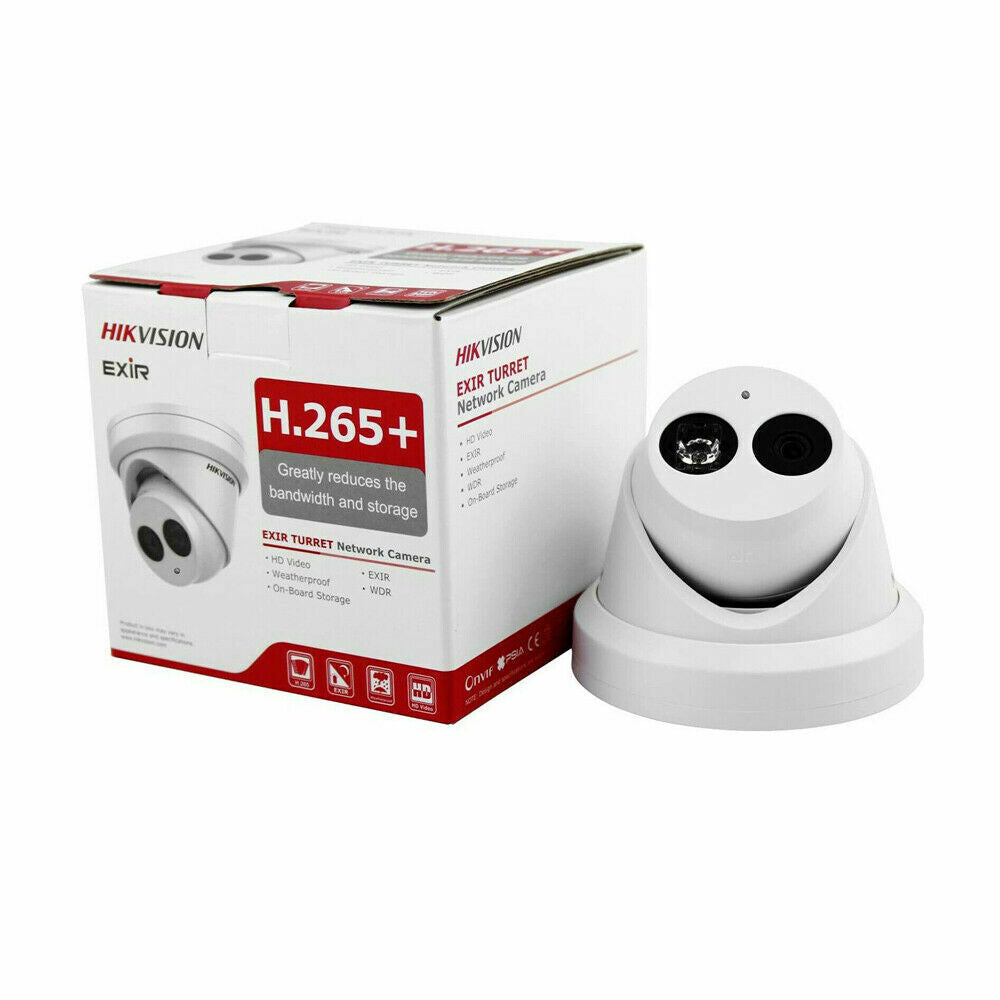

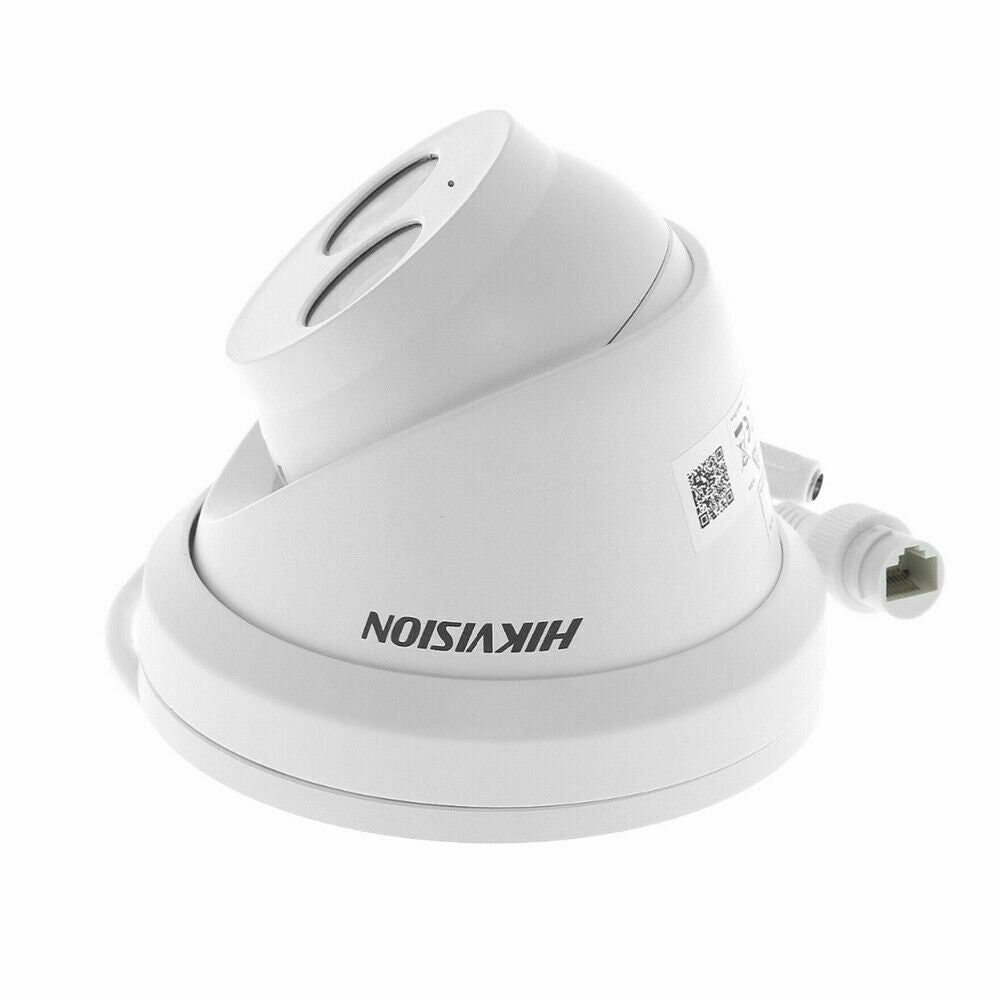

4K WDR Fixed Turret Network Camera with Build-in Mic

• High quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 120 dB true WDR technology
• -U: built-in microphone for real-time audio security
• Water and dust resistant (-I: IP67/-IU: IP66)
• Robust structure design with full metal materials

• Camera
• Image Sensor1/2.5" Progressive Scan CMOS
• Min. IlluminationColor: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR
• Shutter Speed1/3 s to 1/100,000 s
• Slow ShutterYes
• Wide Dynamic Range120dB
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?
• Lens
• FocusFixed
• Lens Type2.8/4/6/8 mm
• FOV2.8 mm, horizontal FOV: 102?, vertical FOV: 53?, diagonal FOV: 124?,4 mm, horizontal FOV: 79?, vertical FOV: 42?, diagonal FOV: 95?,6 mm, horizontal FOV: 50?, vertical FOV: 28?, diagonal FOV: 59?,8 mm, horizontal FOV: 40?, vertical FOV: 25?, diagonal FOV: 53?
• ApertureF2.0
• Lens MountM12
• Aperture TypeFixed
• Illuminator
• IR RangeUp to 30 m
• Wavelength850nm
• Video
• Max. Resolution3840 ? 2160
• Main Stream50Hz: 12.5 fps (3840 ? 2160), 20fps (3072 ? 1728), 25 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720),60Hz: 15 fps (3840 ? 2160), 20fps (3072 ? 1728), 30 fps (2560 ? 1440, 1920 ? 1080, 1280 ? 720)
• Sub Stream50Hz: 25fps (640 ? 480, 640 ? 360, 320 ? 240),60Hz: 30fps (640 ? 480, 640 ? 360, 320 ? 240)
• Third Stream50Hz: 25fps (1280 ? 720, 640 ? 360, 352 ? 288),60Hz: 30fps (1280 ? 720, 640 ? 360, 352 ? 240)
• Video CompressionMain stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
• Video Bit Rate32 Kbps to 16 Mbps
• H.264 TypeMain Profile/High Profile
• H.265 TypeMain Profile
• H.264+Main stream supports
• H.265+Main stream supports
• Scalable Video Coding (SVC)H.264 and H.265 encoding support
• Audio
• Audio CompressionG722.1/G.711/G726/MP2L2/PCM/MP3
• Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
• Network
• Simultaneous Live ViewUp to 6 channels
• APIONVIF (PROFILE S, PROFILE G), ISAPI
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, WebSocket, WebSockets
• User/HostUp to 32 users,3 levels: Administrator, Operator and User
• Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
• ClientiVMS-4200, Hik-Connect, Hik-Central
• Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
• Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
• Image
• Day/Night SwitchDay/Night/Auto/Schedule
• Target CroppingNo
• DNR3D DNR
• Image EnhancementBLC/3D DNR/HLC
• Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
• Interface
• Video OutputNo
• On-Board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
• Hardware ResetYes
• Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
• Event
• Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
• Smart EventLine crossing detection, intrusion detection, face detection
• Face DetectionYes
• General
• Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
• Firmware Version5.6.3
• Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
• Startup And Operating Conditions-30 ?C to +60 ?C (-22 ?F to +140 ?F), Humidity 95% or less (non-condensing)
• Power Supply12 VDC ? 25%, ? 5.5mm ,PoE(802.3af, class 3)
• Power Consumption And Current12 VDC, 0.5 A, max. 6.0 W,PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 7.5 W
• Camera DimensionCamera: ? 127.3 ? 95.9 mm (5? ? 3. 8?),Package: 150 ? 150 ? 141 mm (5.9? ? 5.9? ? 5.6?)
• Camera WeightCamera: 620 g (1.4 lb.)
• Approval
• Protection

  Without -U: Ingress protection: IP67 (IEC 60529-2013)

  With -U: Ingress protection: IP66 (IEC 60529-2013)

Data sheet PDF

Product Description

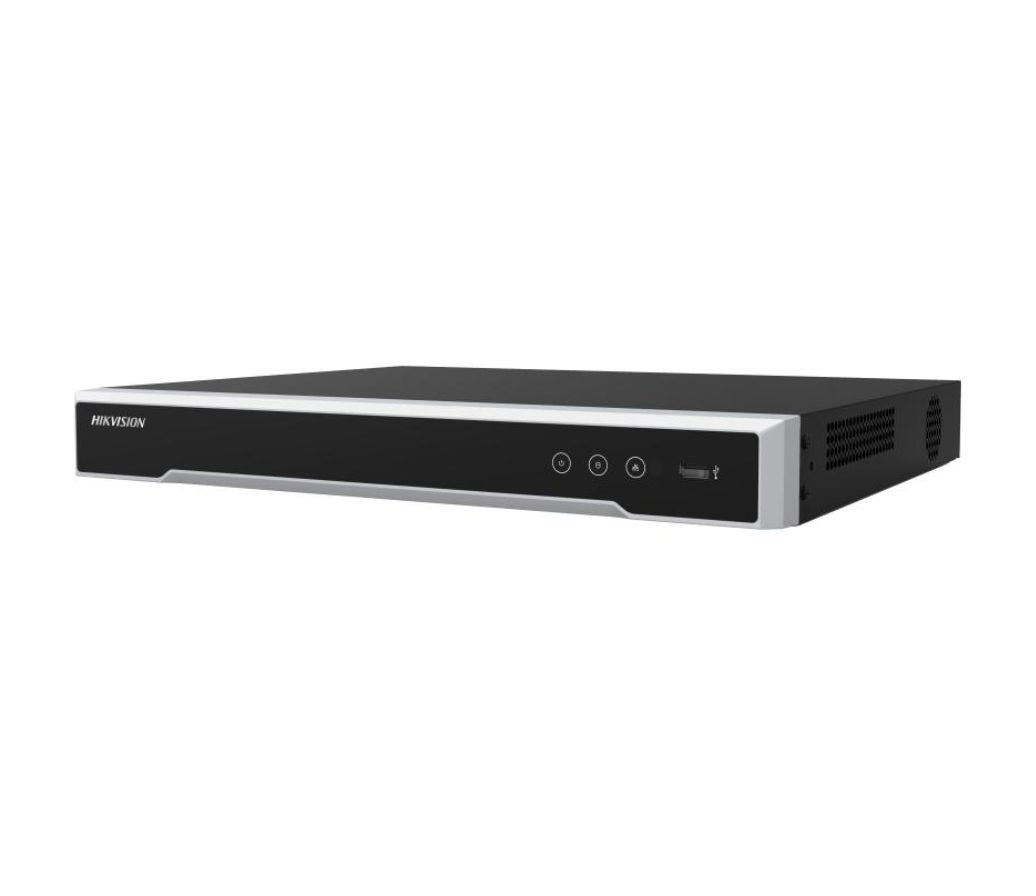

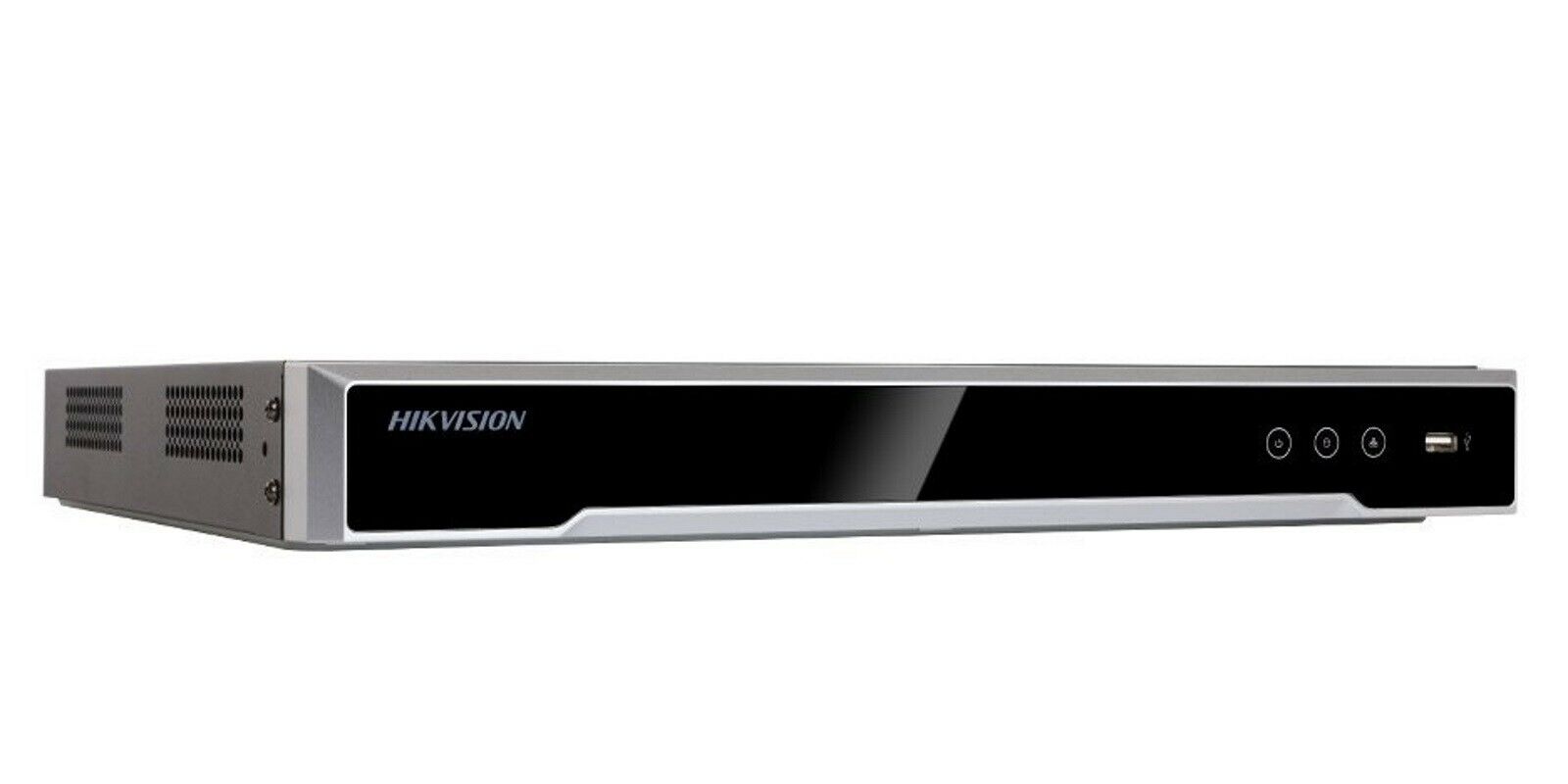

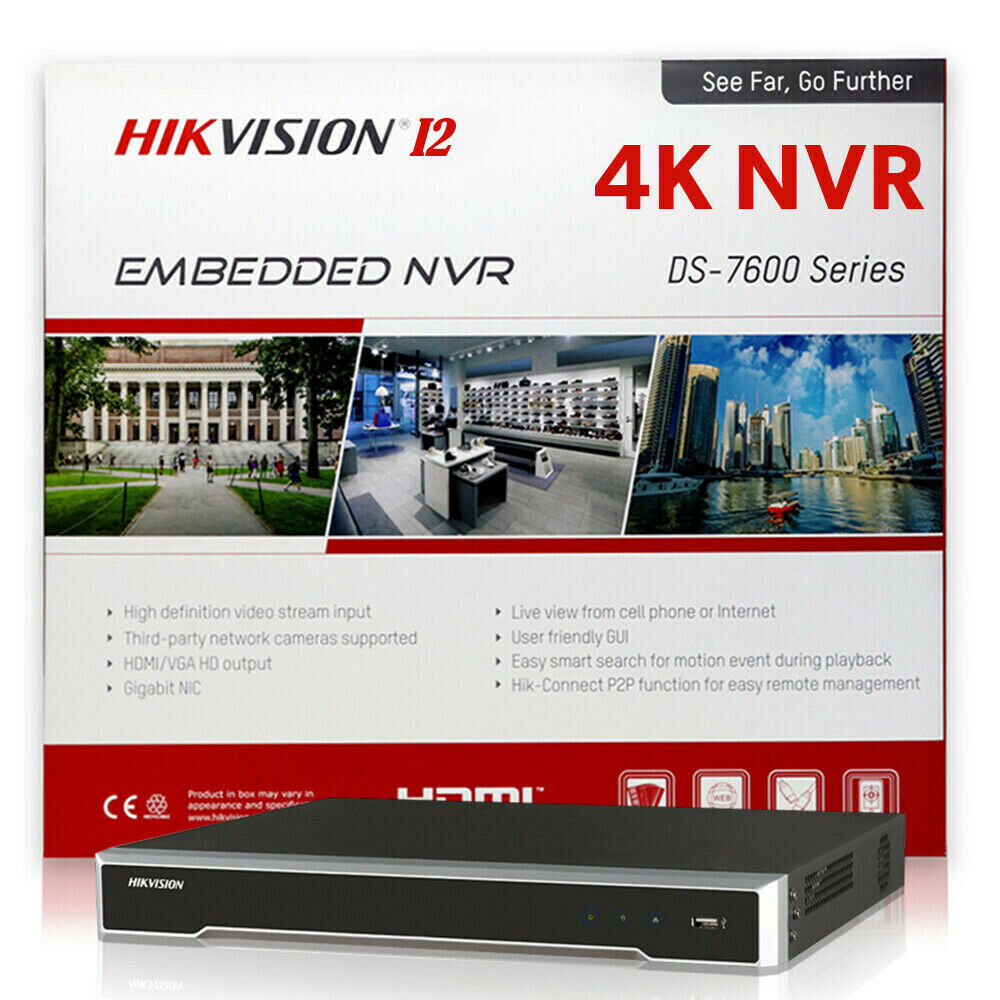

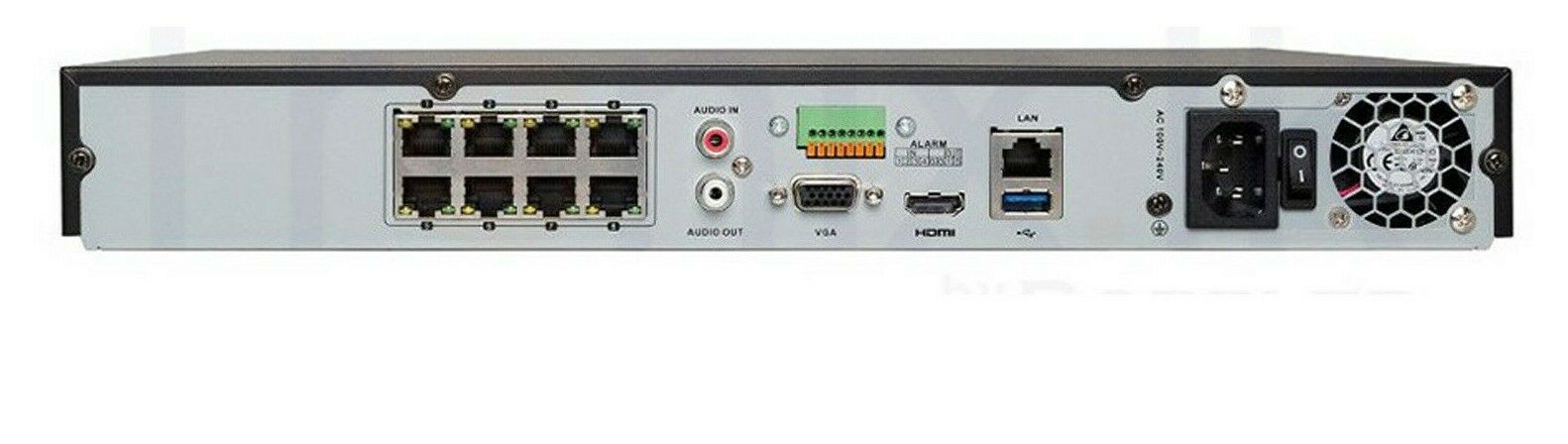

8ch 1U 8 PoE 4K NVR

• Up to 8ch IP cameras can be connected
• Up to 2-ch@12 MP/16ch@1080p decoding capacity
• 1 HDMI and 1 VGA interfaces: both interfaces support independent video output
• 2 HDDs for continuous video recording
• Plug & Play with 8p (PoE) interfaces
• Supports various special function cameras, including thermal camera/fisheye/people counting/heatmap/ANPR (automatic number plate recognition)
• Advanced streaming technology enables smooth live view and data self-correction in poor network conditions
• Supports dual-stream recording to save time and bandwidth

Specification

Video And Audio

Decoding

Network

PoE

Auxiliary Interface

General

Certification

• Video And Audio
• IP Video Input

  8ch

  Up to 12 MP resolution

• Incoming Bandwidth80 Mbps
• Outgoing Bandwidth256 Mbps
• HDMI Output4K (3840 ? 2160)/60Hz, 4K (3840 ? 2160)/30Hz, 1920 ? 1080/60Hz, 1600 ? 1200/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• VGA Output1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
• CVBS OutputN/A (1-ch is optional, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480}
• Audio Output1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
• Video Output ModeHDMI/VGA independent output
• Decoding
• Dual-Stream RecordingSupport
• Decoding FormatH.265/H.265+/H.264/H.264+/MPEG4
• Decoding Capability2-ch@12 MP (20 fps)/4ch@8 MP (25 fps)/8ch@4 MP (30 fps)/16ch@1080p (30 fps)
• Synchronous Playback8ch
• Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726
• Network
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
• Remote Connection64
• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• PoE
• Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power? 120 W
• StandardIEEE 802.3 af/at
• Auxiliary Interface
• SATA2 SATA interfaces
• CapacityUp to 10 TB capacity for each HDD
• Alarm In/Out4/1
• USB InterfaceFront panel: 1 ? USB 2.0; Rear panel: 1 ? USB 3.0
• General
• Power Supply100 to 240 VAC, 50 to 60 Hz
• Consumption? 15 W (without HDD and PoE off)
• Working Temperature-10 to +55? C (+14 to +131? F)
• Working Humidity10 to 90 %
• Dimension (W ? D ? H)385 ? 315 ? 52 mm (15.2" ? 12.4" ? 2.0")
• Weight? 3 kg (6.6 lb.)
• Certification
• FCCPart 15 Subpart B, ANSI C63.4-2014
• CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
