Hikvision Security CCTV System Kit 16CH DVR 2MP Bullet HD Camera Waterproof Lot

Data sheet PDF

Product Description

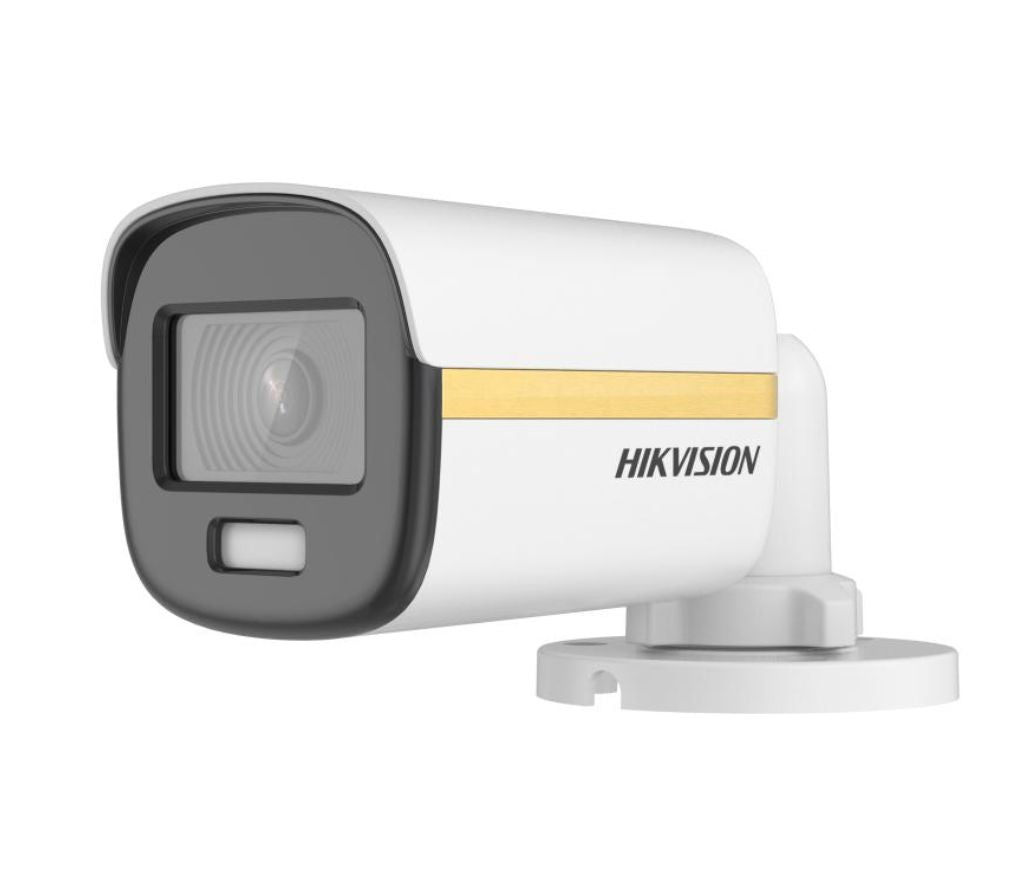

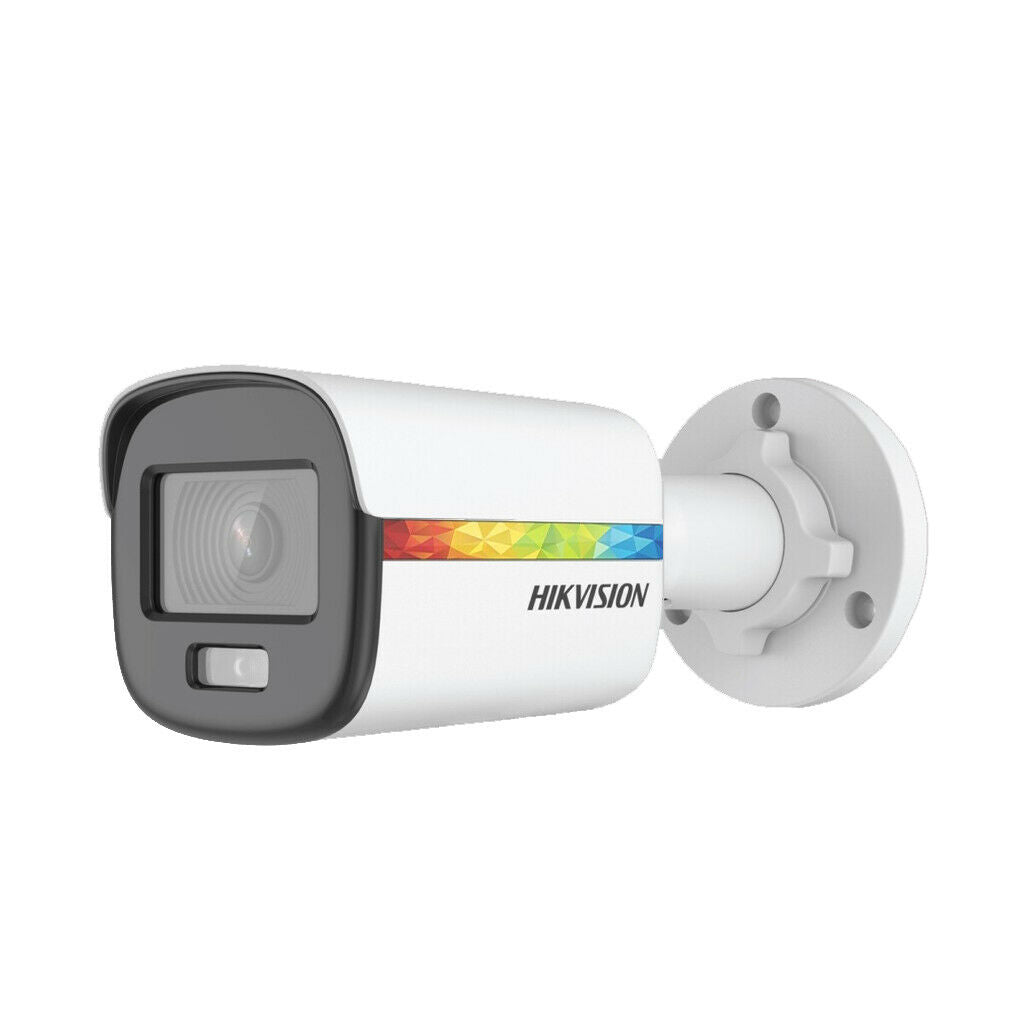

2 MP ColorVu Fixed Mini Bullet Camera

• High quality imaging with 2 MP, 1920 ? 1080 resolution
• 24/7 color imaging with F1.0 aperture
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• 2.8 mm, , 6 mm fixed focal lens
• Up to 20 m white light distance for bright night imaging
• Water and dust resistant (IP67)

Specification

• Camera
• Image Sensor2 MP CMOS
• Max. Resolution1920 (H) ? 1080 (V)
• Min. Illumination0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light ON
• Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night24/7 Color Imaging
• Angle AdjustmentPan: 0? to 360?, Tilt: 0? to 90?, Rotation: 0? to 360?
• Signal SystemPAL/NTSC
• Slow ShutterMax. 16 times
• Light AlarmSolid Light Alarm (White Light)
• Lens
• Lens Type2.8 mm, , 6 mm fixed focal lens
• Focal Length & FOV

  2.8 mm, horizontal FOV: 98?, vertical FOV: 52?, diagonal FOV: 116?

  , horizontal FOV: 77?, vertical FOV: 42?, diagonal FOV: 91?

  6 mm, horizontal FOV: 51?, vertical FOV: 28?, diagonal FOV: 59?

• Lens MountM12
• Illuminator
• Supplement Light TypeWhite Light
• Supplement Light RangeUp to 20 m
• Smart Supplement LightYes
• Image
• Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
• Image SettingsBrightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Anti-Banding, AGC
• Frame Rate

  TVI: 1080p@25fps/30fps

  CVI: 1080p@25fps/30fps

  AHD: 1080p@25fps/30fps

  CVBS: PAL/NTSC

• Day/Night ModeColor
• Wide Dynamic Range (WDR)?130 dB
• Image EnhancementWDR, BLC, HLC, Global, HLS
• Privacy Mask4 programmable privacy masks
• Noise Reduction3D DNR/2D DNR
• White BalanceAuto/Manual
• Interface
• Video OutputSwitchable TVI/AHD/CVI/CVBS
• Event
• Motion Detection4 programmable motion areas
• General
• MaterialMetal
• Dimension161.1 mm ? 70 mm ? 70 mm (6.34" ? 2.76" ? 2.76")
• WeightApprox. 388 g (0.86 lb.)
• Operating Condition-40?C to 60?C (-40?F to 140?F), Humidity: 90% or less (non-condensing)
• CommunicationHIKVISION-C
• LanguageEnglish
• Power

  12 VDC ? 25%, Max. 2.9 W

  *You are recommended to use one power adapter to supply the power for one camera.

• Approval
• ProtectionIP67

Data sheet PDF

Product Description

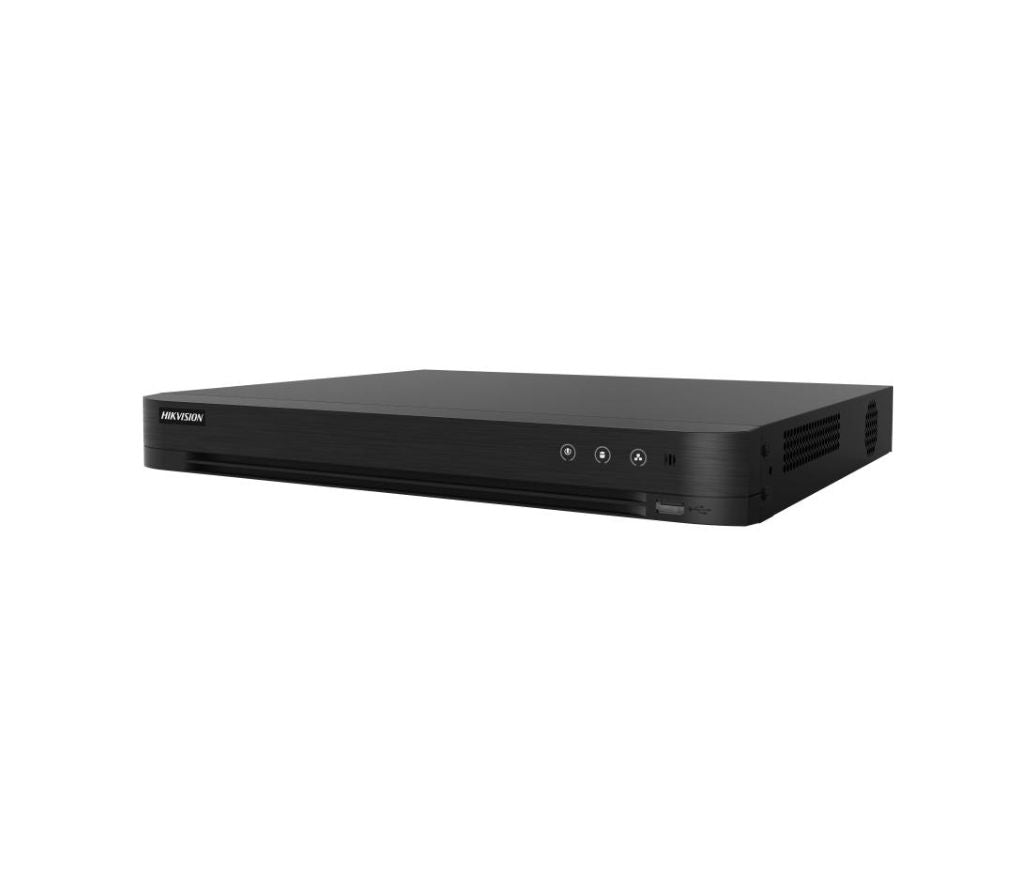

16ch 1080p 1U H.265 AcuSense DVR

• 16chs and 2 HDDs 1U AcuSense DVR
• False alarm reduction through human and vehicle target classification based on deep learning
• Efficient H.265 pro+ compression technology
• Encoding ability up to 1080p @ 15 fps
• 5 signals input adaptively ("Hybrid")
• Up to 8 network cameras can be connected

Specification

• Motion Detection 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Perimeter Protection
• Human/Vehicle AnalysisUp to 4ch
• Facial Detection
• Facial Detection And CaptureFace picture detection, face picture search
• Recording
• Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution

  When 1080p Lite mode is not enabled:

  3k/5MP lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3k/5MP lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Frame Rate

  Main stream:

  When 1080p Lite mode not enabled:

  For 3k/5MP stream access: 3k/5MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3k/5MP lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate32 Kbps to 6 Mbps
• Dual-StreamSupport
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711u
• Audio Bitrate64 Kbps
• Video And Audio
• IP Video Input

  2-ch (up to 18ch)

  Up to 6 MP resolution

  Enhanced IP mode on:

  8ch (up to 24ch), each up to 4 Mbps

  ;Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input16ch;BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
• HDMI Output1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
• CVBS InputPAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 ?),

  resolution: PAL: 704 ? 576, NTSC: 704 ? 480

• Synchronous Playback16ch
• HDTVI Input3k/5MP(2960 x 1665)@20 fps, 5 MP(2560 ? 1944)@20 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input5 MP(2592 ? 1944)@20 fps,4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
• HDCVI Input5 MP(2592 ? 1944)@20 fps,4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• Video Output ModeHDMI/VGA simultaneous output
• Audio Output1-ch, RCA (Linear, 1 K?)
• Audio Input1-ch, RCA (2.0 Vp-p, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
• Network
• Total Bandwidth128 Mbps
• Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
• Remote Connection128
• Network Interface

  1,RJ45 10M/100M/1000M self-adaptive

  Ethernet interface

• Auxiliary Interface
• SATA2 SATA interface
• CapacityUp to 10 TB capacity for each disk
• Serial InterfaceRS-485 (half-duplex)
• USB Interface

  1 ? USB 2.0?

  1 ? USB 3.0

• Alarm In/OutN/A
• General
• Power Supply12 VDC
• Consumption? 40 W
• Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
• Working Humidity10% to 90%
• Dimension (W ? D ? H)380 ? 320 ? 48 mm (15.0 ? 12.6 ? 1.9 inch)
• Weight? 2 kg (4.4 lb)
