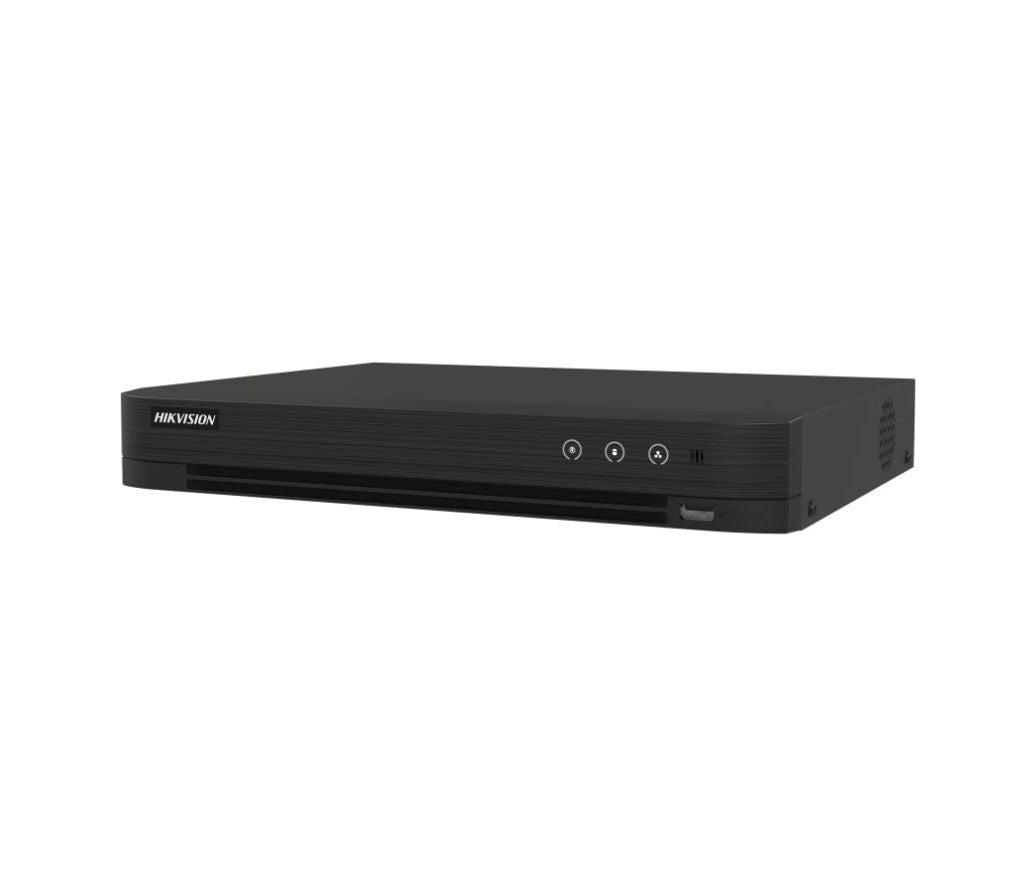

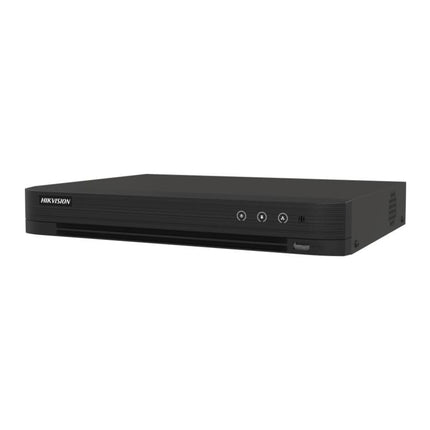

iDS-7204HUHI-M1/S Hikvision 4ch CCTV Recorder w/ HDD 5 MP 1U H.265 AcuSense

Description

iDS-7204HUHI-M1/S Hikvision 4ch CCTV Recorder w/ HDD 5 MP 1U H.265 AcuSense


This listing includes:

  • ¬†(1) HARD DRIVE OPTION:¬†NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB
  • (1) DIGITAL VIDEO RECORDER: iDS-7204HUHI-M1/S


iDS-7204HUHI-M1/S  view data sheet

4ch 5 MP 1U H.265 AcuSense DVR

  • 4chs and 1 HDD 1U AcuSense DVR
  • False alarm reduction by human and vehicle target classification based on deep learning
  • Efficient H.265 pro+ compression technology
  • Encoding abilty up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
  • 5 signals input adaptively ("Hybrid")
  • Up to 8 network cameras can be connected.

iDS-7204HUHI-M1/S Hikvision 4ch CCTV Recorder w/ HDD 5 MP 1U H.265 AcuSense

Product form

Free pickup in our shop(s)

SKU: 286726844508-EN1

$137.54 $130.99

2 in stock

  • Shipped today? Order within: Aug 31, 2025 15:00:00 -0400
    • Guaranteed secure & safe checkout.

      paypal

    Description

    iDS-7204HUHI-M1/S Hikvision 4ch CCTV Recorder w/ HDD 5 MP 1U H.265 AcuSense


    This listing includes:

    • ¬†(1) HARD DRIVE OPTION:¬†NO HARD DRIVE;1TB;2TB;3TB;4TB;6TB;8TB
    • (1) DIGITAL VIDEO RECORDER: iDS-7204HUHI-M1/S


    iDS-7204HUHI-M1/S  view data sheet

    4ch 5 MP 1U H.265 AcuSense DVR

    • 4chs and 1 HDD 1U AcuSense DVR
    • False alarm reduction by human and vehicle target classification based on deep learning
    • Efficient H.265 pro+ compression technology
    • Encoding abilty up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
    • 5 signals input adaptively ("Hybrid")
    • Up to 8 network cameras can be connected.

    Data sheet PDF

    Product Description

    4ch 5 MP 1U H.265 AcuSense DVR

    • 4chs and 1 HDD 1U AcuSense DVR
    • False alarm reduction by human and vehicle target classification based on deep learning
    • Efficient H.265 pro+ compression technology
    • Encoding abilty up to 8 MP lite @ 15 fps, 5 MP @ 12 fps
    • 5 signals input adaptively ("Hybrid")
    • Up to 8 network cameras can be connected.

    Specification

      • Motion Detection 2.0
      • Human/Vehicle Analysis

        Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

        Quick search by object or event type is supported;

      • Perimeter Protection
      • Human/Vehicle AnalysisUp to 4ch
      • Facial Detection
      • Facial Detection And CaptureFace picture detection, face picture search
      • Recording
      • Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
      • Encoding Resolution8 MP/5 MP/3k/5MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
      • Frame Rate

        Main stream:

        8 MP@8 fps/3k/5MP@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

        1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

        *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.

        Sub-stream:

        WD1/4CIF/CIF@25 fps (P)/30 fps (N)

      • Video Bitrate32 Kbps to 10 Mbps
      • Dual-StreamSupport
      • Stream TypeVideo, Video & Audio
      • Audio CompressionG.711u
      • Audio Bitrate64 Kbps
      • Video And Audio
      • IP Video Input

        2-ch (up to 6-ch)

        Up to 8 MP resolution

        Enhanced IP mode on:

        4ch (up to 8ch), each up to 4 Mbps

        Support H.265+/H.265/H.264+/H.264 IP cameras

      • Analog Video Input4ch;BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
      • HDMI Output

        HDMI:

        1-ch, 2K (2560 ? 1440)/60Hz,

        1920 ? 1080/60Hz,

        1280 ? 1024/60Hz,

        1280 ? 720/60Hz

        VGA:

        1-ch, 1920 ? 1080/60Hz,

        1280 ? 1024/60Hz,

        1280 ? 720/60Hz

        HDMI/VGA simultaneous output

      • CVBS InputPAL/NTSC
      • CVBS Output

        1-ch, BNC (1.0 Vp-p, 75 ?),

        resolution: PAL: 704 ? 576, NTSC: 704 ? 480

      • Synchronous Playback4ch
      • HDTVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 3k/5MP(2960 x 1665)@20 fps, 5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
      • AHD Input5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
      • HDCVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 5 MP(2592 ? 1944)@20 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
      • Audio Output1-ch, RCA (Linear, 1 K?)
      • Audio Input1-ch, RCA (2.0 Vp-p, 1 K?)
      • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)
      • Network
      • Total Bandwidth96Mbps
      • Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
      • Remote Connection32
      • Network Interface1, RJ45 10M/100M self-adaptive Ethernet interface
      • Auxiliary Interface
      • SATA1 SATA interface
      • CapacityUp to 10 TB capacity for each disk
      • Serial InterfaceRS-485 (half-duplex)
      • USB Interface

        Front panel: 1 ? USB 2.0

        Rear panel: 1 ? USB 2.0

      • Alarm In/OutN/A
      • General
      • Power Supply12 VDC
      • Consumption? 10 W
      • Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
      • Working Humidity10% to 90%
      • Dimension (W ? D ? H)315 ? 242 ? 45 mm (12.4 ? 9.5 ? 1.8 inch)
      • Weight? 1.16 kg (2.6 lb)
