IDS-7216HUHI-M2/S US
IDS-7216HUHI-M2/S US
Audio Over Coaxial (AoC)
Human and Vehicle Detection
One Way Audio
Out of stock
Description
Description

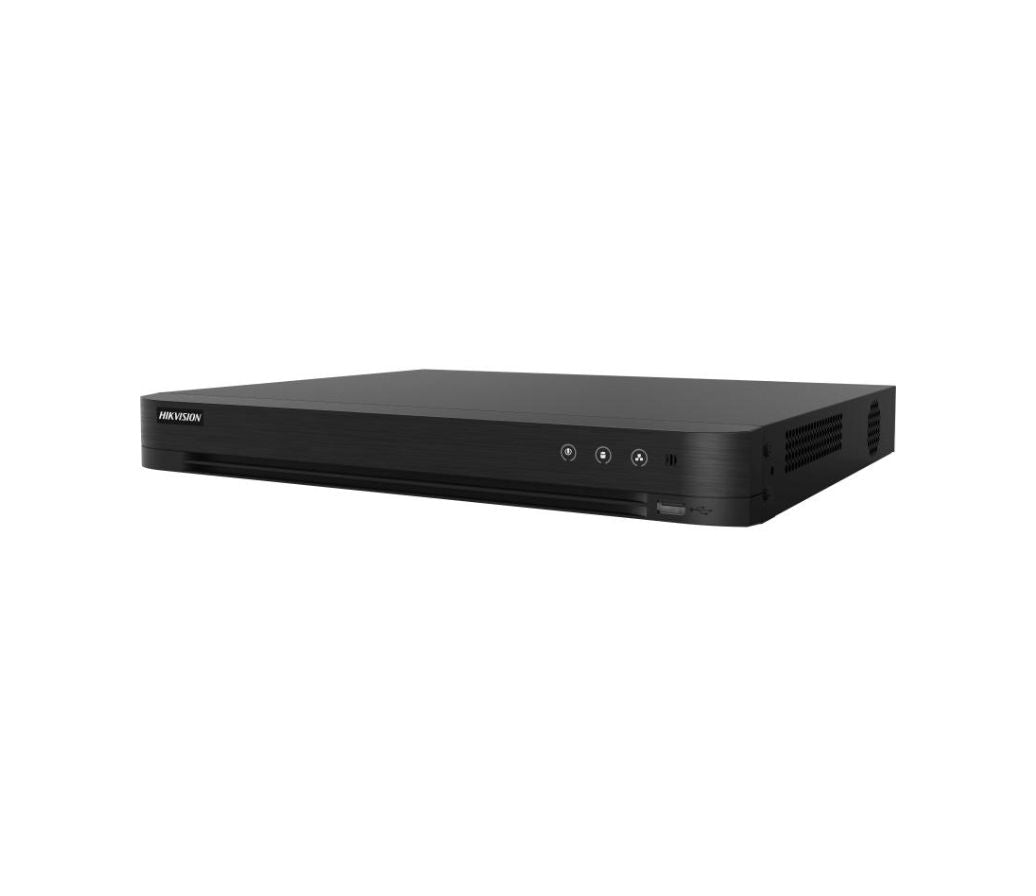

16ch 5 MP 1U H.265 AcuSense DVR
- Deep learning-based motion detection 2.0 for all analog channels
- Deep learning-based perimeter protection
- Efficient H.265 pro+ compression technology
- Up to 8 MP@8 fps/5 MP@12 fps encoding capability
- "Hybrid" video inputs
- Up to 32ch IP camera inputs (up to 8 MP)
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
16ch 5 MP 1U H.265 AcuSense DVR
- Deep learning-based motion detection 2.0 for all analog channels
- Deep learning-based perimeter protection
- Efficient H.265 pro+ compression technology
- Up to 8 MP@8 fps/5 MP@12 fps encoding capability
- "Hybrid" video inputs
- Up to 32ch IP camera inputs (up to 8 MP)
Specification
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle AnalysisUp to 4ch
- Facial Detection
- Facial Detection And CaptureFace picture detection, face picture search
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution8 MP/5 MP/3k/5MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
8 MP@8 fps/3k/5MP@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 10 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
- IP Video Input
8ch (up to 24ch)
Enhanced IP mode on: 16ch (up to 32ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
16ch
BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
- HDMI Output
1-ch, 4K (3840 ? 2160)/30Hz,
2K (2560 ? 1440)/60Hz,
1920 ? 1080/60Hz,
1280 ? 1024/60Hz,
1280 ? 720/60Hz
HDMI/VGA simultaneous output
- VGA Output
1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz
HDMI/VGA simultaneous output
- CVBS InputPAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 ?),
resolution: PAL: 704 ? 576, NTSC: 704 ? 480
- Synchronous Playback16ch
- HDTVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 3k/5MP(2960 x 1665)@20 fps, 5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input5 MP(2560 ? 1944)@20 fps, 5 MP(2560 ? 1944)@12 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input8 MP(3840 ? 2160)@15 fps, 8 MP(3840 ? 2160)@12 fps, 5 MP(2592 ? 1944)@20 fps, 4 MP(2560 ? 1440)@30 fps, 4 MP(2560 ? 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Audio Output1-ch, RCA (Linear, 1 K?)
- Audio Input
1-ch (up to 16ch is optional), RCA (2.0 Vpp,1 K?)
16ch via coaxial cable
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the audio input)
- Network
- Total Bandwidth128Mbps
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF
- Remote Connection128
- Network Interface
1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
- Wi-FiWi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacityUp to 10 TB capacity for each disk
- Serial InterfaceRS-485 (half-duplex)
- USB Interface
Front panel: 1 ? USB 2.0
Rear panel: 1 ? USB 3.0
- Alarm In/OutN/A (optional to support)
- General
- Power Supply12 VDC, 5 A
- Consumption? 19 W
- Working Temperature-10 ?C to +55 ?C (+14 ?F to +131 ?F)
- Working Humidity10% to 90%
- Dimension (W ? D ? H)380 ? 320 ? 48 mm (15.0 ? 12.6 ? 1.9 inch)
- Weight? 2.1 kg (4.6 lb)
