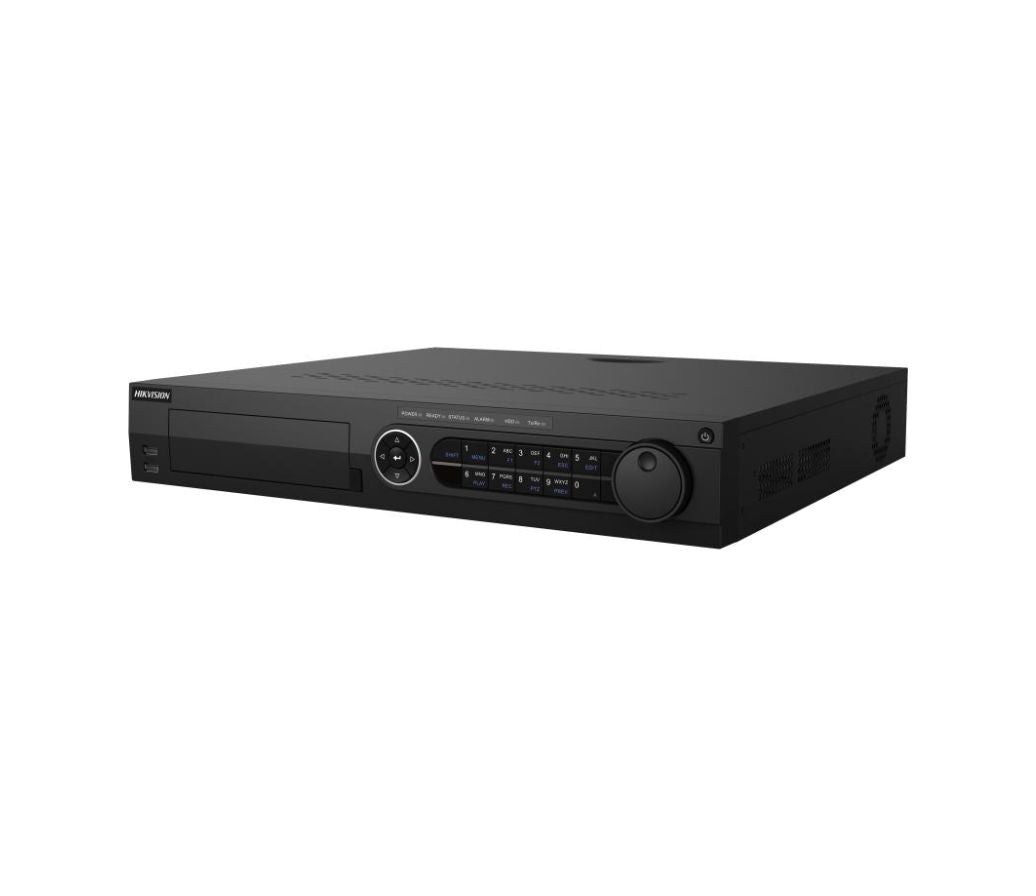

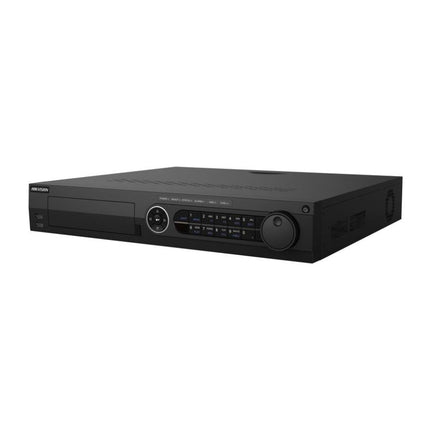

IDS-7332HQHI-M4/S Hikvision 32ch IP PoE Recorder w/ HDD 1080p 1.5U H.265
IDS-7332HQHI-M4/S Hikvision 32ch IP PoE Recorder w/ HDD 1080p 1.5U H.265
Audio Over Coaxial (AoC)
Human and Vehicle Detection
One Way Audio
Out of stock
Description
Description
IDS-7332HQHI-M4/S Hikvision 32ch IP PoE Recorder w/ HDD 1080p 1.5U H.265
This listing includes:
-  (1) HARD DRIVE OPTION: NO HARD DRIVE;4TB;8TB;12TB;16TB;32TB;40TB
- (1) DIGITAL VIDEO RECORDER: IDS-7332HQHI-M4/S
IDS-7332HQHI-M4/S  view data sheet
32ch 1080p 1.5U H.265 AcuSense DVR
- Deep learning-based perimeter protection
- Deep learning-based motion detection 2.0 for all analog channels
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 48ch IP camera inputs and 4 SATA interfaces
- Up to 1080p@15 fps encoding capability
- "Hybrid" video inputs
- POS triggered recording and POS information overlay
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
32ch 1080p 1.5U H.265 AcuSense DVR
- Deep learning-based perimeter protection
- Deep learning-based motion detection 2.0 for all analog channels
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 48ch IP camera inputs and 4 SATA interfaces
- Up to 1080p@15 fps encoding capability
- "Hybrid" video inputs
- POS triggered recording and POS information overlay
Specification
- Motion Detection 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Perimeter Protection
- Human/Vehicle AnalysisUp to 8ch, for channel 1/2/3/4/17/18/19/20 only
- Recording
- Video CompressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
When 1080p Lite mode is not enabled:
4 MP Lite/1080p/720p/VGA/WD1/4CIF/CIF;
When 1080p Lite mode is enabled:
4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF
- Frame Rate
Main stream:
When 1080p Lite mode is not enabled:
For 4 MP stream access:
4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
For 1080p stream access:
1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25fps (P)/30 fps (N)
For 720p stream access:
720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
When 1080p Lite mode is enabled:
4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
- Video Bitrate32 Kbps to 6 Mbps
- Dual-StreamSupport
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711u
- Audio Bitrate64 Kbps
- Video And Audio
- IP Video Input
16ch (up to 48ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
32ch
BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
- Incoming Bandwidth200 Mbps
- Outgoing Bandwidth160 Mbps
- HDTVI Input4 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
- AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input1080p25, 1080p30, 720p25, 720p30
- CVBS InputPAL/NTSC
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
- HDMI 1 Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- HDMI 2 Output1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- VGA Output1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
- Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
- Audio Input4ch, RCA (2.0 Vp-p, 1 K?)
- Audio Output1-ch, RCA (Linear, 1 K?)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (independent)
- Synchronous Playback16ch
- Network
- Remote Connection128
- Network ProtocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS, ONVIF, SNMP
- Network Interface2, RJ45 10M/100M/1000M self-adaptive Ethernet interface
- Auxiliary Interface
- Serial InterfaceRS-232, RS-485 (full-duplex), keyboard
- SATA4 SATA interfaces
- ESATASupport
- CapacityUp to 12 TB capacity for each disk
- Alarm In/Out16/4
- USB Interface
Front panel: 2 ? USB 2.0
Rear panel: 1 ? USB 3.0
- General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption? 40 W (without HDD)
- Working Temperature-10 ?C to 55 ?C (14 ?F to 131 ?F)
- Working Humidity10% to 90%
- Dimension (W ? D ? H)445 ? 400 ? 71 mm (17.5 ? 15.7 ? 2.8 inch)
- Weight? 7 kg (without HDD, 15.4 lb.)
