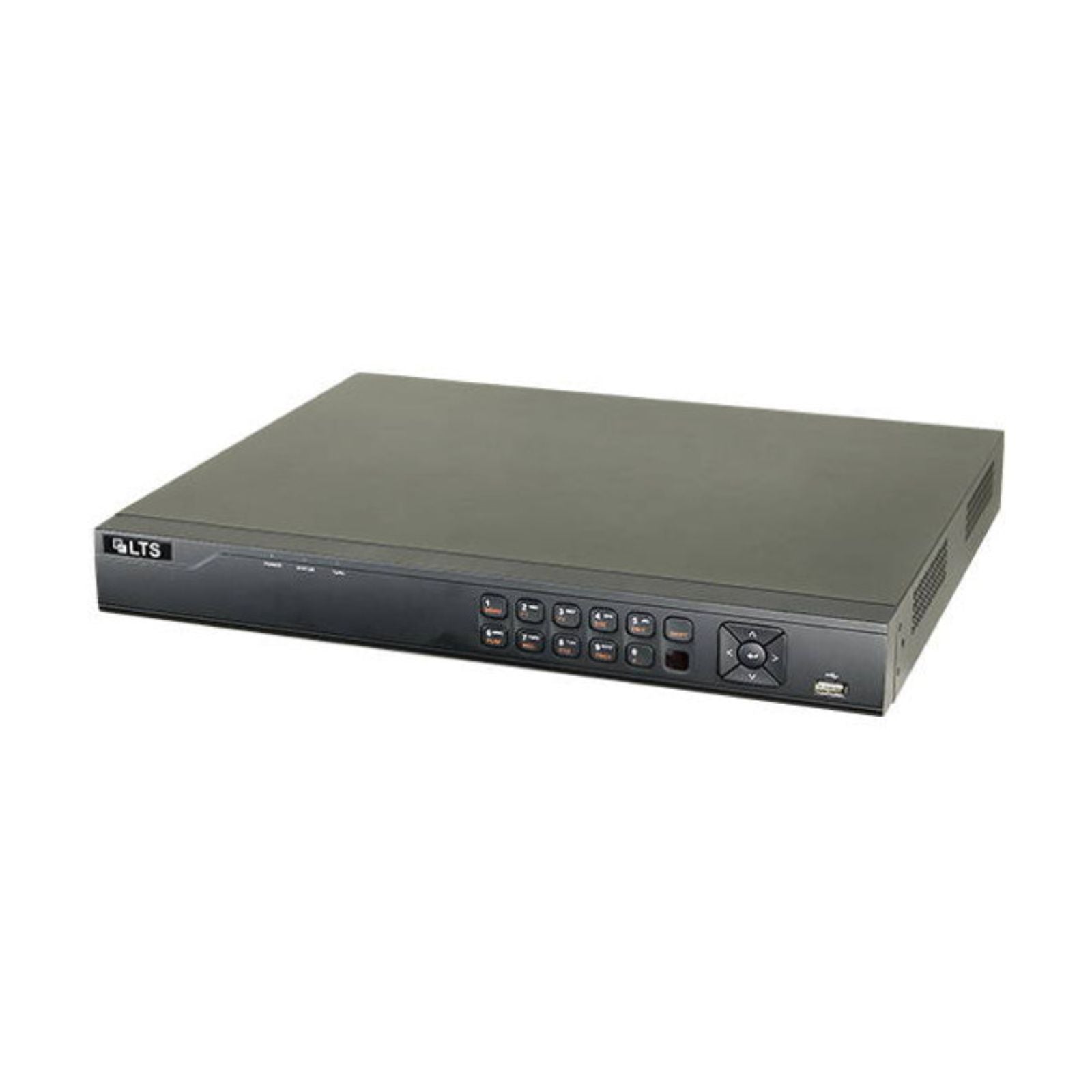

LTD8316D-ET LTS 16CH 2 SATA 1080p Recorder Hybrid HD-TVI
LTD8316D-ET LTS 16CH 2 SATA 1080p Recorder Hybrid HD-TVI
One Way Audio
Hurry up, only 1 item left in stock.
Description
Description
Find out just how much a TVI DVR can do with this advanced recorder from LTS. You'll be happily surprised at the capabilities with this 16-channel HD-TVI 1U digital video recorder from the Platinum Series. Get multiple signals in multiple ports with motion detection, H.265 Pro+, face recognition, and much more, at an exciting price point.

Compression and Recording
- H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs
- Recording at up to 8 MP resolution
Smart Functions
- Up to 16 channels (analog) Motion Detection 2.0
- Up to 8 channels (advanced model, analog channel) VCA
- Up to 4 channels (advanced model, analog channel) of human face recognition
- Supports smart playback to enhance playback efficiency
Network & Ethernet Access
- Supports LTS Connect & DDNS (Dynamic Domain Name System)
- Output bandwidth limit configurable
General
- 16 chs. + 2 IP (up to 6 MP) or 8 IP (up to 4 MP)
- All channels support 4 MP lite @ 15 fps
- 2 x HDD
- Supports 4 chs. Facial Recognition or 8-ch advanced VCA functionality based on Deep Learning algorithm
- Supports HD-TVI Two-Way Audio technology
- Efficient H.265 pro+ compression technology
- Encoding ability up to 3K / 5 MP Lite @ 12 fps
- Up to 24 channels IP camera inputs, each channel up to 6 MP
- Up to 24 x 1080p @ 30 fps decoding ability
- 5 input signal options (HD-TVI / AHD / CVI / CVBS / IP) (self-adaptive)
- Supports Motion Detection technology on all channels
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
| Specifications |
|
|---|---|
| SKU | LTD8316D-ET |
| Recorder Technology | TVI DVR |
| Recorder Case | 1U Case |
| Recorder Series | Platinum Series |
| Recorder Channel | 16-Channel |
Facial Recognition
Face Image Library
Up to 16 face image libraries;
HDD damage will not cause data loss in the face image library, because the library has
been backed up by HDD and flash.
Face Image Comparison 4 chs of face image comparison alarm (HD analog camera)
Motion Detection 2.0
Human / Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog
channels; it can classify human and vehicle, and extremely reduce false alarms caused
by objects like leaves and lights.
Quick search by object or event type is supported.
VCA
Human / Vehicle Analysis Up to 8 chs (advanced model)
Facial Detection
Facial Detection and Capture
Face image detection, face image search
4 chs face picture capture
Video and Audio
IP Video Inputs 8 chs (up to 24-ch), each up to 6 MP
Analog Video Inputs
16 ch
BNC interface (1.0 Vp-p, 75 ½), supporting coaxitron connection
HDMI Output
1 ch, 4K (3840 _ 2160) / 30 Hz, 2K (2560 _ 1440) / 60 Hz, 1920 _ 1080 / 60 Hz,
1280 _ 1024 / 60 Hz, 1280 _ 720 / 60 Hz
CVBS Inputs PAL/NTSC
CVBS Output
1 ch, BNC (1.0 Vp-p, 75 ½),
Resolution: PAL: 704 _ 576, NTSC: 704 _ 480
Synchronous Playback 16 chs
HDTVI Inputs
3K (2960 x 1665) @ 25 / 20 fps, 3K (3328x1504) @ 20 fps, 5 MP (2560 _ 1944) @ 20 fps,
4 MP (2560 _ 1440) @ 25 / 30 fps, 1080p @ 25 / 30 fps, 720p @ 25 / 30 fps
VGA Output 1 ch, 1920 _ 1080 / 60 Hz, 1280 _ 1024 / 60 Hz, 1280 _ 720 / 60 Hz
AHD Inputs
5 MP (2560 _ 1944) @ 20 fps, 4 MP (2560 _ 1440) @ 25 / 30 fps,1080p @ 25 /
30 fps, 720p @ 25 / 30fps
HDCVI Inputs
3K (2880 _ 1620) @ 25 / 20 fps, 5 MP (2592 _ 1944) @ 20 fps, 4 MP (2560 _
1440) @ 25 / 30 fps, 1080p @ 25 / 30 fps, 720p @ 25 / 30 fps
Video Output Mode HDMI / VGA simultaneous output
Audio Output 1 ch, RCA (Linear, 1 K½)
Audio Inputs 1 ch, RCA (2.0 Vp-p, 1 K½)_16 chs via coaxial cable
Two-Way Audio 1 ch, RCA (2.0 Vp-p, 1 K½) (using the first audio input)
Recording
Video Compression H.264 / H.264+ / H.265 / H.265 Pro / H.265 Pro+
Encoding Resolutions
When 1080p Lite mode is not enabled:
3K lite / 5 MP lite / 4 MP lite / 1080p / 720p / VGA / WD1 / 4CIF / CIF
When 1080p Lite mode is enabled:
3K lite / 5 MP lite / 4 MP lite / 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF
Frame Rates
Main stream:
When 1080p Lite mode not enabled:
- For 3K stream access: 3K lite @ 12 fps; 4 MP lite @ 15 fps / 1080pLite @ 20 fps;
720p / WD1 / 4CIF / VGA / CIF @ 20 fps
- For 5 MP stream access: 5 MP lite @ 12 fps; 4 MP lite @ 15 fps / 1080p Lite @ 20
fps; 720p / WD1 / 4CIF / VGA / CIF @ 20 fps
- For 4 MP stream access: 4 MP lite @ 15 fps / 1080pLite @ 25 fps (P) / 30 fps (N);
720p / WD1 / 4CIF / VGA / CIF @ 25 fps (P) / 30 fps (N)
- For 1080p stream access: 1080p / 720p @ 15 fps; VGA / WD1 / 4CIF / CIF @ 25
fps (P) / 30 fps (N)
- For 720p stream access: 720p / VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)
When 1080p Lite mode enabled:
- 3K lite / 5 MP lite @ 12 fps; 4 MP lite @ 15 fps; 1080p lite / 720p lite / VGA /
WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)
Sub-stream:
- WD1 / 4CIF @ 12 fps; CIF @ 25 fps (P) / 30 fps (N)
Video Bitrate 32 Kbps to 6 Mbps
Dual-stream Supports main stream or sub stream
Stream Type Video, Video & Audio
Audio Compression G.711u
Audio Bitrate 64 Kbps
Decoding
Decoding Capability Up to 24 chs 1080p @ 30 fps
Network
Total Bandwidth 256 Mbps
Network Protocol
TCP/IP, PPPoE, DHCP, LTS Connect, DNS, DDNS, NTP, NFS, iSCSI, UPnPª, HTTPS, ONVIF,
ISUP
Remote Connection 128
Network Interface 1 x RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
Auxiliary Interface
SATA 2 x SATA interface, up to 12 TB capacity for each disk
Serial Interface RS-485 (half-duplex)
USB Interface
Front panel: 1 _ USB 2.0;
Rear panel: 2 _ USB 3.0
Alarm In/Out N/A (optional to support)
General
Power Supply 12 V DC, 3.3 A
Consumption ² 40 W
Operating Temperature 14¡ to 131¡ F (-10¡ to 55¡ C)
Operating Humidity 10% to 90%
Dimensions (W _ D _ H) 15.1 _ 12.5 _ 2.0 inch (384 _ 317 _ 52 mm)
Weight ² 4.4 lb (2 kg)
