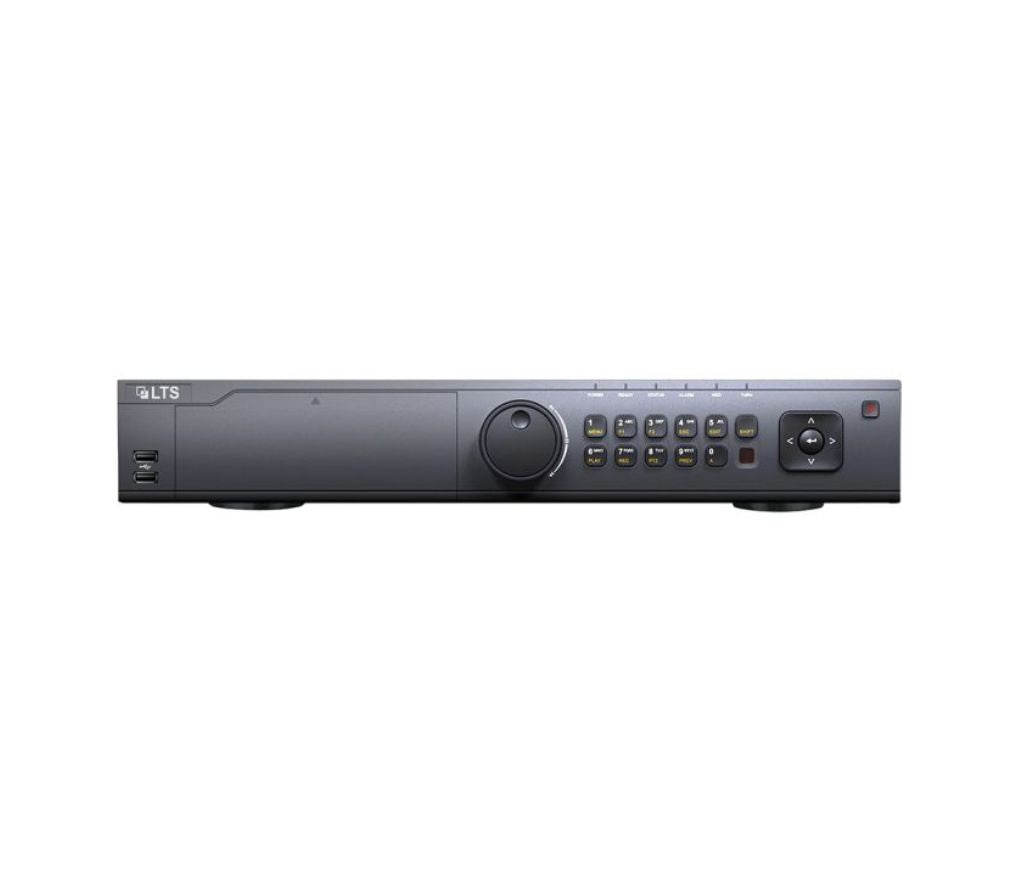

LTD8432K-EA Lts 32ch CCTV Recorder w/ HDD TURBO HD DVR Platinum TVI-P 32ch+16ch
LTD8432K-EA Lts 32ch CCTV Recorder w/ HDD TURBO HD DVR Platinum TVI-P 32ch+16ch
One Way Audio
Out of stock
Description
Description
LTD8432K-EA Lts 32ch CCTV Recorder w/ HDD TURBO HD DVR Platinum TVI-P 32ch+16ch
This listing includes:
-  (1) HARD DRIVE OPTION: NO HARD DRIVE;4TB;8TB;12TB;16TB;32TB;40TB
- (1) DIGITAL VIDEO RECORDER: LTD8432K-EA
LTD8432K-EA  view data sheet
TURBO HD DVR
Platinum, TVI-P, DVR, 32ch+16ch IP up to 6MP Alarm/Audio, VGA/2x HDMI UL H.265 1.5U Case, Supports 4 SATA up to 10TB each
- Support H.265 Pro+/H.265 Pro/H.265 video compression
- Support HDTVI/AHD/CVI/CVBS/IP video input
- Max 40/48 IP cameras input (up to 6 MP)
- Max 800 m for 1080p and 1200 m for 720p HDTVI signal
- Supports 4 SATA up to 10TB each
- Support POS triggered recording and POS information overlay
Couldn't load pickup availability
Get $25 off when you spend $750 or more!
Shipping Details
Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
Product Support
Product Support
You’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
TURBO HD DVR
Platinum, TVI-P, DVR, 32ch+16ch IP up to 6MP Alarm/Audio, VGA/2x HDMI UL H.265 1.5U Case, Supports 4 SATA up to 10TB each
- Support H.265 Pro+/H.265 Pro/H.265 video compression
- Support HDTVI/AHD/CVI/CVBS/IP video input
- Max 40/48 IP cameras input (up to 6 MP)
- Max 800 m for 1080p and 1200 m for 720p HDTVI signal
- Supports 4 SATA up to 10TB each
- Support POS triggered recording and POS information overlay
Specifications
Model LTD8424K-EA LTD8432K-EA
Recording
Video compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution
When 1080p Lite mode not enabled:
4 MP lite/3 MP/1080p/1080p lite/720p/WD1/4CIF/VGA/CIF
When 1080p Lite mode enabled:
4 MP lite/3 MP/1080p lite/720p/720p lite/WD1/4CIF/VGA/CIF
Frame rate
Main stream:
When 1080p Lite mode not enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/
CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p/720p/WD1/4CIF/VGA/CIF@15fps
For 1080p stream access: 1080p/720p@15fps; WD1/4CIF/VGA/CIF@25fps (P)
/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
When 1080p Lite mode enabled:
For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p lite/WD1/4CIF/
VGA/CIF@25fps (P)/30fps (N)
For 3 MP stream access: 3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF@15fps
For 1080p stream access: 1080p lite/720p lite/WD1/4CIF/VGA/CIF@25fps (P)
/30fps (N)
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate 32 Kbps to 6 Mbps
Dual stream Support
Stream type Video, Video & Audio
Audio compression G.711u
Audio bit rate 64 Kbps
Video and Audio
IP video input
16-ch (up to 40-ch) 16-ch (up to 48-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input
24-ch 32-ch
BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
HDTVI input
4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60
*: The 3 MP signal input is only available for channel 1/2/3/4.
AHD input 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input 1080p25, 1080p30, 720p25, 720p30
CVBS input PAL/NTSC
CVBS output 1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
HDMI1/VGA output 1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
HDMI2 output
1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ?
1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz
Audio input 4-ch, RCA (2.0 Vp-p, 1 K?)
Audio output 1-ch, RCA (Linear, 1 K?)
Two-way audio 1-ch, RCA (2.0 Vp-p, 1 K?) (independent)
Synchronous playback 16-ch
Network
Remote connections 128
Network protocols
TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?,
HTTPS, ONVIF, SNMP
Network interface 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary interface
SATA 4 SATA interfaces
eSATA Support
Capacity Up to 10 TB capacity for each disk
Serial interface RS-232, RS-485 (full-duplex), Keyboard
Alarm in/out 16/4
USB interface
Front panel: 2 ? USB 2.0
Rear panel: 1 ? USB 3.0
General
Power supply 100 to 240 VAC, 50 to 60 Hz, 1.1 A
Consumption
(without HDD)
? 45 W
Working temperature -10 ?C to +55 ?C (+14 ?F to +131 ?F)
Working humidity 10% to 90%
Dimensions (W ? D ? H) 440 ? 390 ? 70 mm (17.3 ? 15.4 ? 2.8 inch)
Weights (without HDD) ? 7 kg (15.4 lb)
The rear panel of LTD8424K-EA provides 24 video input interfaces.
Physical Interfaces
Index Description Index Description
1 VIDEO IN 9 eSATA Interface
2 AUDIO IN, RCA Connector 10 HDMI1 Interface
3 LINE IN 11 HDMI2 Interface
4 AUDIO OUT 12 LAN Network Interface
5 VIDEO OUT 13 USB Interface
6
RS-485 Serial Interface, Keyboard
Interface, ALARM IN and ALARM OUT
14 GND
7 RS-232 Serial Interface 15 100 to 240 VAC Power Input
8 VGA Interface 16 Power Switch
