Technical Specifications

Data sheet PDF

Product Description

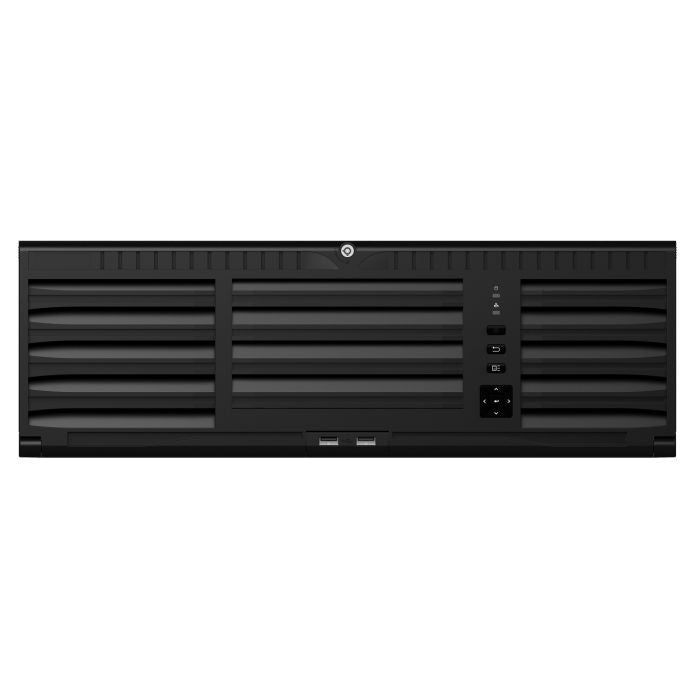

Platinum 128-Channel Enterprise Level NVR



Platinum, Enterprise Level, 128-Channel NVR, RAID, 20 ch @ 1080p, Supports 16 x SATA HDDs at up to 10 TB each, 3U (no pre-installed storage

  • Platinum 128-Channel Network Video Recorder
  • Supports Live View, Recording, and Playback of IP Cameras up to 12 MP
  • Quad-Core CPU
  • 576 Mbps Bandwidth
  • 4K (3840 x 2160) HDMI Video Output
  • Supports 16 x SATA HDDs at up to 10 TB each
  • 4 x RJ45 10/100/1000 Mbps, 4 x Fiber Optic Ethernet Interfaces
  • RAID 0, 1, 5, 6, 10, and Hot Swapping
  • H.264 / H.264+ / H.265 / H.265+
  • 20 channels @ 1080p
SPECIFICATIONS
Video / Audio Input
IP Video Input 128 channel
Bandwidth:Incoming / Outgoing 576 Mbps / 512 Mbps
Bandwidth: Incoming / Outgoing (RAID mode) 576 Mbps / 512 Mbps
Protocols

LTS, ACTi, Arecont, Axis, Bosch, Brickcom, Canon, Hunt, ONVIF (Version 2.5), Panasonic, Pelco, PSIA, RTSP, Samsung, Sony, Vivotek, Zavio, Hikvision

Video / Audio Output
HDMI Output Two independent HDMI outputs @ 4K. Resolutions: 4K: (4096 ? 2160 / 3840 ? 2160) / 30 Hz, 2K: (2560 ? 1440) / 60 Hz, 1080p (1920 ? 1080) / 60 Hz, UXGA (1600 ? 1200) / 60 Hz, SXGA (1280 ? 1024) / 60 Hz, 720p (1280 ? 720) / 60 Hz, XGA (1024 ? 768) / 60 Hz
VGA Output 1 ch. Resolutions: 1080p (1920 ? 1080) / 60 Hz, UXGA (1600 ? 1200) / 60 Hz, SXGA (1280 ? 1024) / 60 Hz, 720p (1280 ? 720) / 60 Hz, XGA (1024 ? 768) / 60 Hz
Audio Output 1 ch, RCA (Linear, 1k?)
Video & Audio Decoding
Decoding Formats H.264, H.264 Zip+, H.265, H.265+, MPEG4, MJPEG
Video Resolutions

3, 4, 5, 6, 7, 8, 12 MP; UXGA; 720p; VGA; 4CIF, DCIF, 2CIF, CIF, QCIF

Synchronous Playback Up to 16 channels
Capability 20 channels @ 1080p
Data Storage
SATA 16 x SATA interfaces supporting hot-plug
Capacity Up to 10 TB capacity for each HDD
RAID
RAID Type RAID 0, 1, 5, 6, and 10
Network Management
Protocols IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Network Interface 4 x RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
External Interface
Two-way Audio Input 1 ch, RCA (2.0 Vp-p, 1 k?)
Serial Ports 1 x RS-485, Keyboard
USB

Front Panel: 2 ? USB 2.0

Rear Panel: 2 ? USB 3.0

Alarm Channels (In/Out) 16 / 8
Decoding Boards 1
General
Power Supply 100 ~ 240 VAC, 550 W
Consumption ? 140 W (without HDDs or DVD-R/W)
OperatingTemperature 32? to 122? F (0? to 50? C)
Operating Humidity 10 - 90%
Housing 19-inch rack-mounted 3U chassis
Dimensions
(W x D x H)
17.4 ? 19.4 ? 5.7" (442? 494 ?146 mm)
Weight ? 35.3 lb (16 kg, without HDDs or DVD-R/W)
SKU LTN07128-R16
RECORDER TECHNOLOGY IP / NVR
RECORDER CASE 3U Case
RECORDER SERIES Platinum Series
RECORDER CHANNEL 128-Channel
