Product Description

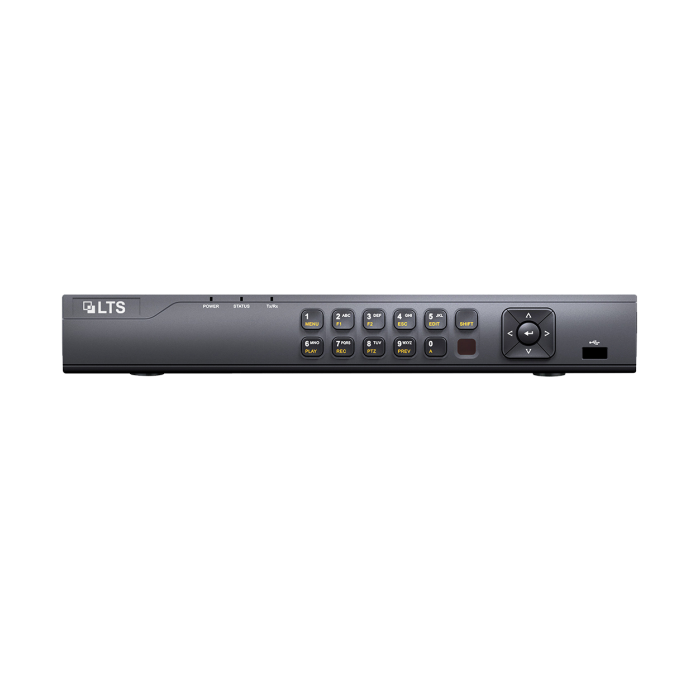

Platinum 4-Channel Professional Level NVR

Platinum NVR with up to 4 IP camera input channels, H.265+ video compression, up to 1 ch @ 8 MP / 5 ch @ 1080p decoding capacity, up to 40 Mbps incoming bandwidth

  • Up to 4-ch IP camera inputs
  • H.264 / H.264+ / H.265 / H.265+ video formats
  • Up to 1 ch @ 8 MP / 5 ch @ 1080p decoding capacity
  • Up to 40 Mbps incoming bandwidth

    • Details
      • Up to 4-ch IP camera inputs
      • H.264 / H.264+ / H.265 / H.265+ video formats
      • Up to 1 ch @ 8 MP / 5 ch @ 1080p decoding capacity
      • Up to 40 Mbps incoming bandwidth
        • SPECIFICATIONS
          Video and Audio
          IP Video Input 4-ch
          Up to 8 MP resolution
          Incoming Bandwidth 40 Mbps
          Outgoing Bandwidth 80 Mbps
          HDMI Output 1-ch, 4K (4096 x 2160) / 30 Hz, 4K (3840 x 2160) / 30 Hz, 2K (2560 x 1440) / 60 Hz, 1920 x 1080 / 60 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz
          VGA Output 1-ch, 1920 ? 1080 / 60 Hz, 1280 ? 1024 / 60 Hz, 1280 ? 720 / 60 Hz
          Video Output Mode HDMI / VGA simultaneous output
          CVBS Output N/A
          Audio Output 1-ch, RCA (Linear, 1 K?)
          Two-way Audio Input 1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
          Decoding
          Decoding Formats H.264 / H.264+ / H.265 / H.265+
          Recording Resolutions 3, 4,5, 6, 8 MP; 1080p; UXGA; 720p; VGA; 4CIF / DCIF / 2CIF / CIF / QCIF
          Synchronous Playback 4 ch
          Capability 1 ch @ 8 MP (30 fps) / 5 ch @ 1080p (30 fps)
          Stream Type Video, Video & Audio
          Audio Compression G.711 ulaw / G.711 alaw / G.722 / G.726
          Network
          Remote connection 16
          Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?, HTTP, HTTPS
          Network Interface 1 x RJ-45 10/100 Mbps self-adaptive Ethernet interface
          PoE
          Interface 4 x RJ-45 10/100 Mbps self-adaptive Ethernet interface
          Power ? 50 W
          Supported Standard IEEE 802.3 af / at
          Auxiliary Interface
          SATA 1 x SATA interface
          Capacity Up to 6 TB capacity for each disk
          USB Interface Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0
          General
          Power Supply 48 V DC, 1.35 A
          Consumption (witdout HDD and PoE off) ? 10 W
          Working Temperature 14? to 131? F (-10? to 55? C)
          Working Humidity 10% to 90%
          Dimensions (W ? D ? H) 12.4 x 9.4 x 1.9" (320 x 240 x 48 mm)
          Weight (without HDD) ? 1 kg (2.2 lb)
          SKU LTN8704QN-P4
          RECORDER TECHNOLOGY IP / NVR
          RECORDER CASE mini 1U
          RECORDER SERIES Platinum Series
          RECORDER CHANNEL 4-Channel
