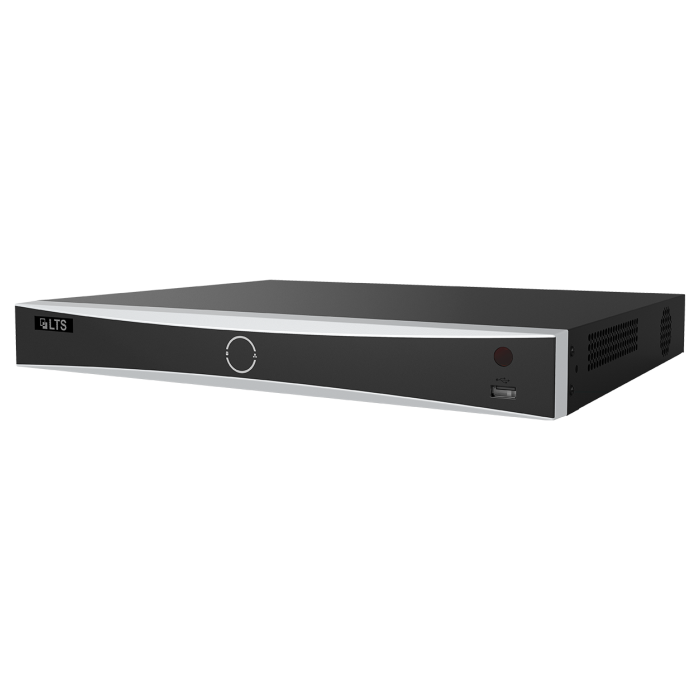

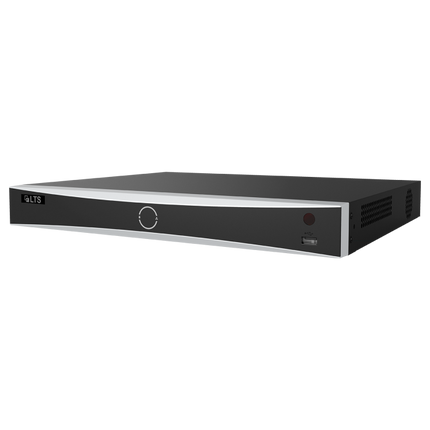

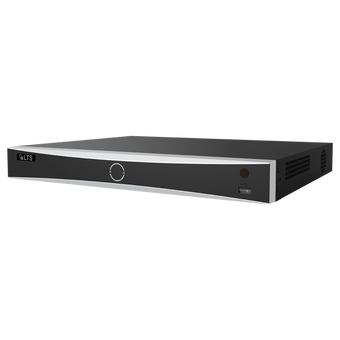

LTN8716D-P16N

Description

Platinum 16-Channel VCA NVR


Platinum, NVR, 16 channels, 160 Mbps, 16 x PoE, Up to 12 MP Recording, Up to 2 ch @ 12 MP (30 fps) or 3 ch @ 8 MP (30 fps) or 6 ch @ 4 MP (30 fps) decoding capacity, 2 x SATA up to 10 TB per HDD, MD 2.0 - Human and Vehicle Detection

  • Up to 16 channels of IP camera inputs, plug & play with 16 power-over-Ethernet (PoE) interfaces
  • H.264 / H.264+ / H.265 / H.265+ video formats
  • Up to 2 ch @ 12 MP / 3 ch @ 8 MP / 6 ch @ 4 MP / 12 ch @ 1080p decoding capacities
  • Up to 160 Mbps incoming bandwidth
  • NVR provides MD 2.0 VCA functionality

LTN8716D-P16N

Product form

SKU: 754264714508-EN1

$559.67 $527.99

Out of stock

      • Guaranteed secure & safe checkout.

        paypal

      Description

      Platinum 16-Channel VCA NVR


      Platinum, NVR, 16 channels, 160 Mbps, 16 x PoE, Up to 12 MP Recording, Up to 2 ch @ 12 MP (30 fps) or 3 ch @ 8 MP (30 fps) or 6 ch @ 4 MP (30 fps) decoding capacity, 2 x SATA up to 10 TB per HDD, MD 2.0 - Human and Vehicle Detection

      • Up to 16 channels of IP camera inputs, plug & play with 16 power-over-Ethernet (PoE) interfaces
      • H.264 / H.264+ / H.265 / H.265+ video formats
      • Up to 2 ch @ 12 MP / 3 ch @ 8 MP / 6 ch @ 4 MP / 12 ch @ 1080p decoding capacities
      • Up to 160 Mbps incoming bandwidth
      • NVR provides MD 2.0 VCA functionality

      Data sheet PDF

      Product Description

      Platinum 16-Channel VCA NVR


      Platinum, NVR, 16 channels, 160 Mbps, 16 x PoE, Up to 12 MP Recording, Up to 2 ch @ 12 MP (30 fps) or 3 ch @ 8 MP (30 fps) or 6 ch @ 4 MP (30 fps) decoding capacity, 2 x SATA up to 10 TB per HDD, MD 2.0 - Human and Vehicle Detection

      • Up to 16 channels of IP camera inputs, plug & play with 16 power-over-Ethernet (PoE) interfaces
      • H.264 / H.264+ / H.265 / H.265+ video formats
      • Up to 2 ch @ 12 MP / 3 ch @ 8 MP / 6 ch @ 4 MP / 12 ch @ 1080p decoding capacities
      • Up to 160 Mbps incoming bandwidth
      • NVR provides MD 2.0 VCA functionality




      Specifications
      Facial Recognition
      Facial Detection and Analytics Face image comparison, human face capture, face image search
      Face Image Library
      Up to 16 image libraries, with up to 20,000 face images in total
      (each picture ? 4 MB; total capacity ? 1 GB)
      Facial Detection and Analytics
      Performance
      1 ch human face capture
      Face Image Comparison 4 ch face image comparison alarm
      Motion Detection 2.0
      Human / Vehicle Analysis 16 channels
      Video and Audio
      IP Video Input 16 ch
      Incoming Bandwidth 160 Mbps
      Outgoing Bandwidth 160 Mbps
      HDMI Output
      1 channel: 4K: 3840 ? 2160 @ 30 Hz; 2K: 2560 ? 1440 @ 60 Hz, 1920 ? 1080 @ 60 Hz,
      1600 ? 1200 @ 60 Hz, 1280 ? 1024 @ 60 Hz, 1280 ? 720 @ 60 Hz, 1024 ? 768 @ 60 Hz
      VGA Output 1 channel: 1920 ? 1080 @ 60 Hz, 1280 ? 1024 @ 60 Hz, 1280 ? 720 @ 60 Hz
      Video Output Mode HDMI / VGA independent output
      CVBS Output N/A
      Audio Output 1 ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
      Two-Way Audio 1 ch, RCA (Linear, 1 K?)
      Decoding
      Format H.265 / H.265+ / H.264+ / H.264
      Recording Resolution 3, 4, 5, 6, 8, 12 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
      Synchronous Playback 16 channels
      NVR Decoding Capability
      MD 2.0 / VCA On: 1 ch: 12 MP @ 30 fps; 2 ch: 8 MP @ 30 fps;
      4 ch: 4 MP @ 30 fps; 8 ch: 1080p @ 30 fps
      MD 2.0 / VCA Off: 2 ch: 12 MP @ 30 fps; 3 ch: 8 MP @ 30 fps;
      6 ch: 4 MP @ 30 fps; 12 ch: 1080p @ 30 fps
      Stream Type Video, Video & Audio
      Audio Compression G.711 ulaw / G.711 alaw / G.722 / G.726 / AAC
      Network
      Remote Connections 128
      Network Protocols
      TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP?,
      HTTP, HTTPS
      Network Interface 1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
      PoE
      Interface 16 x RJ-45 10/100 Mbps self-adaptive Ethernet interface
      Power ? 200 W
      Standard IEEE 802.3 af/at
      Auxiliary Interface
      SATA 2 x SATA interfaces
      Capacity Up to 10 TB storage capacity for each HDD
      USB Interface Front panel: 1 ? USB 2.0; Rear panel: 1 ? USB 2.0
      Alarm In/Out 4/1
      General
      Power Supply 100 to 240 VAC, 50 to 60 Hz
      Consumption ? 15 W (without HDD and PoE off)
      Operating Temperature 14? to 131? F (-10? to 55? C)
      Operating Humidity 10% to 90%
      Dimensions (W ? D ? H) 15.2 ? 12.4 ? 2.0 in. (385 ? 315 ? 52 mm )
      Weight (without HDD) ? 6.6 lbs (3 kg)
      Certifications
      FCC Part 15 Subpart B, ANSI C63.4-2014
      CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

      Advanced Security, Made Simple.



      Record video continuously 24/7!

      Record video continuously 24/7!

      Record video continuously—24 hours a day, 7 days a week—without interruptionComplete Coverage: Never miss an event, even during quiet hours. Reliable Evidence: Essential for reviewing incidents with accurate timelines. Peace of Mind: Know your property is monitored at all times. Ideal for High-Risk Areas: Great for businesses, warehouses, or remote properties that require constant surveillance. Perfect for anyone needing maximum security and a full visual record of all activity.

      Total Control, Anywhere

      Total Control, Anywhere

      Mobile app access so you can monitor your home remotely which means you feel in control no matter where you are—whether you're at work, on vacation, or just out for dinner, your home is always just a tap away.

      A few more things...

      Scroll to see essential features found in this product and many others across our lineup

      Why Choose Us?

      Frequently Asked Questions

      What makes your surveillance systems premium?+

      Our systems are built with advanced AI features, superior video quality, and long-term reliability—making them ideal for both residential and commercial security.

      Do you offer installation services?+

      Yes, we provide professional installation services in select locations. Contact our support team for availability and scheduling.

      Can I access the system remotely?+

      Absolutely. Our systems support remote viewing via secure mobile apps, allowing you to monitor your property from anywhere.

      What warranty do you offer?+

      All systems come with a standard 2-year warranty, with optional extended coverage for added peace of mind.
