Technical Specifications

Data sheet PDF

Product Description

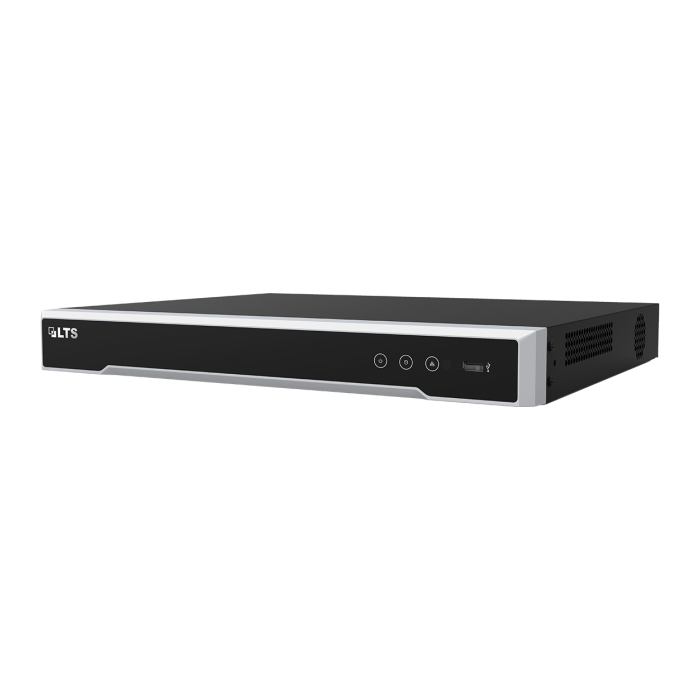

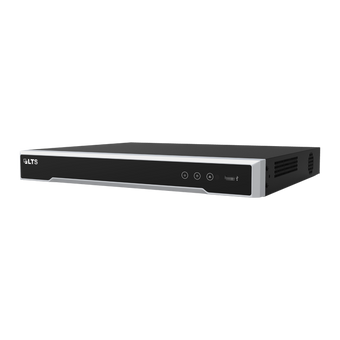

Platinum M-Series 16-Channel 8K NVR


Platinum, NVR, 16 channels, 256 Mbps, Up to 32 MP Recording, 4 x SATA ports for HDDs up to 14 TB each

Professional and Reliable

  • H.265+ compression effectively reduces the storage requirements by up to 75%
  • Dual-stream recording uses bandwidth more effectively
  • Streaming over TLS encryption technology provides more secure transmission
  • Supports double verification for playback and downloading
    • HD Video Output

      • Provides independent HDMI and VGA outputs
      • HDMI video output at resolutions up to 8K
      • Dual 4K HDMI output
        • Storage and Playback

          • Up to 4 x SATA interfaces for HDD connection
          • 16 channels of synchronous playback
            • POS & Smart Functions

              • Supports multiple Video Content Analytics (VCA) events
              • Special camera smart functions can be configured, such as VCA detections (motion, line crossing, intrusion, etc.), heat mapping, LPR, etc.
              • POS information overlay on live view and playback, and POS-triggered recording and alarms
                • Network & Ethernet Access

                  • Two self-adaptive 10/100/1000 Mbps Ethernet interfaces
                  • PT Cloud & DDNS for easy network management
                  • Smooth streaming technology
                  • Supports web access without extra plug-ins


                    SPECIFICATIONS
                    SKU LTN8916-N
                    RECORDER TECHNOLOGY IP / NVR
                    RECORDER CASE 1.5U Case
                    RECORDER SERIES Platinum Series
                    RECORDER CHANNEL 16-Channel
