Free pickup in our shop(s)
SKU: 320853935462-EN1
$1,084.37 $1,022.99
Guaranteed secure & safe checkout.
Data sheet PDF
Product Description

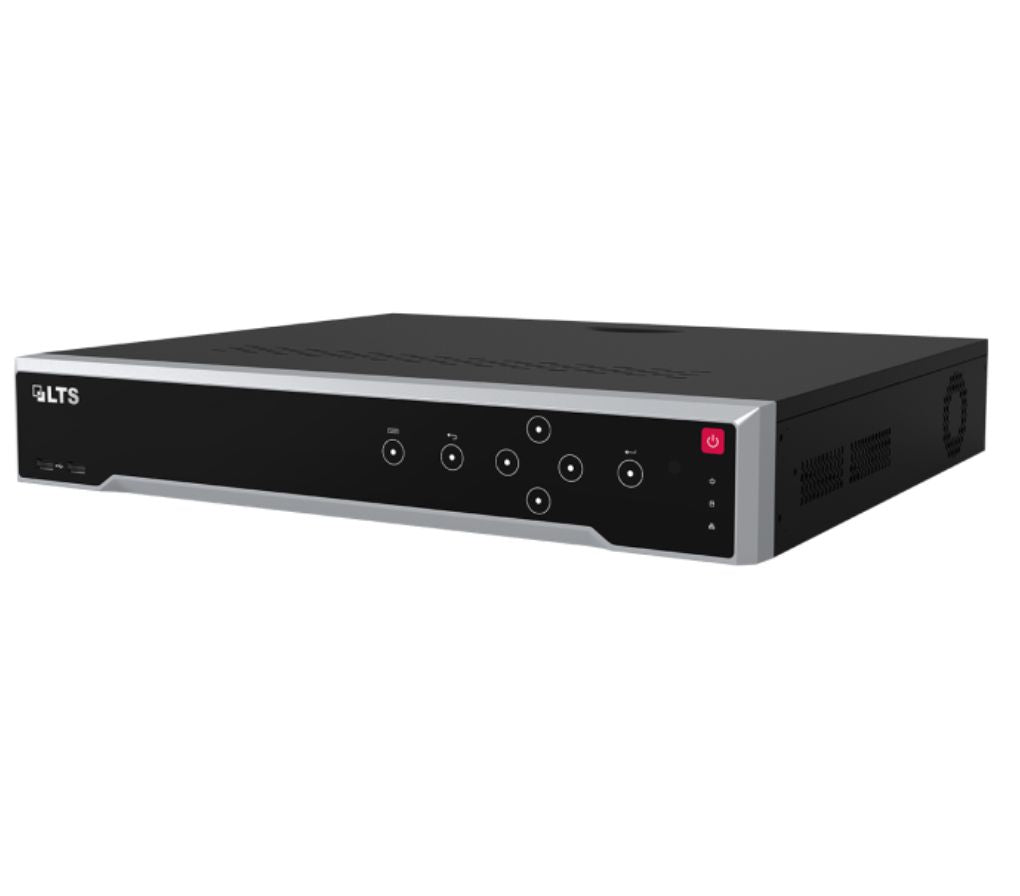

Platinum M-Series 32-Channel 8K NVR
Platinum, NVR, 32 channels, 4K, 320 Mbps, 16 PoE ports, Up to 32 MP recording, 4 x SATA ports for HDDs up to 14 TB each
Professional and Reliable
HD Video Output
Storage and Playback
POS & Smart Functions
Network & Ethernet Access
Specifications
Video and Audio
IP Video Input 32 channels, up to 32 MP resolution
Incoming Bandwidth 320 Mbps
Outgoing Bandwidth 400 Mbps
HDMI 1 Output
8K: 7680 ? 4320 / 30 Hz
4K: 3840 ? 2160 / 60 Hz, 3840 ? 2160 / 30 Hz
2K: 2560 ? 1440, 1920 ? 1080, 1600 ? 1200, 1280 ? 1024, 1280 ? 720, 1024 ? 768 / 60 Hz
HDMI 2 Output
4K: 3840 ? 2160 / 60 Hz, 3840 ? 2160 / 30 Hz
2K: 2560 ? 1440, 1920 ? 1080, 1600 ? 1200, 1280 ? 1024, 1280 ? 720, 1024 ? 768 / 60 Hz
VGA Output 1920 ? 1080, 1600 ? 1200, 1280 ? 1024, 1280 ? 720, 1024 ? 768 / 60 Hz
Video Output Mode HDMI1 / VGA simultaneous output, HDMI2 / VGA independent output
CVBS Output 1 ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
Audio Output 1 ch, RCA (Linear, 1 K?)
Two-Way Audio 1 ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
Decoding
Decoding Format H.265+ / H.265 / H.264+ / H.264
Recording Resolution
3, 4, 5, 6, 8, 12, 24, 32 MP / 1080p / UXGA / 720p/ V GA / 4CIF/ D CIF / 2CIF / CIF / QCIF
Synchronous Playback 16-channel
Decoding Capability 8 ch @ 8 MP (25 fps) / 16 ch @ 4 MP (30 fps) / 32 ch @ 1080p (30 fps)
Dual-Stream Recording Supported
Stream Type Video, Video & Audio
Audio Compression G.711 ulaw / G.711 alaw / G.722 / G.726 / AAC / MP2L2
Network
Remote Connections 128
Network Protocols
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP,
UPnP?, HTTP, HTTPS
Network Interface 1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface 16 x RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power ? 200 W
Standard IEEE 802.3 af / at
RAID
RAID Type N/A
Auxiliary Interface
eSATA 1 x eSATA interface
SATA 4 x SATA interfaces
Capacity Up to 14 TB capacity for each disk
Serial Interface 2 x RS-485 (half-duplex), 1 RS-232
Alarm In / Out 16 / 9
USB Interface Front panel: 2 ? USB 2.0; Rear panel: 1 ? USB 3.0
Ctrl 12V
Controllable 12 VDC, 1 A power output for external alarm device; power will be
turned on when the alarm output is triggered
Note: The Ctrl 12V power is controlled by alarm output 9
12 VDC 12 VDC, 1 A power output
General
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ? 15 W (without HDD and PoE off)
Operating Temperature 14? to 131? F (-10? to 55? C)
Operating Humidity 10% to 90%
Chassis 19-inch rack-mounted 1.5U chassis
Dimensions (W ? D ? H) 17.5 ? 15.7 ? 3.0 in. (445 ? 400 ? 75 mm)
Weight (without HDD) ? 11 lbs (5 kg)
Certifications
FCC Part 15 Subpart B, ANSI C63.4-2014
CE
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9,
EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
Dimensions (mm)
Physical Interface
No. Description No. Description
1 Network interfaces with PoE function 8 RS-232 serial interface
2 USB 3.0 interface and LAN interface 9 Alarm out
3 eSATA interface 10 Alarm in, alarm out, RS-485, Ctrl 12V
and DC 12V
4 Audio in and audio out 11 GND
5 HDMI 1 and HDMI 2 interfaces 12 100 to 240 VAC power supply
6 CVBS video output 13 Power switch
7 VGA output
Record video continuously—24 hours a day, 7 days a week—without interruptionComplete Coverage: Never miss an event, even during quiet hours. Reliable Evidence: Essential for reviewing incidents with accurate timelines. Peace of Mind: Know your property is monitored at all times. Ideal for High-Risk Areas: Great for businesses, warehouses, or remote properties that require constant surveillance. Perfect for anyone needing maximum security and a full visual record of all activity.
Mobile app access so you can monitor your home remotely which means you feel in control no matter where you are—whether you're at work, on vacation, or just out for dinner, your home is always just a tap away.
Scroll to see essential features found in this product and many others across our lineup
An 8MP camera or recorder captures ultra-clear footage with about 8 million pixels per frame—roughly 3840 × 2160 pix...
+
Protected Every Step of the Way From the moment you order to the day it arrives, we’ve got your back. If your gear...
+
Get Protected—Without the Wait We ship your order fast, so you can start securing your home right away. And if som...
+
No Monthly Fees One-time purchase. Lifetime protection. No contracts, no surprise charges—just smart, secure peace ...
+
Support That's Helpful, and Easy to Reach Whether you're setting things up, adding new devices, or troubleshooting...
+
Because When It Counts, Your Gear Has to Perform Every product we sell has been thoroughly tested for reliability, ...
+Our systems are built with advanced AI features, superior video quality, and long-term reliability—making them ideal for both residential and commercial security.
Yes, we provide professional installation services in select locations. Contact our support team for availability and scheduling.
Absolutely. Our systems support remote viewing via secure mobile apps, allowing you to monitor your property from anywhere.
All systems come with a standard 2-year warranty, with optional extended coverage for added peace of mind.
