Based on the uploaded datasheet, this recorder supports HDTVI, AHD, CVI, CVBS, and IP video input, so it is designed for mixed-camera environments instead of locking you into a single format. For the 4-channel model in the datasheet, the LTD8304K-ET has 4 analog video inputs and 2 IP channels by default, with support for up to 6 total IP channels. That makes it useful for buyers who want to keep existing coax cameras now and still leave room for IP expansion later. This is one of the most common concerns on product pages for this model family, and the datasheet clearly confirms that flexibility.

The datasheet lists H.265 Pro+, H.265 Pro, H.265, H.264+, and H.264 video compression, along with full channel recording at up to 5 MP lite resolution. It also shows multiple encoding resolutions, including 5 MP lite, 4 MP lite, 3 MP, 1080p lite, 720p lite, VGA, WD1, 4CIF, and CIF when 1080p Lite mode is enabled. For HDTVI input, the recorder supports 5 MP, 4 MP, 3 MP, 1080p, and 720p formats. That gives buyers a good range of recording options depending on the camera type and how much image detail they need to preserve.

Yes. The datasheet specifically says H.265 Pro+ can be enabled to improve encoding efficiency and reduce data storage costs. It also states that the DVR has 1 SATA interface and supports up to 10 TB capacity for each disk. That matters because better compression plus higher drive support can help you keep footage longer before running out of storage. For buyers comparing DVRs, storage efficiency is one of the key questions that comes up most often, and this spec sheet addresses it directly.

According to the datasheet, the recorder supports LTS-Connect and DDNS for easy network management. It also lists network protocols including TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, and ONVIF. The network interface is 1 RJ45 10M/100M self-adaptive Ethernet port, and the datasheet shows up to 32 remote connections for the 4-channel model. That means remote connectivity is clearly part of the intended use, which is why this is another question buyers often ask online before purchasing.

Yes. The datasheet lists audio via coaxial cable as a key feature, and it also includes 1-channel RCA audio input and 1-channel RCA audio output. It further states that two-way audio is supported using the first audio input, and audio compression is G.711u with a 64 Kbps audio bit rate. That can be important for installations where video alone is not enough and you want a recorder that can also handle audio-related needs.

How many cameras can I connect to the 4-channel version?
The datasheet for the LTD8304K-ET shows 4 analog channels and 2 IP channels by default, with support for up to 6 IP camera inputs total. It also notes IP video support up to 6 MP resolution, and support for H.265+, H.265, H.264+, and H.264 IP cameras. For someone building a smaller system, that means you can start with standard analog inputs and still add a few IP cameras if needed. It gives the recorder more flexibility than a strict analog-only DVR.

The datasheet lists 1 VGA output, 1 HDMI output, and 1 CVBS output. Both the VGA and HDMI outputs support 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, and 1024 × 768/60Hz. The CVBS output is a 1-channel BNC output with PAL and NTSC resolutions listed in the specification table. In practical use, that gives buyers multiple display connection options for local setup and day-to-day monitoring.

Yes. The datasheet says smart search is supported for efficient playback, which can help reduce the time spent manually reviewing recordings. It also states support for multiple VCA events for both analog and smart IP cameras, as well as 4-channel line crossing detection and intrusion detection. That matters because buyers often want more than just basic recording; they want a system that helps them find important events faster. The spec sheet shows this DVR was built with those kinds of smarter monitoring tools in mind.

For the LTD8304K-ET, the datasheet lists a 12 VDC power supply and power consumption of 6 W or less without the hard drive installed. The physical dimensions are 315 × 242 × 45 mm, which is about 12.4 × 9.5 × 1.8 inches. Weight without the hard drive is listed as 1.16 kg, or 2.6 lb. These details are useful when planning shelf space, cabinet fit, and power requirements before installation.

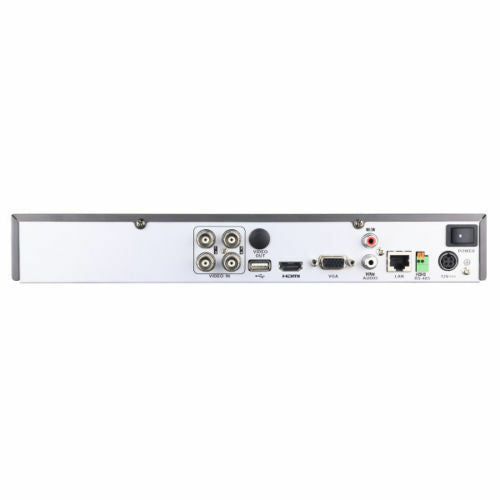

The rear-panel diagram on page 4 of the datasheet shows the main physical interfaces, including VIDEO IN, VIDEO OUT, AUDIO IN, AUDIO OUT, VGA, HDMI, USB, LAN, RS-485, power input, power switch, and GND. The specification pages also confirm 2 × USB 2.0 ports, 1 RJ45 network interface, 1 SATA interface, and RS-485 half-duplex serial interface. That is helpful for buyers because it gives a clear picture of what can be connected during installation. It also makes it easier to plan for local display, networking, storage, and PTZ-related wiring from the start.
