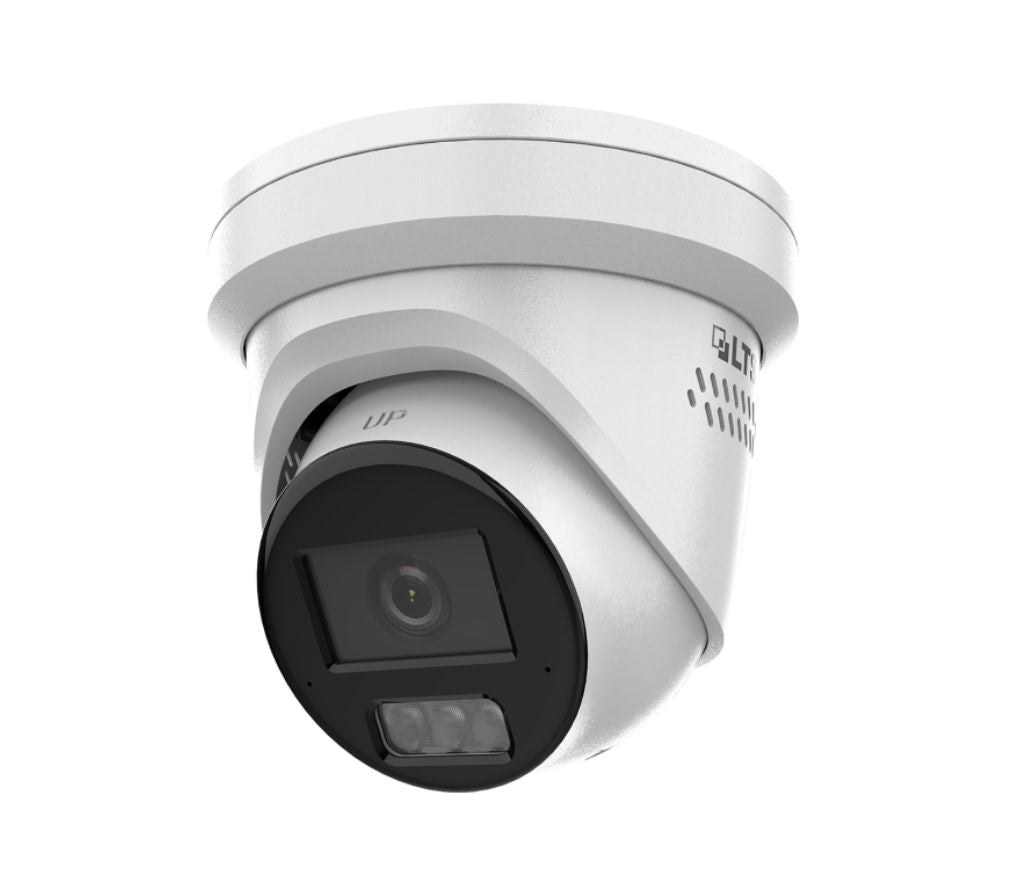

LTS CMIP3C82W-28MDAL 8MP Turret IP Color 24/7, Active Deterrence Camera

Data sheet PDF

Product Description

Platinum 8 MP Color 24/7 Fixed Turret IP Camera

Platinum Active Deterrence IP Camera, 8 MP, 1/1.2" Sensor, 2.8 mm, True WDR 130 dB, Built-in microphone, 12 VDC / PoE, Color 24/7, MD 2.0 - Human and vehicle detection

• High-quality imaging with 8 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong backlight with 130 dB WDR technology
• Real-time security via built-in two-way audio
• Audio and alarm interface available
• Water and dust resistant (IP67)
• Active deterrence features
• Color imaging 24/7
• MD 2.0 - Human and Vehicle Detection

Specifications
Camera
Image Sensor 1/1.2?? Progressive Scan CMOS
Max. Resolution 3840 ? 2160
Shutter Speed 1/3 sec. to 1/100,000 sec.
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Day & Night 24/7 Color imaging
Angle Adjustment Pan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm options
FOV Horizontal 102?, vertical 52?, diagonal 124?
Lens Mount M mount
Iris Type Fixed
Aperture F1.0
Depth of Field 4 m to ?
Detection, Observation, Recognition, Identification
DORI D: 315 ft (96 m), O: 125 ft (38 m), R: 62 ft (19 m), I: 30 ft (9 m)
Illuminator
Supplemental Light Type Visible; White Light
Supplemental Light Range Up to 30 m
Smart Supplemental Lighting Yes
Video
Main Stream
24 fps (3840 ? 2160)
30 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)
Sub-Stream 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)
Third Stream 10 fps (1920 x 1080, 1280 ? 720, 640 ? 480, 640 ? 360)
Video Compression
Main stream: H.265+ / H.265 / H.264+ / H.264
Sub-stream: H.265 / H.264 / MJPEG
Third stream: H.265 / H.264
Video Bit Rates 32 Kbps to 16 Mbps
H.264 Type Baseline Profile / Main Profile / High Profile
H.265 Type Main Profile
Bit Rate Control CBR / VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environmental Noise Filtering Yes
Audio Sampling Rates (kHz) 8 /16 / 32 / 44.1 / 48
Audio Compression G.711 ulaw / G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rates
64 Kbps (G.711 ulaw / G.711 alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192
Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket,
WebSockets
User / Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage NAS (NFS, SMB / CIFS), auto network replenishment (ANR)
Client LTS connect, NVMS, X-VMS
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Wide Dynamic Range (WDR) 130 dB
SNR ? 52 dB
Privacy Mask 8 programmable polygon privacy masks, mask color or mosaic configurable
Day / Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Interface
Ethernet Interface 1 RJ45 10/100 Mbps self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, supports MicroSD / SDHC / SDXC / TF cards, up to 512 GB
Built-in Microphone Yes
Built-in Speaker 1.5 W, 10 cm: 95 dB
Audio
1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 K?, interface
type: non-equilibrium
1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 ?,
interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC, 1 A)
Reset Key Yes
Event Types
Basic Events
Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exceptions / anomalies (network disconnected, IP
address conflict, illegal login, HDD full, HDD error)
Smart Events
Line crossing, intrusion, region entrance, region exiting (supports alarm triggering by
specified target types (human and vehicle)), and scene change detections
Linkage
Upload to NAS / memory card / FTP, notify surveillance center, trigger record,
trigger capture, send email
Other VCA Functions
Face Capture Yes
General
Power
12 VDC ? 25%, 0.63 A, max. 8.5 W, ?5.5 mm coaxial power plug, reverse polarity
protection
PoE: 802.3af, Class 3, 36 V to 57 V, 0.24 A to 0.15 A
Materials Cover: metal, main body: metal
Dimensions ? 5.4 ? 4.7 in.
Package Dimensions 6.7 ? 6.7 ? 5.9 in.
Weight Approx. 2.0 lbs
Package Weight Approx. 2.6 lbs
Storage Conditions -22? to 140? F. Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-22? to 140? F. Humidity 95% or less (non-condensing)
General Function Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter
Certifications
EMC
FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019,
EN 50130-4: 2011 + A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015
Safety
UL: UL 62368-1
CB: IEC 62368-1: 2014 + A11
CE-LVD: EN 62368-1: 2014/A11: 2017
Environmental
CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protections IP67: IEC 60529-2013
