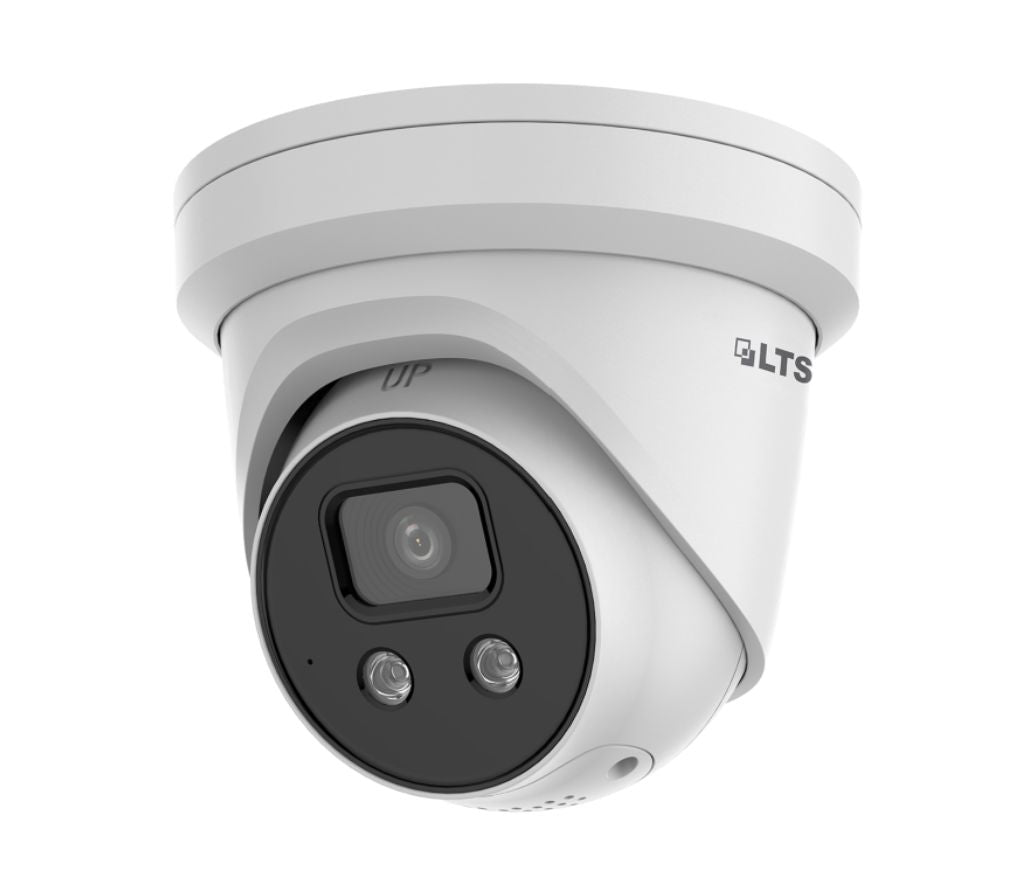

LTS CMIP3D82W-28SDA-SL 8MP Turret IP Full IR Active Deterrence Camera

Data sheet PDF

Product Description

Platinum 8 MP Fixed Turret IP Camera

Platinum, IP, 4K, 1/1.8" Sensor, 2.8 mm, True WDR 120 dB, Built-in Microphone, 12 VDC / PoE, Active Deterrence, MD 2.0 - Human and Vehicle Detection

• High-quality imaging with 8 MP resolution
• Excellent low-light performance
• Clear image against strong backlight with 120 dB true WDR
• Efficient H.265+ compression technology
• Provides real-time security via built-in two-way audio
• Water and dust resistant (IP67)
• Active deterrence
• MD 2.0 - Human and vehicle detection

Specifications
Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC on), B/W: 0 Lux with IR
Shutter Speed 1/3 to 1/100,000 sec.
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night IR cut filter
Angle Adjustment Pan: 0? to 360?, tilt: 0? to 75?, rotate: 0? to 360?
Lens
Lens Type Fixed focal lens, 2.8mm
Iris Type Fixed
Field of View Angle Horizontal 111?, vertical 59?, diagonal 131?
Aperture F1.6
Lens Mount M12
Detection, Observation, Recognition, Identification
DORI D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
Illuminator
Supplemental Light Type IR
IR Range Up to 98 ft (30 m)
IR Wavelength 850 nm
Smart Supplement Light Yes
Visual Alarm Yes
Video
Max. Resolution 3840 ? 2160
Main Stream
24 fps (3840 ? 2160)
30 fps (3200 ? 1800, 2688 ? 1520, 1920 ? 1080, 1280 ? 720)
Sub-Stream 30 fps (1280 ? 720, 640 ? 480, 640 ? 360)
Third Stream
10 fps (1920 ? 1080, 1280 ? 720, 640 ? 480, 640 ? 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.264 / H.264+ / H.265 / H.265+
Sub-stream: MJPEG / H.264 / H.265
Third stream: H.264 / H.265
*Third stream is supported under certain settings.
Video Bit Rates 32 Kbps to 16 Mbps
H.264 Type Baseline Profile / Main Profile / High Profile
H.265 Type Main Profile
H.264+ Main stream supported
H.265+ Main stream supported
Bit Rate Control CBR / VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Audio Type Mono sound
Environmental Noise Filtering Yes
Audio Sampling Rate 8 / 16 / 32 / 44.1 / 48 kHz
Audio Compression G.711 ulaw / G.711 alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
Audio Bit Rates
64 Kbps (G.711 ulaw / G.711 alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) /
32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket,
WebSockets
User / Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB / CIFS), auto network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported.
Client NVMS, LTS Connect, XVMS
Web Browsers
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Imaging
Signal-to-Noise Ratio (SNR) ? 52 dB
Target Cropping Yes
Day / Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
Interface
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
Audio
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7
K?, interface type: non-equilibrium;
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output
impedance: 100 ?, interface type: non-equilibrium;
1 built-in speaker, 1 built-in microphone
Built-in Microphone Yes
Built-in Speaker Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB.
On-Board Storage Built-in MicroSD / SDHC / SDXC slot, up to 512 GB
Hardware Reset Yes
Ethernet Interface 1 RJ45 10/100 Mbps self-adaptive Ethernet port
Event Types
Basic Events
Motion detection (human and vehicle targets classification), video tampering alarm,
exceptions / anomalies
Smart Events Scene change detection
Other VCA Function
Face Capture Yes
Perimeter Protections
Line crossing, intrusion, region entrance, and region exiting detections
Supports human and vehicle targets classification
General
Linkage Method
Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger
recording, trigger capture, trigger alarm output, audible warning, strobe light
General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel
counter
Software Reset Yes
Firmware Version V5.5.112
Storage Conditions -22? to 140? F
Startup and Operating
Conditions
-22? to 140? F
Power Supply
12 VDC ? 25%, reverse polarity protection
PoE: 802.3af, Class 3
Power Consumption and Current
12 VDC, 0.75 A, max. 9 W
PoE (802.3 af, 36 V to 57 V), 0.28 A to 0.17 A, max. 10 W
Power Interface ?5 .5 mm coaxial power plug
Camera Materials Metal except for trim ring
Camera Dimensions ? 5.4 ? 4.9 in.
Package Dimensions 6.9 ? 6.9 ? 5.9 in.
Camera Weight Approx. 1.9 lbs
Package Weight Approx. 2.6 lbs
Certifications
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 );
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 )
Environmental CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protections IP67 (IEC 60529-2013)
