Product Description

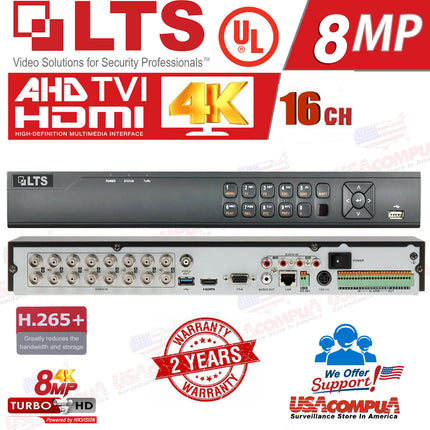

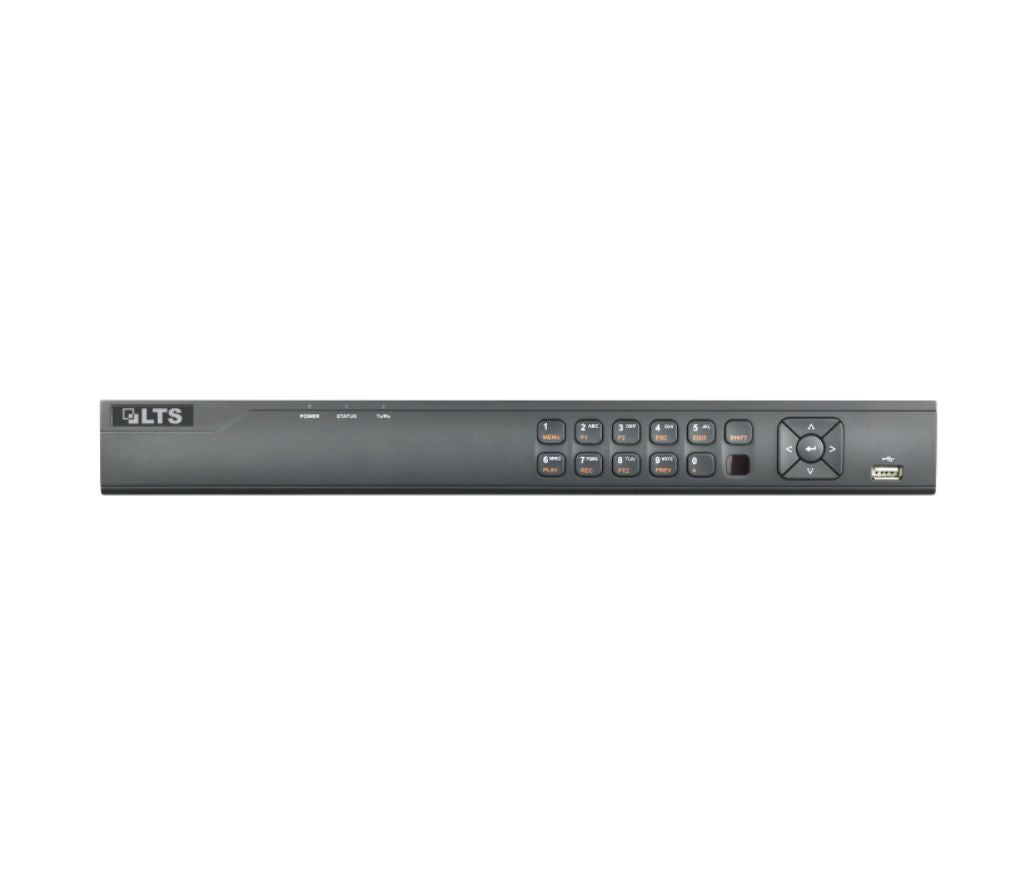

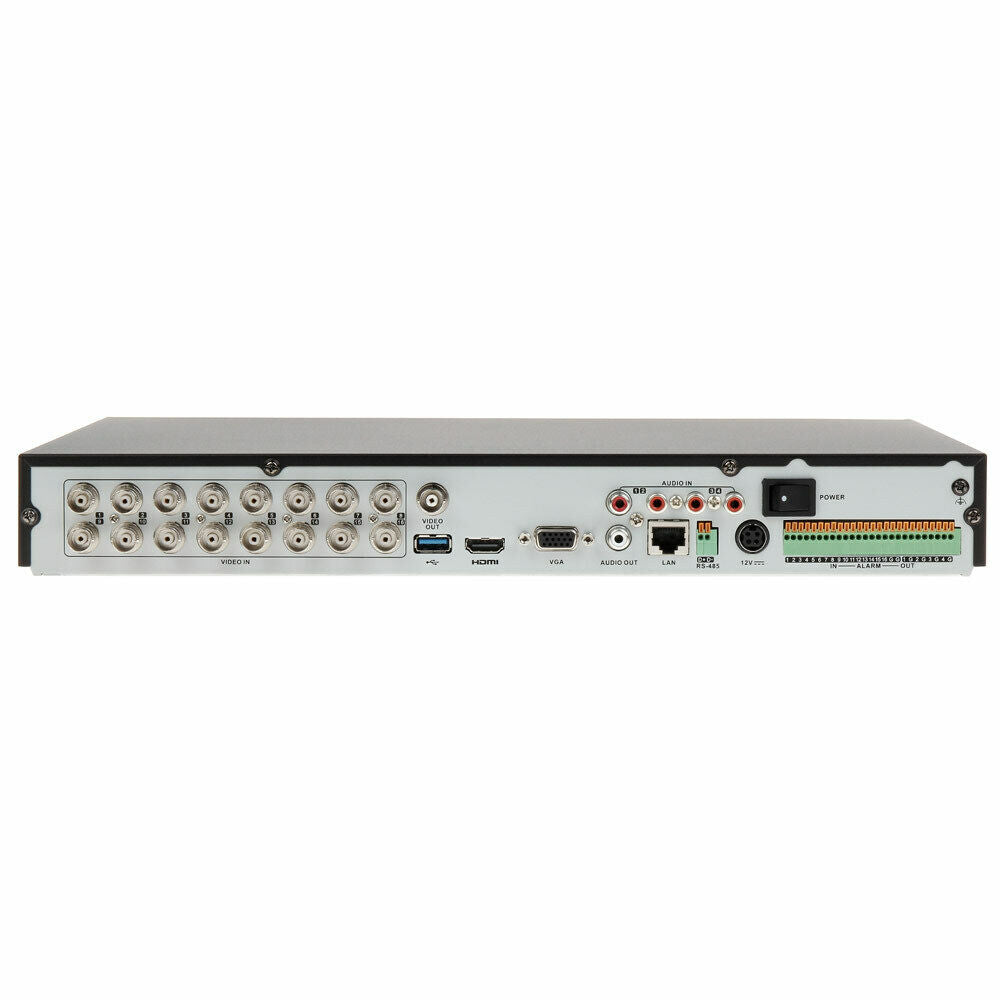

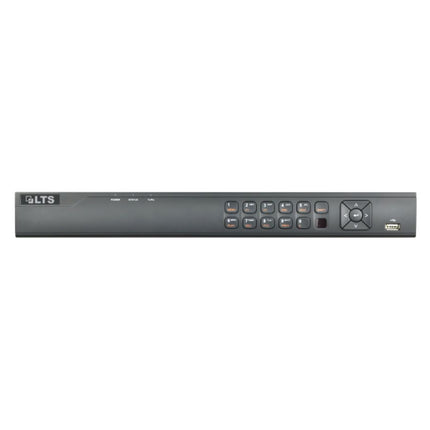

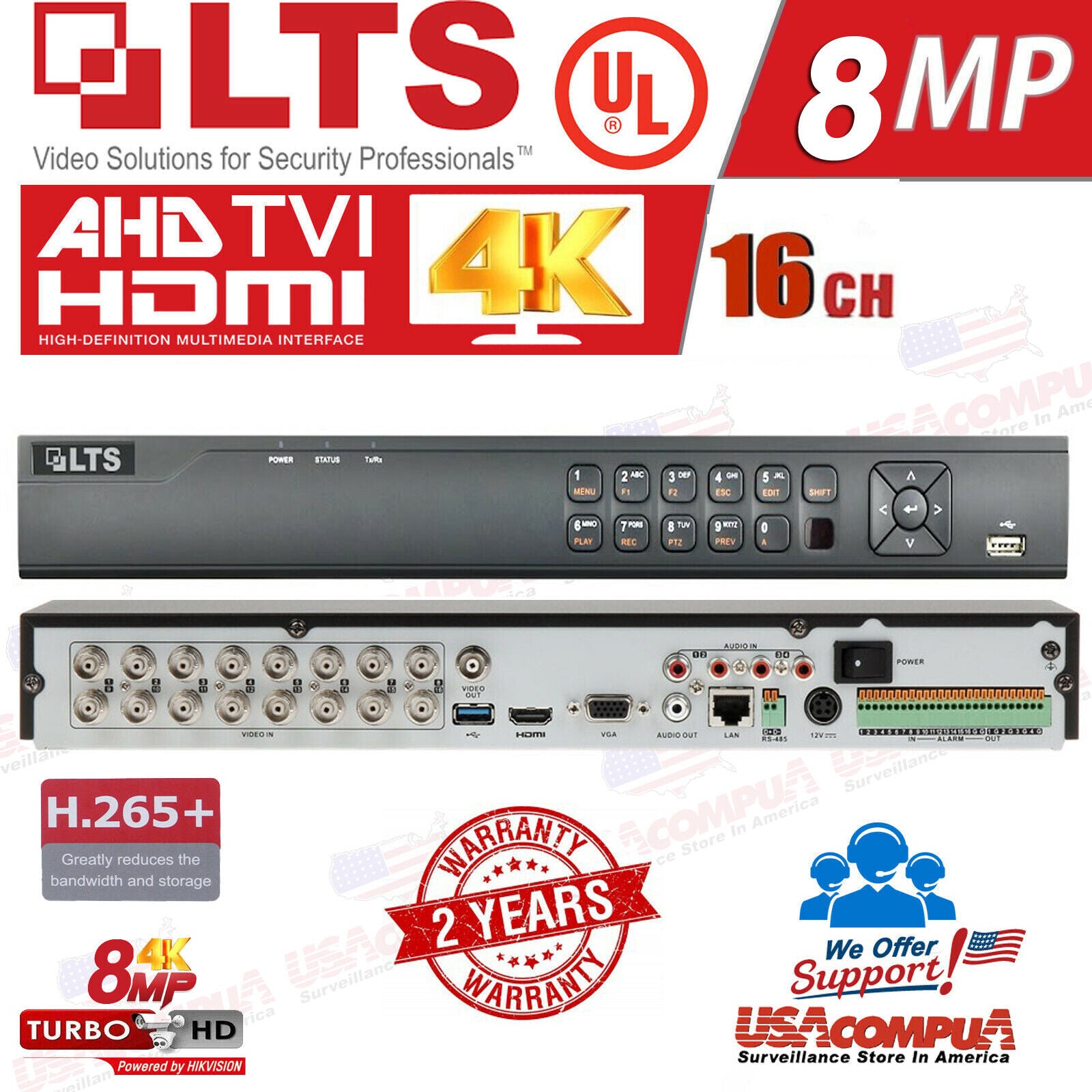

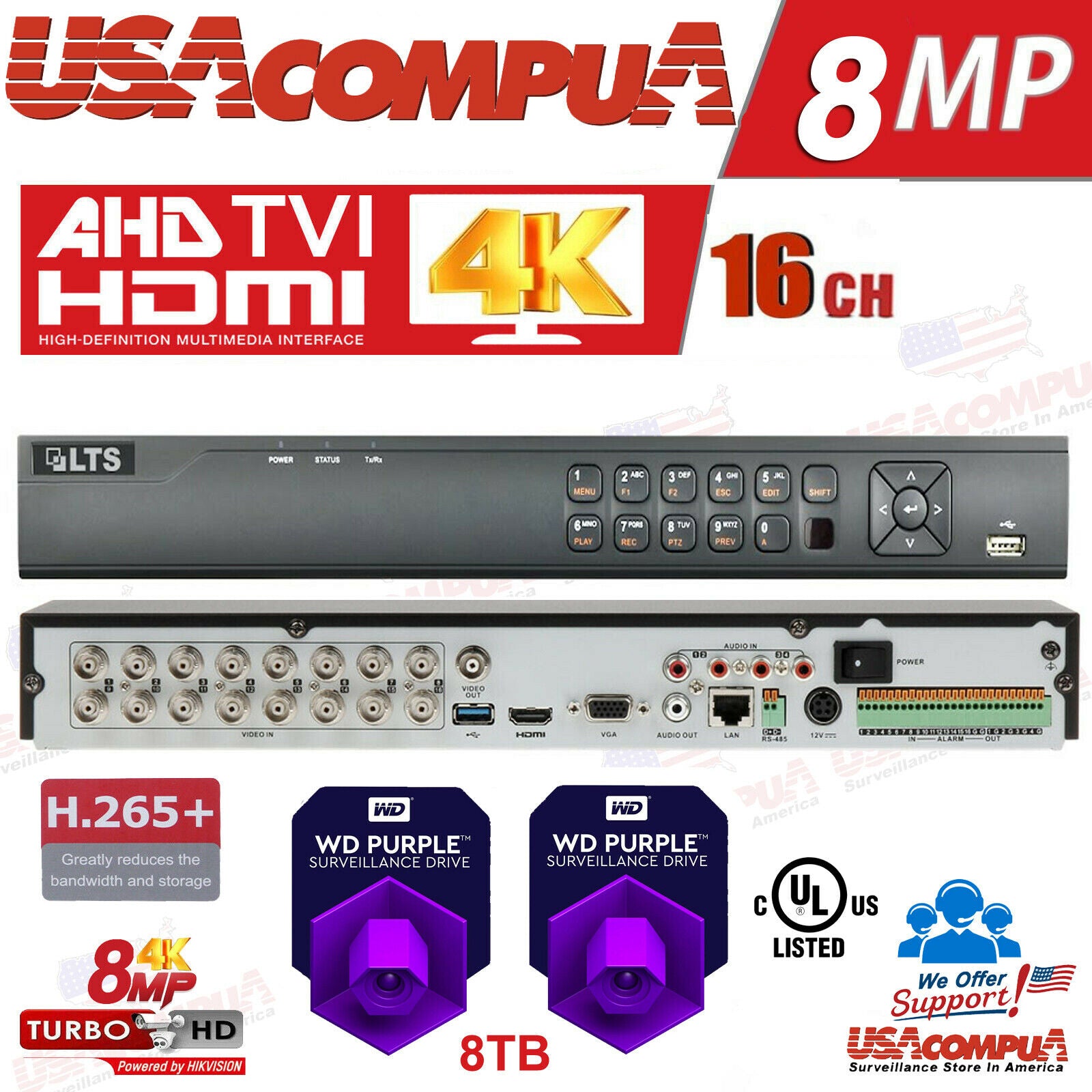

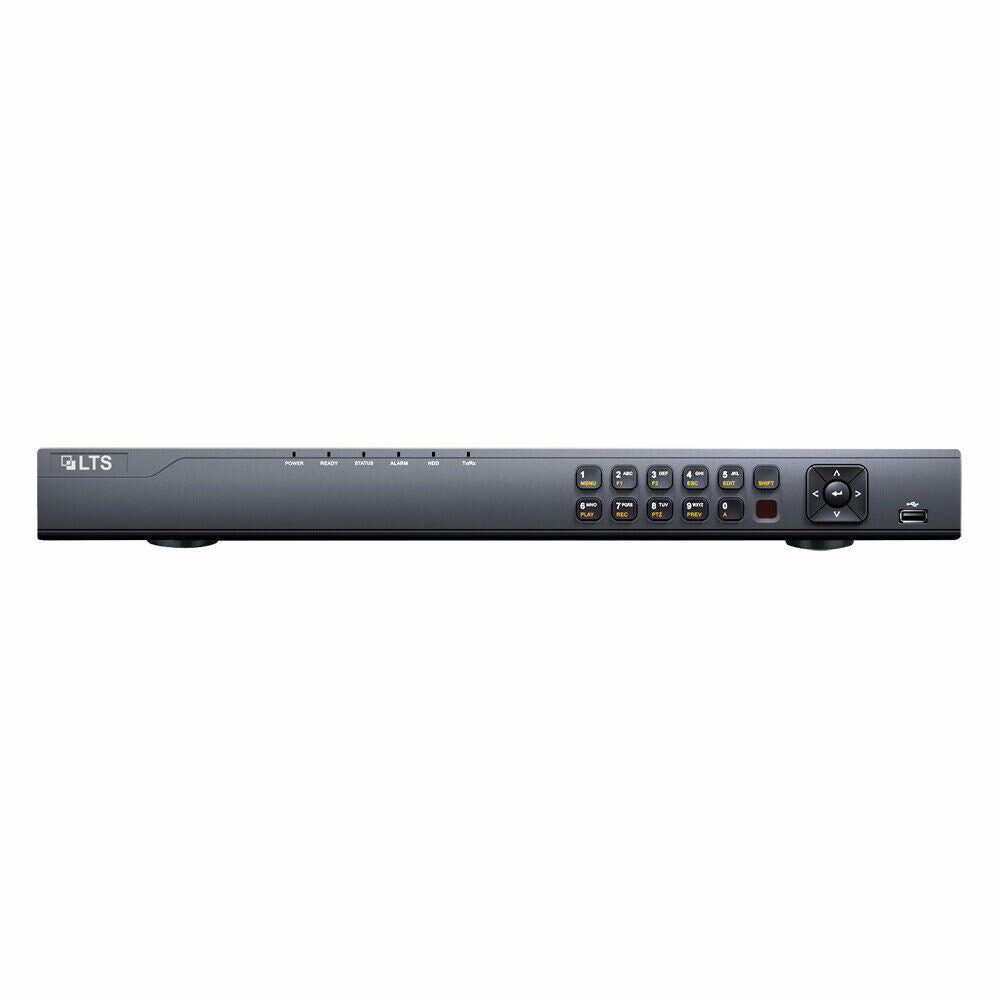

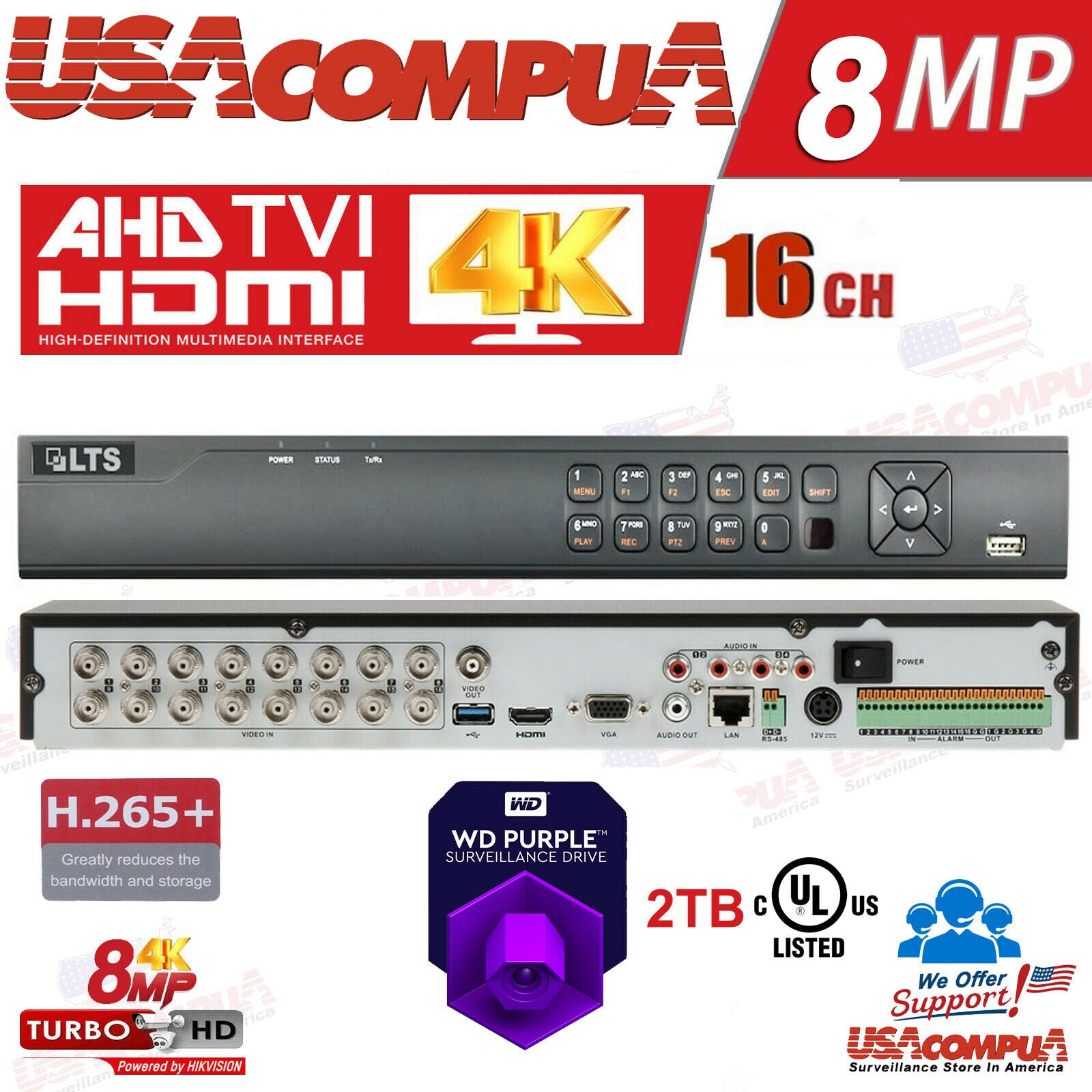

Platinum Professional Level 16 Channel HD-TVI 4.0 DVR

H.265/H.265+ 16CH DVR, 4/1 RCA I/O, 5 in 1, Up to 4K/8MP HD-TVI input, Up to 2-ch 6MP IP cameras input, Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras, Up to 4k HDMI Video Output, CVBS Output, 2 SATA up to 16TB each HDD, 2 USB 2.0

  • H.265/H.265+ 16 Channel Video Recorder
  • 4/1 RCA I/O
  • 16 channels support HD-TVI / AHD/ ANALOG / CVI / IP input (5 in 1)
  • 16 channels support up to 4K/8MP HD-TVI input
  • Up to 2-ch 6MP IP cameras input
  • Support Live View, Storage, Playback up to 16 HD-TVI/Analog Cameras + 2 IP Cameras
  • Up to 4k HDMI Video Output
  • CVBS Output
  • 2 SATA up to 16TB HDD
  • 2 USB 2.0


SPECIFICATIONS

Model

LTD8508K-ST

LTD8516K-ST

Recording

Video compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding resolution

When 8 MP Lite mode is not enabled:

8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF

When 8 MP Lite mode is enabled:

8 MP Lite/5 MP/4 MP/3MP/1080P/720P/WD1/4CIF/VGA/CIF

Frame rate

Main stream:

When 8 MP Lite mode is not enabled:

8 MP@8 fps/5MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) When 8 MP Lite mode enabled:

8 MP Lite/5 MP@12 fps/4 MP/3MP/1080P/720P/WD1/4CIF/VGA/CIF@15 fps

Sub-stream:

WD1/4CIF/CIF@25fps (P)/30fps (N)

Video bit rate

32 Kbps to 10 Mbps

Dual stream

Support

Stream type

Video, Video & Audio

Audio compression

G.711u

Audio bit rate

64 Kbps

Video and Audio

IP video input

8-ch (up to 16-ch)

16-ch (up to 32-ch)

Up to 8 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog video input

8-ch

16-ch

BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection

HDTVI input

8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

AHD input

5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI input

5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS input

PAL/NTSC

CVBS output

1-ch, BNC (1.0 Vp-p, 75 ?),

resolution: PAL: 704 ? 576, NTSC: 704 ? 480

VGA output

1-ch, 1920 ? 1080/60Hz, 1280 ? 1024/60Hz, 1280 ? 720/60Hz,

1024 ? 768/60Hz

HDMI output

1-ch, 4K (3840 ? 2160)/30Hz, 2K (2560 ? 1440)/60Hz, 1920 ? 1080/60Hz, 1280 ?

1024/60Hz, 1280 ? 720/60Hz, 1024 ? 768/60Hz

Audio input

4-ch, RCA (2.0 Vp-p, 1 K?)

Audio output

1-ch, RCA (Linear, 1 K?)

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 K?) (using the first audio input)

Synchronous

playback

8-ch

16-ch



Buyer Before & After Protection

Buyer Before & After Protection

All orders are protected, in case your item gets lost, delayed or arrives damaged. We'll make it right, zero out of pocket cost.

Get advanced protection, and even faster delivery in case of an emergency if you use Shop Pay or Paypal at checkout.

Trusted and Tested Products

Trusted and Tested Products

Every product we've added to our catalog has been thoroughly tested for reliability, durability, and real-world performance, so you’re not gambling with your safety.

In order for a product to be added it has to pass: Environmental Testing (Heat and Cold), Tamper Resistance, and for advanced systems 99% Alert Accuracy.

secure payment

Secure Payment

Shop with confidence knowing your payments are secure and your information

Network

Remote connection

64

128


Network protocol

TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,

ONVIF


Network interface

1, RJ45 10M/100M/1000M

self-adaptive Ethernet interface

Auxiliary interface

SATA

2 SATA interfaces

Capacity

Up to 10 TB capacity for each disk

Serial interface

RS-485 (half-duplex)


USB interface

Front panel: 1 ? USB 2.0

Rear panel: 1 ? USB 3.0

Alarm in/out

8/4

16/4

General

Power supply

12 VDC, 3.33 A

12 VDC, 5 A

Consumption

(without HDD)


? 20 W


? 25 W

Working temperature

-10 ?C to +55 ?C (+14 ?F to +131 ?F)

Working humidity

10% to 90%

Dimension (W ? D ?

H)


380 ? 320 ? 48 mm (15.0 ? 12.6 ? 1.9 inch)

Weight (without

HDD)


? 1.78 kg (3.9 lb)


? 2 kg (4.4 lb)

*: Normally, only CH1/CH2 support VCA.

If "Enhance VCA" mode is on, all channels support VCA, but Max Res only 2MP.

Network

Remote connection

64

128


Network protocol

TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP?, HTTPS,

ONVIF


Network interface

1, RJ45 10M/100M/1000M

self-adaptive Ethernet interface

Auxiliary interface

SATA

2 SATA interfaces

Capacity

Up to 10 TB capacity for each disk

Serial interface

RS-485 (half-duplex)


USB interface

Front panel: 1 ? USB 2.0

Rear panel: 1 ? USB 3.0

Alarm in/out

8/4

16/4

General

Power supply

12 VDC, 3.33 A

12 VDC, 5 A

Consumption

(without HDD)


? 20 W
