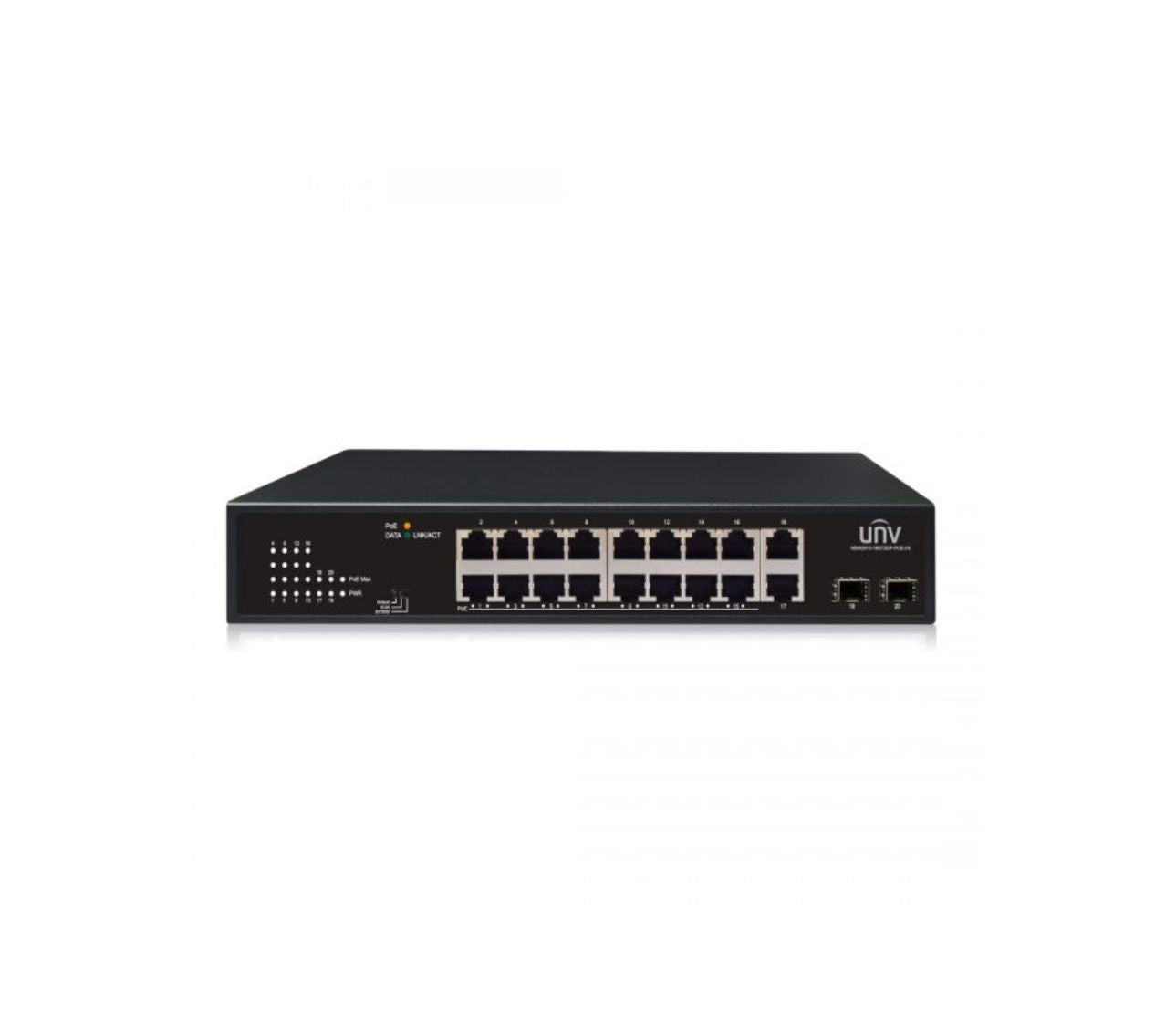

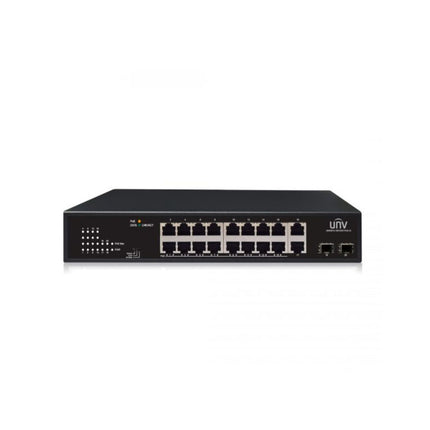

NSW2010-18GT2GP-POE-IN
NSW2010-18GT2GP-POE-IN
Hurry up, only 9 items left in stock.
products.product.pickup_availabilities
Description
Description
NSW2010 Series
Features
Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
Supports PoE Power up to 30W for each PoE port;
Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
Line-speed forwarding, intelligent identification
Supports storage ? and- forward for Data exchange;
Support RJ45 Auto-MDI/MDIX
Product Support & Shipping Details
Product Support & Shipping Details
We move quickly so you don’t have to wait, place your order before 3pm EST and it ships out the same day, with everything else going out the next business day. Most customers see their package in about 3 business days, giving you a smooth, predictable delivery experience.
For Support you’re never on your own with us. if something comes up, our U.S.-based support team is here to help you troubleshoot, set up, or get answers fast. We make sure you always know exactly what to do next so your product keeps working the way you need it to.
30 Day Returns & Money Back Guarantee
30 Day Returns & Money Back Guarantee
If the product isn’t the right fit, no worries—our 30-day money-back guarantee gives you the space to try it without the pressure. You can return it within 30 days as long as it’s in its original condition. And to keep things simple, you can start the return right from your account, no hassle, no long back-and-forth.
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Technical Specifications
Data sheet PDF
Product Description
NSW2010 Series
Features
Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
Supports PoE Power up to 30W for each PoE port;
Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
Line-speed forwarding, intelligent identification
Supports storage ? and- forward for Data exchange;
Support RJ45 Auto-MDI/MDIX
Specification
Model NSW2010-5GT-POE-IN NSW2010-10GT-POE-IN NSW2010-18GT2GP-POE-IN NSW2010-26GT2GC-POE-IN
Ports 4?1000Mbps PoE ports (RJ45)+1?1000Mbps ports(RJ45) 8?1000Mbps PoE ports (RJ45)+2?1000Mbps ports(RJ45) 16?1000Mbps PoE ports (RJ45)+2?1000Mbps ports(RJ45)+2?1000Mbps ports?SFP? 24?1000Mbps PoE ports (RJ45)+2?1000Mbps ports(RJ45)+2?1000Mbps ports?Combo?
Standards IEEE802.3,IEEE802.3u,IEEE802.3az,IEEE802.3x,IEEE802.3af,IEEE802.3at IEEE802.3,IEEE802.3u,IEEE802.3z,IEEE802.3ab,IEEE802.3x,IEEE802.3af,IEEE802.3at,IEEE802.3az
Switching capacity 10Gbps 20Gbps 40Gbps 56Gbps
Forwarding performance 7.44Mpps 14.88Mpps 29.76Mpps 41.7Mpps
Packet Buffer 1M bit 2Mbit 4M bit 4Mbit
MAC 2K 2K 8K 8K
Dimensions (W?D?H) 140mm x 76.7mm x 27.7mm
(5.5"?3"?1.1") 220mm x 150mm x 44mm
(8.7"?5.9"?1.7") 280mm x 180mm x 44mm
(11"?7.1"?1.7") 440mm x 207mm x 44mm
(17.3"?8.1"?1.7")
Weight <1kg <1.24kg <4.2kg <5kg
Input Voltage AC: 100-240V, 50/60Hz
MAX. Power 65W 130W 200W 400W
PoE 802.3at/af?Mode A?1/2+?3/6-
Max. PoE Power Max capacity: 60W
Max capacity for single port: 30W Max capacity: 120W
Max capacity for single port: 30W Max capacity: 185W
Max capacity for single port: 30W Max capacity: 370W
Max capacity for single port: 30W
Cooling Fans 0 1 1 2
Operating Temperature 0?C ~ 40 ?C
Storage Temperature -40 ?C ~ 70 ?C
Operating Humidity 10% ~ 90% non-condensing
Storage Humidity 5% ~ 90% non-condensing
Indicator PWR(Green), LNK/ACT(Green), PoE(Orange)
Working Mode No Default(Normal mode) : All ports can communicate with each other.
VLAN(Secure mode): Downlink ports can communicate only with uplink ports.
EXTEND(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.
