Hikvision DS-2CD2H83G2-IZS — Datasheet

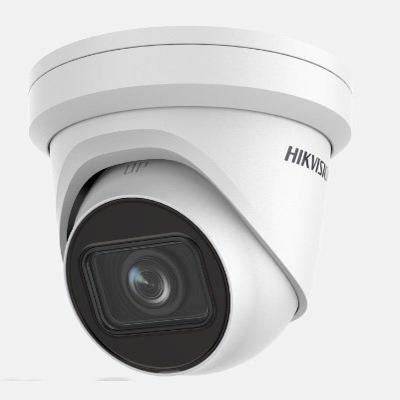

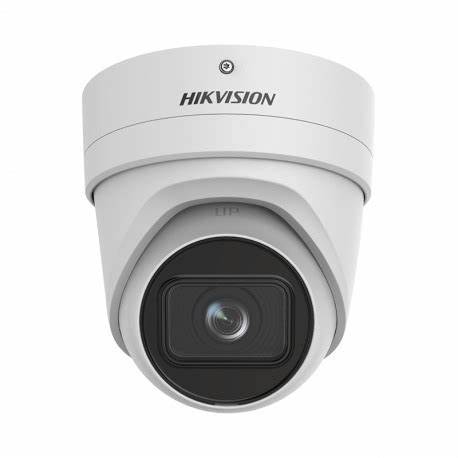

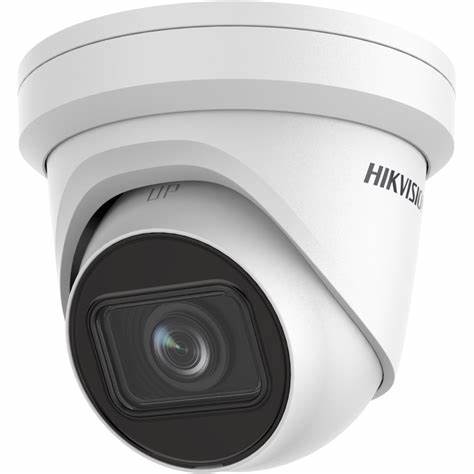

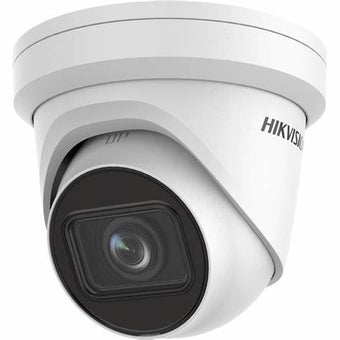

Hikvision DS-2CD2H83G2-IZS

8 MP AcuSense Motorized Varifocal Turret Network Camera

Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle classification to front- and back-end devices, improving alarm efficiency and effectiveness.

Key Features

  • High quality imaging with 8 MP (3840 × 2160) resolution
  • Motorized varifocal lens 2.8–12 mm for flexible coverage
  • Efficient H.265+ compression technology
  • 120 dB true WDR for strong backlight scenes
  • AcuSense human & vehicle target classification (deep learning)
  • IR up to 40 m for night imaging
  • Audio/Alarm I/O interfaces available
  • IP67 weather resistance & IK10 vandal resistance

Camera

Image Sensor
1/2.8" Progressive Scan CMOS
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s; Slow Shutter: Yes
Day & Night
IR cut filter
Wide Dynamic Range
120 dB
Angle Adjustment
Pan: 0°–360°; Tilt: 0°–75°; Rotate: 0°–360°

Lens

Type
Varifocal, motorized, 2.8–12 mm
Aperture / Iris
F1.6, Fixed iris; Mount Ø14
Field of View
HFOV 108°–30°; VFOV 56°–17°; DFOV 131°–35°

DORI (2.8–12 mm)

Detect (D)
97 m – 290 m
Observe (O)
38 m – 115 m
Recognize (R)
19 m – 58 m
Identify (I)
9 m – 29 m

Illuminator

Supplement Light
IR (Smart IR)
IR Wavelength
850 nm
IR Range
Up to 40 m

Video

Max. Resolution
3840 × 2160
Main Stream (50 Hz)
20 fps (3840×2160); 25 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
Main Stream (60 Hz)
20 fps (3840×2160); 30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
Sub Stream
50 Hz: 25 fps (640×480, 640×360) · 60 Hz: 30 fps (640×480, 640×360)
Third Stream
50/60 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360) *Supported under certain settings
Compression
Main: H.265/H.264/H.264+/H.265+ · Sub: H.265/H.264/MJPEG · Third: H.265/H.264
Profiles
H.264 Baseline/Main/High · H.265 Main
Bit Rate
32 Kbps – 16 Mbps; CBR/VBR; SVC (H.264/H.265)
ROI
1 fixed region (main & sub-stream)

Audio

Compression
G.711u/G.711a/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Bit Rate
64 Kbps (G.711u/G.711a) · 16 Kbps (G.722.1/G.726/AAC) · 32–192 Kbps (MP2L2) · 8–320 Kbps (MP3)
Sampling Rate
8/16/32/44.1/48 kHz
Noise Filtering
Yes

Network

Protocols
TCP/IP, ICMP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Live View
Up to 6 channels
API
ONVIF (Profile S, G), ISAPI, SDK
Users
Up to 32 (admin / operator / user)
Security
Password protection, HTTPS, IP filter, Security Audit Log, HTTP/HTTPS basic & digest auth, TLS 1.1/1.2, WSSE for ONVIF
Network Storage
NAS (NFS, SMB/CIFS), ANR
Clients
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in: IE10/IE11 · Plug-in free: Chrome 57+, Firefox 52+ · Local service: Chrome 57+, Firefox 52+


Parameter Switch
Yes
Settings
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance
Day/Night Switch
Day, Night, Auto, Schedule
Enhancements
BLC, HLC, 3D DNR
SNR
≥ 52 dB

Interfaces

Ethernet
1 × RJ45 10/100M self-adaptive
On-board Storage
microSD slot, up to 256 GB
Audio
1 in (line in, 3.3 Vpp max, 4.7 kΩ), 1 out (line out, 3.3 Vpp max, 100 Ω), two-core terminal, non-equilibrium
Alarm
1 in / 1 out (max. 24 VDC/24 VAC, 500 mA)
Hardware Reset
Yes

Events

Basic
Motion detection (human/vehicle classification), video tampering, exception
Smart
Line crossing, intrusion detection, human/vehicle classification
Face Detection
Yes
Linkage
Upload to FTP/memory card/NAS, notify center, trigger recording/capture, email

General

Material
Aluminum alloy body
Dimensions
Ø 138.3 × 126 mm (Ø 5.5" × 5.0")
Weight
Approx. 830 g (1.8 lb); With package 1160 g (2.6 lb)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH (non-cond.)
Startup/Operating
-30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH (non-cond.)
Languages
33 languages (incl. EN, RU, DE, FR, ES, PT, IT, ZH-TW, JA, KO, TR, TH, VI, etc.)
General Functions
Anti-flicker, heartbeat, password reset via email, pixel counter
Firmware
V5.5.113; Software reset: Yes

Power

Supply
12 VDC ±25% (reverse polarity protection) · PoE: 802.3af, Class 3
Consumption
12 VDC: 0.92 A, max 11.04 W · PoE (36–57 V): 0.35–0.22 A, max 12.5 W
Power Interface
Ø 5.5 mm coaxial power plug

Compliance & Protection

EMC
FCC Part 15 Subpart B; CE-EMC (EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4); RCM; IC; KC
Safety
UL 60950-1; CB (IEC 60950-1); CE-LVD
Environment
CE-RoHS; WEEE; REACH
Ingress / Impact
IP67; IK10

Available Model

DS-2CD2H83G2-IZS (2.8 to 12 mm)

Optional Accessories

  • DS-1273ZJ-140 Wall Mount
  • DS-1280ZJ-PT6 Junction Box
  • DS-1271ZJ-140 Pendant Mount

Doc: 050511320210318 · Firmware V5.5.113
