Technical Specifications

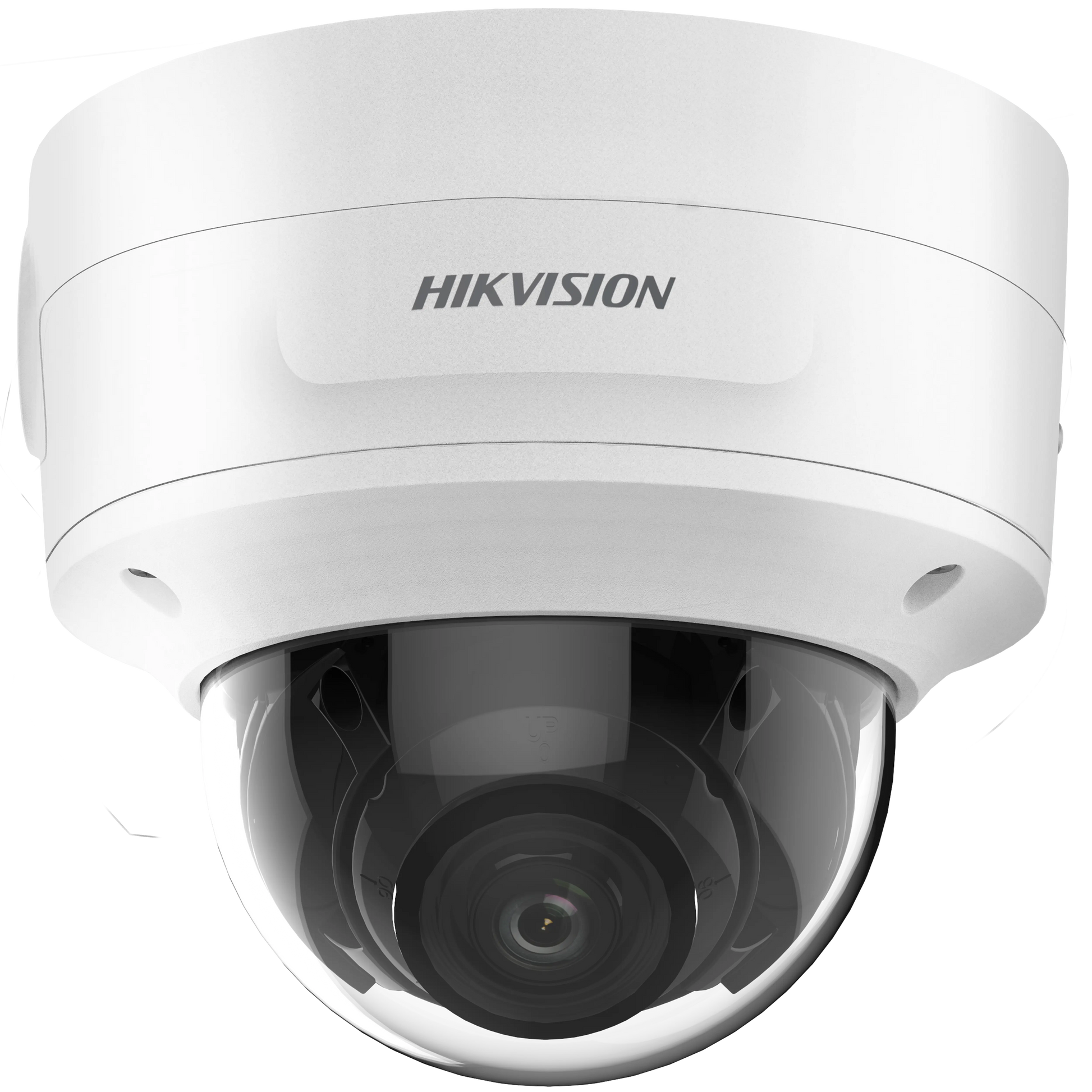

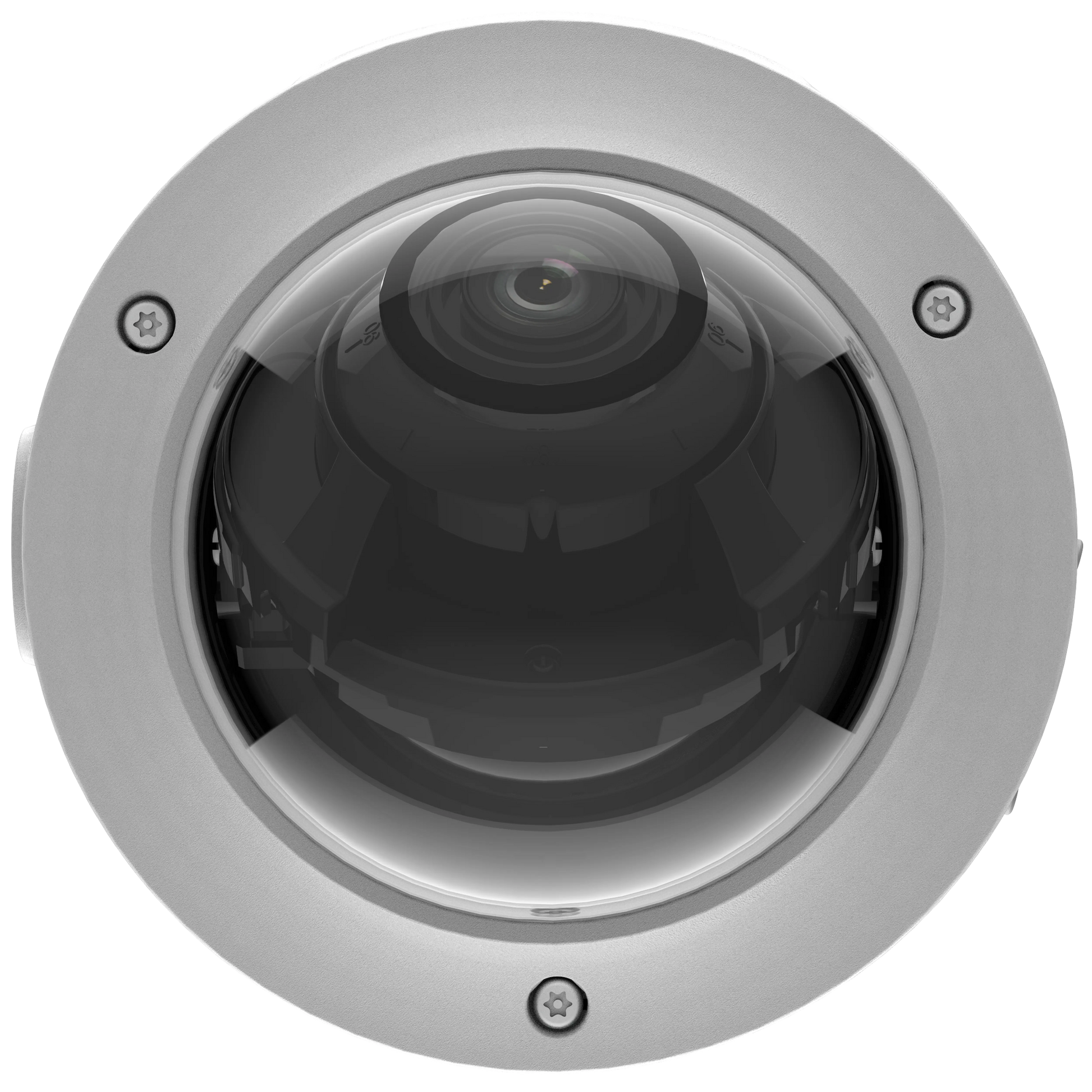

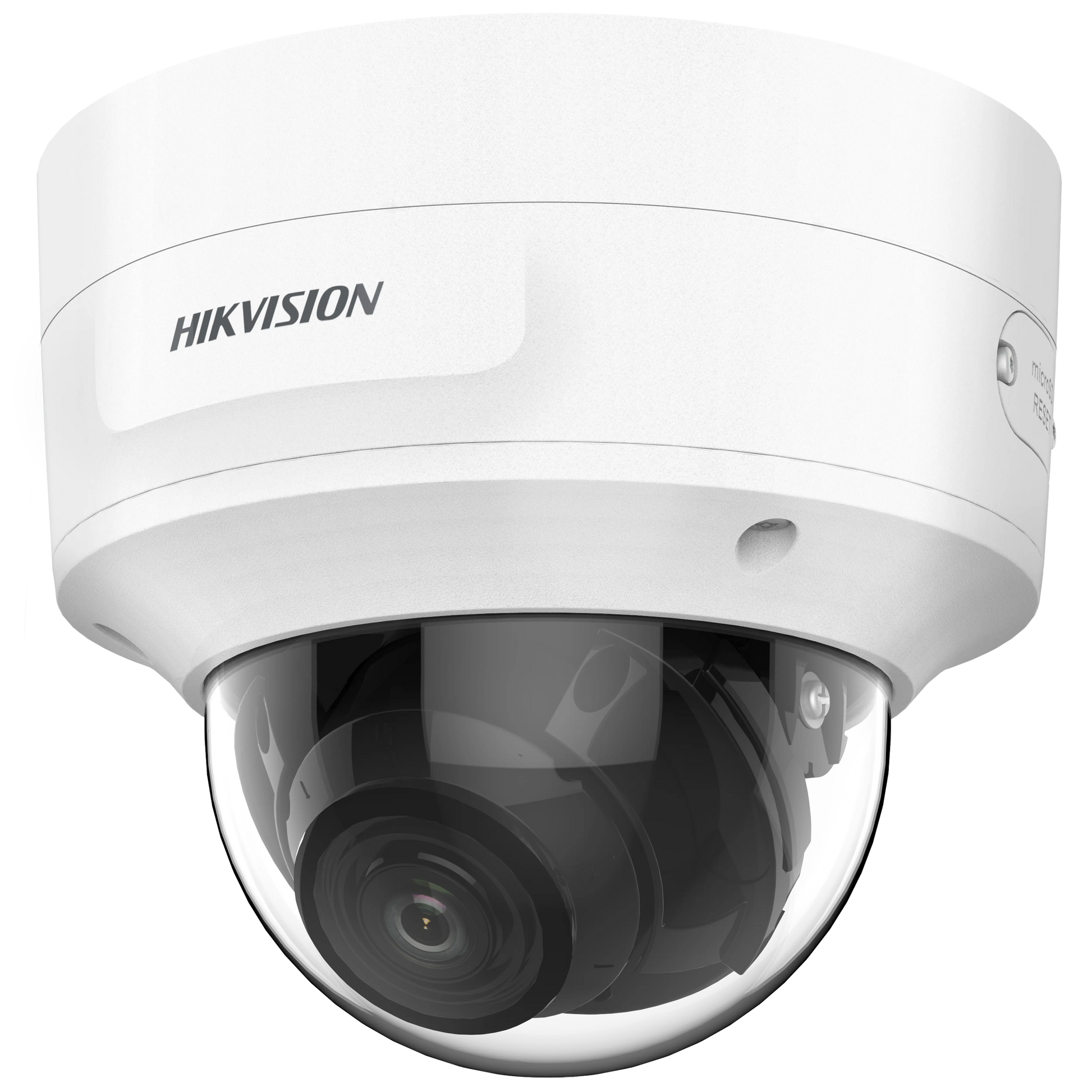

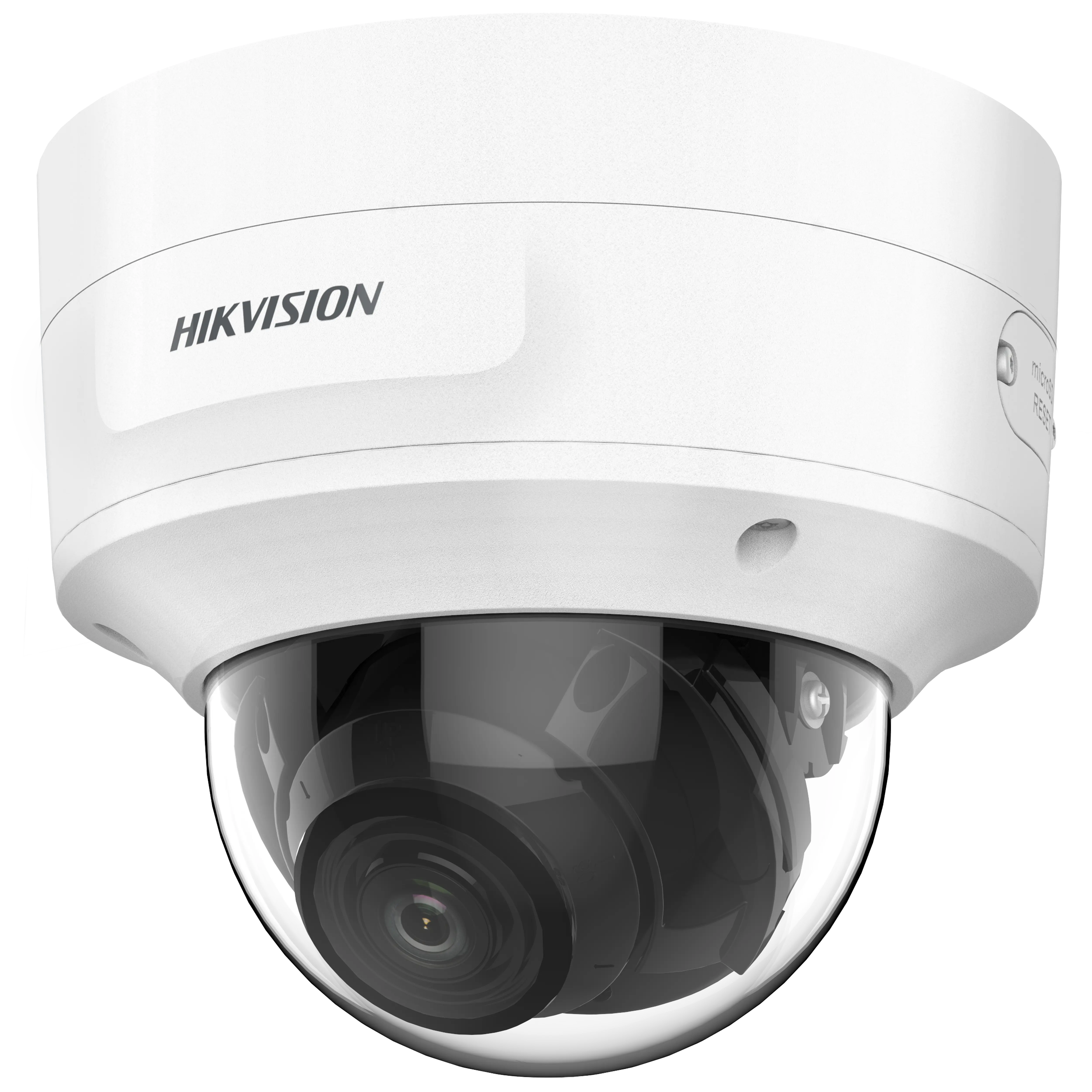

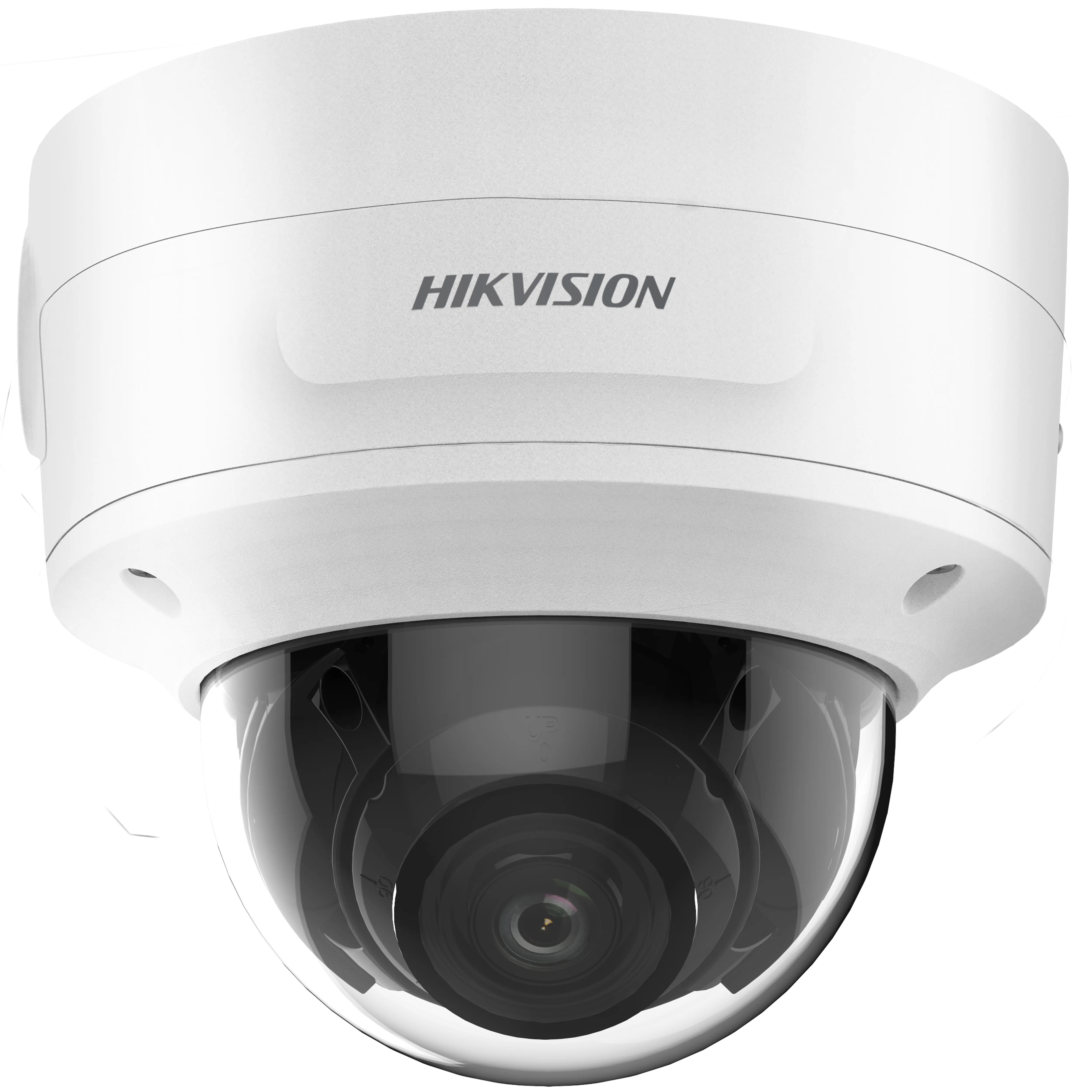

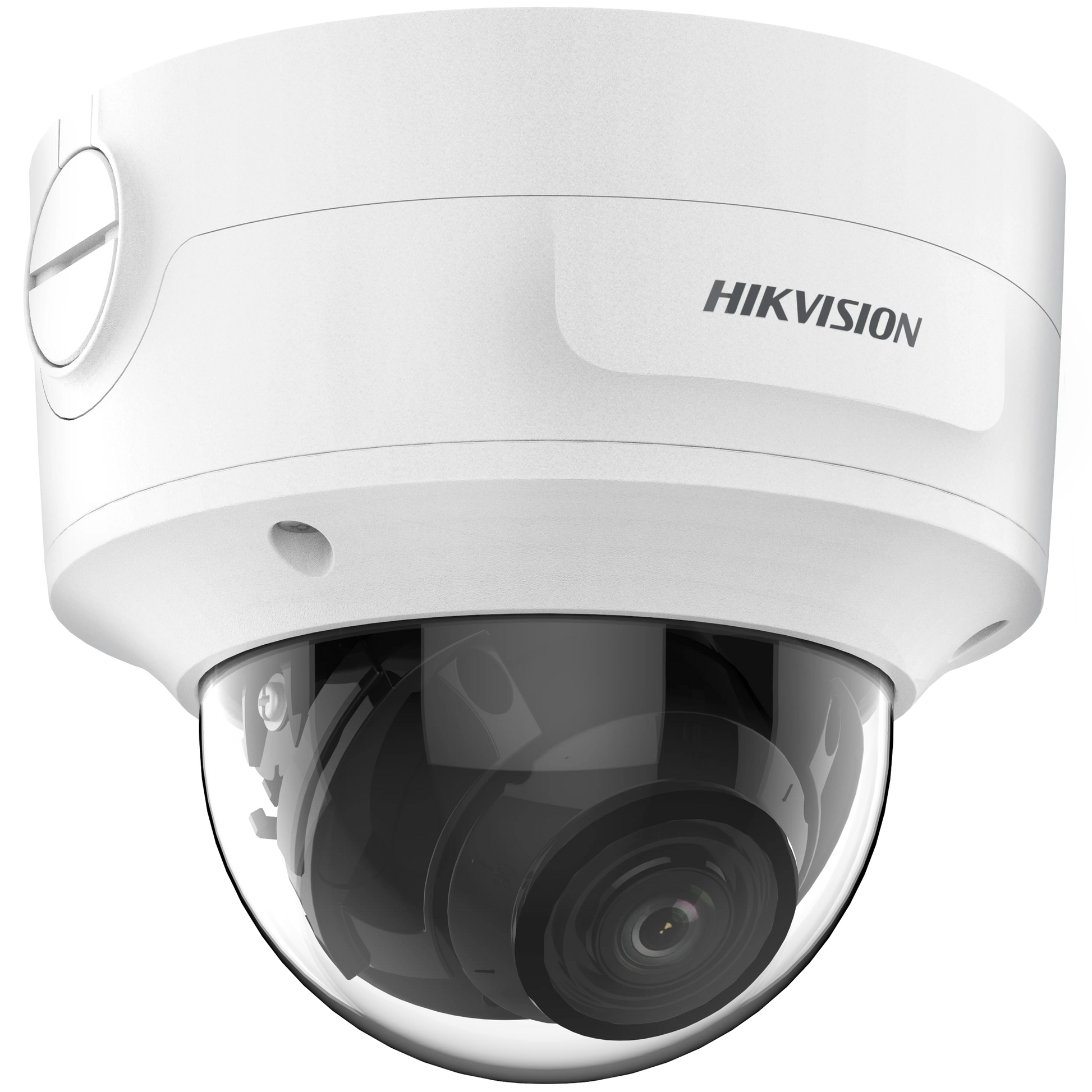

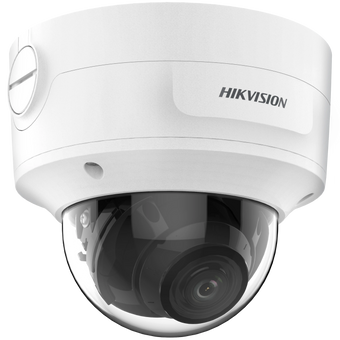

PCI-D18Z2S AcuSense 8MP Varifocal Dome Network Camera

The Hikvision PCI-D18Z2S AcuSense 8MP Varifocal Dome Network Camera delivers ultra-high resolution surveillance with advanced AI-powered human and vehicle detection. Built with DarkFighter low-light technology, 120 dB WDR, and motorized varifocal lens control, this camera provides precise monitoring in challenging lighting environments. Designed for professional security deployments, it combines deep learning analytics, high compression efficiency, and rugged IP67/IK10 protection for reliable indoor and outdoor performance.

Key Features

  • 8 MP ultra-high resolution imaging (3840 × 2160)
  • AcuSense deep learning human and vehicle classification
  • Powered-by-DarkFighter low-light technology
  • 120 dB True WDR for strong backlight environments
  • Motorized varifocal lens for flexible installation
  • H.265+ compression for optimized bandwidth and storage
  • Smart IR illumination up to 40 m / 50 m
  • IP67 weatherproof and IK10 vandal-resistant housing
  • 3D DNR image enhancement
  • MicroSD storage up to 256 GB

Camera

Image Sensor
1/1.8" Progressive Scan CMOS
Maximum Resolution
3840 × 2160
Minimum Illumination
Color: 0.003 Lux @ F1.4, B/W: 0 Lux with IR
Shutter Speed
1/3 s to 1/100,000 s
Day/Night
IR cut filter
Angle Adjustment
Pan 0°–355°, Tilt 0°–75°, Rotate 0°–355°

Lens

Lens Type
Motorized varifocal lens
Focal Length Options
2.7–13.5 mm or 7–35 mm
Aperture
F1.4 (2.7–13.5 mm), F1.6 (7–35 mm)
Field of View
Horizontal 108°–46° or 42°–15° (depending on lens)

Illuminator

Supplement Light Type
IR
IR Range
Up to 40 m or 50 m depending on lens
Smart Supplement Light
Yes
IR Wavelength
850 nm

Video

Compression
H.265+, H.265, H.264, H.264+, MJPEG
Bit Rate
32 Kbps to 16 Mbps
Wide Dynamic Range
120 dB
Image Enhancement
BLC, HLC, 3D DNR

Network

Protocols
TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, RTSP, IPv4/IPv6, SNMP, SSL/TLS
Users
Up to 32 users, 3 permission levels
Storage
MicroSD/SDHC/SDXC up to 256 GB, NAS support

Interface

Ethernet
1 × RJ45 10/100 Mbps
Audio
1 input, 1 output (3.5 mm)
Alarm
1 input, 1 output

Power

Power Supply
12 VDC or PoE (802.3af)
Max Power Consumption
12.9 W

Physical & Environmental

Material
Metal
Protection
IP67 weatherproof, IK10 vandal resistant
Operating Temperature
-30°C to 60°C (-22°F to 140°F)
Dimensions
Ø153.5 mm × 133.1 mm

Accessories (Optional)

  • PM Mount
  • CM Mount
  • RCM-5 Mount
  • WML Wall Mount
  • CPM Pole Mount
  • PC155 Mount

Ideal Applications / Common Uses

  • Commercial security surveillance
  • Warehouse and logistics monitoring
  • Retail stores and shopping centers
  • Parking lot and perimeter protection
  • Office buildings and corporate facilities
  • Critical infrastructure monitoring
  • High-security indoor and outdoor environments
