SIPSB4AGZ/4-U3 Tvt w/ audio IP PoE Camera || ENS-H IPC 4MP Special Housing 4.0mm

Data sheet PDF

Product Description

SIPSB4AGZ/4-U3 || ENS-H, IPC, 4MP, Special Housing, 4.0mm Fixed

? Housing: Special
? Resolution: 4MP
? Lens Category: 4.0mm Fixed
? Night Vision: Full Time Color, LED, Starlight
? WDR: True WDR
? Water Resistance Rating : IP67
? NDAA Compliant: No
? VCA Features:
? Hardware Features: 2 Way Audio, Built-in Mic, Built-in Speaker, POE, SD Card

Product Features

WHAT IS SOLAR POWERED VIDEO SURVEILLANCE TECHNOLOGY?
ENS offers a unique solution to a variety of unique challenges. Our Solar Powered configurations are made to provide safety and security in areas where a power supplies and ethernet cables either cannot reach or cannot be relied upon.

This technology is also used as a backup power supply for various conventional scenarios where there is a supply shortage. This allows for monitoring interruptions such as power outages, power shortage, or blackouts to not be a factor.

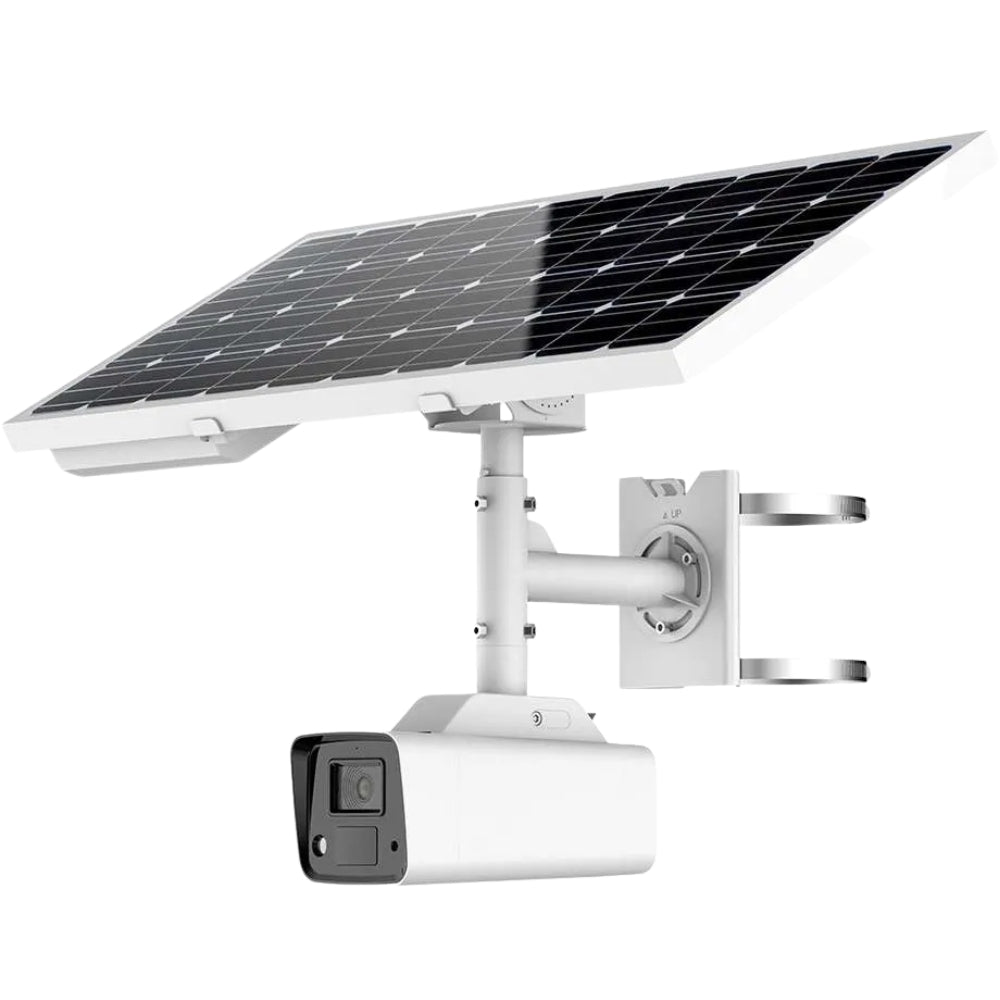

WHAT IS A SOLAR POWERED CAMERA?
Junction Box

To keep the wires safe, preventing from vandalizing

Battery

To store and provide power for the camera

Camera

To capture images and record events

solar_deconstructedSolar PanelJunction BoxBracketSIM Card SlotCameraBattery
Solar Panel

Transforming solar power to electricity, charging the battery

Bracket

Good for the pole-amount installation

SIM Card Slot

Support 4G SIM card fir data transmission

CAMERA SHOWCASE ? THE STANDARD SERIES
Solar Panel
40W panel
Fully charging within 1.5-3 days
Battery and Smart Power Management
180 WH, built-in rechargeable battery;
automatic recharging and power saving;
4.5-day continuous power supply in proactive mode in cloudy/rainy days
Data Transmission
Built-in 4G (LTE-TDD/LTE-FDD/TD-SCDMA/EVDO) module;
ISAPI; ISUP.

Camera
4 MP @ 15 fps;
ColorVu lens with F1.0 big aperture;
4/6 mm lens;
Protection
IP67 for whole system, designed for outdoor use;
Stability against category 12 typhoon;
-20-55? Working Temperature
Extreme low-temperature environments can inevitably lead to battery deficiency.
0-60? model available
WHAT MAKES A GOOD SOLAR-POWERED CAMERA

Long Battery Life
Three choices for different users:

320 WH
180 WH
40 WH
Larger battery capacity
= heavier camera setup
? longer operation time?

4G on IR off:

D company?576Wh/6w = 96h
Hikvision?320Wh/1.9w = 168h

4G on IR on:

D company?576Wh/9.5w = 60h Hikvision?320Wh/2.7w = 118h

WHAT MAKES A GOOD SOLAR-POWERED CAMERA
Low consumption makes it possible to use solar power in security cameras.

Low Power Consumption

WHAT MAKES A GOOD SOLAR-POWERED CAMERA

Great Imaging

UP to 8MP ColorVu
With F1.0 big aperture, the camera captures color images in light and darkness.

THREE WORKING MODES
The solar panel charges the battery during the day, powering the camera throughout the night.
MODE RECORDING COMMUNICATION EVENT TYPE

Note:
Performance mode: this is the mode when cameras work with full functions and high performance; however the constant data communication, events and functions will not be turned on by default when switched to the mode; configuration is available.
Communication: there will be no constant data communication unless continuous streaming (live view or playback) is on. When live view or playback is off, the device withdraws data communication, except for regularly heartbeat confirmation.
Event type: the Advanced Series supports motion detection and smart perimeter protection, but not PIR detection.
Standby mode: the device goes into standby mode when the battery drops to 15% or lower.

PERFORMANCE MODE

AROUND-THE-CLOCK WATCHING AND RECORDING
This is the mode in which cameras can work with full functions and high performance; however the constant data communication, events and functions will not be turned on by default; configuration is available

WITHOUT SUNLIGHT?
2.5-day continuous recording and communicating
When in continuous rainy days, a fully-charged battery can provide the cameras (the Standard Series) with power for full-time recording and data transmission for 2.5 days.

The camera goes into standby mode when the battery drops to 15% or lower.

PROACTIVE MODE

FULL-TIME RECORDING AND EVENT ALERTING
Lots of users want to be reminded only when there?s an event, but prefer a full-time recording.

WITHOUT SUNLIGHT?
4.5-day continuous recording
When in continuous rainy days, a fully-charged battery can provide the cameras (the Standard Series) with power for full-time recording with event alerts for 4.5 days.

The camera goes into standby mode when the battery drops to 15% or lower.

STANDBY MODE

EVENT CAPTURE BY PIR OR MANUAL OPERATION
In most circumstances, users only want to be reminded when there?s an event going on, especially in remote fields.

Alerting the users on VMS system
WITHOUT SUNLIGHT?
24-day standby
When in continuous rainy days, a fully-charged battery can provide the cameras (the Standard Series) with power for 24 days for PIR event recording in standby mode.

WHAT ARE THE CHALLENGES FACED TODAY?
As the challenges have evolved, so to have the solutions. ENS security provides full color at night security cameras with a variety of features to help combat and solve your challenges! These include:

NO CABLES REQUIRED
Powered by solar energy, this kit sets up without any electrical wiring. The built-in battery supports smart power management and long-term power storage.
Users can enjoy up to 7 days of continuous operations in the absence of direct sunlight.
Supporting multiple telecommunications standards including GSM, WCDMA and 4G LTE, the camera setups connect easily and wirelessly to the internet over mobile networks.
EASY INSTALLATION
Constructed with a lightweight and professional modularized design makes the system setup simple. Mechanical equipment is not required, helping to reduce installation time and cost.

PERIMETER PROTECTION
Reliable, clear, vivid images through even the harshest weather conditions, providing an effective detection rate day, night, rain, or shine.
Increased detection rate accuracy, with decreased false alarms, providing enhanced perimeter protection.
Real-time audio warnings and flashing white light provide excellent active deterrence feature and advanced perimeter protection.
APPLICATION SCENARIOS
AGRICULTURE AND FARMING
Effective Monitoring of vast field area
Efficient Perimeter Protection against Intruders and/or Trespass
Monitoring of Livestock and other animals

NATURAL RESORT AND FORESTS
Monitoring for potential fire prevention
Efficient coverage of wide area where there is no power
Effective monitoring and alert of animal activity and intruder alarm
General overall security and surveillance of vast area/field
INDUSTRIAL PIPELINE/ROADS
Protection against criminalities such as theft, vandalism, destruction of property.
Instant alert for trespass for vast area coverage
Effective perimeter protection, with intruder alarm notifications

CONSTRUCTION SITES
Easy installation for temporary yet difficult to manage sites
Complete monitoring of site and employees, reducing liability
Effective perimeter protection and trespass monitoring

ENS provides 24/7 vivid colorful images with F1.0 advanced lenses, high performance sensors and friendly lighting.
F1.0 super-aperture collects more light to produce brighte&
