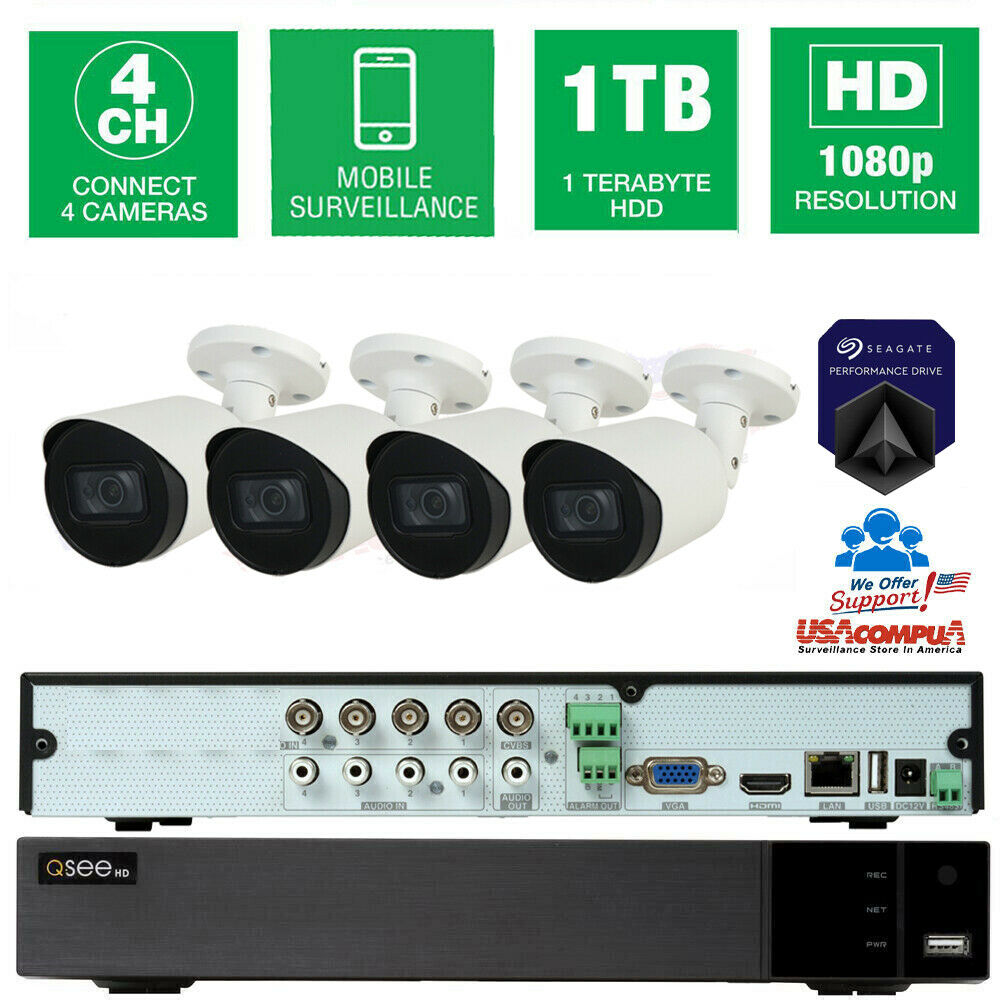

SUPERLIVEPLUSS 4-Channel 4-Camera 1080p Security System 1TB Hard Disk

Data sheet PDF

Product Description

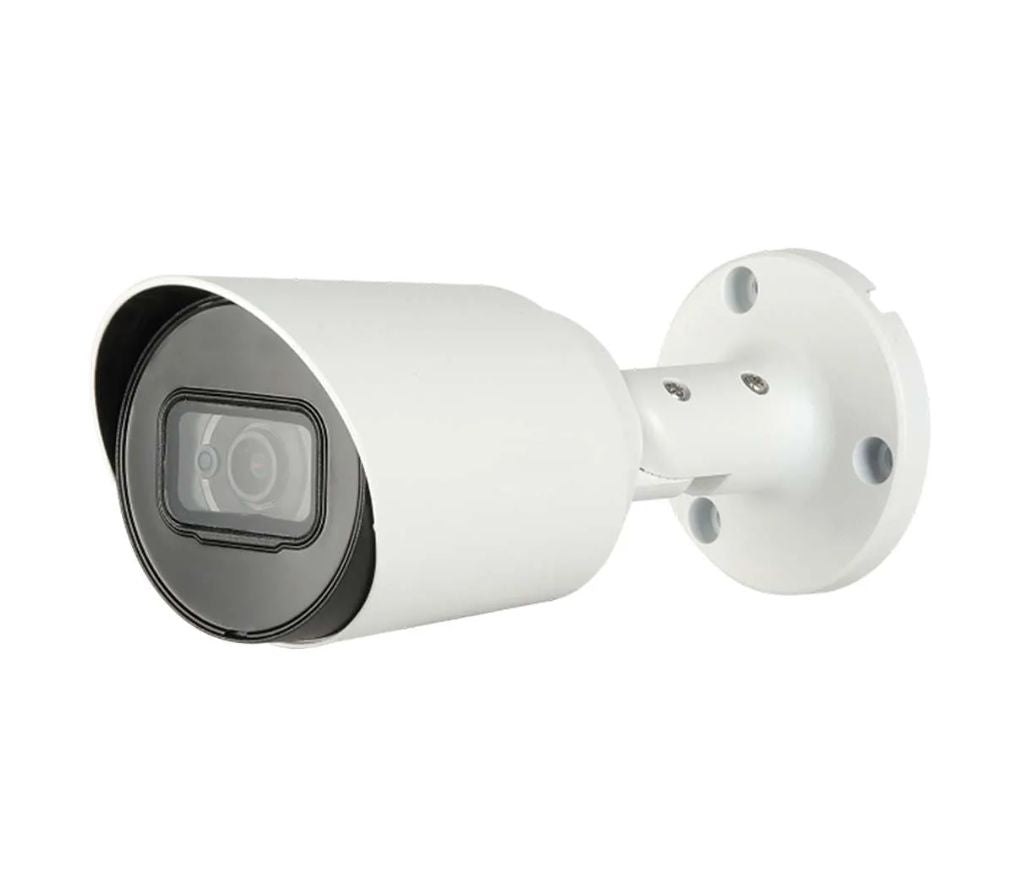

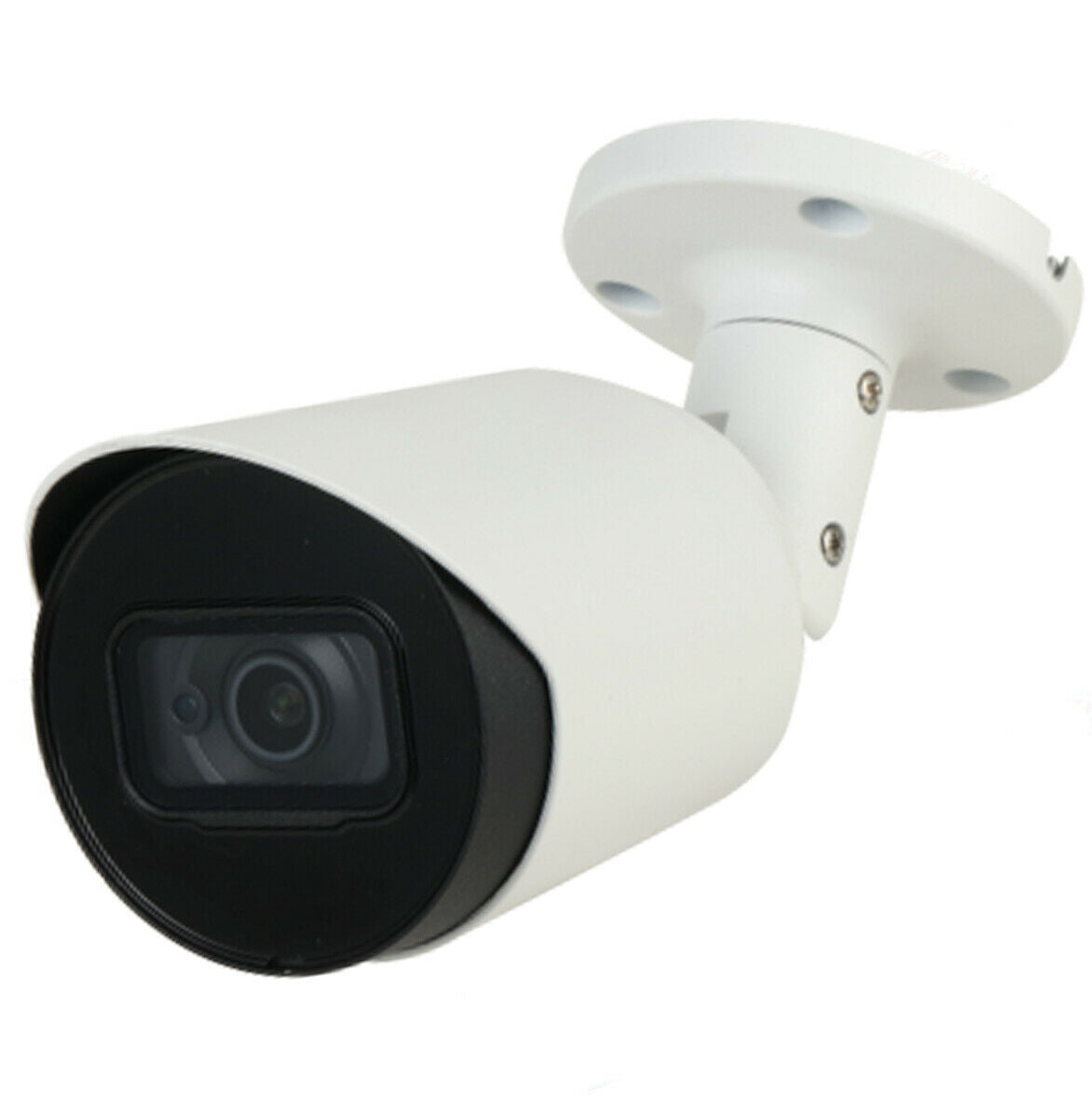

HCC3120T-IR/28 || Diamond, COAX, 2MP, Bullet, 2.8mm Fixed

? Housing: Bullet
? Resolution: 2MP
? Signal: TVI/CVI/CVBS/AHD
? Lens Category: 2.8mm Fixed
? Night Vision: Infrared / IR
? WDR: DWDR
? Water Resistance Rating : IP67
? NDAA Compliant: No
? Hardware Features:

Specifications/p>

Product Description

Downloads

Accessories

Configuration

Advanced Configuration

Scheme Upgrade

Photosensitive Scheme

Photoconductor

UPGRADE

Non-Photosensitive Scheme

ADVANTAGE

1

The non-photosensitive scheme can improve the product service life, it can avoid the photoconductor damage.

2

Avoid the abnormal switching of Day/Night mode because of the environment light changes.

3

It can avoid the different switching time of Day/Night mode, when using the multiple cameras.

Comparison

• Diamond Series Coax security cameras come with a cleaner, sharper image both day and night.
• With a 1/ 2.7 ?2MP CMOS (Sensor Upgrade)

OLD

UPGRADED

OLD

UPGRADED

OLD

UPGRADED

Perimeter Protection:

(Only supported when coupled with XVR-I3 Series recorder)

• Home Entrance and Exit Protection
• Deter Asset Theft and Vandalism
• Clear Images Both Day and Night with Smart IR (98ft)
• Home or Business Perimeter Protection

1080P High Definition:

• Diamond Series coaxial security cameras push High Definition (HD) video straight to our Digital Video Recorders.
• With clear-cut live view and recording capability, our 1080P cameras provide a clear video with excellent field of view.

Smart IR:

• Provide Clear Images Both Day and Night with Smart IR Technology (98ft distance)
• Theft and Vandalism Prevention
• Home or business night-time protection

24/7 Monitoring:

• Effective Business Asset Protection
• Efficient Home Security Day and Night
• Ensure Safety and Security in Workplace

APPLICATION SCENARIOS

As the challenges have evolved, so to have the solutions. Diamond Series HD over coax security cameras provide broad area surveillance to help combat and solve your challenges! These Include:

Entrance & Exit Monitoring / Home Security

(Only supported when coupled with XVR-I3 Series recorder)

Whether it be entrance/exit, side entrance, backyard, or driveway monitoring, our Diamond Series HD Over Coax security cameras utilize Smart IR technology to provide clear visibility and excellent perimeter protection both day and night for effective home and business security.

SMB Loss Prevention & Asset Protection

24/7 monitoring with Smart IR provides enhanced safety and security for not only business assets, but also customer, patron, and employee safety.

Commercial Property & Tenant Protection

Utilize basic security and Smart IR, providing 24/7 monitoring, day and night, allowing for efficient protection of tenants and property.

Provide basic safety and security with Diamond Series HD Over Coax security cameras, in order to detect real threats in real-time, prevent vandalism, theft, and other criminalities.

• Product Description

2MP Security Camera Features

• The parameters and datasheets below can only be applied to 1200-S4 series.
• At 1080p, the maximum frame rate is 30 frames per second.
• It?s possible to switch between HD and SD outputs.
• Fixed focal length of 2.8mm
• 30m (98ft) maximum IR range, Smart IR
• IP67, DC12V

Data sheet PDF

Product Description

ED8004H5-BN2 || Titanium, DVR, 5MP Lite, 4CH, 1X SATA PORT

? Max Recording Resolution: 5MP Lite
? Channels: 4CH
? LAN Ports: 1
? SATA: 1X SATA PORT
? Video Outputs: HDMI / VGA
? NDAA Compliant: Yes
? Hardware Features: Audio in, Audio out, BNC Video Out

SPECIFICATIONS

ED8004H5-BN2

255? 222? 42( W ? D ? H )
SATA ? 1, up to 10TB
HDMI ? 1 : 1920 ? 1080 / 1280 ? 1024 / 1024 ? 768
VGA ? 1 : 1920 ? 1080 / 1280 ? 1024 / 1024 ? 768
BNC ? 1 : CVBS ( used as the main or spot output )

RS 485 ? 1 (half-duplex)

?5W( without HDD)
Up to 5MP@30fps

DC12V / 1.5A
USB 2.0 ? 2 ( in the rear panel )
TVI/AHD/CVI:5MP/4MP/1080P/720P/WD1

5MP Lite/4MP Lite/1080P/1080P Lite/720P/WD1
Analog Channel: 5MP Lite :10fps; 4MP Lite/1080P : 12fps (PAL)/15fps (NTSC);
1080P Lite/720P/WD1 : 25fps (PAL)/30fps (NTSC)

IP Channel: 25fps (PAL)/30fps (NTSC)

16Mbps(max.36Mbps)

Playback

Network

-10~50?C, 10%~90% (humidity)
RCA ? 1
RCA ? 1 (linear, 600?)

No
No
32Kbps ~ 4Mbps
Manual, timer, motion, smart event

Model

Audio

Working Environment
System

Video

OS
Analog Video Input

IP Video Input
Total Input
Output

Input
Output
Two-way audio
Resolution
Frame Rate
Bit Rate
Mode
Playback
Search
Smart Search
Function
Mode
Input
Output

Interface
Protocol
Incoming Bandwidth

OS
HDD
Local Backup
Network Backup
RS 485
USB
Remote Controller
Power Supply
Consumption
Dimensions(mm)

Embedded Linux
BNC ? 4

2CH (up to 6CH)

4CH
Take up channel one audio input

Time slice / time / event / tag search
Highlight colors to display the camera record in a certain period of time, different colors refer to different record
events
Play, pause, FF, FB, digital zoom, etc.
Manual, motion, exception, smart event

RJ 45 100Mbps ? 1
TCP / IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, 802.1x, FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP,
Websocket, SNMP, IGMP

iOS, Andriod
U disk, USB mobile HDD
Yes

Optional

Record

Alarm

AI Function

Mobile Device
Storage
Backup
Port

Others

6CH

Compression
Multi-screen Display

Compression

H.264/H.265/H.265+

G.711(U/A)
BNC interface (1.0Vp-p; 75?)

Outgoing Bandwidth
Client Connection

40Mbps
Max. 5 users access
1/4/6/9

Certificate
Environmental Protection
CE, FCC
Comply with Directive EU RoHS, WEEE, REACH
