SUPERLIVEPLUSS 8 Channel 1080p Analog DVR Security Cameras System CCTV

Data sheet PDF

Product Description

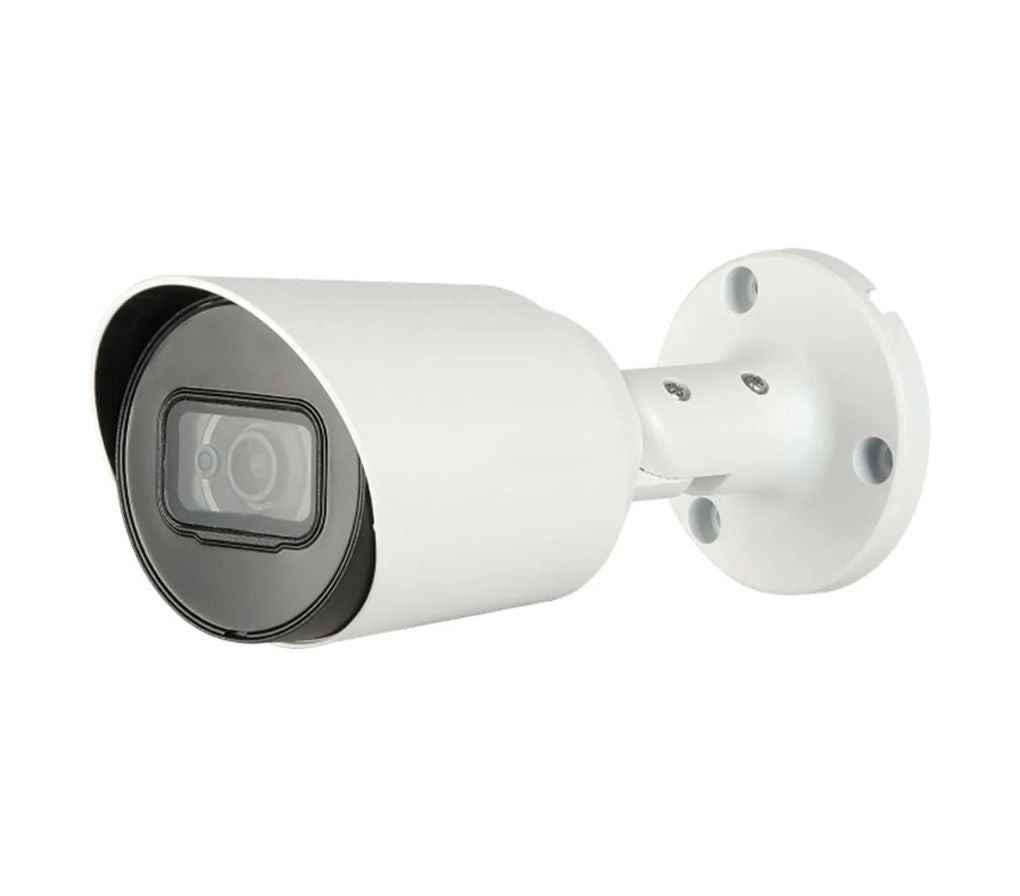

HCC3120T-IR/28 || Diamond, COAX, 2MP, Bullet, 2.8mm Fixed

? Housing: Bullet
? Resolution: 2MP
? Signal: TVI/CVI/CVBS/AHD
? Lens Category: 2.8mm Fixed
? Night Vision: Infrared / IR
? WDR: DWDR
? Water Resistance Rating : IP67
? NDAA Compliant: No
? Hardware Features:

Specifications/p>

Product Description

Downloads

Accessories

Configuration

Advanced Configuration

Scheme Upgrade

Photosensitive Scheme

Photoconductor

UPGRADE

Non-Photosensitive Scheme

ADVANTAGE

1

The non-photosensitive scheme can improve the product service life, it can avoid the photoconductor damage.

2

Avoid the abnormal switching of Day/Night mode because of the environment light changes.

3

It can avoid the different switching time of Day/Night mode, when using the multiple cameras.

Comparison

• Diamond Series Coax security cameras come with a cleaner, sharper image both day and night.
• With a 1/ 2.7 ?2MP CMOS (Sensor Upgrade)

OLD

UPGRADED

OLD

UPGRADED

OLD

UPGRADED

Perimeter Protection:

(Only supported when coupled with XVR-I3 Series recorder)

• Home Entrance and Exit Protection
• Deter Asset Theft and Vandalism
• Clear Images Both Day and Night with Smart IR (98ft)
• Home or Business Perimeter Protection

1080P High Definition:

• Diamond Series coaxial security cameras push High Definition (HD) video straight to our Digital Video Recorders.
• With clear-cut live view and recording capability, our 1080P cameras provide a clear video with excellent field of view.

Smart IR:

• Provide Clear Images Both Day and Night with Smart IR Technology (98ft distance)
• Theft and Vandalism Prevention
• Home or business night-time protection

24/7 Monitoring:

• Effective Business Asset Protection
• Efficient Home Security Day and Night
• Ensure Safety and Security in Workplace

APPLICATION SCENARIOS

As the challenges have evolved, so to have the solutions. Diamond Series HD over coax security cameras provide broad area surveillance to help combat and solve your challenges! These Include:

Entrance & Exit Monitoring / Home Security

(Only supported when coupled with XVR-I3 Series recorder)

Whether it be entrance/exit, side entrance, backyard, or driveway monitoring, our Diamond Series HD Over Coax security cameras utilize Smart IR technology to provide clear visibility and excellent perimeter protection both day and night for effective home and business security.

SMB Loss Prevention & Asset Protection

24/7 monitoring with Smart IR provides enhanced safety and security for not only business assets, but also customer, patron, and employee safety.

Commercial Property & Tenant Protection

Utilize basic security and Smart IR, providing 24/7 monitoring, day and night, allowing for efficient protection of tenants and property.

Provide basic safety and security with Diamond Series HD Over Coax security cameras, in order to detect real threats in real-time, prevent vandalism, theft, and other criminalities.

• Product Description

2MP Security Camera Features

• The parameters and datasheets below can only be applied to 1200-S4 series.
• At 1080p, the maximum frame rate is 30 frames per second.
• It?s possible to switch between HD and SD outputs.
• Fixed focal length of 2.8mm
• 30m (98ft) maximum IR range, Smart IR
• IP67, DC12V

Data sheet PDF

Product Description

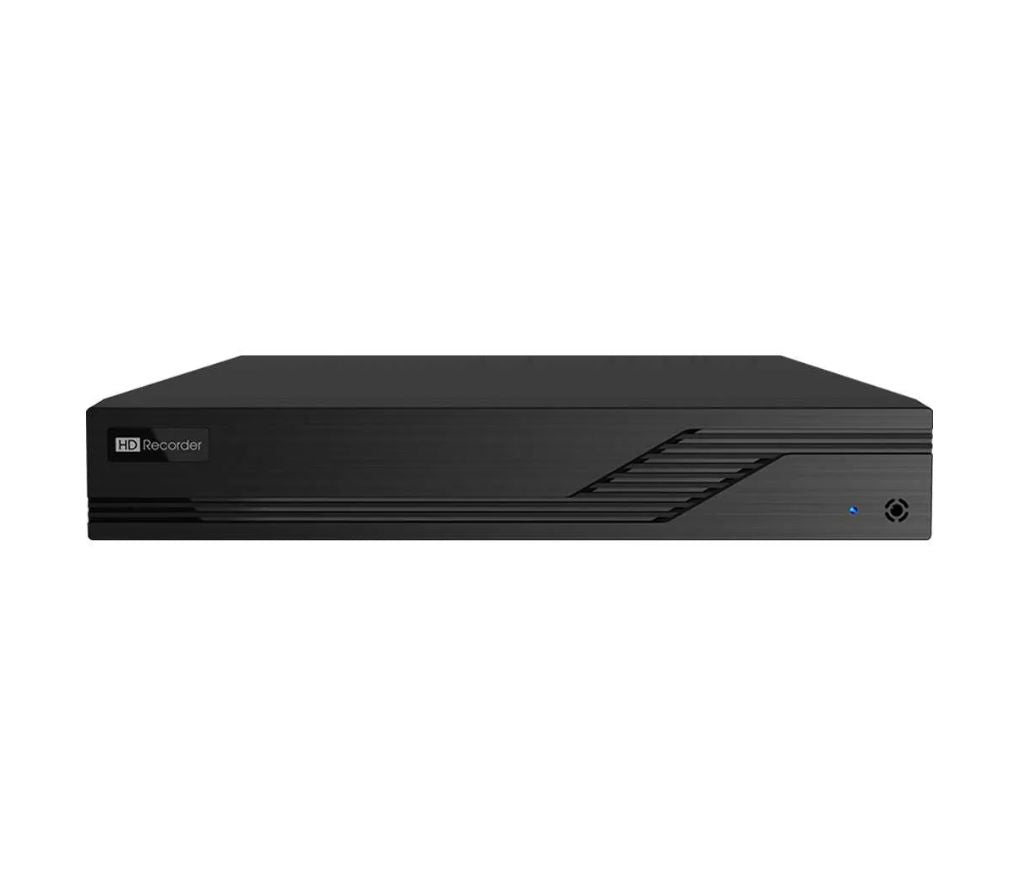

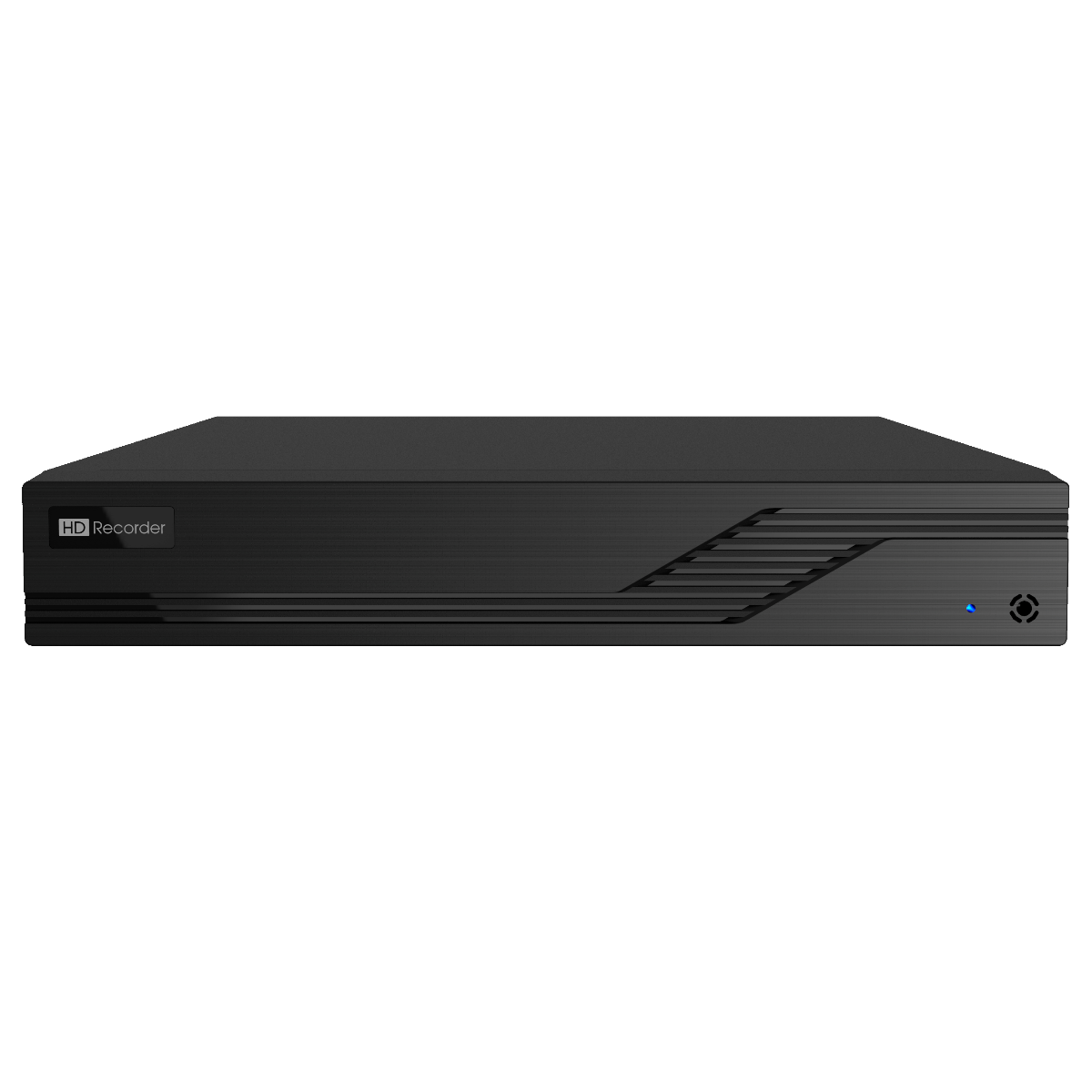

Titanium 8CH Hybrid 4 in 1 DVR ED8008H5-BN

? Max Recording Resolution: 5MP Lite
? Channels: 8CH (Convert IP CH available after Firmware 1.3.8)
? LAN Ports: 1
? SATA: 1X SATA PORT
? Video Outputs: HDMI / VGA
? NDAA Compliant: Yes

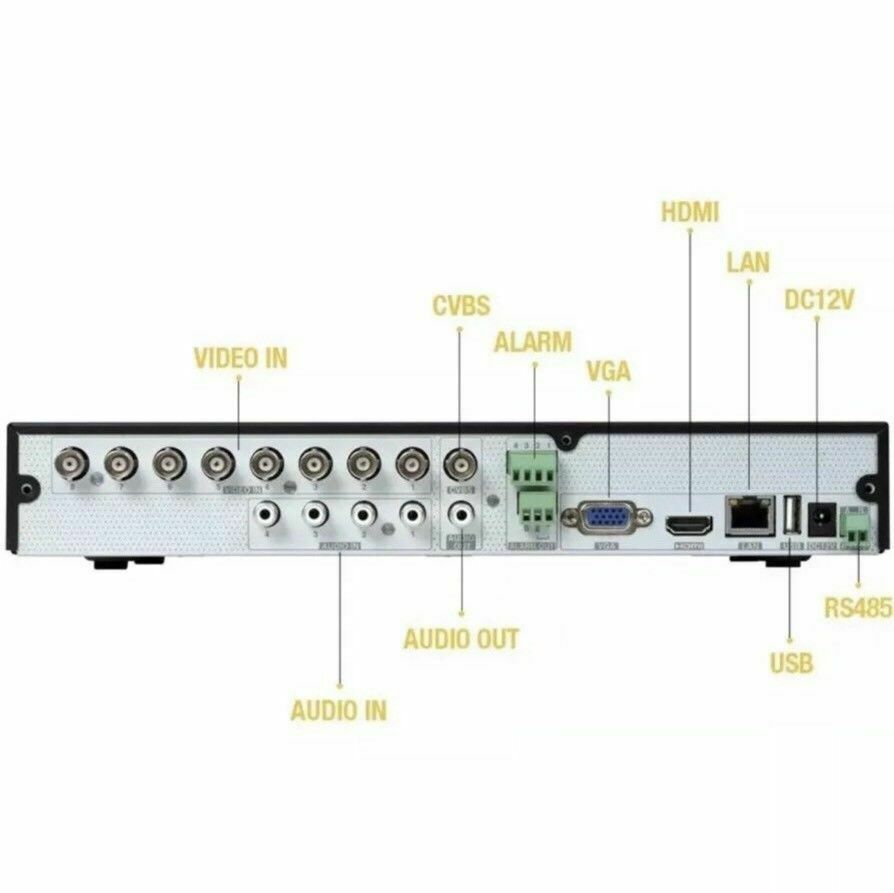

? Hardware Features: Audio in, Audio out, BNC Video Out

Specifications

Downloads

Accessories

Configuration

Advanced Configuration

Features

• 8CH TVI / AHD/CVI 5MP/4MP/1080P/720P/WD1 video input
• 8CH DVRs support 2 / 4 / 8 CH 5MP / 4MP / 3MP /1080P / 960P /720P IP video input (Convert IP CH available after Firmware 1.3.8)
• Adopt standard H.265 high profile compression format to get high-quality video at the much lower bit rate
• Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
• Multi-mode recording: manual / timed / motion / AI recording Playback : 16 CH simultaneously playback
• Search: time slice, time, event, tag search
• Express and flexible backup via USB, network, and so on
• Pentaplex: preview, record, playback, backup, and remote access
• DHCP, DDNS, PPPoE network protocol
• Remote control via Web or CMS: preview, playback, backup, PTZ and configuration
• Dual stream technology for local storage with high definition, remote network transmission, and remote surveillance with the mobile device
• Authorization management, log review, and device status review
• Support 1080P output, true high-resolution display
• Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
• Support NAT function and QRCode scanning by mobile phones

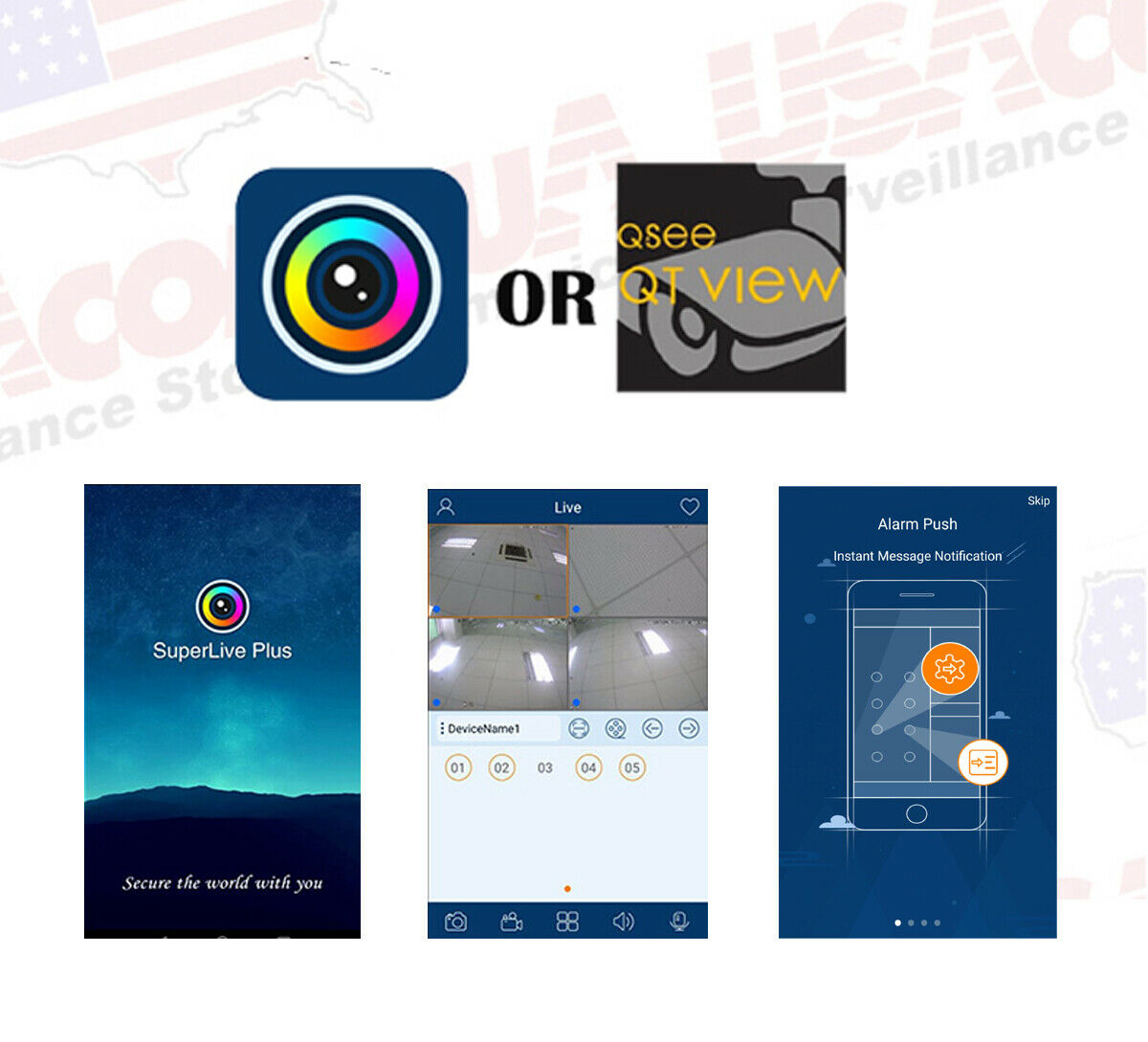

• Powerful mobile surveillance by smartphones with iOS and Andriod OS

This Titanium Digital Video Recorder (DVR) works with: Coaxial/ Analog Security Camera

Weight	2.733729 lbs
Dimensions	14.2519762 ? 3.4251987 ? 11.4960692 in
