Technical Specifications

Data sheet PDF

Product Description

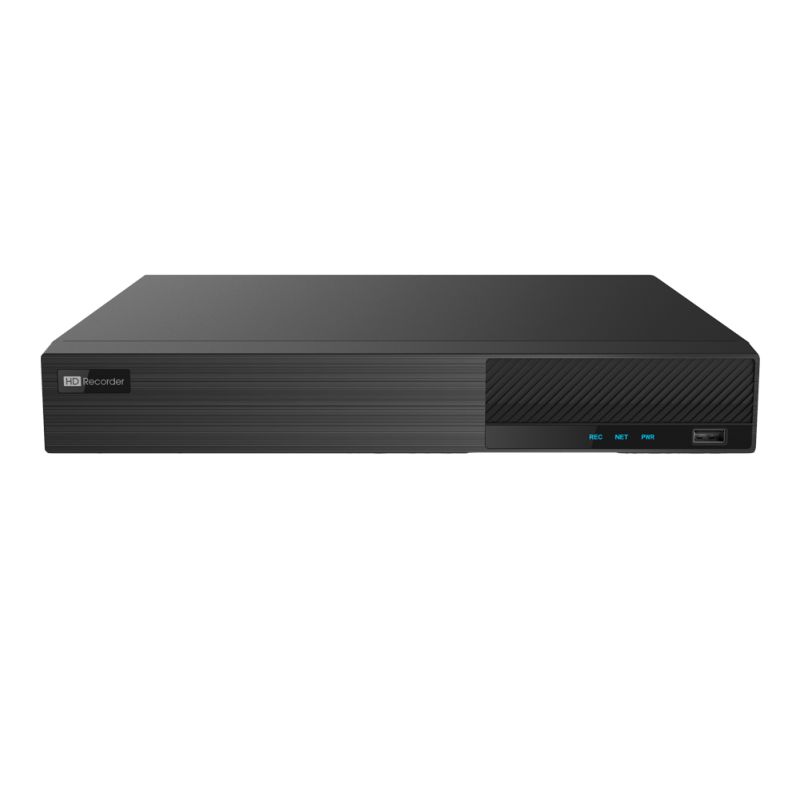

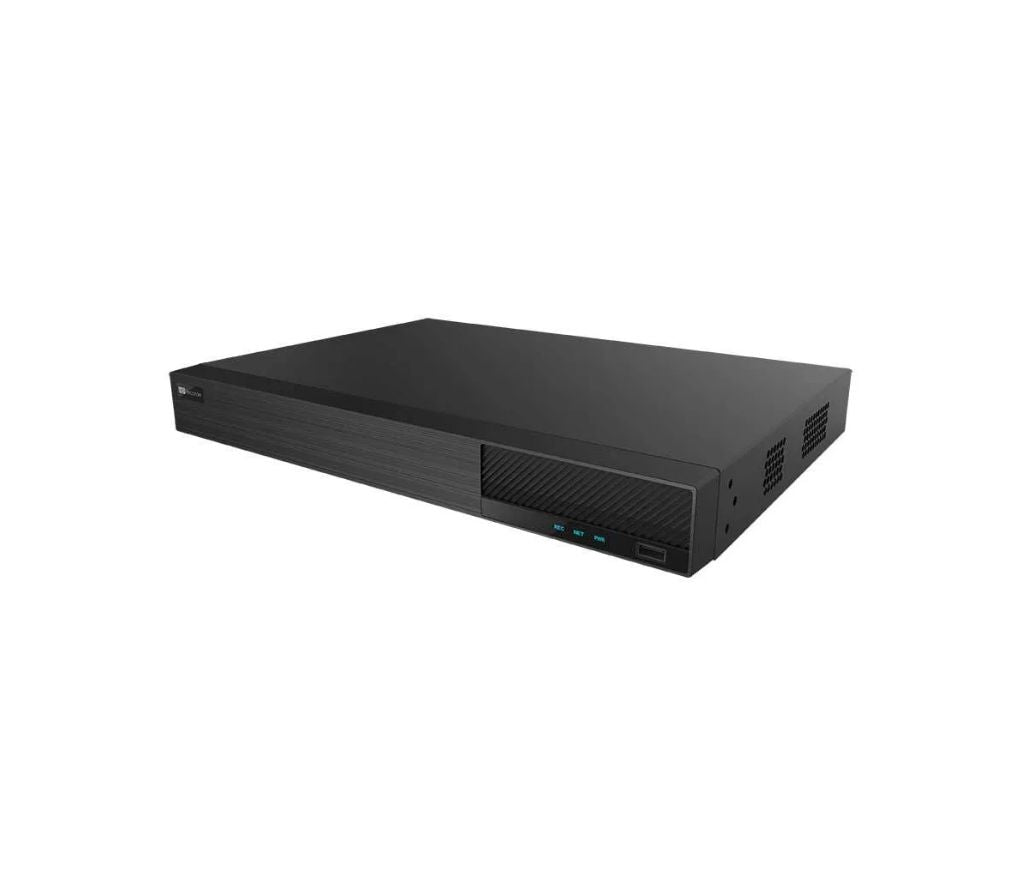

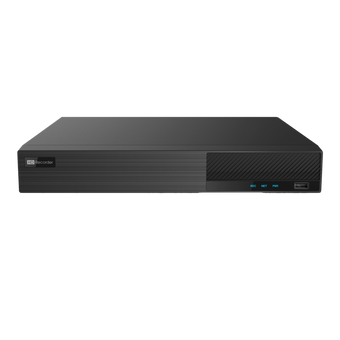

8Channels 8PoE Titanium 8MP High Definition NVR ED9308H5NV-8P-3

? Max Recording Resolution: 8MP Lite
? Channels: 8CH
? Built-in POE : 8 Port PoE
? LAN Ports: 1
? SATA: 1X SATA PORT
? Video Outputs: HDMI / VGA
? NDAA Compliant: No
? VCA Features: Basic VCA, Human / Vehicle Classification, People Counting, POS / Point of Sale
? Hardware Features: Audio in, Audio out



  • SPECIFICATIONS

  • Downloads

  • Accessories

  • Configuration

  • Advanced Configuration

  • Features

  • Support 8 CH 8MP/6MP/5MP/4MP/3MP/1080P/ 960P/720P/960H/DI/CIF IP input
  • Adopt standard H.265 and H.264 high profile compression format to get high-quality video at a much lower bit rate
  • Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse
  • Multi-mode recording: manual / timer / motion / sensor/smart events
  • Playback: 8CH simultaneous playback
  • Search: time slice, time, event, tag, smart search
  • Express and flexible backup via USB, network and so on
  • Pentaplex: preview, record, playback, backup, and remote access
  • DHCP, DDNS, PPPoE network protocol and CMS supported
  • Remote control via Web or CMS: preview, playback, backup, PTZ and configuration

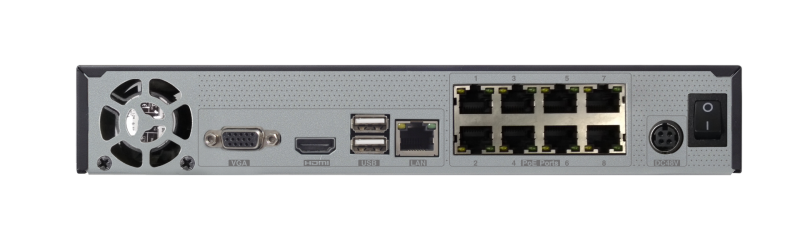

  • 8 PoE network ports, support IPC direct connection to NVR; support PoE power supply
  • Dual stream technology for local storage with high definition, remote network transmission and remote surveillance with the mobile device
  • Multi-user online simultaneously
  • Authorization management, log view and device status view
  • 4K output, true high-resolution display
  • Support NAT function and QR Code scanning by mobile phones
  • Powerful mobile surveillance by smartphones with iOS and Android OS
  • This Network Security Camera works with Titanium Networking Video Recorder

    Weight 5.423365 lbs
    Dimensions 6 ? 6 ? 6 in
