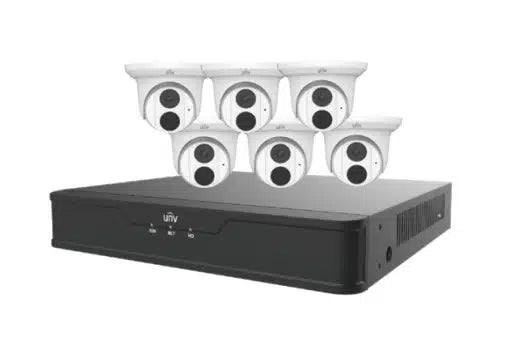

NVR301-08S3-P8 – NVR Specifications
Incoming Bandwidth
64Mbps
Outgoing Bandwidth
48Mbps
Protocols
TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP
HDMI/VGA Output
HDMI:
4K(3840x2160)/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Recording Resolution
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Compression
G.711A, G.711U
Synchronous Playback
8-ch
Liveview display
1/4/6/8/9
Corridor Mode Screen
3/4/5/7/9
Snapshot
FTP/Schedule/Event Snapshot 1-ch snapshot, up to D1 resolution
Decoding format
Ultra 265/H.265/H.264
Live view/Playback
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability
1 x 4K@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080p@30, 8 x 720p@30
Capacity
Up to 8TB for each disk
(The maximum HDD capacity varies with environment temperature)
VCA Detection by Camera
Face Detection, Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Audio Detection, Ultra Motion Detection(UMD)
VCA Search
Face Search, Behavior Search
General Alarm
Motion, Tampering, Human Body Detection, Video Loss, Alarm Input
Alert Alarm
IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
Network Interface
1 RJ-45 10M/100Mself-adaptive Ethernet Interface
USB Interface
Rear panel: 2 x USB2.0
PoE Interface
8 RJ-45 10M/100Mself-adaptive Ethernet Interface
Max Power
Max 30W for single port
Max 75W in total
Supported Standard
IEEE 802.3at, IEEE 802.3af
Power Consumption
≤9 W (without HDD)
Working Environment
-10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
Dimensions (W×D×H)
260mm ×240mm × 46 mm (10.2" × 9.4" ×1.8")
Weight (without HDD)
≤1.1kg (2.43lb)
Certification
CE, FCC, UL, RoHS, WEEE
CE
EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
FCC
Part15 Subpart B, ANSI C63.4
IPC3614LB-AF28K-DL – Camera Specifications
Min. Illumination
Colour: 0.01 lux ( F1.6, AGC ON)
0 lux with IR
Day/Night
IRcut filter with auto switch (ICR)
Shutter
Auto/Manual, 1 ~ 1/100000s
Adjustment angle
Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
DORI Distance Detect
63.0m(206.7t)
DORI Distance Observe
25.2m(82.7ft)
DORI Distance Recognize
12.6m(41.3ft)
DORI Distance Identify
6.3m(20.7ft)
Illumination Distance(IR)
30m
Illumination Distance(Warm Light)
30m
IR On/Off Control
Auto/Manual
Video Compression
Ultra 265; H.265; H.264; MJPEG
H.264 code profile
Baseline profile, Main profile, High profile
Frame Rate
Main Stream: 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate
128 Kbps~6144 Kbps
Privacy Mask
Up to 4 areas
Video stream
Dual streams
White Balance
Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2
Digital noise reduction
2D/3D DNR
Flip
Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anticlockwise
Basic Detection
Motion detection; Tampering alarm; Audio detection, Human Body Detection
General Function
Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP authentication
Audio Compression
G.711U; G.711A
Edge Storage
Micro SD up to 128 GB
Network Storage
ANR; NAS(NFS)
Protocols
IPv4; IGMP; ICMP; ARP; TCP; UDP; DHCP; RTP; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; QoS; SSL/TLS; SNMP
Compatible Integration
ONVIF (Profile S, Profile G, Profile T); API; SDK
User/Host
Up to 32 users, 2 user levels: administrator and common user
Security
Password protection; Strong password; HTTPS encryption; Export operation logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF
Client
UNVLink; UNVLink Pro; EZStation
Web Browser
Plugin required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above;
Plugin free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Network
1 * RJ45 10M/100M BaseTX Ethernet
EMC
CEEMC (EN 55032, EN 6100033, EN IEC 6100032, EN 50130)
FCC (FCC 47 CFR part15 B)
Safety
CE LVD (EN 623681)
UL/CUL (UL 623681, CAN/CSA C22.2 No. 623681)
Environment
CERoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
Protection
IP67 (IEC 60529)
Power
DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 2.8W
Power Interface
Ø 5.5mm coaxial power plug
Dimensions
Φ126 x 93.6mm (Φ5.0” x 3.7”)
Working Environment
30 °C ~ 60 °C (22 °F ~ 140 °F), Humidity: ≤95% RH (noncondensing)
Storage Environment
30 °C ~ 60 °C (22 °F ~ 140 °F), Humidity: ≤95% RH (noncondensing)
Web Client Language
4 Languages
English, Russian, Spanish, Vietnamese
